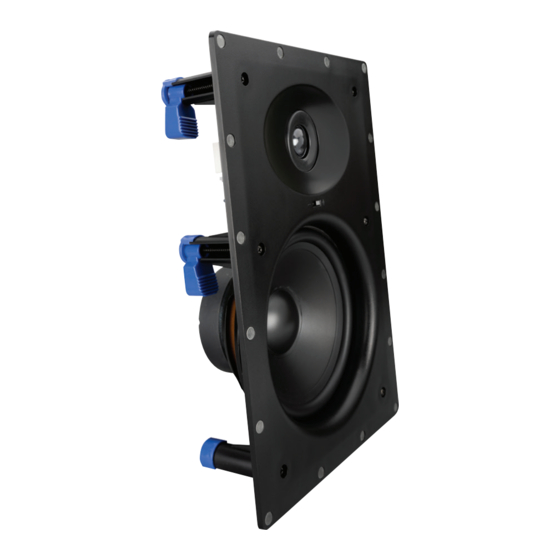

- Page 1 Beale Street Audio IW5-BSC 5.25” In-Wall Speaker Installation Guide...
- Page 2 Introduction Congratulations and thank you for purchasing Beale Basics Series speakers from Beale Street Audio! Beale Basics In-Wall speakers install with ease using the ‘dog ears’ mounting system and magnetic grilles for fast, clean installations. Please follow the instructions in this manual to assure proper installation and to achieve the full performance and satisfaction you would expect from Beale Street Audio.
- Page 3 Features 5.25” In-Wall Speaker IW5-BSC • Woofer: 5.25” Polypropylene cone with rubber edge • Swivel Tweeter: .75” Silk Dome • Tweeter Attenuation: ±3dB • RMS Power: 50W • Nominal Impedance: 8Ω • Sensitivity: 85dB • Crossover Slope: 12dB/Octave • Frequency Response: 70Hz-20kHz •...
- Page 4 Installation Use a stud finder to locate an area that is free of obstructions or studs. Position the provided cutout template where you are installing the speaker(s). Trace the template to mark out the speaker location. Drill a pilot hole and cut all the way around the outline.
- Page 5 Attach the grill Connect the other end of the speaker wire to the amplifier, ensuring polarity is correct with Left/- of the amp terminals going to Left/- on the speaker and Right/+ on the amp going to the Right/+ terminals on the speaker...
- Page 6 Troubleshooting Beale Street Audio speakers are designed to function trouble-free. Most problems that occur are due to simple issues. If you have trouble, please check the list of simple fixes below.
- Page 7 Limited Lifetime Warranty For Beale Street Audio Branded In-Wall and In-Ceiling Speakers and Subwoofers Purchased after May 1, 2017 Limited Warranty Vanco warrants to you, the original consumer purchaser of speakers, that under proper use and conditions, and subject to the other conditions provided below, your speakers will be free from defective materials and workmanship for the life of the speakers.
- Page 8 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC.
