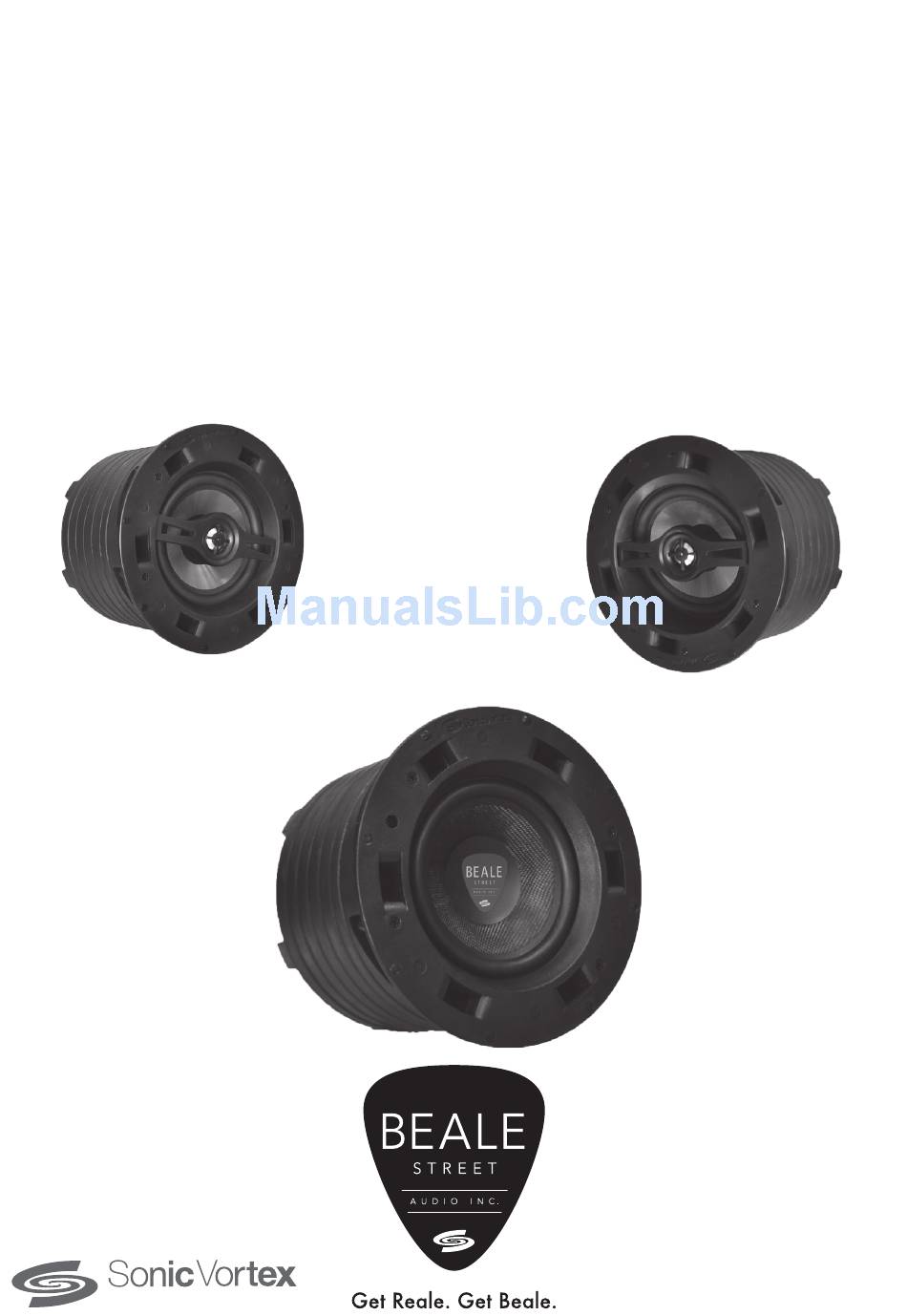

- Page 1 Beale Street Audio IC6-B, IC6-MB, IC6-BB, IC8-B, IC8-MB, IC8-BB, ICA6-B, ICA6-MB, ICA6-BB, IC6DVC-B, BS650 In Ceiling Speakers ICS6-MB, ICS8MB In Ceiling Subwoofers Installation Guide POWERED BY: T E C H N O L O G Y...
- Page 2 Introduction Congratulations and thank you for purchasing Beale Street Audio In Ceiling speakers and subwoofers with Sonic Vortex. Our patented Sonic Vortex Technology is based on Ported Transmission Line design and incorporates a compact, integrated enclosure. Most In Ceiling speakers do not utilize a back box, even fewer have an enclosure, and only a Sonic Vortex speaker has an Integrated Transmission Line Ported Enclosure.
-
Page 3: Speaker Placement
Speaker Placement When installing in ceiling speakers or subs, (or in ceiling anything for that matter) it is always a good idea to find out what is in the ceiling before cutting holes. Be aware of the location of plumbing, electrical and structural elements that may affect speaker placement. -
Page 4: Installation
400’ (122m) 14AWG NEW CONSTRUCTION Beale Street Audio speaker installation can be simplified by using a Beale Street Audio new construction EZBracket, (sold separately; visit www.getbeale.com for additional information). This is installed prior to drywall installation and allows for precise speaker placement and simplifies the final installation of the speaker. - Page 5 Installation • Once you have determined your locations, use a pencil to mark the hole to cut out for the speaker using the supplied template. Don’t forget to allow for the size of the speaker bezel if you are installing the speaker near a sidewall or other item that could become an obstacle.
- Page 6 Installation 16AWG (min) 16AWG (min) Stranded Speaker Wire Stranded Speaker Wire + to + + to + - to - - to - L+ R- R+ Amplifier Speaker Terminal • With the ‘dogs’ flush to the side of the speaker, insert the speaker into the ceiling and tighten each of the four screws for the speakers’...
-
Page 7: Speaker Troubleshooting
Troubleshooting Beale Street Audio speakers are designed to function trouble-free. Most problems that occur are due to simple issues. If you have trouble, please check the list of simple fixes below. SPEAKER TROUBLESHOOTING PROBLEM SOLUTION NO SOUND Verify that there is audio from the source selected. -
Page 8: Specifications
Specifications 6.5” IN CEILING IC6-B 6.5” In Ceiling 2-way • 6.5” Polypropylene Woofer • 1” Silk Dome Tweeter • Butyl Rubber Surround • Pivoting Tweeter • Speaker Weight: 7lbs (3.18kg) • Cutout: 8.4” (214mm) • Diameter 9.4” (239mm) • Depth 6.8” (172mm) •... - Page 9 Specifications 8” IN CEILING IC8-B 8” In Ceiling 2-way • 8” Polypropylene Woofer • 1” Silk Dome Tweeter • Butyl Rubber Surround • Pivoting Tweeter • Sonic Vortex Ported Transmission Line Enclosure • Speaker Weight: 8.38 lbs (3.8kg) • Cutout: 10.3” (261.5mm) •...
- Page 10 Specifications 6.5” ANGLED IN CEILING ICA6-B 6.5” Angled In Ceiling 2-way • 6.5” Polypropylene Woofer • 1” Silk Dome Tweeter • Butyl Rubber Surround • Pivoting Tweeter • 15 Degree Angled Woofer • Sonic Vortex Ported Transmission Line Enclosure • Speaker Weight: 6.97 lbs (3.16kg) •...
- Page 11 Specifications 6.5” DUAL VOICE COIL 6.5” IN CEILING SUBWOOFER IC6DVC-B 6.5” In Ceiling Dual Voice Coil ICS6-MB 6.5” In Ceiling Subwoofer • 6.5” Polypropylene Woofer • 6.5” Kevlar Woofer • 1” Silk Dome Tweeter • Butyl Rubber Surround • Butyl Rubber Surround •...
-
Page 12: Limited Warranty
Certified Beale Street Audio/Beale Street Audio Dealer. Proof of purchase may be required. Note: It is the policy of Beale Street Audio/Beale Street Audio to continuously incorporate improvements into our products. All specifications, warranty terms, and prices are subject to change without notice.
