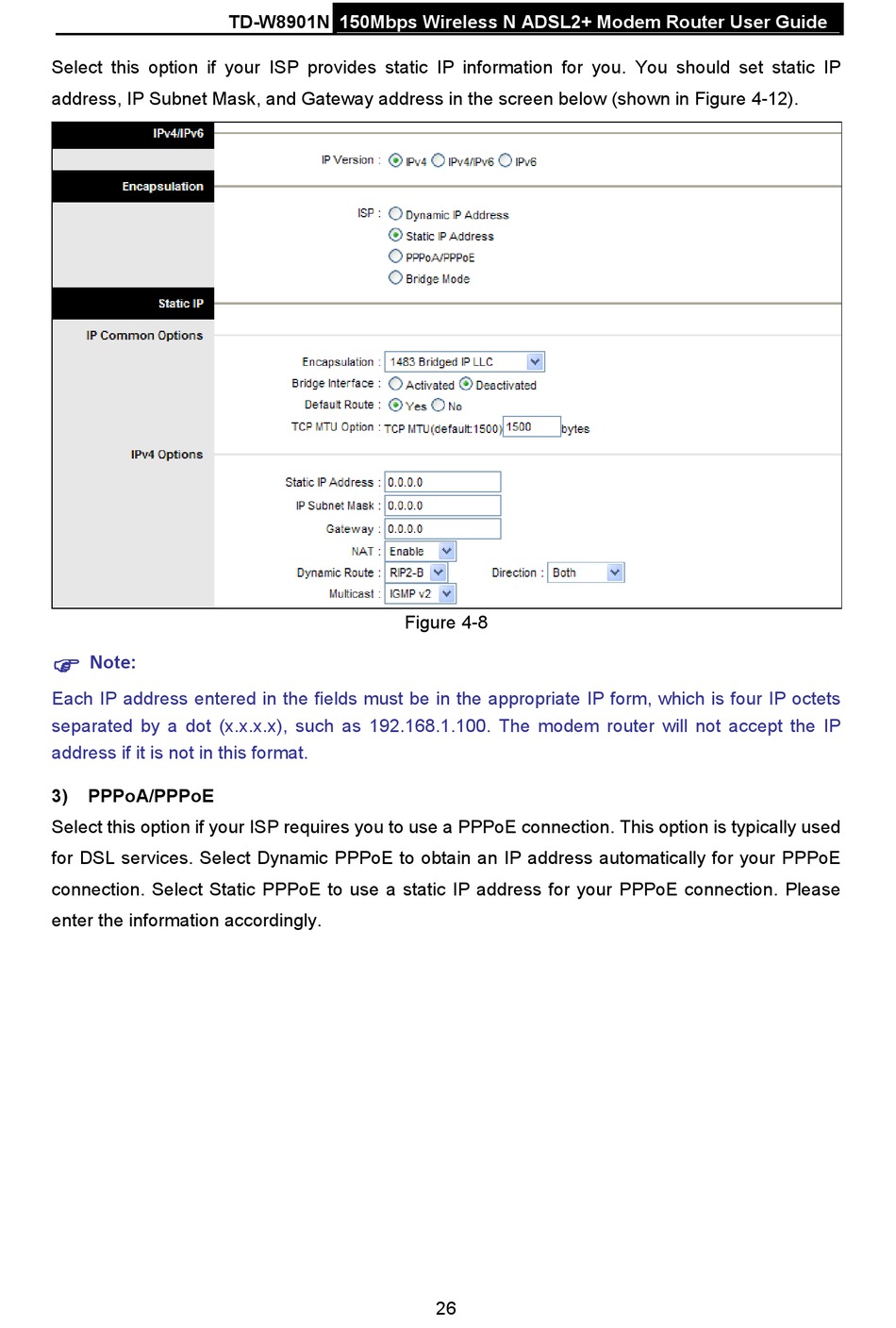

TP-Link TD-W8901N User Manual page 34

Select this option if your ISP provides static IP information for you. You should set static IP
address, IP Subnet Mask, and Gateway address in the screen below (shown in
 Note:
Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets
separated by a dot (x.x.x.x), such as 192.168.1.100. The modem router will not accept the IP
address if it is not in this format.
3) PPPoA/PPPoE
Select this option if your ISP requires you to use a PPPoE connection. This option is typically used
for DSL services. Select Dynamic PPPoE to obtain an IP address automatically for your PPPoE
connection. Select Static PPPoE to use a static IP address for your PPPoE connection. Please
enter the information accordingly.
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-8
26
F igure 4-12 ) .
