TP-Link TD-W8901N Quick Installation Manual

Quick Installation Guide

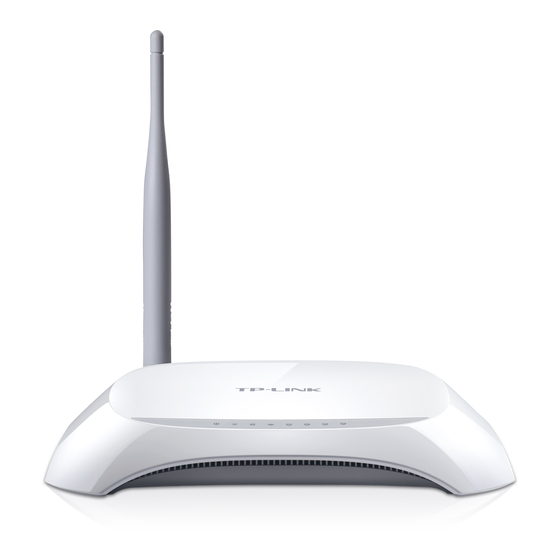

150Mbps Wireless N ADSL2+ Modem Router
TD-W8901N

Connecting the Hardware

If you don't need the phone service, just skip step 1 and directly
connect the modem router to the phone jack with a phone cable,
then follow steps 3 and 4 to complete the hardware connection.
Phone Jack
Power Adapter
1
Connect the ADSL splitter to
the phone jack.
2
Connect the modem
router to the ADSL splitter.
ADSL Splitter
Connect to the phone (Optional)
L A
N 3
i L A
W iF
N 4
L A
S /
W P
T
S E
R E
/O F F
O N
Modem Router R
W E
P O
3
Turn on the modem router.
4
Verify that the hardware connection
is correct by checking these LEDs.
Power ADSL
On On
Notes:
1. The ADSL LED
stabilize.
2. If the Wireless LED
button on the rear panel, then the LED should turn
stable in a few seconds.
S L
A D
N 1
L A
N 2
Wireless
On
takes about 1 to 2 minutes to
is off, please press the WiFi
