  Summary of Contents for Siemens SN 56N591

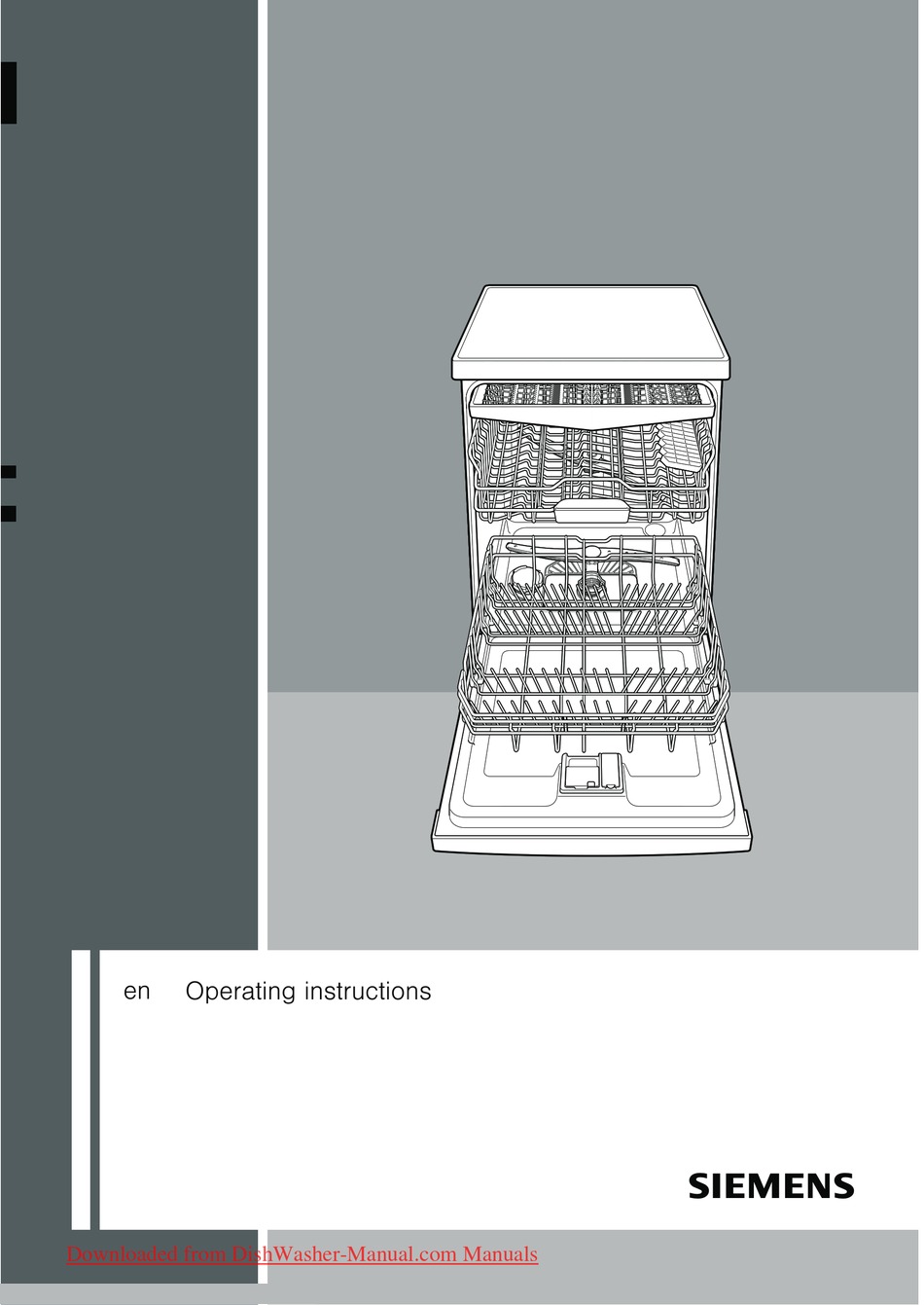

  • Page 1 2SHUDWLQJ LQVWUXFWLRQV Downloaded from DishWasher-Manual.com Manuals...
  • Page 2 $ % & 5HVHW  VHF 6WDUW K PLQ 5HVHW  VHF Downloaded from DishWasher-Manual.com Manuals...
  • Page 3: Table Of Contents

    en Table of contents Safety instructions ....4 Washing the dishes ....15 Delivery .
  • Page 4: Safety Instructions

    ã= Safety instructions Warning Knives and other utensils with sharp points Delivery must be placed horizontally in the cutlery drawer. – Check the packaging and dishwasher immediately for damage caused in Children in the household transit. Do not switch on a damaged appliance, but contact your supplier.
  • Page 5: Button Lock

    Childproof lock (button lock) Getting to know your You can secure your appliance from being appliance unintentionally the programme terminated (e.g. improper operation by children). Diagrams of the control panel and the Activating the button lock: interior of the appliance can be found in –...
  • Page 6: Water Softening System

    Water hardness table Water softening system Water Hardness mmol/l Set value To ensure good washing results, the hardness range on the dishwasher requires soft water, i.e. value machine containing low amounts of lime, otherwise °Clarke white limescale will be deposited on the 0‒8 soft 0‒1.1...
  • Page 7: Special Salt

    Using detergents with salt Special salt component If combined detergents with a salt Using special salt component are used, salt can usually be Always refill with special salt immediately omitted up to a water hardness of 21° dH before switching on the appliance. This (37°...
  • Page 8: Rinse Aid

    Setting amount of rinse aid Rinse aid The amount of rinse aid dispensed can be set from : to : . This is the factory As soon as the rinse-aid refill indicator H setting : is lit on the fascia, there is still a rinse-aid Do not change the amount of rinse aid reserve of 1 –...
  • Page 9: Utensils

    Loading the dishwasher Utensils – Remove large food remnants. It is not necessary to prerinse utensils under Not suitable running water. – Cutlery and utensils made of wood. – Place the utensils so that – Delicate decorative glasses, craft and –...
  • Page 10: Pans

    Pans Cutlery drawer Bottom basket 1Z Arrange the cutlery in the cutlery drawer 1" as illustrated. Separately arranged utensils are easier to remove after washing. The drawer can be taken out. Folding spikes * * depending on model The spikes can be folded down to improve Heavily soiled utensils (pans) should arrangement of pans, bowls and glasses.
  • Page 11: Cup Support Clip

    Cup support clip * Adjusting the height of the basket * depending on model The height of the upper utensils basket 1* can be adjusted in 3 stages to create When washing cups, the cup support clip more space either in the upper or lower can be folded up.
  • Page 12: Detergent

    Adding detergent Detergent – If the detergent dispenser 1j is still closed, press the lock 9" to open the You can use tablets as well as powder detergent dispenser. or liquid detergents for dishwashers, but Pour detergent into the dry detergent never use washing up liquid.
  • Page 13: Combination Detergent

    Notes If the utensils are only lightly soiled, slightly – You will obtain optimum rinsing less than the indicated amount and drying results by using solo of detergent is usually adequate. detergents and applying salt and rinse aid separately. Suitable detergents and care products can be purchased online via our website –...
  • Page 14: Overview Of Programmes

    Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of utensils Type of soiling Programme Possible additional Programme sequence options Prerinse pots and pans, very adhesive burned- Clean 70°...
  • Page 15: Additional Options

    Additional options Washing the dishes Programme data * depending on model Additional options can be set with the The programme data (consumption buttons `. values) can be found in the summary of instructions. They refer to normal Ÿ Express Wash * conditions and the water hardness set value : .
  • Page 16: Remaining Running Time Display

    Remaining running time display ã= Warning When the programme is selected, the At the end of the programme please open remaining running time of the programme the door fully and not partially when is indicated on the digital display )*. emptying the dishwasher.
  • Page 17: Maintenance And Care

    Filters Maintenance and care The filters 1R keep large foreign objects in the rinsing water away from the pump. A regular inspection and maintenance of These foreign objects may occasionally your machine will help to prevent faults. block the filters. This saves time and prevents problems.
  • Page 18: Spray Arms

    Spray arms Waste water pump Limescale and contaminants in the rinsing Large food remnants in the rinsing water water may block nozzles and bearings on not retained by the filters may block the the spray arms 12 and 1B. waste water pump. The rinsing water is then not pumped out and covers the filter.
  • Page 19: Troubleshooting

    ... on the appliance Troubleshooting Lower spray arm rotates sluggishly. – Spray arm blocked. The majority of faults which could occur in daily operation can be rectified by the The door is difficult to open. * user. This ensures that the appliance is –...
  • Page 20: During The Wash Cycle

    – Water is left in the appliance at the ... on the utensils end of the programme. Food residue on the utensils. – ( : ) Waste water hose is blocked – Utensils placed too closely together, or kinked. utensils basket overfilled. Filters blocked.
  • Page 21: Customer Service

    Streaks on glasses and cutlery, glasses Customer service have metallic appearance. – Too much rinse aid. If the advice given does not resolve your Plastic parts discoloured. problem, please contact your customer – Too little/unsuitable detergent. service. Contact details can be found on the back cover of this instruction manual –...
  • Page 22: Installation

    – Install built-under or integratable Installation appliances only under continuous worktops which have been screwed to The dishwasher must be connected adjacent cupboards to ensure stability. correctly, otherwise it will not function – Do not install the appliance near heat properly.
  • Page 23: Technical Specifications

    Technical specifications Waste-water connection Weight: – The required work sequence can be found in the installation instructions. If max. 60 kg required, fit a siphon with an drainage Voltage: connection. 220–240 V, 50 Hz or 60 Hz – Connect the waste-water hose to the Connected load: drainage connection of the siphon with 1.9–2.3 kW...
  • Page 24: Warm Water Connection

    Warm water connection Electrical connection The dishwasher can be connected to cold – Connect the appliance to an alternating or hot water up to max. 60 °C. current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via Connection to hot water is recommended a correctly installed socket with if the hot water can be supplied...
  • Page 25: Transportation

    Transportation Waste disposal Empty the dishwasher and secure loose parts. Both the packaging of new appliances and Drain the appliance according to the the old appliances themselves contain following steps: valuable raw materials and recyclable materials. – Turn on the tap. Please dispose of the individual parts –...
  • Page 26 Downloaded from DishWasher-Manual.com Manuals...
  • Page 27 &KLOGSURRI ORFN GRRU ORFN  $FWLYDWH WKH FKLOGSURRI ORFN $OZD\V FORVH WKH DSSOLDQFH GRRU FRPSOHWHO\  2SHQ WKH GRRU ZLWK DFWLYDWHG ZKHQ \RX OHDYH WKH DSSOLDQFH FKLOGSURRI ORFN 7KLV LV WKH RQO\ ZD\ \RX FDQ SURWHFW \RXU  'HDFWLYDWH FKLOGSURRI ORFN FKLOGUHQ IURP SRWHQWLDO GDQJHUV %DNLQJ VKHHW VSUD\ KHDG /DUJH VKHHWV RU JULOOHV DQG SODWHV ZKLFK KDYH D GLDPHWHU JUHDWHU WKDQ  FP JRXUPHW...
  • Page 28 $48$6723 JXDUDQWHH GRHV QRW DSSO\ WR DSSOLDQFHV ZLWKRXW $TXD6WRS ,Q DGGLWLRQ WR ZDUUDQW\ FODLPV DJDLQVW WKH VHOOHU EDVHG RQ WKH SXUFKDVH FRQWUDFW DQG LQ DGGLWLRQ WR RXU DSSOLDQFH ZDUUDQW\ ZH ZLOO SD\ GDPDJHV XQGHU WKH IROORZLQJ FRQGLWLRQV ,I RXU $TXD6WRS V\VWHP LV GHIHFWLYH DQG FDXVHV ZDWHU GDPDJH ZH ZLOO PDNH JRRG WKH GDPDJH IRU SULYDWH XVHUV 7R HQVXUH ZDWHU GDPDJH SURWHFWLRQ WKH DSSOLDQFH PXVW EH FRQQHFWHGWR WKH SRZHU VXSSO\...
