INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

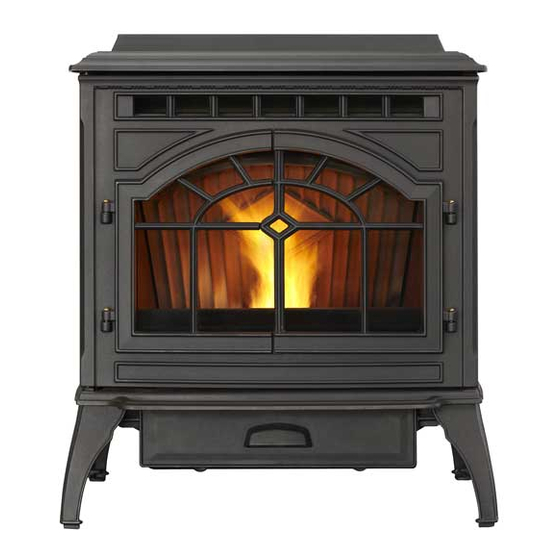

MT. VERNON E2 PELLET STOVE
Model(s):
MTV-E2-CSB
MTV-E2-PFT
MTV-E2-PBK
Please read this entire manual before installation and use of this
pellet fuel-burning room heater. Failure to follow these instructions
could result in property damage, bodily injury or even death.
CAUTION
Tested and approved for wood pellets and shelled
corn only. Burning of any other type of fuel voids your
warranty.
A 2:1 mix of pellets to corn is approved, but may require the
fi repot to be cleaned more frequently.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
00
plaît contacter votre revendeur ou visitez www.quadrafi re.com
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
MTV-E2-MBK
MTV-E2-PDB
MTV-E2-PMH
Tested and
O-T L
Listed by
C
OMNI-Test Laboratories, Inc.
061-S-83-2
NOTE
NOTE
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Portland
Oregon USA
US
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fi re offi cials or authorities having juris-
diction about restrictions, installation inspection, and permits.
7080-131H
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re could result causing property
damage, personal injury, or death.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
CAUTION
July 1, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTV-E2-CSB and is the answer not in the manual?

Questions and answers

Related Manuals for Quadra-Fire MTV-E2-CSB

Summary of Contents for Quadra-Fire MTV-E2-CSB

  • Page 1 MT. VERNON E2 PELLET STOVE tions is not followed exactly, a fi re could result causing property Model(s): damage, personal injury, or death. MTV-E2-CSB MTV-E2-MBK • Do not store or use gasoline or other fl am- MTV-E2-PFT MTV-E2-PDB mable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    B. Avoiding Smoke and Odors ..........11 .............12 C. Negative Pressure D. Draft ................12 E. Chimney and Exhaust Connection ........12 F. Equivalent Feet of Pipe ............13 G. Pipe Selection Chart ............13 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7080-131H July 1, 2015...

  • Page 3: Important Safety Information

    Test Method for Behavior of Metals, in a Vertical Tube C-1482. Furnace of 750° C. The Quadra-Fire Mt. Vernon E2 Pellet Heater meets the U.S. G. Combustible Materials Environmental Protection Agency’s emission limits for pellet Material made of/or surfaced with any of the following heaters sold after May 15, 2015.

  • Page 4: Getting Started

    MT VERNON E2 Install Guide Getting Started A. Design, Installation & Location Considerations Since pellet exhaust can contain ash, soot or sparks, you must consider the location of: 1. Appliance Location • Windows NOTICE: Check building codes prior to installation. •...

  • Page 5: Thermostat Location

    MT VERNON E2 B. Tools And Supplies Needed C. Inspect Appliance and Components • Open the appliance and remove all the parts and articles Tools and building supplies normally required packed inside the Component Pack. Inspect all the parts for installation, unless installing into an existing and glass for shipping damage.

  • Page 6: Install Checklist

    Location of Fireplace: Installer: Dealer/ Distributor Phone #: Serial #: Model (circle one): MTV-E2-MBK MTV-E2-CSB MTV-E2-PFT MTV-E2-PDB MTV-E2-PBK MTV-E2-PMH WARNING! Risk of Fire or Explosion! Failure to install fi replace according to these instructions can lead to a fi re or explosion.

  • Page 7: Dimensions And Clearances

    MT VERNON E2 Dimensions and Clearances A. Appliance Dimensions 5-13/16 14-1/16 3-13/16 [147] [357] [97] 2-9/16 [65] 31-1/16 [788] 29-3/16 [741] Figure 7.1 - Top View with Top Vent Adapter Figure 7.2 - Side View with Top Vent Adapter and 3 to 6 and 3 to 6 in (76-152mm) Adapter in (76-152mm) Offset Adapter.

  • Page 8: Clearances To Combustibles (Us & Canada)

    MT VERNON E2 B. Clearances to Combustibles (US & Canada) C. Hearth Pad Requirements (US & Canada) Use a non-combustible fl oor protector, extending beneath appliance and to the front, sides and rear as indicated. Mea- sure front distance “M” from the surface of the glass door. Straight Back Against Wall Inches Millimeters...

  • Page 9: Alcove

    MT VERNON E2 D. Alcove Figure 9.1 Minimum* Maximum Inches Millimeters Inches Millimeters Height 1092 Width 1016 Depth To Side Wall *All minimums listed are to a combustible surface. NOTE: • Illustrations refl ect typical installations and are FOR DESIGN PURPOSES ONLY. •...

  • Page 10: Vent Information

    MT VERNON E2 Vent Information A. Venting Termination Minimum Requirements Electrical Service Inside Corner FIXED FIXED OPEN CLOSED CLOSED OPEN J or K Termination Cap Air Supply Inlet Restricted Area Gas Meter Figure 10.1 All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below. 12 in.

  • Page 11: Avoiding Smoke And Odors

    MT VERNON E2 B. Avoiding Smoke and Odors Vent Confi gurations Negative Pressure, Shut-Down and Electrical Power To reduce probability of reverse drafting during shut-down Failure conditions Hearth & Home Technologies strongly recom- mends: To reduce the probability of back-drafting or burn-back in the pellet appliance during power failure or shut down con- •...

  • Page 12: Negative Pressure

    • Imbalances of the HVAC air handling system to 6 inch (76-152mm) Top Vent Offset Adapter, use Listed double wall fl ue connector. A Quadra-Fire Outside Air Kit • Upper level air leaks such as: (OAK-3) must be used with manufactured home installa- - Recessed lighting tions.

  • Page 13: Equivalent Feet Of Pipe

    MT VERNON E2 F. Equivalent Feet of Pipe WARNING The table below can help you calculate the equivalent feet Vent surfaces get HOT, can cause burns if of pipe which is a method used to determine pellet vent size. touched. Non-combustible shielding or guards Figure 13.1.

  • Page 14: Venting Systems

    (152mm) from the wall. Approved for mobile home installa- conform to CAN/CSA-B365 tions. Must use 3 or 4 inch (76-102mm) “L” or “PL” Listed pellet venting or Listed double wall pipe and a Quadra-Fire Outside Air Kit in mobile homes. Straight Out...

  • Page 15: Vertical Into Existing Class A Chimney

    All three installations are approved for mobile home installations. Must use 3 or 4 inch (76 to 102mm) “L” or “PL” Listed pellet venting or Listed double wall pipe and Quadra-Fire Outside Flashing Air Kit in mobile homes. Single wall pipe is 12 in.

  • Page 16: Masonry

    MT VERNON E2 E. Masonry Fireclay Flue Liner Concrete Cap with airspace Flashing 1 in [25mm] clearance 1 in [25mm] clearnance with firestop 3 in [76mm] min to 6 in combustible material [152mm] Sheathing Clean-out cover Airtight clean-out door Non-combustible Hearth Pad Figure 16.1 F.

  • Page 17: Appliance Set-Up

    MT VERNON E2 Appliance Set-Up A. Leg Leveling System B. Outside Air Kit Instructions 1. Thread Allen bolts through nuts until fl ush. Figure 17.1. The Allen bolts and nuts are included in the component pack CAUTION inside the appliance fi rebox. Never draw outside combustion air from: 2.

  • Page 18: Top Vent Adapter Installation

    MT VERNON E2 C. Top Vent Adapter Installation 3 to 3 inch (76-76mm) Top Vent Adapter 3 to 6 inch (76-152mm) Top Vent Offset Adapter Installing the Top Vent Adapter Put a layer of high temperature silicone on the 3 inch (76mm) exhaust outlet.

  • Page 19: Optional Log Set Placement Instructions

    MT VERNON E2 E. Optional Log Set Placement Instructions 2 PIECE LOG SET INSTALLATION 1. Place the left log as shown. There are 2 indentations in the bottom of the log to fi t over the screw heads in the fi...

  • Page 20: Thermostat Installation

    MT VERNON E2 F. Programmable Wall Thermostat Installation Programming Thermostat The appliance comes standard with a wall thermostat and 25’ of wire. If you need to run more than 25’ make sure you use The thermostat maintains a desired room temperature. The a continuous strand of 18 to 22 gauge thermostat wire.

  • Page 21: Power Cord

    MT VERNON E2 Battery Installation and Replacement Program Schedule Pre-set settings are shown below. You can program 4 time periods each day, with different NOTE: 2 AA batteries are included with the thermostat settings for weekdays and weekends. and must be installed before the appliance can be op- erated.

  • Page 22: Trim Adjustment

    MT VERNON E2 Where to Start: H. Trim Adjustment (Factory default setting is -2) If Burning Hardwood Pellet Fuel QuadraFire recommends setting the appliance at a -4 trim setting as a start. From our testing, hardwood fuels burn well between -4 and -2 settings. If Burning Lower BTU Pellet Fuel, Utility Pellet Fuel, or More Air &...

  • Page 23: Mobile Home Installation

    MT VERNON E2 Mobile Home Installation CAUTION You must use a Quadra-Fire Outside Air Kit for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE An outside air inlet must be provided for the combustion...

  • Page 24: Accessory List

    MT VERNON E2 Accessory List ACCESSORIES Collar, Offset, Top Vent 812-3570 Damper, 3 Inch - Tall Vertical Installs Only PEL-DAMP3 Damper, 4 Inch - Tall Vertical Installs Only PEL-DAMP4 Firescreen No Longer Available SCR-7005 Log Set, (Sold as Set only) 2 Pc LOGS-60-AE-B Outside Air Kit...
  • Page 25 MT VERNON E2 July 1, 2015 7080-131H...
  • Page 26 MT VERNON E2 7080-131H July 1, 2015...
  • Page 27 MT VERNON E2 July 1, 2015 7080-131H...
  • Page 28 Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
