TP-Link TC-7610 User Manual

Docsis 3.0 cable modem
Hide thumbs Also See for TC-7610:
Table of Contents

Advertisement

Quick Links

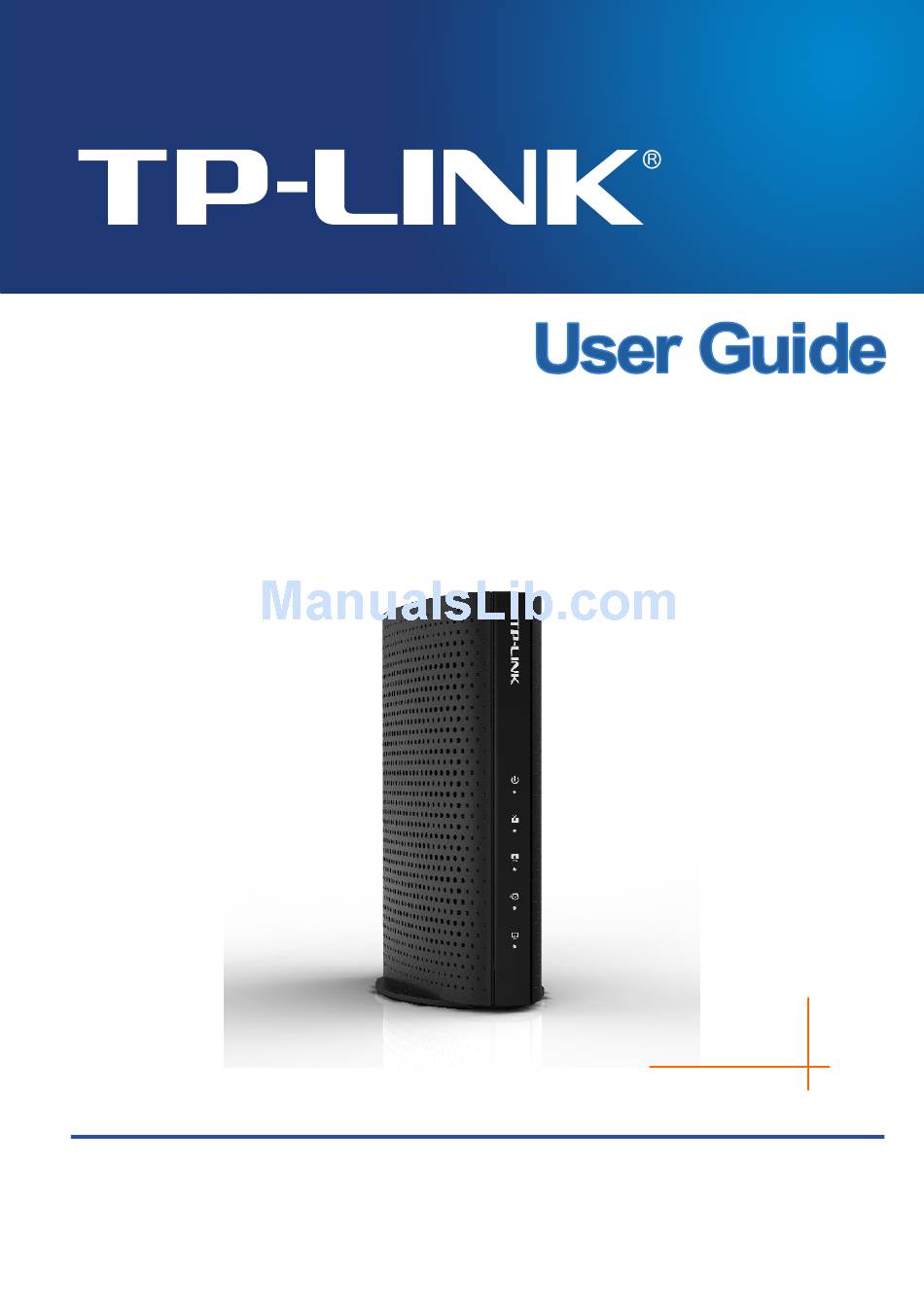

TC-7610
DOCSIS 3.0 Cable Modem
REV: 1.0.0
1910011178

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TC-7610

Summary of Contents for TP-Link TC-7610

  • Page 1 TC-7610 DOCSIS 3.0 Cable Modem REV: 1.0.0 1910011178...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    CONTENTS Package Contents .........................1 Chapter 1. Introduction ....................2 Product Overview......................2 Main Features ......................2 Conventions ......................... 3 Chapter 2. Hardware Installation...................4 The Front Panel ......................4 The Back Panel......................6 Installation Environment ....................6 Chapter 3. Connecting the Modem ................8 System Requirements....................

  • Page 5: Package Contents

    DOCSIS 3.0 Cable Modem User Guide Package Contents The following items should be found in your package: One TC-7610 DOCSIS 3.0 Cable Modem  One Power Adapter for TC-7610 DOCSIS 3.0 Cable Modem  Quick Installation Guide  One RJ45 cable ...

  • Page 6: Chapter 1. Introduction

    Over 300 Mbps downstream data rates, 120 Mbps upstream data rates and share it with a Gigabit Ethernet port. TC-7610 complies with DOCSIS 3.0, supports channel bonding of up to 8 downstream channels and 4 upstream, combined with Enhanced security of AES encryption, IPv4 and IPv6 dual stack, make it future-Proof.

  • Page 7: Conventions

    DOCSIS 3.0 Cable Modem User Guide 1.3 Conventions The Modem or device mentioned in this User Guide stands for TC-7610 without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation.

  • Page 8: Chapter 2. Hardware Installation

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Chapter 2. Hardware Installation 2.1 The Front Panel The modem router’s LEDs are located on the side panel (View from top to bottom). They indicate the device’s working status. For details, please refer to LEDs Explanation.
  • Page 9 TC-7610 DOCSIS 3.0 Cable Modem User Guide LEDs Explanation: Name Status Indication The modem is powered off. The modem is powered on. (Power) The initialization is not started, or has failed. White The modem is synchronized with one channel. Green The modem is synchronized with more than one channel.

  • Page 10: The Back Panel

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 2.2 The Back Panel RESET: With the modem powered on, use a pin to press and hold the RESET button for at  least 8-10 seconds. And the modem will reboot to its factory default settings.
  • Page 11 TC-7610 DOCSIS 3.0 Cable Modem User Guide Make sure the cables and power cord are placed safely out of the way so they do not create a  tripping hazard. The Modem can be placed on a shelf or desktop.

  • Page 12: Chapter 3. Connecting The Modem

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Chapter 3. Connecting the Modem 3.1 System Requirements  Broadband Internet Access Service (Cable).  PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors.  TCP/IP protocol on each PC.

  • Page 13: Activating The Cable Modem

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 3.3 Activating the cable modem Step 1: Make sure the computer connected to the modem is set to dynamically obtain an IP address. Step 2: Contact your ISP (Comcast, Time Warner Cable, COX, Charter, Cablevision) to activate the modem.
  • Page 14 TC-7610 DOCSIS 3.0 Cable Modem User Guide  Note: If your ISP is Comcast or TIme Warner Cable (TWC), you can activate as follows: Open a web browser. You should be automatically redirected to your service provider's self-activation page. If not, go to www.comcast.com/activate for Comcast Xfinity or www.timewarnercable.com for TWC.

  • Page 15: Chapter 4. Software Configuration

    Web-based Utility. 4.1 TCP/IP Configuration The default IP address of the TC-7610 DOCSIS 3.0 Cable Modem is 192.168.100.1. And the default Subnet Mask is 255.255.255.0. we use all the default values for description. Connect the local PC to the LAN/WAN port of the modem router. And then you can configure your PC in the following way.

  • Page 16: Login

    TC-7610 DOCSIS 3.0 Cable Modem User Guide You can check it following the steps below: Is the connection between your PC and the modem correct? The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should be lit.

  • Page 17: Status

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 4.3 Status There are four submenus under the Status menu, Connection, Software, Security and Event Log. Click any of them, and you will be able to configure the corresponding function. 4.3.1 Connection you can see the information of startup procedure, Choose menu “Status →...

  • Page 18: Software

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 4.3.2 Software you can see the device information and system Choose menu “Status → Software”, information...

  • Page 19: Security

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 4.3.3 Security you can see the screen below Choose menu “Status → Security”, . Here you can set the a new password to log in the modem’s web-based management page. 4.3.4 Event Log you can Choose menu “Status →...

  • Page 20: Chapter 5. Logout

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Chapter 5. Logout Choose “Logout” and click YES, and you will back to the login screen.

  • Page 21: Appendix A: Specifications

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Appendix A: Specifications Specification Product Description DOCSIS 3.0 Cable Modem 1 F-Connector (female 75 Ω) Physical Specifications 1 10/100/1000 Mbps Ethernet Interface (RJ45) 1 Power Jack Interface 1 RESET Button Button DOCSIS 3.0...

  • Page 22: Appendix B: Troubleshooting

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Note: S-CDMA max output reduced 3dB when transmitting 2 or more channels 75 Ω DOCSIS 5-42 MHz (edge to edge), Output Impedance Frequency Range Supports IPv4 and IPv6 dual stack Network Function DHCP Client...
  • Page 23 TC-7610 DOCSIS 3.0 Cable Modem User Guide 3) Check the device that is connected to the modem and make sure that the device is set to obtain an IP address automatically. 4) Power cycle the cable modem by unplugging the power adapter from the electrical outlet and plugging it back in.

  • Page 24: Appendix C: Configure The Pc

    TC-7610 DOCSIS 3.0 Cable Modem User Guide T4. How can I reset the password to the cable modem's web interface? If you have changed the password and have forgotten it, you must restore the cable modem to the factory defaults. This will reset the password back to admin.
  • Page 25 TC-7610 DOCSIS 3.0 Cable Modem User Guide Right-click your wired network connection (Local Area Connection or Ethernet by default), and select Properties. Double-click Internet Protocol Version 4 (TCP/IPv4).
  • Page 26 TC-7610 DOCSIS 3.0 Cable Modem User Guide Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to save the settings.

  • Page 27: Appendix D: Technical Support

    Tel: NZ 0800 87 5465 (Toll Free) French Bank holidays AU 1300 87 5465 (Depending on 1300 policy.) Sw itzerland E-mail: support.au@tp-link.com (Australia) Tel: +41 (0) 848 800 998 (German Service) support.nz@tp-link.com (New Zealand) Fee: 4-8 Rp/min, depending on rate of different time.
