CONCEPT1(T)
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the concept1t and is the answer not in the manual?

Questions and answers

Related Manuals for APART concept1t

Summary of Contents for APART concept1t

  • Page 1 CONCEPT1(T) Instruction manual...
  • Page 3 CONCEPT1(T) Instruction manual CONCEPT1(T) Manual...

  • Page 4: Safety Instructions

    Integrated amplifiers Safety Instructions • Please check the carton box for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton. • !!!! Danger !!!! Exposure to extremely high noise levels may cause a permanent hearing loss.
  • Page 5 CONCEPT1(T) Instruction manual • Do not connect the inputs / outputs of amplifiers or consoles to any other voltage source, such as a battery, mains source, or power supply, regardless of whether the amplifier or console is turned on or off. •...

  • Page 6: Main Features

    Integrated amplifiers Main features • 3 basic operating modes combined in 1 device: stereo, linked mono and individual mono. • Paging microphone input with 2 zone programmable paging control. • Standalone and/or RS232 controlled operation. • Removable 19 inch rack ears. •...
  • Page 7 CONCEPT1(T) Instruction manual • Low impedance (Concept 1) and 100 volt speaker line outputs (Concept 1T) available. • Integrated limiter circuit. • IR remote control optionally available. • IR control extender optionally available. • 2 x 60 watts freely assignable RMS output power at your disposal.

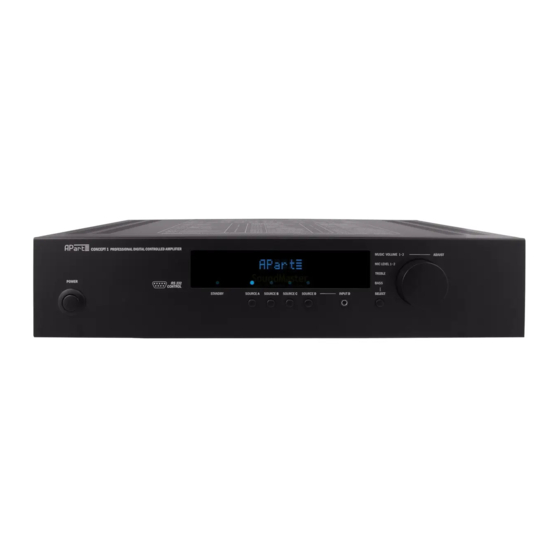

  • Page 8 Integrated amplifiers Front panel and display layout 1. Power on/off button: push this button to turn the power on and off 2. Source A selector: push this button to select line source A 3. Source B selector: push this button to select line source B 4.
  • Page 9 CONCEPT1(T) Instruction manual 10. Infrared receiver 11. Multi functional dot matrix VFD display...

  • Page 10: Rear Panel Layout

    Integrated amplifiers Rear panel layout 1. Microphone input: connect your (paging) microphone on this euroblock connector, connect the signal on +, -, the screen on GND. Connect the eventual paging contacts between GND and Z1 (for zone 1) and between GND and/or Z2 (for zone 2). The input gain can be adjusted with knob 2 between line and mic level to avoid distortion.
  • Page 11 CONCEPT1(T) Instruction manual 9. Line D: stereo line RCA connector, a mini jack version of the line D input is available on the front panel. Only use one of the two input’s at the same time. 10. Pre-amp out: these RCA connectors offer a line level signal, after the master volume, but before the limiter.
  • Page 12 18. AC input: plug in the supplied mains cable here. Check your mains voltage first ! CONCEPT1T Version Difference on CONCEPT1T 1. lo-cut Right channel / zone 2: switch not available 2. Right channel / zone 2 output on euroblock connector: minimum load impedance: 167 ohms or 60 watts / 100 volts 3.

  • Page 13: User Operation

    CONCEPT1(T) Instruction manual User Operation The table below shows the 3 possible operating modes: stereo, 2 separate mono zones with one linked music volume control and 2 separate mono zones with individual music volume control. You can adjust the volume by turning the large rotary control from -80 dB (lowest) to 0 dB (highest).
  • Page 14 Integrated amplifiers...

  • Page 15: Block Diagram

    In the EXPERT mode if there is no action for 1 minute, the unit will auto return to USER mode. Blockdiagram RS232 & IR Information Please check our website for the latest information on RS232 and IR communication: http://www.apart-audio.com...
  • Page 16 Integrated amplifiers Accessories CONCEPT1-RC Infrared remotecontrol unit. MICPAT-2 2-zone paging microphone.
  • Page 17 CONCEPT1(T) Instruction manual CONCEPT1T-KIT Kit of 2 pcs 100 volt transformers to change 1 or 2 channels of the CONCEPT1 into 100 volt line outputs.

  • Page 18: Error Conditions

    For qualified personnel only. Overheated Hightemp Wait for cool down, reduce volume and check speaker loads. Only for CONCEPT1T version No sound Amp error Check if the environment temerature is within the operating range of the unit (0 - 40 °C).

  • Page 19: Technical Specifications

    CONCEPT1(T) Instruction manual Technical Specifications CONCEPT 1 Dynamics program power, both 50 W + 50 W channels driven, 8 ohm Dynamics program power, both 80 W + 80 W channels driven, 4 ohm Dynamics capacity at 1,7 ohm 120 W dips / ch Note Power output controlled by digital...
  • Page 20 Integrated amplifiers Micro balanced input rear panel -56 / -16 dBV mic - line gain trim Micro tone control ; rear panel 100 Hz / +3 dB,10 kHz / -6 dB to lo - hi 100Hz/-9 dB, 10 kHz / +4 dB Pre-out impedance / sensitivity 1 K ohm / 0 dBV Line-out impedance / sensitivity...
  • Page 21 CONCEPT1(T) Instruction manual Net weight 6.6 kg Gross weight 7.6 kg CONCEPT 1T (100 volt output version) All specs same as above, except: RMS program power, both channels 60 W / 100 volt + 60 W / 100 volt driven, 167 ohms / ch, Net weight 8.2 kg Gross weight...
  • Page 22 Integrated amplifiers Note...
  • Page 24 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
