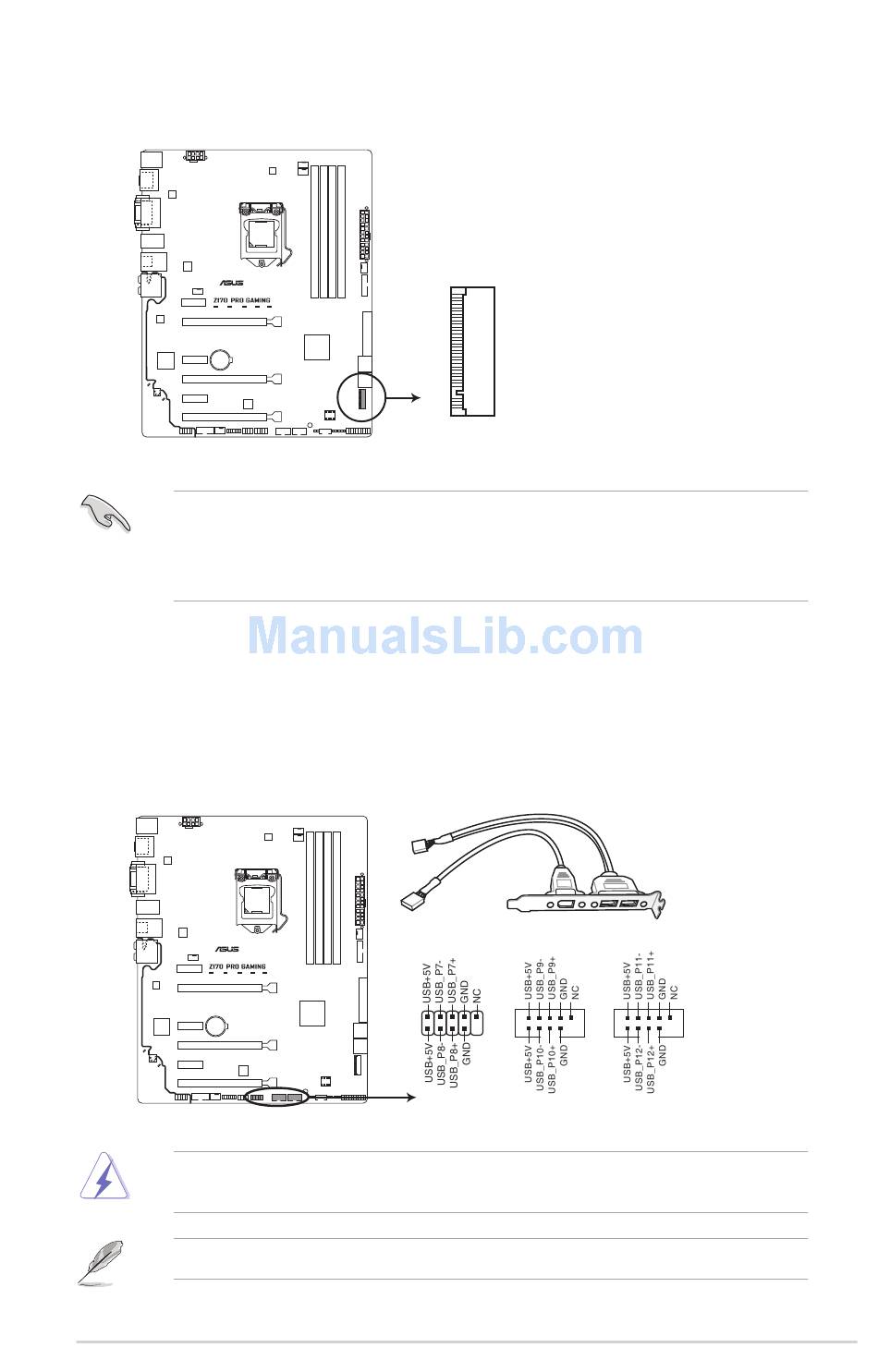

11. M.2 socket 3
This socket allows you to install an M.2 (NGFF) SSD module.
Z170 PRO GAMING M.2(SOCKET3)
• This socket supports M Key and type 2242/2260/2280/22110 storage devices.
• The M.2 (NGFF) SSD module is purchased separately.
• When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
12. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specifications and supports up to
480Mbps connection speed.
Z170 PRO GAMING USB2.0 connectors
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
ASUS Z170 PRO GAMING
M.2(SOCKET3)
USB78 USB910
PIN 1
PIN 1
USB1112
PIN 1
1-27
