Internal connectors
1.
Serial port connector (10-1 pin COM)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.

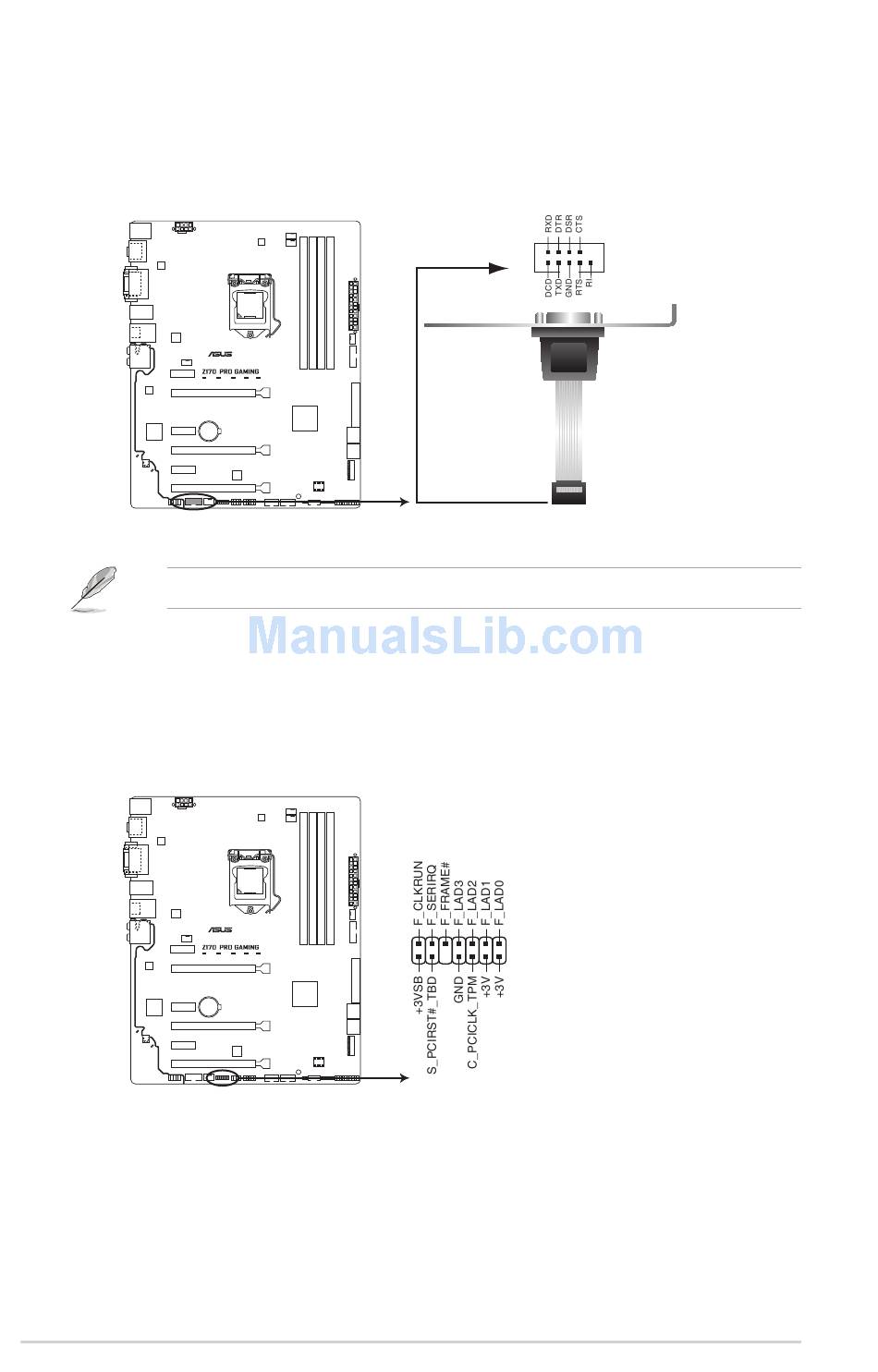

Z170 PRO GAMING Serial port (COM) connector
The COM module is purchased separately.
2.
TPM connector (14-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which securely
store keys, digital certificates, passwords and data. A TPM system also helps enhance
the network security, protects digital identities, and ensures platform integrity.
Z170 PRO GAMING TPM connector
1-20
COM
PIN 1
TPM
PIN 1
