Summary of Contents for Clare Controls ClareVision CV-M161620-04
-

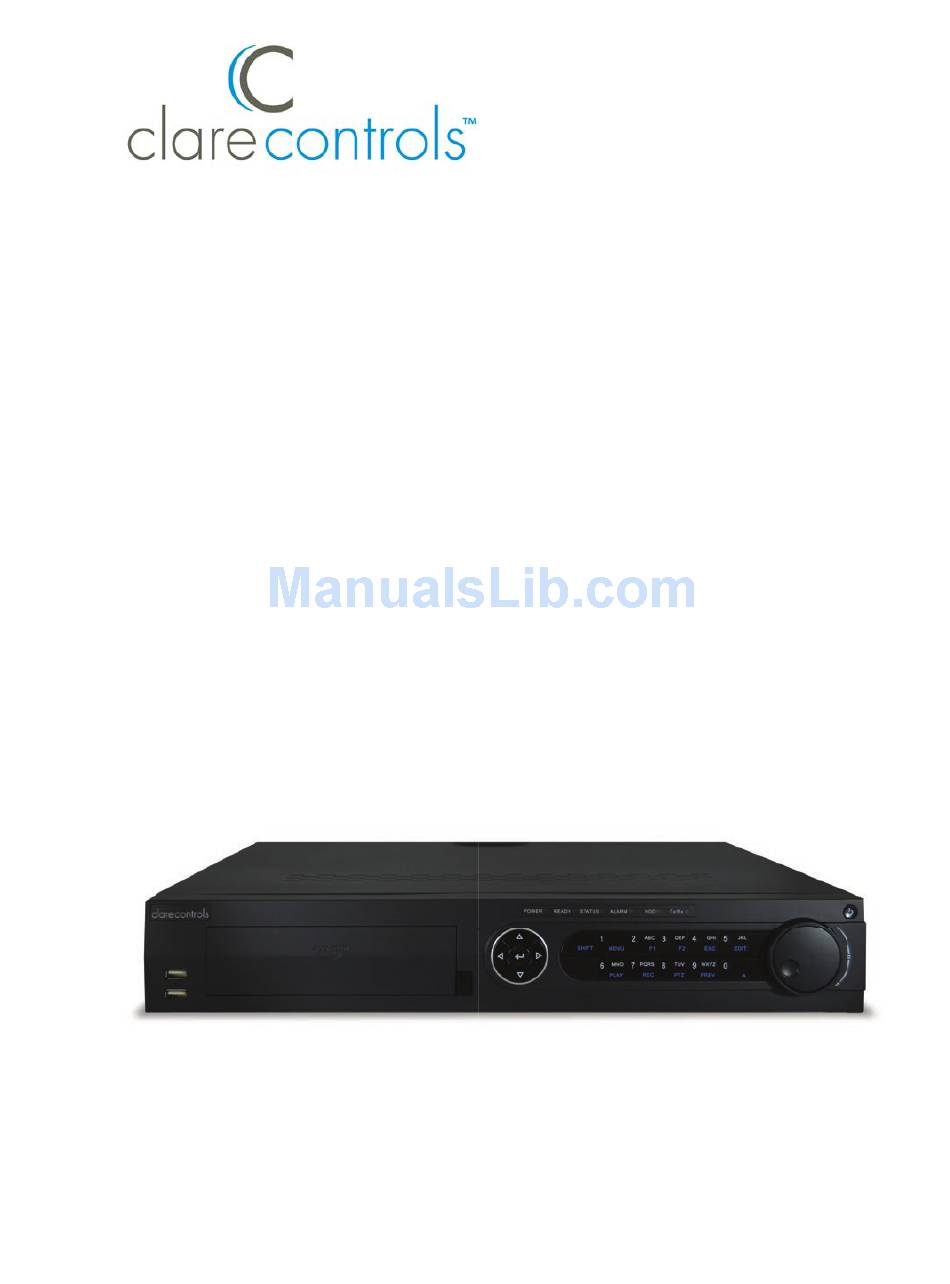

Page 1: Installation Guide
ClareVision Network Video Recorder Installation Guide Model CV-M161620-04 Doc ID 2015-01-621 • Rev 02... - Page 2 US and international copyright law. Trademarks The ClareVision name is a trademark of Clare Controls, Inc. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Content Package contents...1 pre-installation...1 installation...1 Hard disk installation (optional)...2 Front panel...4 Rear panel...7 Peripheral connections...8 Wiring of alarm input...8 Wiring of alarm output...8 Using of alarm connectors...9 Controller connection...9 HDD storage calculation chart...10 ... - Page 4 ClareVision Network Video Recorder Installation Guide...
-
Page 5: Package Contents
Package contents 1 X 16 channel NVR appliance 1 X AC power cord 1 X optical mouse 1 X remote control 2 X rack mount ears 16 X mounting screws 1 X 2 ft. hard drive cable 2 X 1 ft. hard drive cable NVR pre-installation This NVR is a piece of highly advanced surveillance equipment that should be installed with care. -
Page 6: Hard Disk Installation (Optional)
Hard disk installation (optional) Additional SATA hard disks can be installed in your NVR. Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD should be used for this installation. Up to 8 SATA hard disks can be installed on your NVR. Tools required: Philips head screwdriver. - Page 7 4. Place the HDD on the bottom of the device, and then fasten the screws on the bottom to attach the HDD. ClareVision Network Video Recorder Installation Guide...
-
Page 8: Front Panel
Front panel No. Name Setting Function Description Status POWER Turns green when the NVR is powered up. indicators READY The LED is green when the device is running normally. STATUS The light is green when the IR remote control is enabled. - Page 9 No. Name Setting Function Description Composite SHIFT Switch between the numeric or letter input and keys functions of the composite keys. (Input the letters or numbers when the light is out; realize functions when the light is red.) 1/MENU Enter the numeral “1” Access the main menu interface.
- Page 10 No. Name Setting Function Description JOG SHUTTLE control Move the active selection in a menu. It will move the selection up and down. In Live View mode, it can be used to cycle through different channels. In the Playback mode, it can be used to jump 30 seconds forward/backward in video files.
-
Page 11: Rear Panel
Rear panel (4) (5) RS-485 ALARM IN ALARM OUT eSATA (10) (11) (12) (13) (14) (15) Item Description eSATA (Optional) Connects an external hard drive. RS-232 Interface Connector for the RS-232 devices. VIDEO OUT BNC connector for the video output. VGA output 15 pin connector. -
Page 12: Peripheral Connections
Peripheral connections Wiring of alarm input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. Note: If the alarm input is not an open/close relay, connect an external relay between the alarm input and the device. ALARM OUT RS-485 ALARM IN... -
Page 13: Using Of Alarm Connectors
Using of alarm connectors To connect alarm devices to the NVR: 1. Disconnect the terminal block from the ALARM IN/ ALARM OUT port. 2. Unfasten the stop screws from the terminal block, insert signal cables into the slots, and then fasten the stop screws. Ensure the signal cables are tight. 3. -
Page 14: Hdd Storage Calculation Chart
HDD storage calculation chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Table 1: Storage calculation chart Bitrate Storage Used 96 K 42 M 128 K 56 M 160 K... -
Page 15: Menu Operation
Menu operation Menu structure Startup and shutdown Proper startup and shutdown procedures are crucial to expanding the life of the NVR. To start your NVR: 1. Connect to a monitor and use VGA or HDMI. 2. Check that the power supply is plugged into an electrical outlet, and then flip the power switch on the back of the NVR to ON. -
Page 16: Using The Setup Wizard
2. Select Shutdown. 3. Click Yes. Using the Setup Wizard By default, the Setup Wizard starts once the NVR has loaded. To operate the Setup Wizard: 1. The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the Setup Wizard at this time, click Cancel. - Page 17 2. Click Next on the Wizard window to enter the Login window. 3. Enter the Admin Password. By default, this password is “secure7.” Note: We strongly recommend changing the admin password the first time you use the device. Record your new password and store in a secure place. If the new password if lost, a factory reset is required to gain access to the NVR.
- Page 18 The internal NIC IPv4 address should be configured for the cameras connecting to the PoE network interface of the NVR. 8. Click Next to enter the HDD Management window. 9. To initialize the desired HDD, select its corresponding checkbox. Click Init., initialization removes all of the data saved in the HDD.
- Page 19 13. Click the Next button. Configure the recording settings for the searched IP Cameras. 14. Click Copy to copy the settings to other channels. 15. Click OK to complete the Setup Wizard and return to Live View. ClareVision Network Video Recorder Installation Guide...
-
Page 20: Live View
Live View Some icons are provided on screen in Live View mode to indicate different camera status. Icons appear at the top right of the screen for each channel. They show the status of the record and alarm in the channel so that you can identify problems quickly. -
Page 21: Configuring Basic Parameters Of Ip Cameras
2. Select the checkboxes for the cameras to be added. 3. Click Quick Add to add the cameras. To add other IP cameras: 1. In the left side of the window, enter the IP address, protocol, management port, and other information for the IP camera. 2. -
Page 22: Ptz Control
2. Click Apply to save the settings, and then click OK to exit the editing interface. To edit more parameters: 1. Click the Advance Set icon. 2. You can edit the network information and the password of the camera. 3. Click Apply to save the settings, and then click OK to exit the interface. PTZ control Before you begin, ensure the PTZ is properly connected to the NVR through RS-485 interface. -
Page 23: Ptz Control
2. Choose the camera for the desired PTZ setting in the Camera drop-down. 3. Enter the parameters of the PTZ camera. Note: All of the parameters should match the PTZ camera parameters. 4. Click Copy if you want to copy the same settings to other PTZ cameras. 5. -
Page 24: Playback
Light on/off Image centralization Pattern Next item Minimize windows Zoom-, Focus-, Iris- Wiper on/off Preset Menu Start pattern/patrol Exit Playback Play back the record files of a specific channel in the Live View menu. Instant playback by channel Choose a channel under Live View using the mouse, and then click the button in the shortcut operation menu. -
Page 25: Backup
Front Panel: Press PLAY to play back record files of the channel under single-screen Live View. Under multi-screen Live View, record files of the selected channel will be played back. Note: Pressing numerical buttons will switch the playback to related channels during the playback process. - Page 26 3. In the Search Result interface, select the record files to back up and click Export. 4. Enter the Export interface, choose a backup device, and then click Export to start exporting. Note: You can choose to export the record file(s) and the related log file(s), or the player.
-
Page 27: Understanding Camera Capacity In An Nvr
Understanding camera capacity in an NVR When setting up your NVR and cameras, you may notice that some of the camera images may not display in Live View. This most often occurs when you are displaying images in 1+5 mode, or 1+7 mode because the total bit rate for all cameras is exceeding the NVR’s capacity. -
Page 28: Adjusting Settings
Each channel can support a different camera, as long as they do not exceed the total bit rate limit. It is entirely possible to mix 5 MP cameras with 4CIF IP cameras, etc. Generally, 5 MP at 30 fps requires around 20 Mbps for best quality. -
Page 29: Specifications
Specifications Video/Audio IP video input 16-ch input 1-ch, BNC (2.0 Vp-p, 1k Ω) Two-way audio Video/Audio Recording resolution 5 MP /3 MP /1080P /UXGA /720P /VGA /4CIF /DCIF output /2CIF /CIF /QCIF Frame rate Main stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N) 1-ch, BNC (1.0 Vp-p, 75 Ω) CVBS output... - Page 30 Others Power supply 100 to 240 VAC, 6.3 A, 50 to 60 Hz ≤ 40 W Consumption (without hard disk or DVD-R/W) Working temperature 14 to 131ºF (-10 to 55 ºC). Working humidity 10 to 90 % Chassis 19-inch rack-mounted 2U chassis 17.5 ×...
- Page 32 ClareVision Network Video Recorder Installation Guide...
