Clare Controls ClareVision CV-M16810-04 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

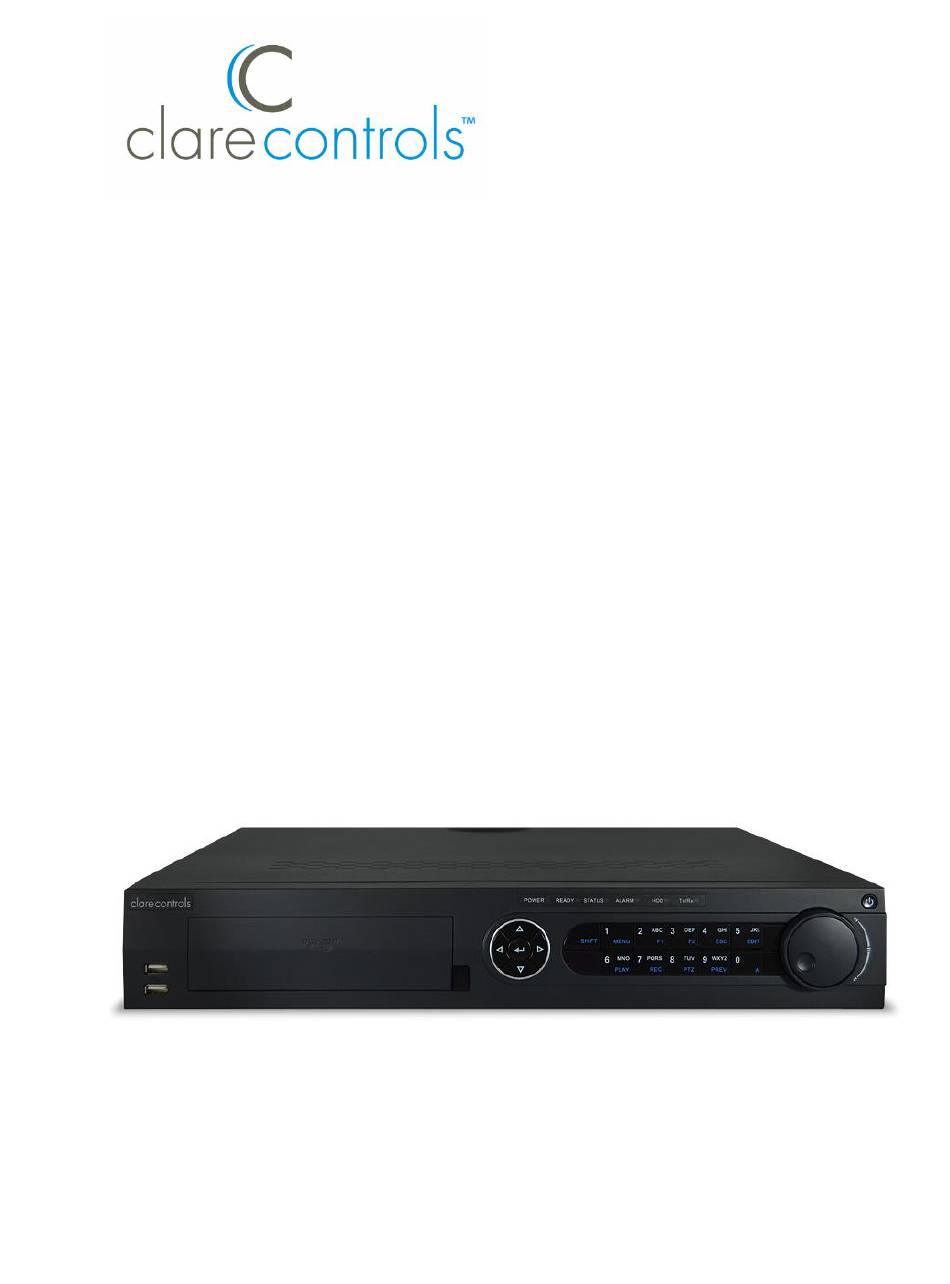

ClareVision
Network Video Recorder
Installation Guide
Model CV-M16810-04
Last modified: 09/29/2016
Doc ID - 346 • Rev 05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClareVision CV-M16810-04 and is the answer not in the manual?

Questions and answers

Related Manuals for Clare Controls ClareVision CV-M16810-04

Summary of Contents for Clare Controls ClareVision CV-M16810-04

  • Page 1 ClareVision Network Video Recorder Installation Guide Model CV-M16810-04 Last modified: 09/29/2016 Doc ID - 346 • Rev 05...
  • Page 2 Clare Controls, LLC., except where specifically permitted under US and international copyright law. The ClareVision name is a trademark of Clare Controls, LLC. Trademarks Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    Content NVR pre-installation...1 Package contents...1 NVR installation...1 Hard disk installation (optional)...2 Front panel...4 Rear panel...7 Peripheral connections...8 Wiring of alarm input...8 Wiring of alarm output...8 Using of alarm connectors...9 Controller connection...9 HDD storage calculation chart...10 Menu operation...11 Menu structure...11 Startup and shutdown...11 Using the Setup Wizard...12 Live View...16 Adding and configuring IP cameras...16...
  • Page 4 Specifications...26 Regulatory information...28 Warranty information...29 Contact information...29 ClareVision Network Video Recorder Installation Guide...

  • Page 5: Nvr Pre-Installation

    NVR pre-installation This NVR is highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the NVR.  Keep all liquids away from the NVR.  Install the NVR in a well-ventilated and dust-free area. ...

  • Page 6: Hard Disk Installation (Optional)

    Hard disk installation (optional) Additional SATA hard disks can be installed in the NVR. Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD should be used for this installation. Up to 8 SATA hard disks can be installed on the NVR. Tools required: screwdriver.
  • Page 7 3. Connect the power cable to the HDD. 4. Place the HDD on the bottom of the device, and then fasten the screws on the bottom to affix the HDD. ClareVision Network Video Recorder Installation Guide...

  • Page 8: Front Panel

    Front panel No. Name Setting Function Description Status POWER Turns green when NVR is powered up. indicators READY The LED is green when the device is running normally. STATUS The light is green when the IR remote control is enabled. The light is red when the function of the composite keys (SHIFT) are used.
  • Page 9 No. Name Setting Function Description Composite SHIFT Switch between the numeric, letter input, and keys functions of the composite keys. (Input letter or numbers when the light is out; Realize functions when the light is red.) 1/MENU Enter numeral “1” Access the main menu interface.
  • Page 10 No. Name Setting Function Description JOG SHUTTLE control Move the active selection in a menu. It will move the selection up and down. In Live View mode, it can be used to cycle through different channels. In the Playback mode, it can be used to jump 30 seconds forward/backward in video files.

  • Page 11: Rear Panel

    Rear panel Item Description VIDEO OUT BNC connector for video output. CVBS AUDIO OUT BNC connector for audio output. This connector is synchronized with CVBS video output. VGA AUDIO OUT BNC connector for audio output. This connector is synchronized with VGA video output.

  • Page 12: Peripheral Connections

    Peripheral connections Wiring of alarm input The alarm input is an open/close relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, connect an external relay Note: between the alarm input and the device. Wiring of alarm output Connect to a security system zone.

  • Page 13: Using Of Alarm Connectors

    There are four jumpers (JP1, JP2, JP3, and JP4) on the motherboard, each corresponding with one alarm output. By default, jumpers are connected. To connect an AC load, the jumpers should be removed. Example: If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP3 jumper.

  • Page 14: Hdd Storage Calculation Chart

    3. Connect Ta on the controller to D+ on the terminal block and Tb on the controller to D- on the terminal block. Fasten the stop screws. 4. Connect the pluggable block back into the terminal block. Make sure both the controller and NVR are grounded. Note: HDD storage calculation chart The following chart shows an estimate of storage space used based on recording...

  • Page 15: Menu Operation

    Menu operation Menu structure Startup and shutdown Proper startup and shutdown procedures are crucial to expand the life of the NVR. To start the NVR: 1. Check that the power supply is plugged into an electrical outlet. It is highly recommend that you use an Uninterruptible Power Supply (UPS) in conjunction with the device.

  • Page 16: Using The Setup Wizard

    To shut down the NVR: 1. Enter the Shutdown menu (Menu > Shutdown). 2. Select Shutdown. 3. Click Yes. Using the Setup Wizard By default, the Setup Wizard starts once the NVR has loaded. To operate the Setup Wizard: 1. Select the system language from the drop-down menu, and then click Apply to save the resolution settings.
  • Page 17 2. The Setup Wizard can walk you through the settings of the NVR. If you do not want to use the Setup Wizard, click Cancel. You can use the Setup Wizard the next time by selecting the Start wizard when NVR starts? checkbox. 3.
  • Page 18 7. After the time settings, click Next to return to the Network Setup Wizard window. The internal NIC IPv4 address should be configured for the cameras Note: connecting to the PoE network interface of the NVR. 8. Click Next to enter the HDD Management window. 9.
  • Page 19 12. Select the IP camera to be added, and then click Add. 13. Click Next. Configure the recording for the searched IP Cameras. 14. Click Copy to copy the settings to other channels. 15. Click OK to complete the Setup Wizard. ClareVision Network Video Recorder Installation Guide...

  • Page 20: Live View

    Live View Some icons are provided on screen in Live View mode to indicate the different camera statuses. Icons appear at the top right of the screen for each channel. They show the status of the record and alarm in the channel so that you can identify problems quickly.
  • Page 21 To add IP cameras: 1. Enter the Camera Management interface (Menu > Camera > Camera). To add the online cameras with same network segment: 1. Click Search to search the online cameras. 2. Select the checkboxes for the cameras to be added. 3.

  • Page 22: Configuring Basic Parameters Of Ip Cameras

    Configuring basic parameters of IP cameras After adding the IP camera, the basic information displays on the page. You can configure the basic parameters of the IP camera. To configure basic parameters: 1. Click the icon to edit the parameters. Edit the IP address, protocol, and other parameters.

  • Page 23: Ptz Control

    Table 3: Basic icons Icon Description Edit basic parameters of the camera Delete the IP camera Get the live view of the camera PTZ control Follow the procedure to set the parameters for PTZ. Configure the PTZ parameters before you set the PTZ camera. Before you begin, ensure the PTZ and the NVR are connected properly through RS-485 interface.

  • Page 24: Ptz Control

    PTZ control In the Live View mode, you can press the PTZ Control button on the front panel, on the remote, or choose the PTZ Control icon to enter the PTZ panel. Table 4: PZT control icons Icon Description Direction button and the auto-cycle button The speed of the PTZ movement 3 D-Zoom Patrol...

  • Page 25: Playback

    Playback Play back the record files of a specific channel in the Live View menu. Instant playback by channel Choose a channel under Live View using the mouse, and then click the button in the shortcut operation menu. Only the record files recorded during the last five minutes on this channel Note: will be played back.

  • Page 26: Backup

    Playback management The toolbar in the bottom part of the Playback interface can be used to control the playback process. Check the channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs, or a DVD writer.
  • Page 27 3. In the Search result interface, select the record files you want to back up and click Export. 4. Enter the Export interface, choose a backup device, and then click Export to start exporting. You can choose to export the record files and the related log files, to Note: the player.

  • Page 28: Understanding Camera Capacity In An Nvr

    Understanding camera capacity in an NVR When setting up your NVR and cameras, you may notice that some of the camera images may not display in Live View. This most often occurs when you are displaying images in 1+5 mode, or 1+7 mode because the total bit rate for all cameras is exceeding the NVR’s capacity.

  • Page 29: Adjusting Settings

    Each channel can support a different camera, as long as they do not exceed the total bit rate limit. It is entirely possible to mix 5 MP cameras with 4CIF IP cameras, etc. Generally, 5 MP at 30 fps requires around 20 Mbps for best quality.

  • Page 30: Specifications

    Specifications Video/Audio IP video input 16-ch input Two-way audio 1-ch, BNC (2.0 Vp-p, 1 kΩ) Video/Audio Recording resolution 5 MP/ 3 MP/ 1080P/ UXGA/ 720 P/ VGA/ output 4 CIF/ DCIF/ 2 CIF/ CIF/ QCIF Frame rate Main stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N) CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω)
  • Page 31 Others Power supply 100 to 240 VAC, 6.3 A, 50 to 60 Hz Consumption ≤ 40 W (without hard disk or DVD-R/W) Working temperature 14 to 131ºF (-10 to 55ºC). Working humidity 10 to 90% Chassis 19 inch rack-mounted 2 U chassis Dimensions 17.5 ×...

  • Page 32: Regulatory Information

    Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standards for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product.

  • Page 33: Warranty Information

    Warranty information Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, www.clarecontrols.com/warranty. Scan the code to view product warranty details.
