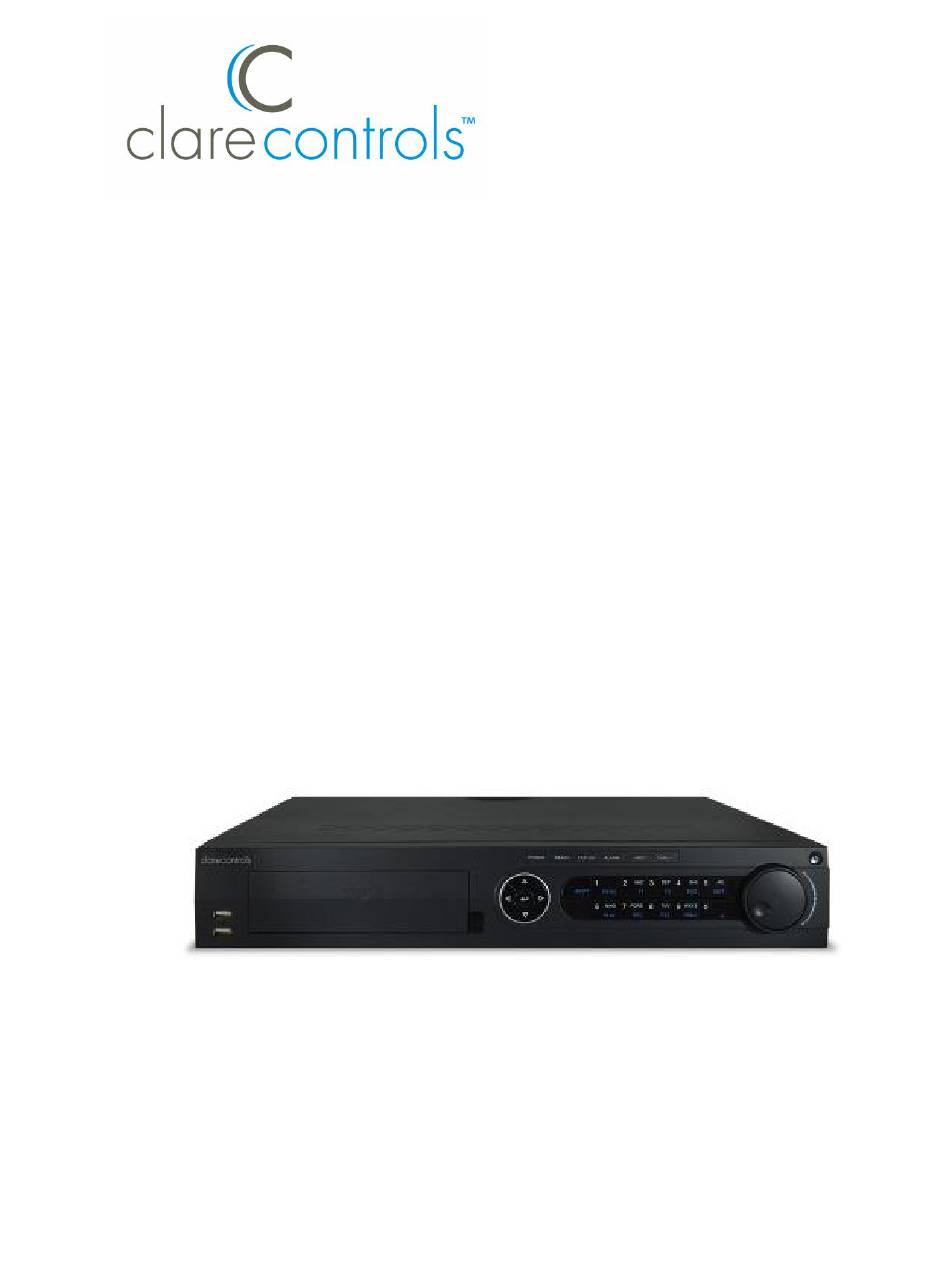

- Page 1 ClareVision Network Video Recorder Installation Guide Model CV-M32810-08 Last modified: 09/29/2016 Doc ID - 347 • Rev 05...
- Page 2 Clare Controls, LLC., except where specifically permitted under US and international copyright law. The ClareVision name is a trademark of Clare Controls, LLC. Trademarks Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Content NVR pre-installation...1 Package contents...1 NVR installation...1 Front panel...2 Rear panel...5 Peripheral connections...6 Wiring of alarm input...6 Wiring of alarm output...6 Using of alarm connectors...7 Controller connection...7 HDD storage calculation chart...8 Menu operation...9 Startup and shutdown...9 Using the Setup Wizard...9 Live View...13 Adding and configuring IP cameras...13 Configuring basic parameters of IP cameras...15... - Page 4 ClareVision Network Video Recorder Installation Guide...
-
Page 5: Nvr Pre-Installation
NVR pre-installation This NVR is highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the NVR. Keep all liquids away from the NVR. Install the NVR in a well-ventilated and dust-free area. ... -
Page 6: Front Panel
Front panel No. Name Setting Function Description Status POWER The LED turns green when NVR is powered up. indicators READY The light is green when the device is running normally. STATUS The light is green when the IR remote control is enabled. - Page 7 No. Name Setting Function Description Composite SHIFT Switch between the numeric or letter input and keys functions of the composite keys. (Input letter or numbers when the light is out; Realize functions when the light is red.) 1/MENU Enter numeral “1” Access the main menu interface.
- Page 8 No. Name Setting Function Description JOG SHUTTLE control Move the active selection in a menu. It will move the selection up and down. In Live View mode, it can be used to cycle through different channels. In the Playback mode, it can be used to jump 30 seconds forward/backward in video files.
-
Page 9: Rear Panel
Rear panel Item Description VIDEO OUT BNC connector for video output. CVBS AUDIO OUT BNC connector for audio output. This connector is synchronized with CVBS video output. VGA AUDIO OUT BNC connector for audio output. This connector is synchronized with VGA video output. -
Page 10: Peripheral Connections
Peripheral connections Wiring of alarm input The alarm input is an open/close relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, connect an external relay Note: between the alarm input and the device. Wiring of alarm output To connect to an alarm output (AC or DC load), use the following diagram. -
Page 11: Using Of Alarm Connectors
There are four jumpers (JP1, JP2, JP3, and JP4) on the motherboard, each corresponding to one alarm output. By default, the jumpers are connected. To connect an AC load, the jumpers should be removed. Example: If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP3 jumper. -
Page 12: Hdd Storage Calculation Chart
3. Connect Ta on the controller to D+ on the terminal block and Tb on the controller to D- on the terminal block. Fasten the stop screws. 4. Connect the pluggable block back into the terminal block. Make sure both the controller and NVR are grounded. Note: HDD storage calculation chart The following chart shows an estimate of storage space used based on recording... -
Page 13: Menu Operation
Menu operation Startup and shutdown Proper startup and shutdown procedures are crucial to expand the life of the NVR. To start the NVR: 1. Check that the power supply is plugged into an electrical outlet. It is highly recommend that you use an Uninterruptible Power Supply (UPS) in conjunction with the device. - Page 14 To operate the Setup Wizard: 1. Select the system language from the drop-down menu, and then click Apply to save the resolution settings. The default language is English. 2. The Setup Wizard can walk you through settings of the NVR. If you don’t want to use the Setup Wizard, click Cancel.
- Page 15 4. Enter the admin username and password. The default username is “clareadmin”; the default password is “secure7”. 5. To change the admin password, select the New Admin Password checkbox. Enter and confirm the new password in the given fields. 6. Click Next to enter the date and time settings window. 7.
- Page 16 8. Click Next to enter the HDD Management window. 9. To initialize the HDD, click Init. Initialization removes all the data saved in the HDD. 10. Click Next. You will enter the Adding IP Camera interface. 11. Click Search to find online IP Camera. 12.
-
Page 17: Live View
14. Click Copy to copy the settings to other channels. 15. Click OK to complete the Setup Wizard. Live View Some icons are provided on screen in the Live View mode to indicate the different camera statuses. Icons appear at the top right of the screen for each channel. - Page 18 To add IP cameras: 1. Enter the Camera Management interface (Menu > Camera > Camera). To add the online cameras with same network segment: 1. Click Search to search the online cameras. 2. Select the checkboxes for the cameras to be added. 3.
-
Page 19: Configuring Basic Parameters Of Ip Cameras
Configuring basic parameters of IP cameras After adding the IP camera, the basic information displays on the page. Configure the basic parameters of the IP camera. To configure basic parameters: 1. Click the icon to edit the parameters. You can edit the IP address, protocol, and other parameters seen below. -
Page 20: Ptz Control
Table 3: Basic icons Icon Description Edit basic parameters of the camera Delete the IP camera Get the live view of the camera PTZ control Follow the procedure to set the parameters for the PTZ. Configure the PTZ parameters before you set the PTZ camera. Before you begin, ensure the PTZ and the NVR are connected properly through the RS-485 interface. -
Page 21: Ptz Control
PTZ control In the Live View mode, you can press the PTZ Control button on the front panel, on the remote, or choose the PTZ Control icon to enter the PTZ panel. Table 4: PZT control icons Icon Description Direction button and the auto-cycle button The speed of the PTZ movement 3 D-Zoom Patrol... -
Page 22: Playback
Playback Play back the record files of a specific channel in the Live View menu. Instant playback by channel Choose a channel under Live View using the mouse, and then click the button in the shortcut operation menu. Only the record files recorded during the last five minutes on this Note: channel will be played back. -
Page 23: Backup
Check the channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs, or DVD writers. To back up recorded files: 1. - Page 24 You can choose to export the record files and the related log files, to Note: the player. 5. Check the backup results. Choose the record file in the Export interface, and then press to check it. ClareVision Network Video Recorder Installation Guide...
-
Page 25: Understanding Camera Capacity In An Nvr
Understanding camera capacity in an NVR When setting up your NVR and cameras, you may notice that some of the camera images may not display in Live View. This most often occurs when you are displaying images in 1+5 mode, or 1+7 mode because the total bit rate for all cameras is exceeding the NVR’s capacity. -
Page 26: Adjusting Settings
Each channel can support a different camera, as long as they do not exceed the total bit rate limit. It is entirely possible to mix 5 MP cameras with 4CIF IP cameras, etc. Generally, 5 MP at 30 fps requires around 20 Mbps for best quality. -
Page 27: Specifications
Specifications Video/Audio IP video input 32-ch input Two-way audio 1-ch, BNC (2.0 Vp-p, 1 kΩ) Video/Audio Recording resolution 5 MP/ 3 MP/ 1080P/ UXGA/ 720P/ VGA/ output 4 CIF/ DCIF/ 2 CIF/ CIF/ QCIF Frame rate Main stream: 25 fps (P)/ 30 fps (N) Sub-stream: 25 fps (P)/ 30 fps (N) CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω) - Page 28 Others Power supply 100 to 240 VAC, 6.3 A, 50 to 60 Hz Consumption ≤ 45 W (without hard disk or DVD-R/W) Working temperature 14 to 131ºF (-10 to 55ºC). Working humidity 10 to 90% Chassis 19 inch rack-mounted 2 U chassis Dimensions 17.5 ×...
-
Page 29: Regulatory Information
Regulatory information DISCLAIMER Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standards for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. -
Page 30: Warranty Information
Warranty information Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment from Clare Controls. To view complete limited warranty details, including limitations and exclusions, www.clarecontrols.com/warranty. Scan the code to view product warranty details.
