Troy-Bilt TB2BV EC Operator's Manual

Removing Unit From Carton Assemble The Unit
1 1 2
Remove all contents from Insert the upper blower
carton. tube into the blower outlet
and turn it clockwise until
it locks into place.
Assemble The Unit Starting The Unit
Primer
Bulb
10 X
5 1 6
Place the unit on a level
Press the primer bulb 10
surface. Remove the fuel times, or until fuel is visible.
cap. Fill the fuel tank.
Replace the fuel cap. Move
the unit at least 30 ft. (9.1 m)
from the fuel container and
the fueling site before
starting the engine.
Starting The Unit
1 8 9
Crouch in the starting DO NOT squeeze the
position. trigger.
Starting The Unit
3-5 X
12
1 13
Do not squeeze the Squeeze the trigger, or
trigger. Pull the rope 3-5
press down the cruise
times to start the engine.
control, and allow the unit to
warm up for 30-60 seconds.
IMPORTANT: READ OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES WHILE OPERATING THE UNIT.
NEED HELP?
769-07844 P00
Operator's Manual
1 Gallon
3 4
Install the lower blower tube Mix thoroughly in a separate
onto the upper blower tube fuel can:
and turn it clockwise until it – 3.2 fl. oz. of 2-cycle
locks into place. engine oil
– 1 gallon of fresh
unleaded gasoline (less
than 30 days old)
NOTE: Do not mix directly in
the fuel tank.
Choke Lever
7
Move the choke lever to
Position 1.
5 X
10 11
Do not squeeze the Do not squeeze the
trigger. Pull the rope 5 trigger. Move the choke
times. lever to Position 2.
Call 1-800-828-5500
IF engine fails to start after 2 attempts,
14
move choke lever to position 3 and pull
Continue to squeeze the
trigger. Move the choke
IF unit still fails to start, refer to the
lever to Position 3. Warm
operator's manual for additional starting
the unit for an additional 60
seconds. The unit may be
used during this time.
CALL 1-800-828-5500 IN U.S. OR 1-800–668–1238 IN CANADA
ASSEMBLY TOOLS REQUIRED:
• Flat-head Screwdriver
40:1
On/Off Stop Control
3.2 oz
Upper Blower Tube
Lower Blower Tube
Lower Vacuum Tube
Need Help?
DIDN'T START?
Repeat the starting instructions.
the starter rope until engine starts
and troubleshooting information

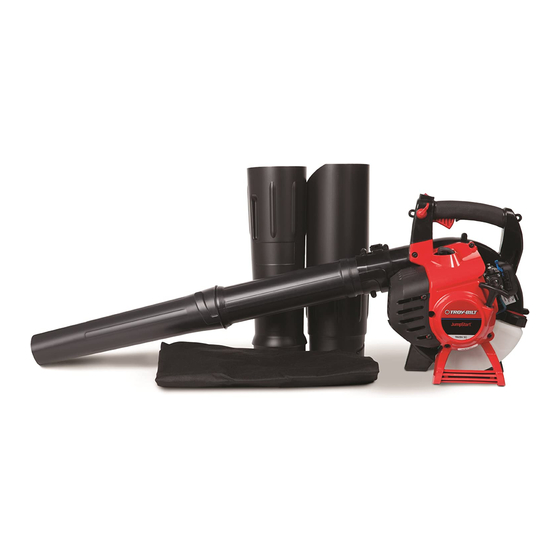

TB2BV EC
2-Cycle
Electric Start Capable
Handheld Blower / Vacuum
Handle
Trigger
Cruise Control
Spark Plug
Choke Lever
Muffler
Cover
Primer Bulb
Upper Vacuum Tube
Vacuum Elbow
Vacuum Bag Strap
Cinch Strap
Vacuum Bag
Zipper
Air Filter
Cover
Starter Rope
Fuel Cap
04/12
