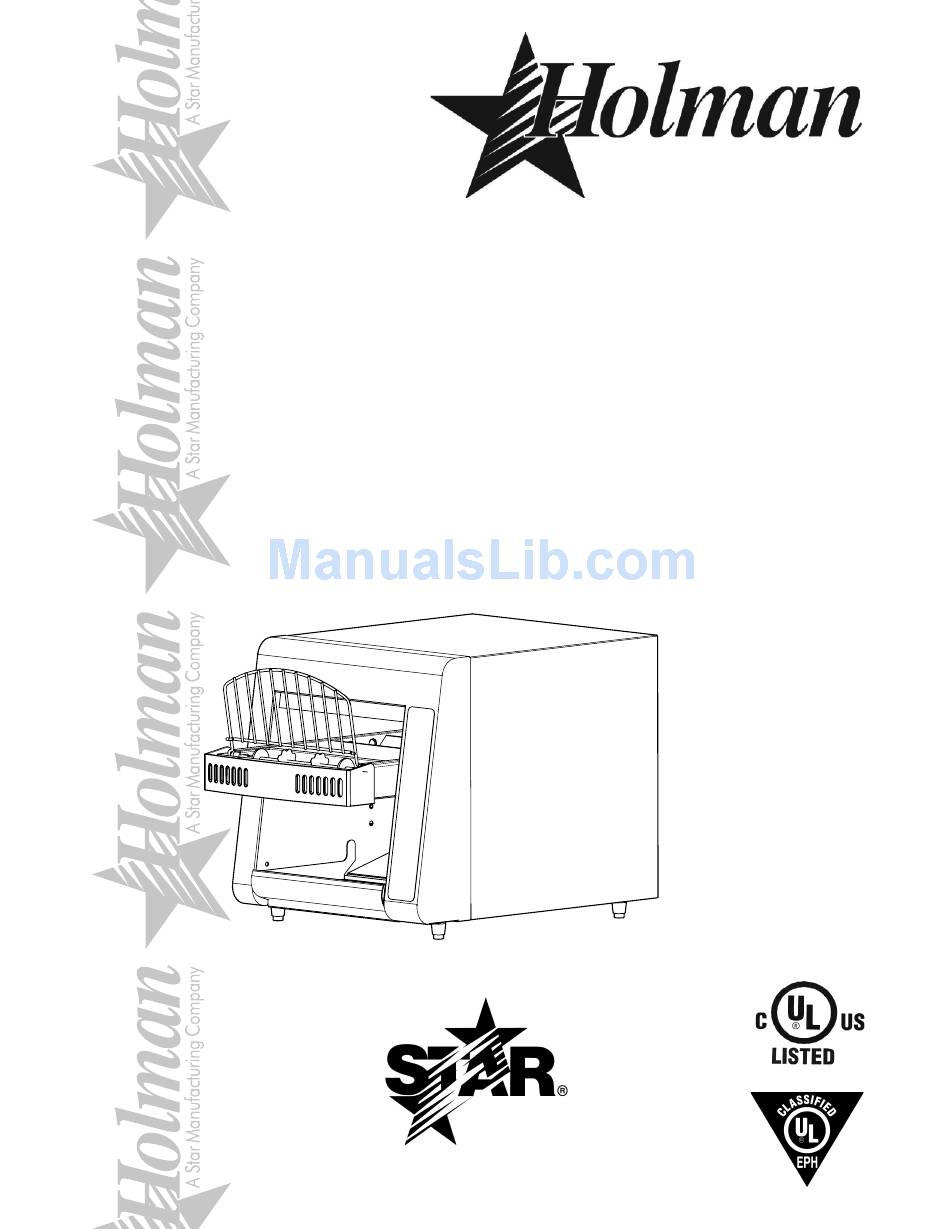

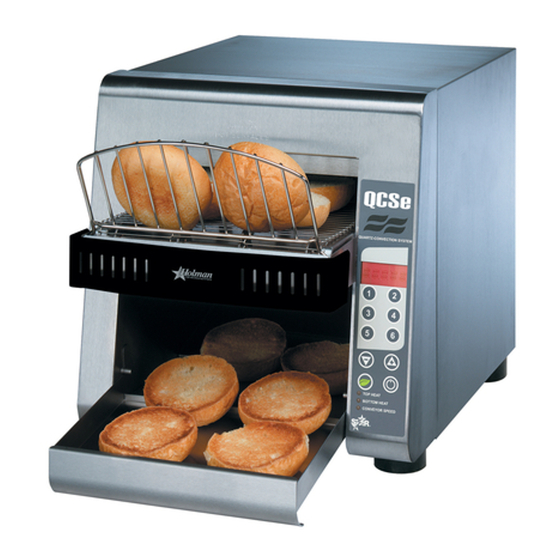

- Page 1 ® CONVEYOR TOASTER MODEL QCSe-2, QCSe-3 SERIES Installation and Operation Instructions 2M-HG0653 Rev. E 1/26/2006 QCSe-2...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
SPECIFICATIONS: QCSe2-300H Type: Conveyor Toaster w/ Electronic Controls 120V, 1,700 watts, 14.1 amp, 60 hz, NEMA 5-15P Product Opening: 3" inches Approximate shipping weight - 64 lbs (140.8 kg) Dimensions: 14 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (37.1 cm - Width, 56.8 cm - Depth, 39.7 cm - Height) QCSe2-500 Type: Conveyor Toaster w/ Electronic Controls 120V, 1,700 watts, 14.1 amp, 60 hz, NEMA 5-15P Product Opening:... -
Page 4: General Installation Data
GENERAL INSTALLATION DATA CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... -
Page 5: Daily Operation
CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE DATA PLATE OF THE UNIT. DAILY OPERATION The Holman QCSe conveyor toaster comes with pre-programmed factory default settings for TOAST, MUFFINS, and BAGELS. The operator may change these setting at any time. A button labeled OTHER is provided to allow the operator to program settings for additional product(s). -
Page 6: Toaster Components
CAUTION CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE SHOULD BE TAKEN WHILE USING THIS UNIT. START UP When the toaster has been plugged into a suitable outlet and power supply, the word OFF will be displayed on the L.E.D. read out. A. -
Page 7: Programing Values For Menu Items
PROGRAMING A. CONVEYOR SPEED (temporary setting) The conveyor speed is programmable with a range from 0 to 99 with 0 being the slowest and 99 being the fastest. Each menu item can have independent conveyor speed settings. The LIGHT and DARK buttons can be used to temporarily change the conveyor speed. Pressing the LIGHT button once will increase the conveyor speed by 15%. - Page 8 CLEANING Preventive maintenance for your Holman toaster consists of the following recommended cleaning procedures. To keep your toaster in its top operating condition, these steps should be performed on a daily or weekly as indicated. A. Clean air intake on bottom of unit, and making sure it is free from any obstruction.
-
Page 9: Maintenance Procedures
MAINTENANCE PROCEDURES A. REPLACING HEATER TUBES 1) DISCONNECT UNIT FROM POWER SOURCE. 2) Remove the enclosure. 3) Remove heater tube wire from terminal block connection, keeping top and bottom wires separate. 4) Lift heater tube retainers by loosening retaining screws and sliding the retainer plate up. Hand tighten the plate to hold it up so the heater tubes will slide out freely. -
Page 10: Troubleshooting Guide
The front edge of the enclosure will slide beneath the toaster front. D. HEAT LIMIT SWITCH (RESET) Your Holman conveyor toaster is equipped with an automatically activated heat limit switch that interrupts the heater tube connections if the ambient temperature in the control box exceeds 190°F (88C). - Page 11 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
- Page 12 DRIVE MOTOR HIGH/LIMIT RESET QCSe FAN MOTOR HOLMAN ® WIRING DIAGRAM - QCSe - 4 Tube Series STAR MANUFACTURING INTERNATIONAL INC. THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
- Page 13 HIGH/LIMIT RESET QCSe FAN MOTOR CONTROL BOARD HOLMAN ® WIRING DIAGRAM - QCSe - 6 Tube Series STAR MANUFACTURING INTERNATIONAL INC. THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
-
Page 15: Parts List
PARTS LIST January 26, 2006, Rev E QCSe-2-300H, QCSe-2-500 Conveyor Toasters Number Part Number Description & Model Number Unit HC-101370 ENCLOSURE, QCS2 HC-100570 BAFFLE, AIR FLOW HIGH QCSe-300 HD-100571 BAFFLE, AIR FLOW LOW QCSe-500 HF-402449 PANEL, BACK, QCS2 2U-200559 MOTOR, FAN HD-115070 MOTOR, DRIVE RMS2020, FAN, W/TERMINALS 2R-Z8879... - Page 16 PARTS LIST January 26, 2006, Rev E QCSe-2-600H, QCSe-2-800 Conveyor Toasters Number Part Description Number Unit Number HC-101370 ENCLOSURE, QCS2 HC-100570 BAFFLE, AIR FLOW HI QCSe-2-600 HD-100571 BAFFLE, AIR FLOW LOW QCSe-2-800 HF-402449 PANEL, BACK, QCS2 2U-200560 MOTOR, FAN HI-115071 MOTOR, DRIVE, FAN, W TERMINALS 2R-Z8879 FAN BLADE, DRIVE MOTOR...
- Page 17 PARTS LIST January 26, 2006, Rev E QCSe-3-950H, QCSe-3-1000 Conveyor Toasters Number Part Description Number Number Unit HH-101371 ENCLOSURE, QCS3 HH-100572 BAFFLE, AIR FLOW, HI QCSe-3-950H HI-100573 BAFFLE, AIR FLOW, LOW QCSe-3-1000H HH-402470 PANEL, BACK, QCS3 2U-200561 MOTOR, FAN HI-115071 MOTOR, DRIVE, RMS72 W/TERMINALS 2R-Z8879 FAN BLADE, DRIVE MOTOR...
- Page 18 PARTS LIST January 26, 2006, Rev E QCSe-3-1300 Conveyor Toasters Number Part Number Description Number Unit HH-101371 ENCLOSURE, QCS3 HD-100573 BAFFLE, AIR FLOW, LOW HH-402470 PANEL, BACK, QCS3 2U-200561 MOTOR, FAN HI-115071 MOTOR, DRIVE RMS72 W/TERMINALS+E26 2R-Z8879 FAN BLADE, DRIVE MOTOR 2A-202902 SHAFT, DRIVE HA-112261...
- Page 20 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
