Page 1: User Manual

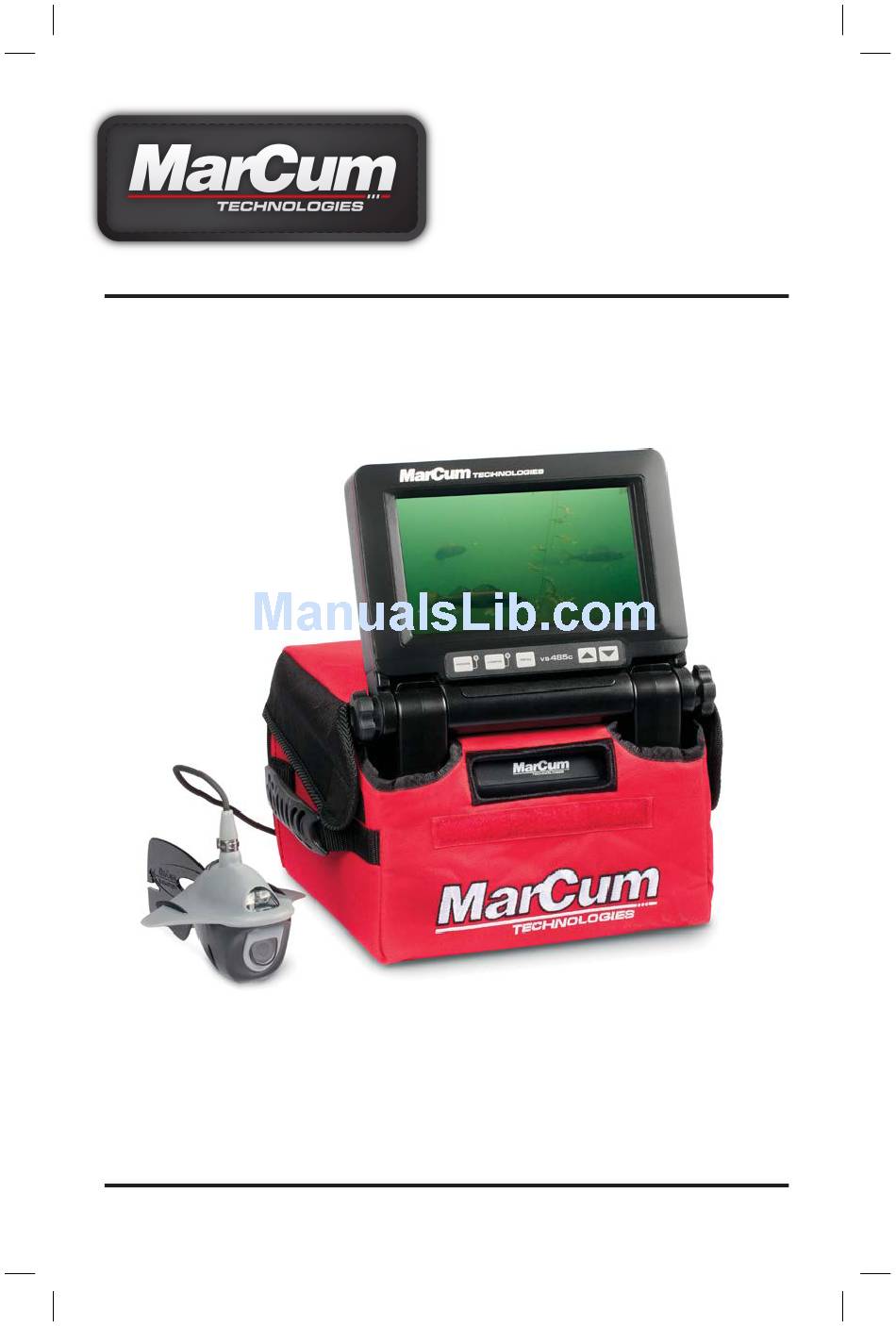

VS485C Underwater Viewing System User Manual www.marcumtech.com... -
Page 2: Table Of Contents
Versa Electronics www.marcumtech.com Table of Contents Introduction ....................3 Features ......................3 Getting Started ....................5 Adjusting the Monitor Settings ............... 6 Lighting ......................7 Ice Fishing Application ................... 7 Open Water Application ................. 8 Battery Charging .................... 8 Product Performance Specifications .............. 9 One Year Warranty .................. -
Page 3: Introduction
Introduction Thank you for your purchase of the VS485C, and welcome to the world of underwater viewing in full color! Your new VS485C can be used to hunt for underwater treasures, locate the “spot on the spot”, observe fish in their natural habitat, learn how to interpret signals on your sonar, and learn how fish react to your lure or bait presentation. - Page 4 Should your VS485C viewing system become wet from rain or snow, be sure to get it to a warm dry place to dry out as soon as possible.
-
Page 5: Getting Started
Getting Started Remove the VS485C from the packaging and place it on a level surface with the MarCum Technologies logo facing towards you and right side up. Open the top cover of the soft pack by lifting up on the hook and loop closers on each side and front of the soft pack. -
Page 6: Adjusting The Monitor Settings
Adjusting the Monitor Settings The VS485C monitor has four different adjustments that can be made to enhance the image on the monitor to the user’s preference. (Note: The VS485C has been pre-set with factory defaults for normal viewing.) To access the settings menu, press the menu key on the digital keypad. -
Page 7: Lighting
Once you’ve located the spot, drill a hole 3 or 4 feet away from the hole you’re actually going to fish in. Set the VS485C on the ice and lower the camera down the second hole. To assist in keeping the camera at the desired depth and direction, it is recommended that a Camera Panner (purchased separately) be used. -
Page 8: Open Water Application
ON and drop the Manta camera into the water. If you’re drifting with the wind or using a trolling motor with the VS485C, attach the supplied trolling fin to the rear of the Manta Camera for added stability. The internal weight is enough to keep the camera down while the fin assists in keeping the Manta camera tracking straight through the water. -
Page 9: Product Performance Specifications
Versa Electronics www.marcumtech.com The VS485C viewing system includes the Sun Shroud, which can be attached to the monitor to improve viewing while outdoors. The Sun Shroud comes with three hook and loop attachment strips that enable the owner to easily attach the shroud when conditions warrant its use, or remove it when not needed. - Page 10 MINNEAPOLIS, MN 55427 The customer is responsible for shipping costs associated with returning the unit to Marcum Technologies. Marcum will pay for shipping the repaired unit back to the customer while it is still under warranty. All out of warranty services will be charged a fee for service and shipping which must be paid in advance.
- Page 11 Versa Electronics www.marcumtech.com These are some other great systems from Marcum. These items can be purchased from one of our many fine retailers, or direct from us at marcumtech.com Camera Panner This is a must-have for anyone using an underwater viewing system.
- Page 12 Marcum Technologies 3943 Quebec Ave N Minneapolis, MN 55427 MarCum User Manuals are available for download from www.marcumtech.com.
