Page 1: User Manual

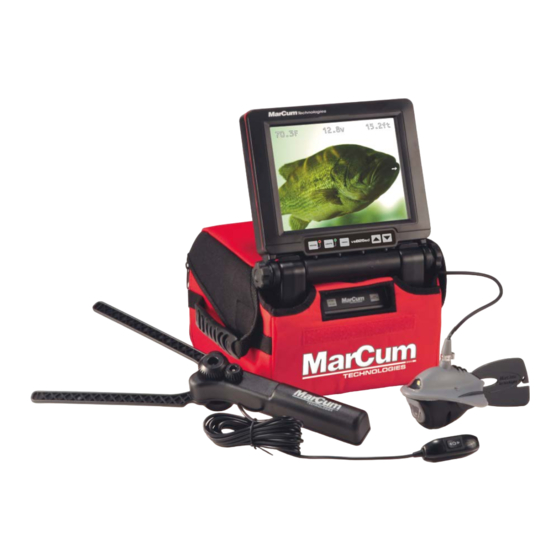

VS825sd TECHNOLOGIES Underwater Viewing System User Manual... - Page 2 Direction, Depth, Temp and Battery Voltage take all of the guess work out of your camera position so your new VS825sd can be used to hunt for underwater treasures, locate the "spot on the spot", observe fish in their natural habitat or learn how fish react to your lure or bait presentation.
-
Page 3: Getting Started
The VS825sd has been set-up and tested at the factory before being placed into its retail packaging. Remove the VS825sd from the packaging and place it on a level surface with the Marcum Technologies logo facing towards you and right side up. Once opened, loosen the knobs on the either side of the gimbal bracket (at the base of the monitor) by turning each one counter-clock- wise. -
Page 4: Up And Down
MONITOR SCREEN ADJUSTMENTS· The VS825sd monitor has six different adjustments that can be made to enhance the image on the monitor to the user's preference. (Note: The VS825sd has been pre-set with factory defaults for normal viewing.) To access the settings menu. - Page 5 ON-SCREEN DISPLAY (OSD) FUNCTIONS The Marcum VS825sd underwater viewing system includes the most technically advanced features available in an underwater fishing camera. This system incorporates a variety of sensors and an On Screen Display (OSD), capable of displaying water temperature, water depth, battery voltage, and the relative direction heading of the camera.
- Page 6 Ligh The VS825sd utilizes super high intensity white LED lights. The VS825sd incorporates Darkwater technology which greatly reduces particulate reflection and increases viewing distance by positioning the lights above and behind the actual camera lens.
-
Page 7: Ice Fishing Application
Ice Fishing Application The VS825sd can be used to search for that perfect weed line or locate the crib or rock pile where fish will generally school, entertain the kids, or as the perfect tool to enhance your ice fishing experience. To use as a search tool, drill a series of holes through the ice in the location you're interested in fishing. -
Page 8: Battery Charging
If you spend a lot of time using your viewing system from your boat, it is inevitable that you will encounter some weather. While your VS825sd system is designed to be used in a... -
Page 9: Battery Charger Troubleshooting
MarCum versa Electronics TECHNOLCQIES,... TO CHARGE YOUR BATTERY: Your battery has a wiring harness attached to it that has "piggyback" terminals on it, enabling you to keep the power cord from the unit attached to the battery at all times, as well as having the wiring harness with receptacle for your charger attached at all times. -
Page 10: Product Performance Specifications
If it has been over 24 hours and the light is not green, the first thing you should do is unplug the charger and turn on your monitor. The VS825sd has a built-in voltmeter; you turn it on by pressing the OSD/DISPLA Y button will on the lower control panel. How different batteries will react with a charger isn't 100% possible to predict, but after 24 hours your battery should be charged to around 13 volts. - Page 11 MarCum versa Electronics TECHNOLCQIES,... These are some other great systems from Marcum. LX-5The LX-5 is the most advanced flasher style sonar on the market. The LX-5 incorporates the latest in sonar technology, featuring a patented flexible zoom that can be set anywhere between surface and bottom, a patent pending TrueColor display, 2500 watts of peak-to...
