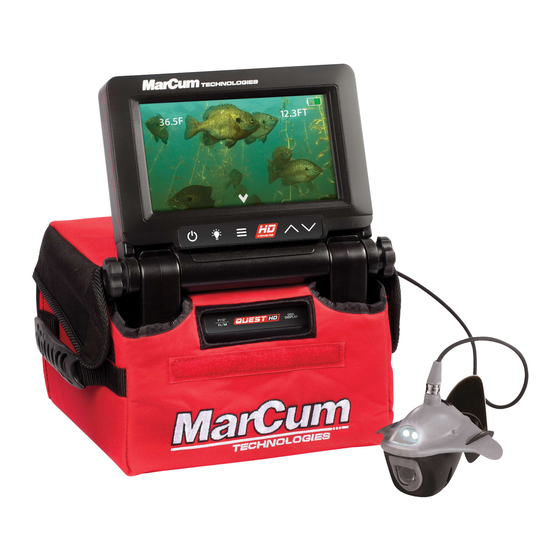

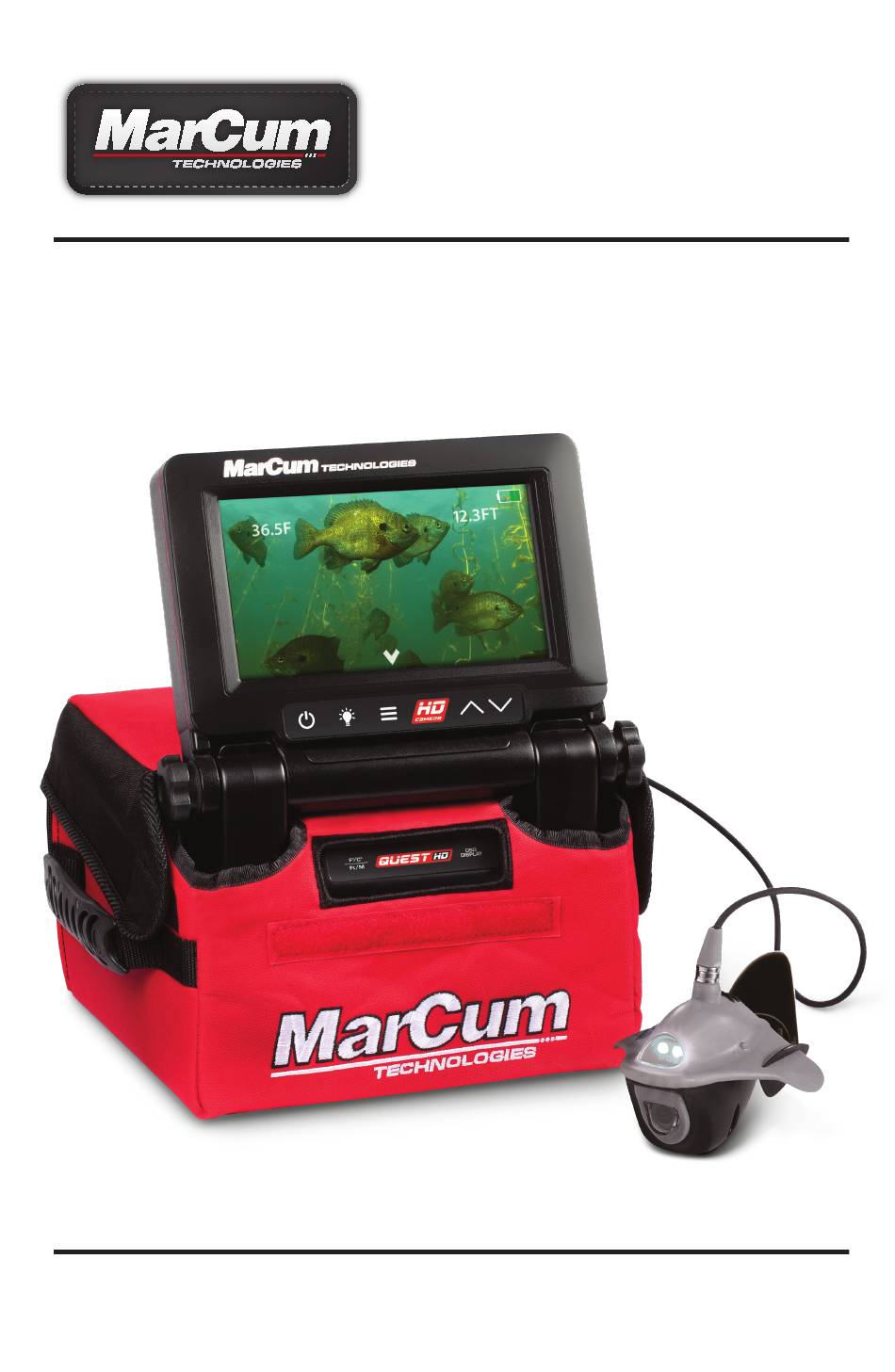

- Page 1 Quest HD Underwater Viewing System User Manual www.MarCumtech.com...
- Page 2 To turn "on" the Quest HD, press the power key which is located on the keypad on the lower left side on the front of the monitor. After pressing the power key, a small red LED indicator light will illuminate.
- Page 3 Adjusting the Monitor and On-Screen Display (OSD) Settings Monitor Screen Adjustments The Quest HD monitor has four different adjustments that can be made to enhance the image on the monitor to the user’s preference. (Note: The Quest HD has been pre-set with factory defaults for normal viewing.) To access the settings menu, press the menu key on the digital...
- Page 4 On-screen Display (OSD) Adjustments The MarCum Quest HD underwater viewing system includes the most technically advanced features available in an underwater fishing camera. This system incorporates a variety of sensors and an On-Screen Display capable of displaying water temperature, water depth, battery status, and the relative direction heading of the camera.
- Page 5 Once you’ve located the spot, drill a hole 3- 4 feet away from the hole you’re actually going to fish in. Set the Quest HD on the ice and lower the camera down the second hole. To assist in keeping the camera at the desired depth and direction, it is recommended that an Automatic Camera Panner be used.
- Page 6 MarCum Technologies Website: www.marcumtech.com/support. MarCum Technologies will repair or replace any components that fail in normal use. Failures due to abuse, misuse, unauthorized alteration, modification, or repair are not covered. The warranty is valid only for the original owner who purchases the unit from an authorized dealer.
- Page 7 The unit should be securely packed and shipped “pre- paid freight” and insured to MarCum Technologies. It is the customer’s full responsibility to track their products sent out in the mail or other forms of delivery service. MarCum Technologies will not be liable for packages lost in route to us.
- Page 8 MarCum Technologies 3943 Quebec Ave N Minneapolis, MN 55427 MarCum User Manuals are available for downloads from www.MarCumtech.com 2019-0328...
