Page 1: Operating Instructions

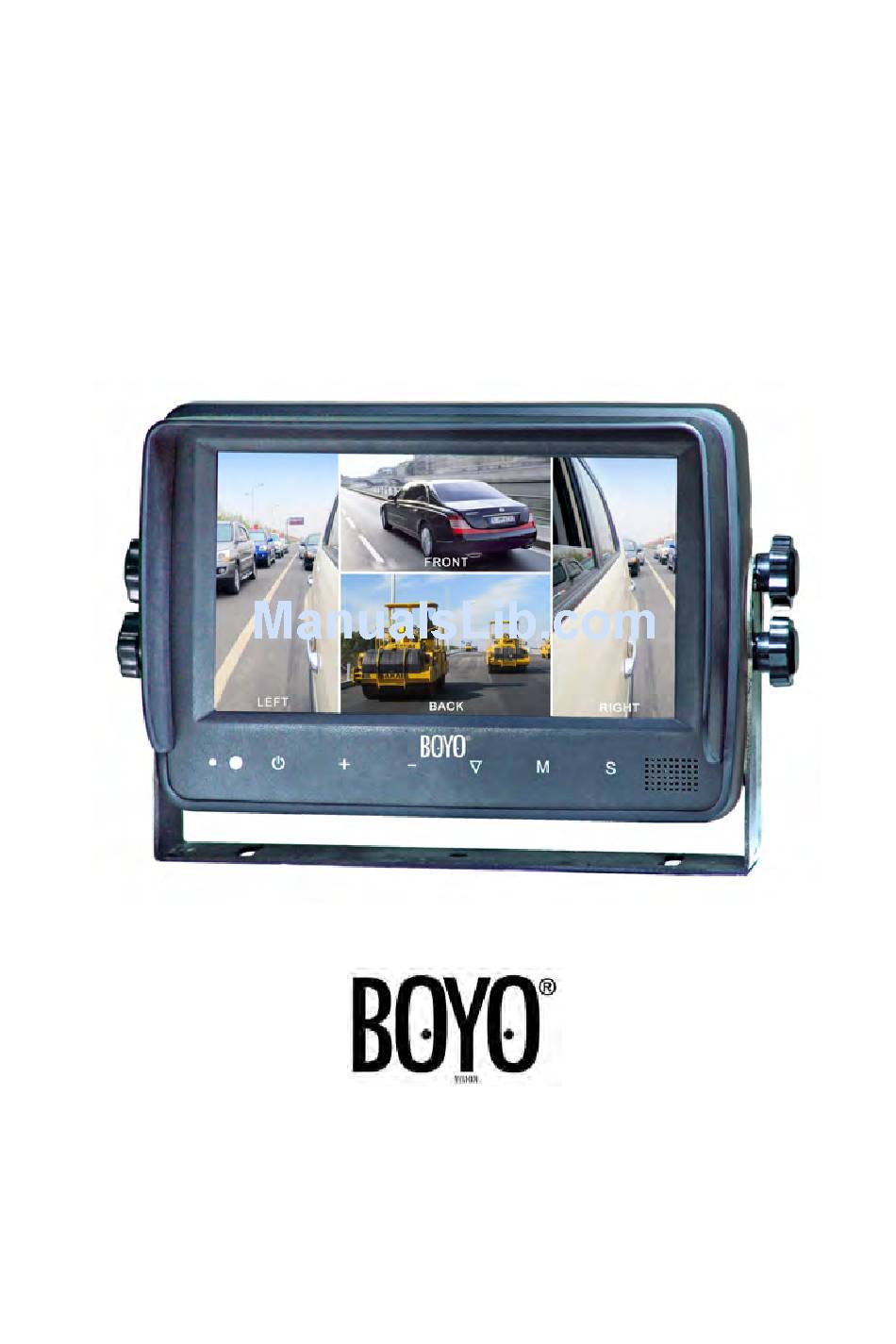

Operating Instructions VTM7003QMA 7" COLOR LCD WATERPROOF QUAD MONITOR WITH TOUCH-SCREEN Please read this manual thoroughly before operating the unit, and keep it for future reference. V1.0... -
Page 2: Table Of Contents
Contents 1. Precautions 2. Accessories 3. Monitor Installation 4. Connections 5. Monitor Operations 6. Remote Operations 7. Menu and Touch-Screen Operations 8. Specifications 9. Troubleshooting... -
Page 3: Precautions
1. Precautions Storage and Keeping 1. Do not expose the monitor to excessive heat or cold. The storage temperature of this device -22℉~176℉, and the operating temperature is -4℉~158℉. The humidity is Rh90%. 2. Never use this device where it is damp, such as close to wash basin, kitchen, swimming pool and the like (except for monitor designed to be weatherproof). -
Page 4: Declaration Of Conformity
Maintenance 1. Remove all the cable connections from the monitor before cleaning the unit. 2. Use a mild household detergent and clean the unit with a slightly damp,soft cloth. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device. -
Page 5: Accessories
2. Accessories U- Support Bracket Center Mount Bracket AV and Power Supply Adapter Cable IR Remote Control Angle Adjustment Screws Sun Shield Manual 4P Female - RCA Male Cables Special Notice Accessories may be different for different applications. - 3-... -
Page 6: Monitor Installation
3. Monitor installation Center Mount Bracket... -
Page 7: Connections
4. Connections Camera 3 Camera 2 Camera 4 Camera 1 AUX audio input Green: Rec. V. output Yellow:Live V. output White: Audio output White: Trigger 1 Blue: Trigger 2 Green: Trigger 3 Brown: Trigger 4 Yellow: Split trigger Black: Ground Red: Power - 5-... -
Page 8: Monitor Operations
5. Monitor Operations 3 4 5 6 Remote signal receiver window Power off/on button To increase / decrease the volume and switch between values of each sub-menu Menu selection and display mode (single, dual, triple, quad-view, PIP image) selection Menu control button Jump key selector. -
Page 9: Remote Operations
6. Remote Operations MUTE POWER MENU MODE SEL. LANG REST WARNING Please align the remote control with the remote signal receiver window to operate. 2. Never disassemble the remote control or allow it to drop, or wet. - Page 10 MUTE To mute / unmute the volume POWER Power off/on button MENU Menu control button Menu selection up Menu selection and display mode (single, dual, triple, quad-view, PIP image) selection To decrease the volume and switch between values of each sub-menu To increase the volume and switch between values of each sub-menu MODE Menu selection and display mode (single, dual, triple, quad-view,...
-
Page 11: Menu And Touch-Screen Operations
7. Menu and Touch-Screen Operations 7.1 OSD Setting MAIN MENU MAIN MENU CAMERA SETUP CAMERA SETUP SETUP SETUP SYSTEM SETUP SYSTEM SETUP TRIGGER SETUP TRIGGER SETUP TRIGGER PRIORITY TRIGGER PRIORITY RESET RESET SCALE: To turn on / off electronic distance label. When set as ON, electronic distance label will be displayed when rear view camera (camera 3) is activated. - Page 12 7.3 Jump Key Setting MAIN MENU MAIN MENU CAMERA SETUP CAMERA SETUP SETUP SETUP SYSTEM SETUP SYSTEM SETUP TRIGGER SETUP TRIGGER SETUP TRIGGER TRIGGER PRIORITY PRIORITY RESET LEFT H-SPLIT SYSTEM SETUP REC-V OUT QUAD AUTOSCAN RIGHT TREFOIL SCAN DELAY 01 SEC JUMP KEY LEFT FRONT...
- Page 13 Touch-Screen Operations 7.4.1 Switch to full screen by touching any channel in multi-viewing mode TOUCH MENU AREA RIGHT LEFT LEFT FRONT BACK TOUCH MENU AREA LEFT RIGHT BACK FRONT LEFT Buttons function of touch menu (not available in DVD/VGA/aux 7.4.2 channel or when auto scan is on) TOUCH Touch...
- Page 14 MAIN MENU CAMERA SETUP SETUP SYSTEM SETUP Touch TRIGGER SETUP TRIGGER PRIORITY RESET again The previous display Touch mode Menu selection up/down Switches between values of each sub-menu -12-...
- Page 15 7.4.3 Exchange picture locations of any two cameras displayed in multi-viewing mode Touch till areas darkended and release fingers RIGHT BACK LEFT RIGHT FRONT LEFT FRONT BACK 7.4.4 Exchange picture locations of two cameras in dual / triple-viewing mode (1 displayed, 1 hidden) Long press(>3S) BACK FRONT...
- Page 16 7.4.7 Decrease the volume Touch the right corner and slide downwards IIIIIIIIIIIII------- RIGHT LEFT RIGHT LEFT Increase the volume 7.4.8 Touch the right corner and slide upwards IIIIIIIIIIIIIII----- RIGHT LEFT LEFT RIGHT -14-...
-
Page 17: Specifications
8. Specifications Dimension 7" TV System NTSC/PAL Resolution 800 (W) × 3 (RGB) × 480 (H) Brightness 400cd/㎡ Contrast 500:1 Viewing Angle U: 50, D: 70, L: 70, R: 70 Aspect Ratio 16:9 0.0642 (W) x 0.1790 (H) Pixel Pitch (mm) Operating Temperature -4℉~158℉... -
Page 18: Troubleshooting
9. Troubleshooting The symptoms described below do not necessarily mean a failure within the display. Please check the following items before you initiate request for repair. Symptom Possible Causes/Solutions Improper connection of automobile adapter. Use of un- No picture, no sound authorized power supply. - Page 19 WARNING Monitor systems are strictly intended to be installed as a supplement and not intended for use as substitutes for rear-view mirror devices, or for any other standard motor vehicle equipment required to be installed on vehicles by law. Our products are no substitute for proper defensive driving techniques, observance of traffic laws and motor vehicle safety regulations.
