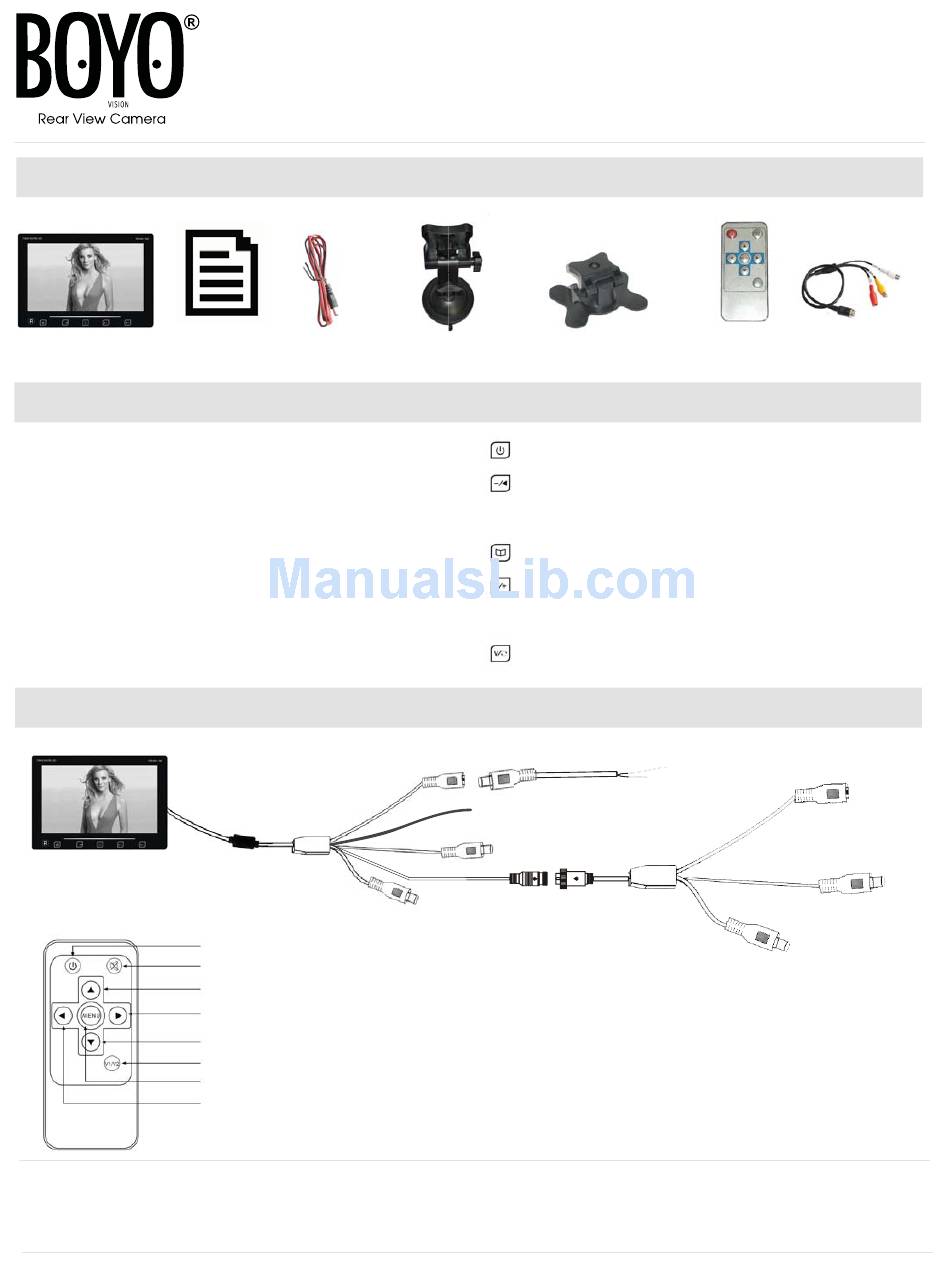

Boyo VTM7000S Specifications

1. BILL OF MATERIAL

Monitor Manual

2. SPECIFICATION

• Screen Type: 7" Digital TFT LCD
• 2 Video Input and 1 camera input
• Built-in Speaker
• Display Format: 16:9
• Power: 5W+
• Power supply: 12VDC ~ 15V
• Reverse trigger wire
• PAL/ NTSC auto switch
• Pixel: 800x480
• Slim and Sleek Design
• Contrast: 350:1
• Dimension: 7" (W) x 4.75" (H) x 0.5" (D)

3. WIRING

For technical support contact 888-941-3060 or email info@visiontechamerica.com
Power Wire Windshield Mount Dash Mount Bracket
/+
Power button: On/ Off
Mute button: Mute On/off
Upside down/ Right side up image view
Volume Up
Mirror to non-mirror image view
Video input select
Menu Button
Volume down
WWW.VISIONTECHAMERICA.COM
Power button: Open/ sleeping mode
Volume-Adjust -
Menu: parameter-adjust
Menu
Volume adjust +
Menu: parameter-adjust
Short Press for video input select
Long Press for up, down, right, left image view modes
Red lead: 12VDC
Red Plug g g g g
Black lead: Ground
Blue wire: Reverse Light 12VDC
Video Input 1 1
Video Input 2
USER'S MANUAL
Model: VTM7000S
7" SLIM MONITOR
Remote RCA Adapter
Cable 4pin
Red plug:
Power to Camera
White RCA: Audio In
Yellow RCA: Camera Video In
