Boyo Crakuda User Manual

7" rearview mirror dvr monitor
Hide thumbs

Advertisement

Quick Links

Carkuda (VTG700X)
User Manual

Advertisement

loading

Related Manuals for Boyo Crakuda

Summary of Contents for Boyo Crakuda

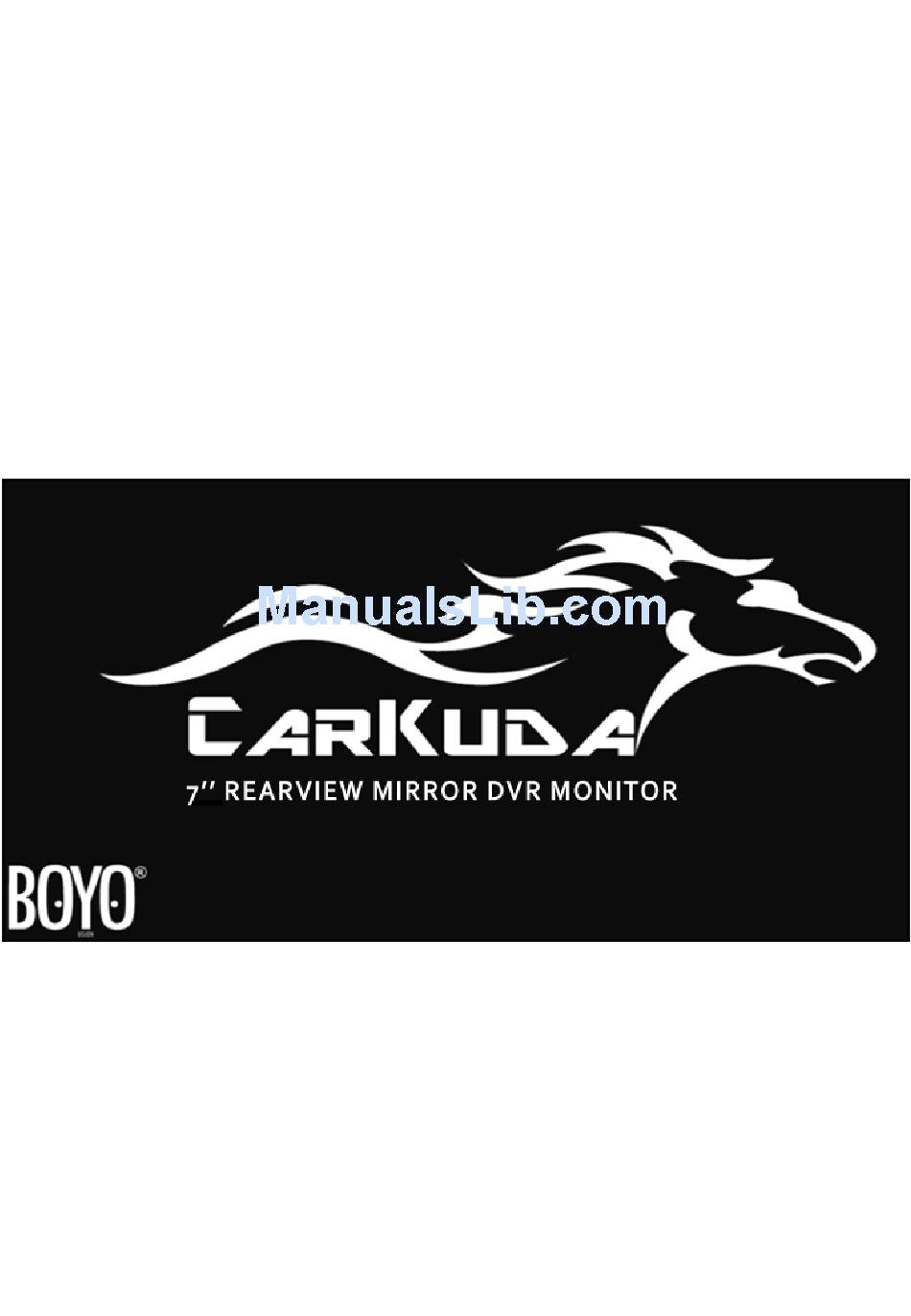

  • Page 1 Carkuda (VTG700X) User Manual...

  • Page 2: Table Of Contents

    Contents • Carkuda Concepts • Quick Start • Installing Carkuda Mirror • Using Carkuda Mirror • Using Carkuda Smartphone App • Technical Specifications • Packing List • FAQs...

  • Page 3: Carkuda Concepts

    Carkuda Concepts Carkuda Mirror Cloud Services of Various Providers Wi-Fi Smartphone Vehicles  Carkuda Mirror installs in vehicles  Carkuda hardware connects to battery, ACC power line, reverse signal line and GPS antenna  With Wi-Fi Data Network, mirror talks to Cloud Services ...

  • Page 4: Quick Start

    Quick Start Install Carkuda Mirror • Mount, Connect, Insert SD Card • See Page: 5 - 10 Use In-Mirror Features • DVR, Navigate, Play • See Page: 12 - 25 Carkuda Smartphone • Bind, Check, Monitor • See Page: 27 - 36...

  • Page 5: Using Carkuda Mirror

    Contents • Carkuda Concepts • Quick Start • Installing Carkuda Mirror – Mounting – Cables – GPS Antenna – SD Card • Using Carkuda Mirror • Using Carkuda Smartphone App • Technical Specifications • FAQs...
  • Page 6 Installing Carkuda Mirror -Mounting  Universal Plastic Brackets Please identify if your car mirror has a round connector with mounting bracket. If yes, then please remove the original mirror off from the bracket. Keep the mounting bracket on the windshield as is. We will use this bracket as the base for universal plastic mounting bracket.
  • Page 7 Installing Carkuda Mirror -Mounting Please select the proper size head circle according to your Existing mounting bracket. Place the plastic head and drive the 4 screws into the mirror. There are several sizes of ball cups, select the proper one that fits for your mounting bracket You can test the size of ball cup by installing onto the bracket ball.
  • Page 8 Installing Carkuda Mirror Harness Black Battery/Fuse Box Yellow ACC/IGN Key Reverse Light + Blue FM antenna Green Back up cam input Black Carkuda requires constant battery power after vehicle ignition switch is turned off. This will allow users to access the Carkuda real time data remotely via Smartphone.
  • Page 9 Installing Carkuda Mirror -GPS Antenna We have also included a GPS antenna. This antenna is used to receive GPS signal in a very fast and stable manner. The recommended position to install the GPS antenna is the inside windshield, or on top of the dashboard. Once the antenna is properly installed, connect the GPS antenna to Carkuda.
  • Page 10 Contents • Carkuda Concepts • Quick Start • Installing Carkuda Mirror • Using Carkuda Mirror – DVR – Navigation Apps – Snapshots – File Manager – SOS – Google Play – App Manager – Time and Date – Wi-Fi Network –...
  • Page 11 Using Carkuda Mirror -DVR When you tap the Recorder icon. It displays the full view real time video. To review the video history, tap the File Manager icon. You can review and play back the video files on the mirror. Real time preview window HD/FHD switching Mute/Un-mute...
  • Page 12 Using Carkuda Mirror -Navigation Apps Carkuda supports various navigation systems like Google Map, MapFactor, WAZE, Yahoo Map and many more. The user experience is the same as what we have on the Smartphone. Note • Google Map requires a data connection to function. •...
  • Page 13 Using Carkuda Mirror -Snapshots When driving, the driver can instantly tap the Snapshot icon, Carkuda will capture the image from the front camera and save it in the File Manager or it can upload to the Cloud Server, which can be synchronized to your Smartphone app automatically.
  • Page 14 Using Carkuda Mirror -File Manager Tap the File Manager icon, users can access DVR videos and photo history, delete or lock DVR videos and snapshot photos, clean up SD Storage or Internal Storage space. For files that start with letter “G”, it is clocked by G-Sensor detection during hard brake or collision.
  • Page 15 Using Carkuda Mirror -File Manager To play videos, click on the file you wish to . Press return arrow on left-bottom to quit playing. User can lock, select and delete the files as needed.
  • Page 16 Using Carkuda Mirror -SOS Email Once SOS icon is tapped, the emergency contact person will receive an email alert with real time address and images attached. Wi-Fi data connection required. PC or Smartphone Carkuda Service Cloud Note •Carkuda Email SOS alert is offered to users globally. •Carkuda does not guarantee the delivery of E-mail due to various network situations, different mail servers, etc.
  • Page 17 Using Carkuda Mirror -Google Play Carkuda offers Google Play store feature. Users can install their favorite apps into Carkuda. Once new apps are installed, user can find new icons in the new pages. For performance purpose, Carkuda recommends user to install limited number of Apps.
  • Page 18 Using Carkuda Mirror -App Manager To remove an App, tap App Manager, choose the App to be removed, Tap uninstall. The Carkuda will reboot after deleting the App. Users can Force Stop or Suspend an App in App Manager.

  • Page 19: Date And Time

    Using Carkuda Mirror -Date and Time Like most of Android devices, users can set the time and date from the system settings. Note  We also recommend users to stay on the default settings. You can turn to GPS timing for automatic date and time adjustments.
  • Page 20 Using Carkuda Mirror -Wi-Fi Network Carkuda supports Wi-Fi connection. If there are Wi-Fi networks nearby, users can click on the Wi-Fi settings, scan and log into Wi-Fi networks. Typically, Wi-Fi network comes from Smartphone hotspot or dedicated Wi-Fi routers.
  • Page 21 Using Carkuda Mirror -FM Transmitter Tap FM Transmit icon, Set Carkuda and radio to the same frequency to connect to radio speakers. Carkuda sound will now broadcast through your radio. Turn off the FM broadcast to return to Carkuda speaker. Turn on/off FM broadcast...
  • Page 22 Using Carkuda Mirror -Shutdown Delay Menu: [Settings]->[Power Off delay after ACC OFF] Since we offer remote security feature, Carkuda will be in a standby mode after vehicle is off. It will stay connected to the data network and respond to remote users request. And by default, after 17 hours, Carkuda will shutdown to avoid draining the vehicles battery power.

  • Page 23: Software Upgrade

    Using Carkuda Mirror -Software Upgrade Carkuda offers online and SD card updates. Online update requires a Wi-Fi data connection. SD card update files will be available for download.
  • Page 24 Using Carkuda Mirror -GPS test GPS test offer users a tool to check the GPS signal status. It display the number of satellite received and signal strengths.
  • Page 25 Using Carkuda Mirror -How to Reboot In any case that users experience: • Screen freeze • Touch pad not responding • Installing a new SD card … etc. Users can press and hold the middle button on the front face for approximately ten seconds.
  • Page 26 Contents • Carkuda Concepts • Installing Carkuda Mirror • Using Carkuda Mirror • Using Carkuda Smartphone App – Installing App – Create User Account – Login – Create Vehicle Info – Binding Mirror with Vehicle – Safety Alerts – GPS Tracker –...
  • Page 27 Using Carkuda Smartphone App- Installing App Please search for "carkuda" in AppStore or Google Play Carkuda Global Store. Please install [ ] App.
  • Page 28 Using Carkuda Smartphone App- Create User Account Users can register their account by providing a valid email address, then tap Get code and setup the password. Sometimes, the verification code email may be found in your Junk Email box depending on different email services.
  • Page 29 Using Carkuda Smartphone App- Login/Logout 1. To login the App, please provide the registered user email and password. Then click on Login button 2. To logout the current user, please click into [Personal Center], then click on the icon located right-top of the screen.
  • Page 30 Using Carkuda Smartphone App- Create Vehicle Info After login, users need to input the vehicle and Carkuda mirror information to link all the devices together. In [Personal Center], you can input vehicle info by clicking [Add car]. In the new page, please provide the vehicle image, brand, model, year and license plate number.
  • Page 31 Using Carkuda Smartphone App- Binding Mirror with Vehicle Bind the Carkuda info onto the same vehicle. Tap the green Bind icon and provide the Carkuda SN and PIN number.
  • Page 32 Using Carkuda Smartphone App- Binding Mirror with Vehicle In the [Bind Device] page, the [Recorder account] equals [S/N] number, the Password equals [PIN]. The S/N and PIN can be found on the white label, which is located on the top of Carkuda mirror.
  • Page 33 Using Carkuda Smartphone App- Safety Alerts The first block is safety message. It records IGN/ACC on and off, with time and location. Note The locations names depend on the GPS signal. If no signal, then the location will be recorded as [location not found].
  • Page 34 Using Carkuda Smartphone App- GPS Tracker The second block is GPS tracker. Carkuda records all GPS locations and speeds. Distinguished by different colors, users are able to check where they drove over the speed limit. On the top of screen, users can change the date and see other historical data.
  • Page 35 Using Carkuda Smartphone App- Live Image Feedback Tap the image button and wait, users can see the front camera real-time image feedback. Note Carkuda VTG700X supports single front camera. Due to different data network situations, users may experience different delay times while waiting for image feedback.
  • Page 36 Using Carkuda Smartphone App- Photo Albums The third block is Albums, the photos are all snapshots taken from the Carkuda mirror. The photos are organized by time line and locations. By tapping on [Map] tab, user can switch to map view.

  • Page 37: Technical Specifications

    Technical Specifications Type Item Note 802.11b/g/n；@2.4GHz； Wi-Fi WEP/WPA/WPA2, Access Point for Wireless Tethering、72.2Mbps or less Connection Support GPS (Standalone and A-GPS) Interfaces Antennas GPS、Wi-Fi/BT、FM Power 12V, has over voltage protection 7 inches, IPS touch screen 480x1280 Front facing camera, at 720P or 1080P Main Camera selectable by user Rear Camera...

  • Page 38: Packing List

    Packing List Name Quantity Note Carkuda VTG700X Mirror Main Harness Mounting Brackets Black color GPS Antenna User Manual...
  • Page 39 FAQs Questions Answers Is the Smartphone The Carkuda Smartphone App is available for app free? download at the App store at no charge. Is the Carkuda Currently it is free-of-charge, later if Carkuda Mirror Cloud offers premium services or Carkuda partners Service free? offer extra services, there may be reasonable fee.
  • Page 40 Vision Tech America, Inc. 1452 E. Valencia Dr., Fullerton, CA 92831 Tel: 888-941-3060 For technical support contact 888-941-3060 or email info@visiontechamerica.com WWW.VISIONTECHAMERICA.COM...
