AV2
Black: Ground
Compass
r~~-·--==
Temperature gauge
Monitor
1.Effective Pixels:640·480pixels
2.Sensing Area:3.984*2.952mm
3. Resolution :420TVline
4.Worklng voltage:10-14V
5.Working temperature: -4 OF -140"F
Installation
Temperature gauge : to be
Placed~
inside the car where Is convenient.
~
A
AVI
Compass : to be placed on the
•
dashboard and fix it with sticker. Camera
Red: OCTl2V
/ ~ ~ - - - - - - - - - - - - - - - - - - - - - - -
7. Registration card
~(!)~
2.User manual
3.Compass
4.Temperature
sensor
~
6.Warranty card
1.4.2"Moritor
5.Power line
- - - _ . _ - - - - - - - - - - - - - - - - - - - - - - - .
Installation
Components
4.2"Multifunctlon Rear View
Mirror
Monitor

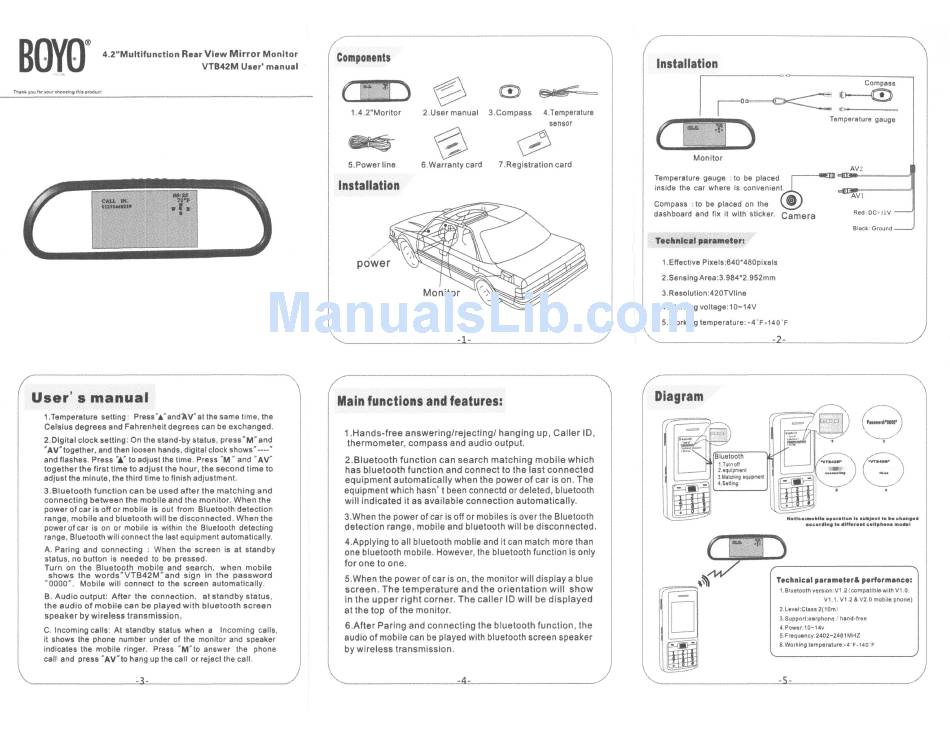

VTB42M User' manual
Thenk you for your choosing thIs product
-1-
'-
.__=.2..=.._
l
------------~
R
~/
~~
' "
,.,"
)
.....
~
Hottee:",obU. op.rat'oa I.
IUlliJect
to
~.
chan,.d
according to cUff.,••• celllthon. mo... 1
Technical pa'8meter& performance:
1.Bluelooth version:V1.2 (compatible with V1.0,
Vt .1. Vt.2
&
V2.0 mobile phone)
2.Level:Class 2(10ml
3.Support:earphone
!
hand-free
4.Power:10-14v
5.Frequency:2402-2481 MHZ
6,Worklng lemperalure:-4'F -140"F
D
Ii
.Diagram
1.Hands-free answering/rejecting! hanging up, Caller
10,
thermometer, compass and audio output.
2.Bluetooth function can search matching mobile which
has bluetooth function and connect to the last connected
equipment automatically when the power of car is on. The
equipment which hasn't been connectd or deleted, bluetooth
will indicated it as available connection automatically.
3.When the power of car is off or mobiles is over the Bluetooth
detection range, mobile and bluetooth will be disconnected.
4.Applying to all bluetooth moblie and it can match more than
one bluetooth mobile. However, the bluetooth function is only
for one to one.
5.When the power of car is on, the monitor will display a blue
screen. The temperature and the orientation will show
in the upper right corner. The caller
ID
will be displayed
at the top of the monitor.
6.After Paring and connecting the bluetooth function, the
audio of mobile can be played with bluetooth screen speaker
by wireless transmission.
Main functions and features:
1.Temperature setting: Press
NAN
and~
V'" at the same lime, the
Celsius degrees and Fahrenheit degrees can be exchanged.
2.0lgital clock setting: On the stand-by status, pressNM'" and
"AV"'together, and then loosen hands, digital clock shows'" ----"
and flashes. Press "'." to adjust the time. Press
~M"
and" AV'"
together the first time to adjust the hour, the second time to
adjust the minute, the third time to finish adjustment.
3.Bluetooth function can be used after the matching and
connecting between the mobile and the monitor. When the
power of car is off or mobile is out from Bluetooth detection
range, mobile and bluetooth will be disconnected. When the
power of car is on or mobile is within the Bluetooth detecting
range, Bluetooth will connect the last equipment automatically.
A. Paring and connecting : When the screen is at standby
status, no button is needed to be pressed.
Turn on the Bluetooth mobile and search, when mobile
shows the words"VTB42M"and sign in the password
'" 0000". Mobile will connect to the screen automatically.
B. Audio output: After the connection, at standby status,
the audio of mobile can be played with bluetooth screen
speaker by wireless transmission.
C. Incoming calls: At standby status when a Incoming calls,
it shows the phone number under of the monitor and speaker
indicates the mobile ringer. Press "'MNto answer the phone
call and press"AV"to hang up the call or reject the call.
User's manual
" - - - .
. _ _ -.... 5'--
