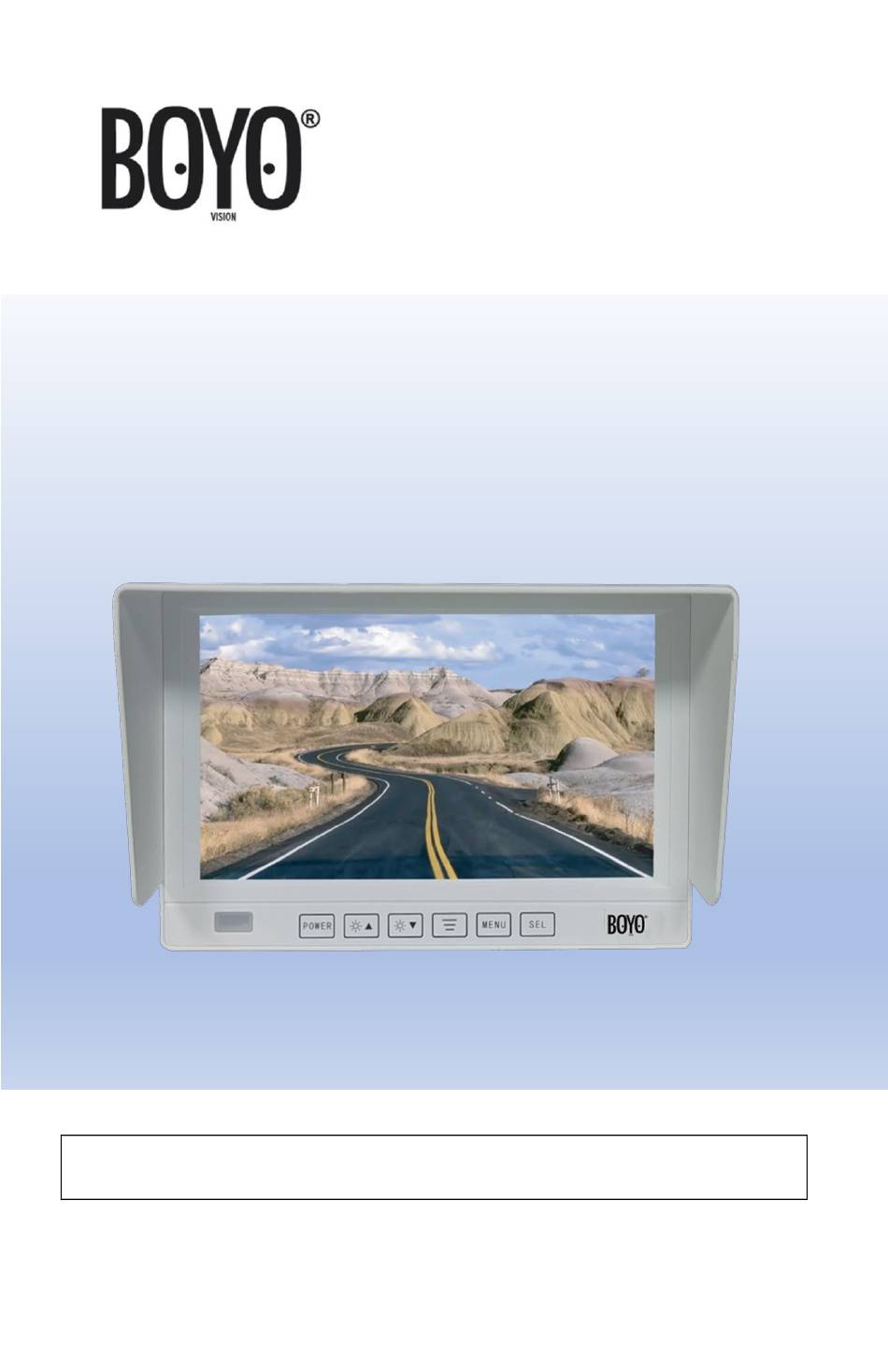

- Page 1 VTM7000MAHD 7” AHD & CVBS Waterproof Monitor USER MANUAL Please read the instructional complete before use and keep it for future reference.
- Page 2 Product Features • IP69 Waterproof Monitor- Suitable for Marine Application • AHD & CVBS Compatible • 7” TFT LCD Panel • Built-in Speaker • Button Lock Function • Easy Installation and Operation Contents Monitor Set Power Harness Remote Control Mount Bracket (1x) (1x) (1x)
- Page 3 Installation 1. Wiring / Connections BLACK: AHD/CVBS AV1 YELLOW: AHD/CVBS AV2 GREEN: AV2 Trigger BLACK: Ground (-) RED: DC12~32V (+) 2. Monitor Installation Steps a. Perform pre-install test to determine the right monitor position placement and mark the hole positions. b.
- Page 4 d. Determine the monitor height position and lock into position. e. Loosen the bottom screw and adjust the tilt and pan position to face the monitor to the driver.

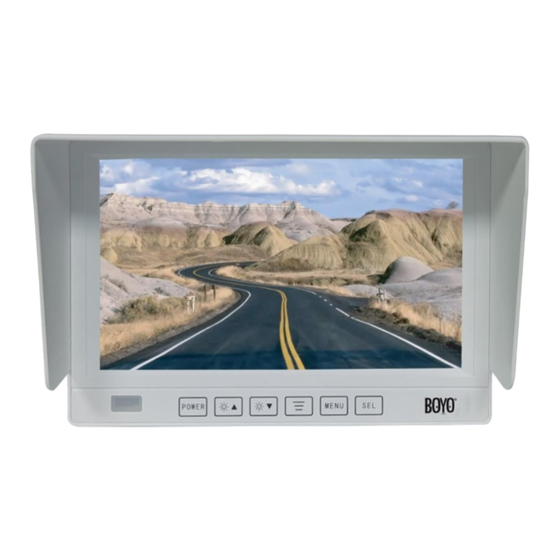

- Page 5 Monitor Operation Touch Buttons: Power on/off IR Remote receiver Brightness Up Sun Shield Brightness Down TFT LCD Mode Audio speaker (rear side) Menu Switch Video Button Lock: The monitor can be locked. When locked, the touch buttons will become non-functional (disabled). To lock: Press the menu button for 5 seconds.
- Page 6 Menu Pressing the menu button will enter the monitor setting options. Repeated pressing will scroll through the following selection. Once selected 1. Brightness: Display brightness adjustment Press ▲ or ▼button to increase/decrease the brightness 2. Color: Change color intensity Press ▲ or ▼ button to increase /decrease the color intensity 3.
- Page 7 7. Default Setting: Reset the settings to the factory defaults. Press ▲or ▼ button to reset Specifications Monitor Specification 7 Inch AHD/CVBS LCD Monitor Waterproof: Suitable for Marine Application Resolution: 1024*600 Water Proof Rating: IP69 AHD/CVBS Auto Switching Touch Button Built-in Speaker 2 Video Inputs/ 1 Backup Camera Trigger Input Reverse/ Non-Reverse Switchable...
- Page 8 BOYO®- brand parts. This warranty is VOID if you purchased this product as used, floor model sample, or refurbished;...
