2006 Town Car Workshop Manual
SECTION 412-00: Climate Control System — General Information and Diagnostics
DIAGNOSIS AND TESTING
Climate Control System
Printable View (966 KB)

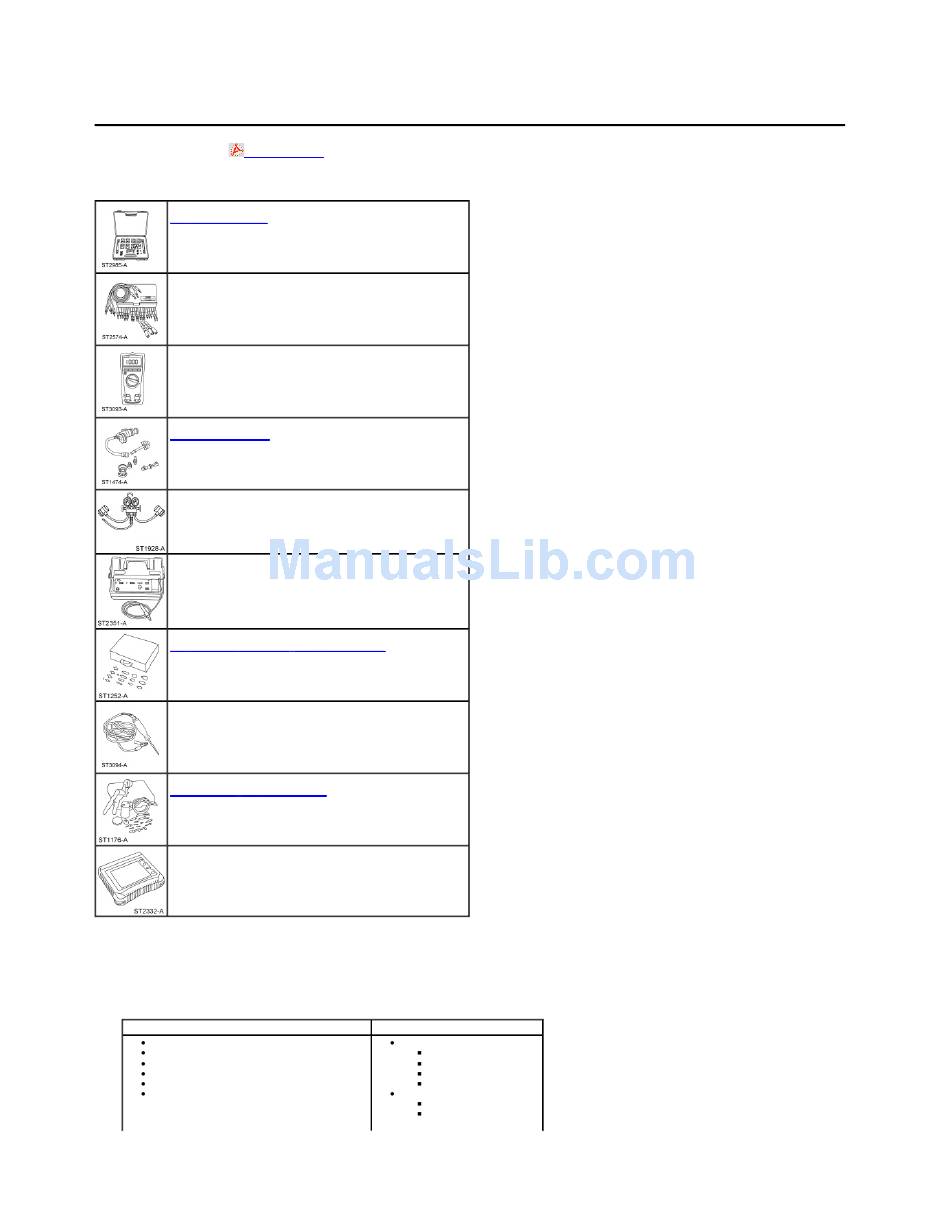

Special Tool(s)
A/C Flush Adapter Kit
219-00074 or equivalent
Flex Probe Kit
300-NUD105-R025DE or equivalent
Fluke 77-IV Digital Multimeter
FLU77-4 or equivalent
Pressure Test Kit
014-R1072 or equivalent
R-134a Manifold Gauge Set
176-R032A or equivalent
Refrigerant Leak Detector
216-00001 or equivalent
Set, A/C Fittings
412-DS028 (014-00333, D93L-19703-B) or equivalent
Test Light
SGT27000 or equivalent 250 mA incandescent bulb test lamp
Vacuum Pump Kit
416-D002 (D95L-7559-A) or equivalent
Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or
equivalent diagnostic tool

Inspection and Verification

1. Verify the customer's concern by operating the climate control system to duplicate the condition.
2. Inspect to determine if one of the following mechanical or electrical concerns apply:
Visual Inspection Chart
Mechanical
Loose, missing or damaged A/C compressor drive belt
Loose or disconnected A/C clutch
Broken or binding door/actuator
Broken or leaking refrigerant lines
Obstructed in-vehicle temperature sensor
Disconnected in-vehicle temperature aspirator hose
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS6G/~MUS~LEN/19/...
Electrical
Central junction box (CJB) fuse:
9 (7.5A)
15 (10A)
27 (10A)
31 (10A)
Battery junction box (BJB) fuse:
101 (40A)
11 (15A)
Page 1 of 45
2006 Town Car Workshop Manual
Procedure revision date: 08/12/2009
12/30/2011
