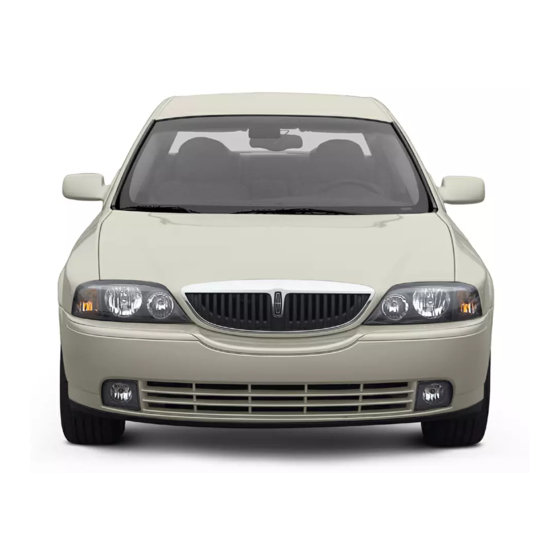

Lincoln 2003 LS Owners Manual And Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

www.carburetor-manual.com
Would you like some Free Manuals?
http://carburetor-manual.com/free-shop-manual-club-t-13.html
Also visit
http://freeshopmanual.com
for more Free Manuals
Also Visit my website for 7 FREE Download Manuals starting
with this one.
"The ABC's of Carburetion"
Click Here Now
file:///C|/Documents%20and%20Settings/Tim/Desktop/carburetor-manual-welcome/index.htm[4/25/2009 11:42:20 AM]

Advertisement

Table of Contents
loading

Related Manuals for Lincoln 2003 LS

Summary of Contents for Lincoln 2003 LS

  • Page 1 www.carburetor-manual.com Would you like some Free Manuals? http://carburetor-manual.com/free-shop-manual-club-t-13.html Also visit http://freeshopmanual.com for more Free Manuals Also Visit my website for 7 FREE Download Manuals starting with this one. "The ABC's of Carburetion" Click Here Now file:///C|/Documents%20and%20Settings/Tim/Desktop/carburetor-manual-welcome/index.htm[4/25/2009 11:42:20 AM]...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Introduction Instrument Cluster Warning and control lights Gauges Entertainment Systems AM/FM stereo with CD AM/FM stereo cassette with CD Navigation system Climate Controls Electronic automatic temperature control Lights Headlamps Turn signal control Bulb replacement Driver Controls Windshield wiper/washer control Steering wheel adjustment...
  • Page 3 Table of Contents Seating and Safety Restraints Seating Safety restraints Air bags Child restraints Driving Starting Brakes Traction control/AdvanceTrac Transmission operation Trailer towing Roadside Emergencies Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Jump starting Wrecker towing Customer Assistance...
  • Page 4 Table of Contents Maintenance and Specifications Engine compartment Engine oil Battery Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Accessories Index All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company.

  • Page 5: Introduction

    State of California to cause cancer and birth defects or other reproductive harm. CONGRATULATIONS Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.
  • Page 6 Introduction SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol.
  • Page 7 Introduction SPECIAL NOTICES Emission warranty The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
  • Page 8 Introduction This stored information may be read out and used by: • Ford Motor Company. • service and repair facilities. • law enforcement or government agencies. • others who may assert a right or obtain your consent to know such information.
  • Page 9 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Air Bag-Front Air Bag-Side Child Seat Child Seat Installation Child Seat Lower Warning Anchor Child Seat Tether Brake System Anchor Brake Fluid -...
  • Page 10 Introduction Vehicle Symbol Glossary Power Windows Power Window Lockout Front/Rear Interior Luggage Child Safety Door Compartment Release Lock/Unlock Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid...

  • Page 11: Instrument Cluster

    Instrument Cluster Instrument Cluster WARNING LIGHTS AND CHIMES Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works.
  • Page 12 Instrument Cluster Brake system warning light: To BRAKE confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position.
  • Page 13 Instrument Cluster Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and specifications chapter. Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and specifications chapter.
  • Page 14 Instrument Cluster Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at, or near empty (refer to Fuel gauge in this chapter). Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

  • Page 15: Gauges

    Instrument Cluster Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.
  • Page 16 Instrument Cluster Odometer: Registers the total kilometers (miles) of the vehicle. • Standard instrument cluster • Optional instrument cluster Trip odometer: Registers the kilometers (miles) of individual journeys. To reset, depress the RESET control. To switch the display from Trip A to the Trip B, depress the A/B control.

  • Page 17: Entertainment Systems

    Entertainment Systems Entertainment Systems AUDIOPHILE AM/FM STEREO IN-DASH SIX CD RADIO 1. Seek: Press and release SEEK for previous/next strong station, selection or track. 2. Rewind: In CD mode, press until desired selection is reached. Fast forward: In CD mode, press until desired selection is reached. 3.
  • Page 18 Entertainment Systems 4. Mute: Press to MUTE playing media; press again return to playing media 5. Eject: Press to eject a CD. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press to decrease/increase the bass output. Treble: Press TREB;...
  • Page 19 Entertainment Systems Show TYPE: Displays the station’s call letters and format. Compression: Brings soft and loud CD passages together for a more consistent listening level. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMP OFF is displayed.
  • Page 20 Entertainment Systems 13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting.

  • Page 21: Am/Fm Stereo Cassette With Cd

    Entertainment Systems PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD 1. Eject: Press to eject a tape. 2. Eject: Press to eject a CD. 3. Bass: Allows you to increase or decrease the audio system’s bass output. Press BASS then press SEL to decrease or increase the bass levels.
  • Page 22 Entertainment Systems Fade: Allows you to shift speaker sound between the front and rear speakers. Press FADE then press SEL to shift the sound to the rear or the front 5. COMP (Compression): In CD mode, press to bring soft and loud passages together for a more consistent listening level.
  • Page 23 Entertainment Systems Traffic — Allows you to receive traffic announcements and control their volume level.Traffic information is not available in most U.S. markets. Program Type — Allows you to set your audio system to select from RDS-equipped stations for categories such as: Classic, Country, Info., Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40.
  • Page 24 Entertainment Systems CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.

  • Page 25: Navigation System

    LINCOLN NAVIGATION SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a Lincoln Navigation System which allows you to listen to the radio, play CDs and also navigate the vehicle using a navigation DVD.
  • Page 26 Entertainment Systems THX audio system Your Lincoln LS is equipped with the THX certified premium audio system. This system creates optimal acoustic quality for all seating positions and road conditions. The system offers an advanced speaker system, amplifier, subwoofer and equalizer.
  • Page 27 Entertainment Systems 6. CD OPEN CLOSE: Press to open/close the display screen and access the CD player. Cold temperature advisory When operating the system below 32° Fahrenheit (0° Celsius), the display screen requires 20–30 minutes warm-up to achieve maximum brightness. Ensure that the system display setting is set to DAY mode until maximum brightness is achieved (refer to Menu mode section).
  • Page 28 Entertainment Systems 3. Select AM, FM1 or FM2. 4. Press TUNE to adjust manually up ( ) or down ( ) the frequency band. 5. Press SEEK to find the next strong station up ( ) or down ( Note: If PTY (program type) is selected, the station selection will be limited.
  • Page 29 Voice activated commands (if equipped) Your Lincoln Navigation System (LNS) may be equipped with a voice activated feature which allows you to “speak” certain commands to the system. Speaking clearly will help to ensure that the system correctly...
  • Page 30 Entertainment Systems At any time, you may say these commands: • AM • FM1 • FM2 • CD • DVD (if equipped) During normal radio operation, you may say: • Seek up • Seek down During CD play with the in-dash 6 disc player: •...
  • Page 31 Entertainment Systems Audio mode Your Lincoln Navigation Audio System has many features including a full range of audio functions. To access these functions, press AUDIO on the main bezel. This will take you into audio mode. Volume/power control Press knob to turn the audio system on/off.
  • Page 32 Entertainment Systems Speed compensated volume (SCV) With this feature, radio volume changes automatically with vehicle speed to compensate for road and wind noise. To engage the SCV feature: 1. Press AUDIO. 2. Press SOUND. SOUND SEEK TUNE AUTO SET SCAN PRESET SCAN TRAFFIC INFO...
  • Page 33 Entertainment Systems AM/FM select in radio mode Press AM/FM1/FM2 to switch between AM/FM1/FM2 memory preset stations. AM/FM select in CD mode Press to stop CD play and begin radio play. AM/FM select in navigation mode The radio will continue to play in the background of the navigation screens.
  • Page 34 Entertainment Systems Preset scan Press PRESET SCAN to scan the SOUND stations stored in the memory SEEK TUNE presets. SCAN PRESET SCAN AUTO SET TRAFFIC INFO SET PTY 87.9 89.9 98.1 98.5 106.3 107.9 Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations.
  • Page 35 Entertainment Systems Radio data system (RDS) feature This feature allows your audio system to receive text information from RDS-equipped FM radio stations such as such as station call letters, program type, etc. When in FM mode, press RDS to activate/deactivate. Traffic function Select TRAFFIC for traffic SOUND...
  • Page 36 Entertainment Systems Ensure that the RDS function is turned on. Press PTY to turn the feature on/off. To set/change PTY: SOUND SEEK TUNE Ensure that the RDS function is turned on. SCAN PRESET SCAN AUTO SET Press SET PTY to select from the TRAFFIC INFO SET PTY...
  • Page 37 Entertainment Systems Sound functions To access settings for Bass, Treble, Balance, Fade, DSP (Digital Signal Programing), SCV (Speed Compensated Volume), and Occupancy modes: 4:17 87 . 7 SOUND VOL PUSH SEEK TUNE AUDIO SCAN PRESET SCAN AUTO SET TRAFFIC INFO SET PTY DEST 87.9...
  • Page 38 Entertainment Systems Fade : Allows you to adjust the amount of sound emitted from the front and rear speakers. Balance : Allows you to adjust the CNTR sound distribution between the right and left speakers. SCV (Speed Compensated Volume): Automatically compensates for road wind and noise.
  • Page 39 Entertainment Systems Playing a previously loaded CD: To begin CD play (if a CD is already SOUND loaded), press AUDIO hard button SEEK TUNE and then CD. SCAN PRESET SCAN AUTO SET TRAFFIC INFO SET PTY 87.9 89.9 98.1 98.5 106.3 107.9 Press CD.
  • Page 40 Entertainment Systems After an allotted time, the screen will close automatically or you may press CD OPEN CLOSE on the bezel again. 6. Once the screen closes, the system will start playing the last CD loaded. Track Press to advance to the next/previous track.
  • Page 41 Entertainment Systems Shuffle feature in CD mode When in CD (or CDDJ mode), press SHUFFLE to engage the shuffle feature. Press to select from shuffling between tracks (SHUFFLE TRACK) on the current CD or between all tracks on all CDs (SHUFFLE DISC).
  • Page 42 Entertainment Systems Map mode Map display information VOL PUSH AUDIO DEST MENU CD OPEN • CLOSE To access the map display, press MAP on the bezel. Once pressed, the current map display will appear on the screen showing the current vehicle location.
  • Page 43 Entertainment Systems Additional map function buttons To initiate the display of additional map function buttons, tap the map anywhere on the screen. The following buttons will appear: • STORE - stores current vehicle location as a memory point. Refer to Memory Points for further information.
  • Page 44 Entertainment Systems Route preferences After entering a destination, the Route options will appear on the screen showing what is currently selected. You may choose to activate/deactivate selections which the system will factor in when calculating your route. Those options are: •...
  • Page 45 Entertainment Systems North up button — Indicates that the map is displayed with north to the top of the screen. Press to toggle between “North up” and “Heading up” map display states. Heading up button — Indicates that the map is displayed with the vehicle heading to the top of the screen.
  • Page 46 Entertainment Systems GPS symbol— Indicates that insufficient GPS satellite signals are being received for accurate map positioning. The symbol is not displayed under normal operation. Speaker icon symbol— Press to turn voice guidance on/off. Navigation menu To access the Navigation Menu, press NAV MENU at the bottom of the map screen.
  • Page 47 Entertainment Systems • Display Whole Route: Will enter MAP mode and display your entire chosen route. Note: Route preference appears on the Nav menu when no destination is entered. While driving under route guidance, only follow an instruction when it is safe to do so as the system cannot be aware of changing conditions.
  • Page 48 Entertainment Systems Quick POI (Point of Interest) Allows you to change the Quick POI menu settings. Select the desired Quick POI (Gas, ATM, etc.) and then press ’List Categories’ for further categories, or ’Map Area POIs’ to show the desired POIs on your current map.
  • Page 49 Entertainment Systems DVD map version Displays the version of the inserted navigation DVD. Refer to Ordering additional map DVDs for further information. Display Options The Display Options screen will allow you make adjustments to the navigation display screen. You can choose from: •...
  • Page 50 Entertainment Systems Stored locations The Stored locations screen will allow you to choose from destinations that have been saved into the navigation system. In this screen, you can select from Memory Points, Special Memory Points, Home, Avoid Area, Destination and Way Point, or Previous Destination.
  • Page 51 Entertainment Systems Destination menu Press DEST on the main bezel to access the navigation mode. Initial map display After pressing AGREE to the initial WARNING screen, you will move into the initial map screen which shows the current vehicle location. Pressing the globe icon will take you to the user settings —...
  • Page 52 Entertainment Systems Destination entry Selecting a destination Press DEST to set a destination. From this menu, you may select from the following options: • Address— Use to select a destination based on a known street address or intersection. • Point of Interest— Use to select a destination that is a point of interest location (i.e., airport, restaurant, hospital).
  • Page 53 Entertainment Systems Points of interest (POI) Select “Point of Interest” from the Destination Entry Menu. In this next menu, you will have the following options: • By Name— Enter POI name on the keyboard. Touch “List” to display the list of matching points of interest.
  • Page 54 Entertainment Systems Memory point Your navigation system allows you to save special destinations you may wish to again visit. Select “Memory Point” from the Destination Entry Menu. • Select the desired item from the list of stored memory points. STORE MEMORY POINT •...
  • Page 55 Entertainment Systems Accessing memory point lists • Press LIST • Select the desired entry to view its location details. Sorting memory point lists • Access the desired list. • Press the button to sort the list as desired (i.e. date, name, or icon).
  • Page 56 Entertainment Systems Deleting a memory point • In the Memory Point Menu, press DELETE. • Select the entry to be deleted. • The system will ask you to confirm deletion. Press YES to confirm. The screen will briefly show “Memory Point Deleted”. Deleting all memory points •...
  • Page 57 Entertainment Systems • Press “Home”. • Press “Add”. Set home by selecting the correct address, POI, Previous destination, or selecting from the map. To view home, press the home icon (house) on the Destination Entry screen. Once home is set, you may select home as a destination. Adding a home location •...
  • Page 58 Entertainment Systems Deleting a home location • Once in the stored locations menu with home selected, press DELETE. • The system will ask you to confirm. • Press YES to confirm. Freeway Entrance/Exit Select “Freeway Entrance/Exit” from the second page of the Destination Entry menu.
  • Page 59 Entertainment Systems 2. Select entrance/exit— Press “Entrance” if you wish to join the freeway at this junction. Press “Exit” if you wish to leave the freeway at this junction. 3. Select Junction— The screen will display a list of junctions on the freeway.
  • Page 60 Entertainment Systems Destination and way points The Store Dest. & Way Point menu is used after a destination or way STORE DEST. & WAY POINT point has been entered for the first time using the Destination Entry menu. You can store and delete destinations and way points (locations you wish to visit in route to your ultimate destination).
  • Page 61 Entertainment Systems Editing and changing order of way points and destination Press “Chg. Order” to change the order in which the way points are visited. The points are listed chronologically from bottom up, the destination being on the top. Press the MAP button to edit the way point location on the map display.
  • Page 62 Entertainment Systems Route calculation Once the route criteria is selected, the navigation system automatically calculates the selected destination. The route appears on the display screen and a voice prompt provides instructions. The system may calculate up to four routes for the desired destination. Press “Next”...
  • Page 63 Entertainment Systems Route interruptions In the course of your destination, you may decide to temporarily leave your planned route for gas, food, etc. If you turn off the ignition, the option to continue the route guidance will be displayed when the ignition is turned on again.
  • Page 64 Entertainment Systems Listing areas to avoid You can list all areas noted as “avoid”. • Press “Nav Menu”. • Press “Stored locations”. • Press “Avoid area”. • Press LIST to view all previously stored selections. • Select the desired one. The map screen will be displayed, showing the location and address of the selected area.
  • Page 65 To access menu mode, press the MENU hard control. Menu mode allows you to access: • System Set-up • Information — Gives you the Lincoln Customer Assistance Center information. • Brightness/Contrast — Allows you to adjust the brightness and contrast on the screen.
  • Page 66 Entertainment Systems • Screen off — Allows you to turn off the navigation screen. System setup The system set up menu contains the following user settings: • Audible Feedback — Press to activate audible voice navigation commands. Press again to deactivate.
  • Page 67 Voice activated commands (if equipped) Your Lincoln Navigation System (LNS) may be equipped with a voice activated feature which allows you to “speak” certain commands to the system. Speaking clearly will help to ensure that the system correctly responds to your commands.
  • Page 68 Do not attempt to service, repair or modify the system. See your Ford or Lincoln Mercury dealer. The driver must not attempt to operate any detailed operation of the navigation system while the vehicle is in motion. Give full attention to driving and to the road.
  • Page 69 Ford or Lincoln Dealer. Federal Communication Commission (FCC) Compliance Changes or modifications not approved by Ford Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 70 Entertainment Systems The database reflects reality as existing before you received the database and it comprises data and information from government and other sources, which may contain errors and omissions. Accordingly, the database may contain inaccurate or incomplete information due to the passage of time, changing circumstances, and due to the nature of the sources used.
  • Page 71 Entertainment Systems Limited GPS reception System performance may be adversely affected if GPS reception is interrupted or interference occurs over a distance of several miles. The following are possible causes for GPS reception being interrupted. If the vehicle is: • in multi-story parking garages •...
  • Page 72 Entertainment Systems • The navigation system will only work with DVDs specifically intended for your navigation system. • Always store the map DVDs in their protective cases when not in use. Ordering additional map DVDs If you wish to order a replacement or additional map, please call 1–888–NAV-MAPS (1–888–628–6277) or to log onto www.navtech.com.

  • Page 73: Climate Controls

    Climate Controls Climate Controls DUAL ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (DEATC) SYSTEM 1. A/C control: Press to turn on and manually control the air conditioning. Press again to disengage. Press AUTO for the system to automatically control the temperature. 2. Recirculation control: Press to engage/disengage.
  • Page 74 Climate Controls 5. DUAL zone selector: Press to DUAL toggle the system between single zone and dual zone control. (Defrost): Distributes outside air through the windshield defroster ducts and the demister outlets. Can be used to clear ice or fog from the windshield.
  • Page 75 Climate Controls 15. Fan Speed: Press to manually increase/decrease fan speed. In manual mode, the display will show with a bar graph to indicate fan speed. Fan speed can be manually adjusted in AUTO mode. To allow the system to automatically control fan speed, press AUTO. 16.
  • Page 76 Climate Controls 1. A/C control: Press to turn on and manually control the air conditioning. Press again to disengage. Press AUTO for the system to automatically control the temperature. 2. Recirculation control: Press to engage/disengage. Used to manually enable or disable recirculated air operation.
  • Page 77 Climate Controls Airflow direction control: Press to toggle through the air distribution modes listed below. The selected mode will illuminate in the display. —Distributes air through the windshield defroster ducts, demister outlets and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging.
  • Page 78 Climate Controls show . This allows the seats to automatically heat or cool based on the climate control temperature selected. Press either control to disengage. 14. Driver’s side temperature control: Controls the temperature on the driver side of the vehicle in dual zone and controls the temperature of the entire vehicle in single zone.
  • Page 79 Climate Controls • Remove any snow, ice or leaves from the air intake area at the base of the windshield. • With the ignition in the OFF position after operating the vehicle, some vehicle sounds related to the climate control system may be heard. •...
  • Page 80 • Protects the climate control components from particle deposits The filter is located just in front of the windshield under the cowl grille on the passenger side of the vehicle. For more information, or to replace the filter, see your Ford, Lincoln or Mercury Dealer.

  • Page 81: Lights

    Lights Lights HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turns the headlamps on. Autolamp control The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
  • Page 82 Lights Autolamps with wipers When the windshield wipers are on with the headlamps, the autolamp system will provide automatic on/off control of the exterior lights based on the status of the wipers. • When the wipers are turned on, the exterior lights will turn on after a short delay.

  • Page 83: Headlamps

    Lights High beams Pull toward you until control stops to activate. Repeat to deactivate. Flash to pass Pull toward you slightly to activate and release to deactivate. PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during parklamp, headlamp and autolamp operation.
  • Page 84 Lights • (1) Eight feet • (2) VOL - subtract 50 mm (2.1 in) from the measurement of the center of the low beam lamp to the ground. • (3) Twenty five feet • (4) Horizontal reference line 2. Measure the height from the center of your headlamp to the ground and mark a 2.4 meter (8 foot) horizontal reference line on...

  • Page 85: Turn Signal Control

    Lights TURN SIGNAL CONTROL • Push down to activate the left turn signal. • Push up to activate the right turn signal. INTERIOR LAMPS Map lamps (if equipped) The map lamps and controls are located on the dome lamp. Press the controls in front of each map lamp to activate the lamps.
  • Page 86 Lights Function Trade Number Headlamp low beam H11LL Headlamp low beam (HID) Headlamp high beam 9005 Park and turn lamp (front) 3457 A/K (amber) Side marker lamp (front) 3W4Z–15A424–5–AA Foglamp 9145 Tail lamp, brakelamp, side lamp 3157K Rear turn lamp 3157 A/K (amber) Backup lamp License plate lamp...
  • Page 87 The oil from your hand could cause the bulb to break the next time the headlamps are operated. Install the new bulb in reverse order, while also replacing the seal on the bulb retaining cover. The kits for replacement seals are avaliable at Lincoln or Ford dealers.
  • Page 88 3. Pull the LED assembly straight out and replace with a new assembly. Install the new assembly in reverse order, while also replacing the seal on the bulb retaining cover. The kits for replacement seals are avaliable at Lincoln or Ford dealers.
  • Page 89 Lights Replacing front parking lamp/turn signal lamp bulbs 1. Remove the headlamp assembly as described under the Replacing exterior bulb header. 2. Turn the bulb counterclockwise and pull it straight out of the headlamp assembly. Install the new bulb in reverse order. Replacing foglamp bulbs 1.
  • Page 90 Lights Replacing high-mount brakelamp bulbs Your vehicle is equipped with an LED center high-mount stop lamp. It is designed to last the life of the vehicle. If replacement is required, the entire assembly must be replaced as follows: 1. Pull down on the headliner, near the location of the high-mount stop lamp, to release the dual lock attachment.

  • Page 91: Driver Controls

    Driver Controls Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Windshield washer: Push the end of the stalk: •...
  • Page 92 Driver Controls More or less wiping may occur under the following conditions: • on cool mornings with high humidity • in very light mist or rain • salty water/mist • hydrophobic coating applied to the windshield such as Rain-X or wax (use of these types of coatings are not recommended) You can override the moisture sensitive wiper function by selecting HIGH, LOW and OFF.

  • Page 93: Steering Wheel Adjustment

    Driver Controls 4. Attach the new wiper to the wiper arm and reposition the clip until it locks. Repeat for driver’s side wiper arm. POWER TILT/TELESCOPE STEERING COLUMN The steering column can be adjusted manually by moving the four-way rocker adjustment control located below the turn signal/wiper control stalk.
  • Page 94 Driver Controls Never adjust the steering wheel when the vehicle is moving. STEERING COLUMN LOCK (IF EQUIPPED) The steering column will automatically lock when the key is removed from the ignition. When the vehicle key is inserted into the ignition, the steering column will automatically unlock.

  • Page 95: Power Windows

    Driver Controls The auxiliary power point is located on the instrument panel next to the cigarette lighter. Push the top door to access the power point. Do not plug optional electrical accessories into the cigarette lighter. Use the power point. POWER WINDOWS When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in...
  • Page 96 Driver Controls Express Up (One Touch Up) To make the front driver or passenger windows close fully without holding the window control, press the top portion of the driver window control completely down to the second detent or “Express Up” position.

  • Page 97: Mirrors

    Driver Controls Window lock The window lock feature allows only the driver to operate the rear power windows. To lock out the rear window controls press the right side of the control. Press the left side to restore the window controls. MIRRORS Automatic dimming inside rear view mirror (if equipped) Your vehicle is equipped with an inside rear view mirror which has an...
  • Page 98 Driver Controls If highly magnetized items (such as magnetic mount antennas) are placed very near the compass the display will change to “C” for 15 seconds, then display all segments until the magnetized item is removed. If a “C” is displayed, refer to Compass calibration adjustment. Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps.
  • Page 99 Driver Controls 2. Press and hold the COMP side of the control until “C” appears in the mirror display. 3. Drive the vehicle slowly (less than 5 km/h [3 mph]) in circles until the display reads a direction. 4. The compass is now calibrated. Power side view mirrors To adjust your mirrors 1.

  • Page 100: Speed Control

    Driver Controls Fold-away mirrors (if equipped) Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash. POWER ADJUSTABLE FOOT PEDALS The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.
  • Page 101 Driver Controls Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved. Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release 2.
  • Page 102 Driver Controls Resuming a set speed Press the RES control and release it. This will automatically return the vehicle to the previously set speed. The RES control will not work if the vehicle speed is not faster than 48 km/h (30 mph). Increasing speed while using speed control There are two ways to set a higher speed:...
  • Page 103 Driver Controls • Depress the brake pedal until the desired vehicle speed is reached, press the SET + control. Turning off speed control There are two ways to turn off the speed control: • Depress the brake pedal or the clutch pedal (if equipped).
  • Page 104 Driver Controls In AM, FM1, or FM2 mode: • Press to select preset MUTE stations within the selected radio band. In Tape mode: • Press to select the next selection on the tape. MEDIA In CD mode: • Press to select the next selection on the CD.
  • Page 105 Driver Controls Navigation steering wheel controls (if equipped) These controls allow you to operate some audio and navigation control features when the vehicle is equipped with the navigation feature. Audio control features Press MEDIA to select: • AM, FM1, FM2, or •...
  • Page 106 Driver Controls Navigation control features Press and hold VOICE until the voice icon appears to use the navigation voice guidance. Press REPEAT control to hear previous command repeated from the navigation system. MOON ROOF (IF EQUIPPED) To open the moon roof: •...
  • Page 107 Driver Controls • To close from the vent, intermediate and full open positions, push the rear portion of the control forward. Do not let children play with the moon roof. They may seriously hurt themselves. When closing the moon roof, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings.
  • Page 108 Driver Controls Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelink buttons be erased for security purposes, refer to Programming in this section.
  • Page 109 Driver Controls 5. Press and hold the just-trained HomeLink button and observe the red light. If the light is a constant red, programming is complete and your device should activate when the HomeLink button is pressed and released. Note: To program the remaining two HomeLink buttons, begin with step 2 in the “Programming”...
  • Page 110 Driver Controls (“cycle”) your hand-held transmitter until the frequency signal has been accepted by the HomeLink . The red indicator light will flash slowly and then rapidly after HomeLink accepts the radio frequency signal. • Proceed with step 4 in the “Programming” section. Operating the HomeLink Wireless Control System To operate, simply press and release the appropriate HomeLink button.

  • Page 111: Message Center

    Driver Controls CELL PHONE USE The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations.
  • Page 112 Driver Controls RESET Press this control to select and reset functions shown in the FUEL, SETUP and STATUS controls. SETUP Press this control for the following displays: • Language • Units (English/Metric) • Autolocks • Easy Entry/Exit (if equipped) • Lock Chirp (if equipped) STATUS Selecting this function from the STATUS control causes the message center to cycle through each of the systems being monitored.
  • Page 113 Driver Controls Message center functions Dist To Empty (DTE) Selecting this function from the FUEL control this function estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.
  • Page 114 Driver Controls You may notice gradual improvement in fuel economy over the course of your vehicle’s break-in period (approximately 1,600 kilometers [1,000 miles]). 1. Press the FUEL control to display miles to empty. Press again to display average fuel economy. 2.
  • Page 115 Driver Controls Easy exit seat (if equipped) 1. Select this function from the SETUP control for the current display mode. 2. Press the RESET control to turn the easy entry/exit ON or OFF. Lock chirp (if equipped) 1. Select this function from the SETUP control for the current display mode.
  • Page 116 Driver Controls Warning messages that have been reset are divided into two categories: • They will reappear on the display ten minutes from the reset. • They will not reappear until an ignition OFF-RUN cycle has been completed. This acts as a reminder that these warning conditions still exist within the vehicle.
  • Page 117 Driver Controls Warnings Status Low brake fluid level Warning returns after the ignition key is turned from OFF to RUN Check tail lamps Check brake lamps Check front turn lamps Check side repeater lamps (if equipped) Check rear turn lamps Check Traction Control Check AdvanceTrac (if equipped)
  • Page 118 Driver Controls PARK BRAKE ON & NEED SERVICE. Displayed when the park brake is ON and malfunctioning. If the warning stays on or continues to come on, contact your dealer as soon as possible. PARK BRAKE ON. Displayed when the park brake is ON. If the warning stays on after the park brake is off, contact your dealer as soon as possible.
  • Page 119 Driver Controls CHECK TAIL LAMPS. Displayed when the tail lamps are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced. CHECK BRAKE LAMPS. Displayed when the brake lamps are activated and at least one is burned out.
  • Page 120 Driver Controls To reset the A/C filter monitoring system to 100% after each A/C Filter change: 1. Press the STATUS control to access the System Check function, the message center will display A/C FILTER XXX% RESET FOR NEW. 2. Press and hold the RESET control to set to 100%, the message center will display IF NEW FILTER HOLD RESET.
  • Page 121 Driver Controls 3. After a successful reset, the message center will display OIL LIFE SET TO 100%. To reset the oil monitoring system to your personalized oil life %: 1. Press the STATUS control to access the System Check function. Press RESET to reset oil %.
  • Page 122 Driver Controls INTERIOR TRUNK CONTROL Press the remote trunk release control on the instrument panel to open the trunk. You can render the switch inoperable by locking the button with your master key. Do this and also lock your glove box before you give your vehicle to the valet personnel (do not give them the master key or remote entry keyfob, only the gray valet key).
  • Page 123 Driver Controls REMOVAL/INSTALLATION OF ASHTRAY In order to prevent damage, follow these instructions when removing/installing the ashtray. Removal: 1. Push the ashtray face to slide open. Note: Do not remove the ashtray drawer. 2. Pull the ashtray insert upward from the ashtray drawer and remove.
  • Page 124 • Repeat steps 1 and 2 for the other side. LUGGAGE RACK (IF EQUIPPED) The luggage rack is dealer installed only. See your local Lincoln Mercury dealership. The maximum load is 75 kg (165 lb) on the luggage rack structure. The vehicle’s roof panel is not designed to carry a load.

  • Page 125: Locks And Security

    Locks and Security Locks and Security KEYS Your vehicle is equipped with two master keys and a valet key lock system. The master key will access the driver’s door, trunk, glove box, remote trunk release control and ignition. The valet key will access door and ignition only.
  • Page 126 Locks and Security Note: The ignition must be in the OFF position and the accessory delay feature must not be activated in order for this feature to operate. Closing all windows and moonroof (if equipped) Note: This operation is only available using the door key. You can close the vehicle’s windows and moonroof (if equipped) by using the door key.
  • Page 127 Locks and Security Childproof door locks • When these locks are set, the rear doors cannot be opened from the inside. • The rear doors can be opened from the outside when the doors are unlocked. The childproof locks are located on the rear edge of each rear door and must be set separately for each door.
  • Page 128 Locks and Security Keep vehicle doors and luggage compartment locked and keep keys and remote transmitters out of a child’s reach. Unsupervised children could lock themselves in the trunk and risk injury. Children should be taught not to play in vehicles. On hot days, the temperature in the trunk or vehicle interior can rise very quickly.

  • Page 129: Anti-Theft System

    Locks and Security • operate the memory seat/mirror/steering column/adjustable pedals feature (if equipped). • enable/disable the two-stage unlocking feature. When the vehicle is armed, the interior power door lock controls and remote interior trunk release control are disabled. These features will not work until the vehicle is disarmed.
  • Page 130 Locks and Security • If any other remote entry transmitter control is pressed during the opening operation, all window and moonroof movement will stop. Note: The ignition must be in the OFF position and the accessory delay feature must be not activated in order for this feature to operate. Locking the doors 1.
  • Page 131 Locks and Security Replacing the battery The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent. The typical operating range for your remote entry transmitter is approximately 10 meters (33 feet). A decrease in the operating range could be caused by: •...
  • Page 132 Locks and Security To reprogram the remote entry transmitters: 1. Ensure the vehicle is electronically unlocked. 2. Put the key in the ignition. 3. Turn the key from the 2 (OFF) position to 4 (RUN). 4. Cycle, eight times, rapidly (within 10 seconds) between the 2 (OFF) position and 4 (RUN).
  • Page 133 Locks and Security Autolock The autolock feature will lock the vehicle’s doors when: • all the doors are closed, • the ignition is in the RUN position, • you shift into forward or reverse, and • the vehicle speed is greater than 5 km/h (3 mph). Relock The autolock feature repeats when: •...
  • Page 134 Locks and Security 2. Press the SET control on the driver’s door panel. 3. Within 5 five seconds, press any control on the remote transmitter and then press the 1 or 2 control on the driver’s door panel to associate with the Driver 1 or Driver 2 positions.
  • Page 135 Locks and Security 3. Enter your personal 5-digit code. Each number must be entered within five seconds of each other. 4. Enter a sixth digit to indicate which personality feature should be recalled by the personal code. Note: The lock motors will cycle, locked then unlocked.
  • Page 136 Locks and Security Unlocking and locking the doors using keyless entry To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. The interior lamps will illuminate when the driver’s door is unlocked.
  • Page 137 Locks and Security engine. If a problem occurs, turn the ignition off, remove all objects on the key chain away from the coded key and restart the engine. Theft indicator The theft indicator is located on top of the instrument panel. •...
  • Page 138 Locks and Security 1. Insert a previously programmed coded key into the ignition. 2. Turn the ignition from the 1 (LOCK) position to the 4 (RUN) position. Keep the ignition in the 4 (RUN) position for at least one second, but no more than 10 seconds.
  • Page 139 Locks and Security Arming the system When armed, this system will respond if unauthorized entry is attempted. When unauthorized entry occurs, the system will flash the turn signal lamps and will sound the horn. The system is ready to arm whenever key is removed from the ignition. Any of the following actions will prearm the alarm system: •...

  • Page 140: Seating And Safety Restraints

    Seating and Safety Restraints Seating and Safety Restraints SEATING Notes: Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision. Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.
  • Page 141 Seating and Safety Restraints Using the manual lumbar support (if equipped) The lumbar control is located on the front of the seat cushion. Turn to adjust lumbar support. Using the power lumbar support (if equipped) The power lumbar control is located on the outboard side of the seat.
  • Page 142 Seating and Safety Restraints Rotate the vertical control to adjust the seatback. • Driver • Passenger Slide the control forward or backward to move the seat forward or backward. • Driver • Passenger Move the control up or down to move the seat up and down.
  • Page 143 Seating and Safety Restraints Deactivating/activating the easy-access/easy-out feature The easy-access/easy-out feature can be turned off or on through the vehicle message center (if equipped). If your vehicle does not have a message center, the feature can be turned off or on by your dealer. Memory seats/steering column/mirrors/adjustable pedals (if equipped) This system allows automatic...
  • Page 144 Seating and Safety Restraints Climate controlled seats air filter replacement The climate controlled seat system includes air filters that must be replaced periodically. Refer to the Scheduled Maintenance Guide for more information. • There is a filter located under each front seat. •...
  • Page 145 Seating and Safety Restraints • Remove filter. To install an air filter: • First, position the filter in it’s housing making sure that the far forward end is all the way up in the housing. Then push in on the center of the outside edge of the filter and rotate up into the housing until it clips into position.
  • Page 146 Seating and Safety Restraints Push control to lower head restraint. Rear heated seats (if equipped) • Push the bottom of the button for low heat. • Push again to deactivate. • Push the top of the button for high heat. •...

  • Page 147: Safety Restraints

    Seating and Safety Restraints To lower the seatback(s), pull the release handle(s) located inside the trunk. Fold the seatback(s) down. When raising the seatback(s), make sure you hear the seat latch into place. Make sure that the safety belts for the rear center passengers are properly routed over the rear seatback.
  • Page 148 Seating and Safety Restraints • Driver’s seat position sensor • Passenger occupant classification sensor • Front crash severity sensor • Restraints Control Module (RCM) with impact and safing sensors • Restraint system warning light and back-up tone • The electrical wiring for the air bags, crash sensor(s), safety belt pretensioners, front safety belt usage sensors, driver seat position sensor, passenger occupant classification sensor, and indicator lights How does the personal safety system work?
  • Page 149 Seating and Safety Restraints Driver’s seat position sensor The driver’s seat position sensor allows your Personal safety system to tailor the deployment level of the driver dual-stage air bag based on seat position. The system is designed to help protect smaller drivers sitting close to the driver air bag by providing a lower air bag output level.
  • Page 150 Seating and Safety Restraints Front safety belt pretensioners The safety belt pretensioners at the front outboard seating positions are designed to tighten the safety belts firmly against the occupant’s body during a frontal or near-frontal collision. This maximizes the effectiveness of the safety belts and helps properly position the occupant relative to the air bag to improve protection.
  • Page 151 Seating and Safety Restraints Safety restraints precautions Always drive and ride with your seatback upright and the lap belt snug and low across the hips. To reduce the risk of injury, make sure children sit where they can be properly restrained. Never let a passenger hold a child on his or her lap while the vehicle is moving.
  • Page 152 Seating and Safety Restraints Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them. Combination lap and shoulder belts •...
  • Page 153 Seating and Safety Restraints 1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle. 2.
  • Page 154 Seating and Safety Restraints Failure to replace the belt and retractor assembly could increase the risk of injury in collisions. The front outboard and rear safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat safety belts have two types of locking modes.
  • Page 155 Seating and Safety Restraints In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt. This mode should be used any time a child safety seat is installed in the vehicle.
  • Page 156 Seating and Safety Restraints Failure to replace the safety belt assembly under the above conditions could result in severe personal injuries in the event of a collision. Front safety belt height adjustment Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.
  • Page 157 Seating and Safety Restraints Conditions of operation If... Then... The driver’s safety belt is not The safety belt warning light buckled before the ignition illuminates 1-2 minutes and the switch is turned to the RUN warning chime sounds 4-8 seconds. position...
  • Page 158 Seating and Safety Restraints If... Then... The driver’s and front The BeltMinder feature will not passenger’s safety belts are activate. buckled before the ignition switch is turned to the ON position or less than 1-2 minutes have elapsed since the ignition switch has been turned ON...
  • Page 159 Seating and Safety Restraints The following are reasons most often given for not wearing safety belts: (All statistics based on U.S. data) Reasons given... Consider... “Crashes are rare events” 36700 crashes occur every day. The more we drive, the more we are exposed to “rare”...
  • Page 160 Seating and Safety Restraints Reasons given... Consider... “I have an air bag” Air bags offer greater protection when used with safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers. “I’d rather be thrown clear” Not a good idea.
  • Page 161 Seating and Safety Restraints To reduce the risk of injury, do not deactivate/activate the Belt Minder feature while driving the vehicle. 1. Turn the ignition switch to the RUN (or ON) position. (DO NOT START THE ENGINE) 2. Wait until the safety belt warning light turns off. (Approximately 1 minute) •...

  • Page 162: Air Bags

    Seating and Safety Restraints Do not use extensions to change the fit of the shoulder belt across the torso. Safety belt maintenance Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, tears or cuts.
  • Page 163 Seating and Safety Restraints Important SRS precautions The SRS is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries. Air bags DO NOT inflate slowly; there is a risk of injury from a deploying air bag.
  • Page 164 Do not attempt to service, repair, or modify the air bag supplemental restraint systems or its fuses. See your Ford or Lincoln Mercury dealer. Modifying or adding equipment to the front end of the vehicle (including frame, bumper, front end body structure and tow hooks) may affect the performance of the air bag system, increasing the risk of injury.
  • Page 165 Seating and Safety Restraints How does the safety belt pretensioner and air bag supplemental restraint system work? The safety belt pretensioner and air bag SRS are designed to activate when the vehicle sustains longitudinal deceleration sufficient to cause the sensors to close an electrical circuit that initiates pretensioner activation and air bag inflation.
  • Page 166 Seating and Safety Restraints are not properly restrained or are otherwise out of position at the time of air bag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the air bag module as possible while maintaining vehicle control.
  • Page 167 Do not attempt to service, repair, or modify the air bag SRS, its fuses or the seat cover on a seat containing an air bag. See your Ford or Lincoln Mercury dealer. All occupants of the vehicle should always wear their safety belts...
  • Page 168 Seating and Safety Restraints How does the side air bag system work? The side air bag system consists of the following: • An inflatable nylon bag (air bag) with a gas generator concealed behind the outboard bolster of the driver and front passenger seatbacks.
  • Page 169 Seating and Safety Restraints Several air bag system components get hot after inflation. Do not touch them after inflation. If the side air bag has deployed, the air bag will not function again. The side air bag system (including the seat) must be inspected and serviced by a qualified technician in accordance with...
  • Page 170 Seating and Safety Restraints Side air curtain system (if equipped) Do not place objects or mount equipment on or near the airbag cover on the side of the seatbacks of the front seats or in front seat areas that may come into contact with a deploying airbag.
  • Page 171 Do not attempt to service, repair, or modify the side air curtain system, its fuses, the A, B, or C pillar trim, or the headliner on a vehicle containing a side air curtain. See your Ford or Lincoln Mercury dealer.
  • Page 172 Seating and Safety Restraints How does the side air curtain system work? The side air curtain system consists of the following: • An inflatable nylon curtain with a gas generator concealed behind the headliner and above the doors. • The headliner will flex to open above the side doors to allow air curtain deployment.
  • Page 173 Seating and Safety Restraints Several air bag system components get hot after inflation. Do not touch them after inflation. If the side air curtain has deployed, the air curtain will not function again. The side air curtain system (including the A, B and C pillar trim and headliner) must be inspected and serviced by a qualified technician in accordance with the vehicle service manual.

  • Page 174: Child Restraints

    Seating and Safety Restraints SAFETY RESTRAINTS FOR CHILDREN See the following sections for directions on how to properly use safety restraints for children. Also see Air bag supplemental restraint system (SRS) in this chapter for special instructions about using air bags. Important child restraint precautions You are required by law to use safety restraints for children in the U.S.
  • Page 175 Seating and Safety Restraints Child booster seats Children outgrow a typical convertible or toddler seat when they weigh 40 pounds and are around 4 years of age. Although the lap/shoulder belt will provide some protection, these children are still too small for lap/shoulder belts to fit properly, which could increase the risk of serious injury.
  • Page 176 Seating and Safety Restraints Types of booster seats There are two types of belt-positioning booster seats: • Those that are backless. If your backless booster seat has a removable shield, remove the shield and use the lap/shoulder belt. If a seating position has a low seat back and no head restraint, a backless booster seat may place your child’s head (top...
  • Page 177 Seating and Safety Restraints The importance of shoulder belts Using a booster without a shoulder belt increases the risk of a child’s head hitting a hard surface in a collision. For this reason, you should never use a booster seat with a lap belt only. It is best to use a booster seat with lap/shoulder belts in the back seat- the safest place for children to ride.
  • Page 178 Seating and Safety Restraints SAFETY SEATS FOR CHILDREN Child and infant or child safety seats Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.
  • Page 179 Seating and Safety Restraints Carefully follow all of the manufacturer’s instructions included with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.
  • Page 180 Seating and Safety Restraints 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions.
  • Page 181 Seating and Safety Restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out and a click is heard. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
  • Page 182 Seating and Safety Restraints Attaching child safety seats with tether straps Most new forward-facing child safety seats include a tether strap which goes over the back of the seat and hooks to an anchoring point. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap.
  • Page 183 Seating and Safety Restraints 4. Open the tether anchor cover. 5. Clip the tether strap to the anchor as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision. 6.
  • Page 184 Seating and Safety Restraints Attaching safety seats with LATCH (Lower Anchors and Tethers for Children) attachments for child seat anchors Some child safety seats have two rigid or webbing mounted attachments that connect to two anchors at certain seating positions in your vehicle. This type of child seat eliminates the need to use seat belts to attach the child seat.
  • Page 185 Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments. Two plastic LATCH guides can be obtained at no charge from any Ford or Lincoln-Mercury dealer. They snap onto the LATCH lower anchors in the seat to help attach a child seat with rigid attachments.

  • Page 186: Driving

    Driving Driving STARTING Positions of the ignition 1. LOCK, locks the gearshift lever and allows key removal. (The steering wheel will not lock after key removal.) 2. OFF, shuts off the engine and all accessories without locking the steering wheel. This position also allows the automatic transmission shift lever to be moved from the P (Park) position without the brake pedal being depressed.
  • Page 187 Driving Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. Do not start your vehicle in a closed garage or in other enclosed areas.
  • Page 188 Driving • Turn the key to 4 (ON) without turning the key to 5 (START). Make sure the corresponding lights illuminate or illuminate briefly. If a light fails to illuminate, have the vehicle serviced. • If the driver’s safety belt is fastened, the light may not illuminate.

  • Page 189: Brakes

    Driving strongly recommended if you live in a region where temperatures reach -23° C (-10° F) or below. For best results, plug the heater in at least three hours before starting the vehicle. The heater can be plugged in the night before starting the vehicle.
  • Page 190 Driving Even when the ABS is disabled, BRAKE normal braking is still effective. (If your BRAKE warning lamp illuminates with the parking brake released, have your brake system serviced immediately.) Using ABS When hard braking is required, apply continuous force on the brake pedal;...

  • Page 191: Traction Control/Advancetrac

    Driving or APPLY ((P)). With the ignition on and the engine not running, depress the brake pedal and apply the parking brake. The brake lamp will illuminate; this is normal and the parking brake is now reset. To release the parking brake, push the lever down with your foot on the brake pedal.
  • Page 192 Driving The Traction Control switch, located on the center console by the gearshift lever, has an indicator light that illuminates when the system is off. The Traction Control system will automatically turn on every time the ignition is turned off and on. If you should become stuck in snow or ice or on a very slippery road surface, try switching the Traction Control...
  • Page 193 Driving AdvanceTrac will attempt to correct the sliding motion by applying brake force at individual tires and, if necessary, by reducing engine power. Driving conditions which may activate AdvanceTrac include: • Taking a turn too fast • Maneuvering quickly to avoid an accident, pedestrian or obstacle •...
  • Page 194 Driving enhancement feature; the brake portion of the traction enhancement feature will still function normally. Pressing and holding the control for more than five seconds will disable the AdvanceTrac stability enhancement and traction enhancement feature. If the vehicle is stuck in snow or mud or when driving in deep sand, switching off the AdvanceTrac system may be beneficial so the wheels are allowed to...

  • Page 195: Transmission Operation

    Driving AUTOMATIC TRANSMISSION OPERATION Brake-shift interlock This vehicle is equipped with a brake-shift interlock feature that prevents the gearshift lever from being moved from P (Park) when the ignition is in the RUN position unless brake pedal is depressed. If you cannot move the gearshift lever out of P (Park) with ignition in the RUN position and the brake pedal depressed: 1.
  • Page 196 Driving Driving with a 5–speed automatic transmission Your transmission is equipped with an adaptive learning strategy found in the vehicle computer. This feature is designed to increase durability, and provide consistent shift feel over the life of the vehicle. A new vehicle or transmission may have firm and/or soft shifts.
  • Page 197 Driving N (Neutral) With the gearshift lever in N (Neutral), the vehicle can be started and is free to roll. Hold the brake pedal down while in this position. Drive 5 (Overdrive) The normal driving position for the best fuel economy. Transmission operates in gears one through five.
  • Page 198 Driving 1 (First) • Provides maximum engine braking. • Allows upshifts by moving shift lever. • Will not downshift into first gear at high speeds; will cause the transmission to downshift to a lower gear, then allows for first gear when the vehicle reaches slower speeds.
  • Page 199 Driving Manual shift mode With the gearshift lever in D5 (Overdrive), the gearshift lever can be moved to the right and into the manual shift mode. The transmission will remain in the manual shift mode until the gearshift lever is moved back to D5 (Overdrive).
  • Page 200 Driving • If shifter (-) is tapped more than once in rapid succession, the transmission will downshift only into the next lower gear, then when the vehicle reaches a speed below a calibrated entry speed, the transmission will allow a downshift into the next lower gear if again selected by the driver.
  • Page 201 Driving To help avoid personal injury, always use caution when in R (Reverse) and when using the rear park assist. This system is not designed to prevent contact with small or moving objects. The system is designed to provide a warning to assist the driver in detecting objects to avoid damaging the vehicle.
  • Page 202 Driving The rear park assist is automatically enabled when the gear selector is placed in R (Reverse) and the ignition is ON. A park assist control allows the driver to disable the system only when the ignition is ON, and the gear selector is in R (Reverse).

  • Page 203: Trailer Towing

    GVWR and GAWR limitations. Replacement tires with a higher limit than the originals do not increase the GVWR and GAWR limitations. TRAILER TOWING Your vehicle is not equipped to tow. No towing packages are available through Ford or Lincoln/Mercury dealers.
  • Page 204 Driving RECREATIONAL TOWING (ALL WHEELS ON THE GROUND) Follow these guidelines for your specific powertrain combination to tow your vehicle with all four wheels on the ground (such as behind a recreational vehicle). These guidelines are designed to ensure that your transmission is not damaged due to insufficient lubrication.

  • Page 205: Roadside Emergencies

    In the United States, this card is found in the Owner Guide portfolio in the glove compartment in Ford vehicles and is mailed to you if you own a Mercury or Lincoln. In Canada, the card is found in the Owner Information Guide in the glove compartment.

  • Page 206: Hazard Flasher Switch

    If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount. To obtain reimbursement information, U.S. Ford or Mercury vehicles customers call 1-800-241-3673; Lincoln vehicle customers call 1–800–521–4140. Canadian customers who need to obtain reimbursement information, call 1–800–665–2006.

  • Page 207: Fuel Pump Shut-Off Switch

    Roadside Emergencies FUEL FUEL PUMP SHUT-OFF SWITCH RESET This device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated.
  • Page 208 Roadside Emergencies Standard fuse amperage rating and color COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
  • Page 209 Roadside Emergencies OWNER'S MANUAL RELAY 1 The fuses are coded as follows. Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Starter relay coil Radio ABS/TCS/AdvanceTrac Cluster, Powertrain Control Module (PCM) relay, Fuel pump relay, REM, Transit relay Restraints Control Module (RCM), Passenger Occupant Detection System (PODS) electronic control unit...
  • Page 210 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description DDM, DSM, Anti-theft LED, Power mirror switch, Electric Park Brake (EPB) switch Right front turn, Right front repeater, Right front sidemarker, Right front park lamps Right front low beam/HID Left front turn, Left front repeater, Left front sidemarker, Left front park lamps...
  • Page 211 Roadside Emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description FEM, Passenger power mirror — Not used Cigar lighter Switch backlighting, FEM Not used (spare) Stop lamp signal Front power distribution box The front power distribution box is located in the engine compartment.
  • Page 212 Roadside Emergencies The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 10A* A/C clutch, Coolant control valve, Auxiliary coolant pump — Not used 15A* Fog lamp 20A* Horn 15A* Fuel injectors, Electric cooling fan, Mass Air Flow (MAF) sensor 15A* Transmission solenoid, EGR...
  • Page 213 Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 30A** Heated wiper park 30A** ABS module — Not used 30A** Blower motor — Not used — Not used 30A** Electric park brake 30A** Wiper motor 30A** Starter solenoid 40A** ABS motor —...
  • Page 214 Roadside Emergencies In-line fuse for electric cooling fan There is a 60A maxi fuse for the electric cooling fan located in a wiring harness behind the front passenger side trim panel under the dash panel. The trim panel must be removed and the carpet on the front passenger side must be lifted to access this fuse.
  • Page 215 Roadside Emergencies 1 2 3 4 5 6 7 8 9 > PBT < 10 11 12 13 14 15 16 17 18 RELAY MINI-FUSE CARTRIDGE FUSE RELAY RELAY RELAY RELAY RELAY RELAY DIODE 01 DIODE 02 SEE OWNER'S MANUAL CONSULTER LA GUIDE The high-current fuses are coded as follows.

  • Page 216: Changing Tires

    Roadside Emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 20A* Moonroof 15A* Fuel pump motor 20A* Navigation amp, Subwoofer 20A** REM - Left rear window 30A** Front window motors 20A** Driver lumbar, Power seats 20A** Ignition switch 30A** SSP4 30A** SSP3...
  • Page 217 Roadside Emergencies The use of tire sealants is not recommended and may compromise the integrity of your tires. Temporary spare tire information Your vehicle may have a temporary or full-size spare tire. The temporary spare tire for your vehicle is labeled as such. It is smaller than a regular tire and is designed for emergency use only.
  • Page 218 Roadside Emergencies Tire change procedure To prevent the vehicle from moving when you change a tire, be sure the parking brake is set, then block (in both directions) the wheel that is diagonally opposite (other side and end of the vehicle) to the tire being changed.
  • Page 219 Roadside Emergencies 4. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them until the wheel is raised off the ground. 5. Put the jack in the jack notch next to the tire you are changing. Turn the jack handle clockwise until the wheel is completely off the ground.
  • Page 220 If you lose the key, send the registration card to the manufacturer (not the dealer) to get a replacement key. If the lug wrench/lug nut key assembly is lost, see your nearest Ford or Lincoln Mercury dealer who has access to the master set of keys. Do not use an impact wrench with the anti-theft key.

  • Page 221: Jump Starting

    Roadside Emergencies JUMP STARTING YOUR VEHICLE The gases around the battery can explode if exposed to flames, sparks, or lit cigarettes. An explosion could result in injury or vehicle damage. Batteries contain sulfuric acid which can burn skin, eyes and clothing, if contacted.
  • Page 222 Roadside Emergencies Connecting the jumper cables 1. Connect the positive (+) jumper cable to the positive (+) terminal of the discharged battery. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery.
  • Page 223 Roadside Emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to the spare tire tie-down stud. (Your vehicle may be equipped with a plastic cap on top of the tire tie-down stud.
  • Page 224 Roadside Emergencies Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped. A spark may cause an explosion of the gases that surround the battery. 5. Ensure that the cables are clear of fan blades, belts, moving parts of both engines, or any fuel delivery system parts.
  • Page 225 Roadside Emergencies Removing the jumper cables Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the spare tire tie-down stud. 2. Remove the jumper cable on the negative (-) connection of the booster vehicle’s battery.
  • Page 226 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.

  • Page 227: Wrecker Towing

    Roadside Emergencies WRECKER TOWING If you need to have your vehicle towed, contact a professional towing service or, if you are a member of a roadside assistance program, your roadside assistance service provider. It is recommended that your vehicle be towed with a wheel lift or flatbed equipment.

  • Page 228: Customer Assistance

    Customer Assistance Customer Assistance GETTING THE SERVICES YOU NEED At home Ford Motor Company and Ford of Canada have authorized dealerships to service your vehicle. It is preferred that you return to the authorized dealer where your vehicle was purchased when warranty repairs are needed.
  • Page 229 Oakville, Ontario L6J 5E4 1-800-565-3673 (FORD) www.ford.ca If you own a Lincoln vehicle and are away from home when your vehicle needs service, or if you need more help than the dealership could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealership to help you.
  • Page 230 • Protection against covered repair costs after your Bumper-to-Bumper Warranty expires. You may purchase Ford ESP from any participating Ford and Lincoln Mercury and Ford of Canada dealer. There are several plans available in various time, distance and deductible combinations which can be tailored to fit your own driving needs.
  • Page 231 What kinds of cases does the Board review? Unresolved warranty repair concerns or vehicle performance concerns as on Ford and Lincoln Mercury cars and Ford and Lincoln Mercury light trucks which are within the terms of any applicable written new vehicle warranty are eligible for review, except those involving: •...
  • Page 232 • A Ford or Lincoln Mercury dealership representative Consumer candidates for Board membership are recruited and trained by an independent consulting firm. The dealership Board member is chosen from Ford and Lincoln Mercury dealership management, recognized for their business leadership qualities. What the Board needs...
  • Page 233 Customer Assistance Oral presentations If you would like to make an oral presentation, indicate YES to question 6 on the application. While it is your right to make an oral presentation before the Board, this is not a requirement and the Board will decide the case whether or not an oral presentation is made.
  • Page 234 Customer Assistance UTILIZING THE MEDIATION/ARBITRATION PROGRAM (CANADA ONLY) In those cases where you continue to feel that the efforts by Ford and the dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
  • Page 235 Customer Assistance If your vehicle must be serviced while you are traveling or living in Central or South America, the Caribbean, or the Middle East, contact the nearest Ford dealership. If the dealership cannot help you, write or call: FORD MOTOR COMPANY WORLDWIDE DIRECT MARKET OPERATIONS 1555 Fairlane Drive Fairlane Business Park #3...
  • Page 236 Customer Assistance IN CALIFORNIA (U.S. ONLY) California Civil Code Section 1793.2(d) requires that, if a manufacturer or its representative is unable to repair a motor vehicle to conform to the vehicle’s applicable express warranty after a reasonable number of attempts, the manufacturer shall be required to either replace the vehicle with one substantially identical or repurchase the vehicle and reimburse the buyer in an amount equal to the actual price paid or payable by the consumer (less a reasonable allowance for consumer...

  • Page 237: Reporting Safety Defects (U.s. Only)

    Customer Assistance REPORTING SAFETY DEFECTS (U.S. ONLY) If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Ford Motor Company. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 238: Cleaning

    Cleaning Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral Ph shampoo, such as Motorcraft Detail Wash (ZC-3–A), which is available from your dealer. • Never use strong household detergents or soap, such as dish washing or laundry liquid.
  • Page 239 Cleaning • Remove particles such as bird droppings, tree sap, insect deposits, tar spots, road salt and industrial fallout before repairing paint chips. • Always read the instructions before using the products. ALUMINUM WHEELS AND WHEEL COVERS Aluminum wheels and wheel covers are coated with a clearcoat paint finish.
  • Page 240 Cleaning • 3.0L DOHC V6 engine • 3.9L-4V V8 engine • Never wash or rinse the engine while it is running; water in the running engine may cause internal damage.
  • Page 241 Cleaning PLASTIC (NON-PAINTED) EXTERIOR PARTS Use only approved products to clean plastic parts. These products are available from your dealer. • For routine cleaning, use Motorcraft Detail Wash (ZC-3–A). • If tar or grease spots are present, use Ford Extra Strength Tar and Road Oil Removal (B7A-19520–AA).
  • Page 242 Cleaning CLEANING SEATS EQUIPPED WITH SIDE AIR BAGS Remove dust and loose dirt with a vacuum cleaner. In order to remove stains and soil, clean with Extra Strength Upholstery Cleaner (E8AZ-19523–AA). Never saturate the seat covers with any cleaning solution. Do not use chemical solvents or strong detergents when cleaning the seat where the side air bag is mounted.
  • Page 243 FORD, LINCOLN AND MERCURY CAR CARE PRODUCTS Your Ford, Lincoln or Mercury dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and appearance of your vehicle.
  • Page 244 Cleaning Motorcraft Wheel and Tire Cleaner (ZC-37–A) Motorcraft Dash and Vinyl Cleaner (ZC-38–A) Motorcraft Car Care Kit (ZC-26) Ford Premium Car Wash Concentrate (F2SZ-19523–WC) Motorcraft Carlite Glass Cleaner (Canada only) (CXC-100) Motorcraft Spot and Stain Remover (ZC-14) Motorcraft Detail Wash (ZC-3–A) Motorcraft Tire Detailer (ZC-28) Motorcraft Triple Clean (ZC-13) Motorcraft Ultra-Clear Spray Glass Cleaner (not available in Canada)

  • Page 245: Maintenance And Specifications

    Maintenance and Specifications Maintenance and Specifications SERVICE RECOMMENDATIONS To help you service your vehicle: • We highlight do-it-yourself items in the engine compartment for easy location. • We provide a scheduled maintenance guide which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide the necessary parts and service.
  • Page 246 Maintenance and Specifications OPENING THE HOOD 1. Inside the vehicle, pull the hood release handle located at the bottom left of the instrument panel. 2. Go to the front of the vehicle and release the auxiliary latch that is located under the front center of the hood by pushing upward on the handle.

  • Page 247: Engine Compartment

    Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 3.0L DOHC V6 engine 1. Engine oil filler cap 2. Engine oil dipstick 3. Brake fluid reservoir 4. Engine coolant reservoir 5. Air filter assembly 6. Power steering fluid reservoir 7. Windshield washer fluid reservoir 8.
  • Page 248 Maintenance and Specifications 3.9L–4V V8 engine 1. Engine oil filler cap 2. Engine oil dipstick 3. Brake fluid reservoir 4. Engine coolant reservoir 5. Air filter assembly 6. Power steering fluid reservoir 7. Windshield washer fluid reservoir 8. Power distribution box...

  • Page 249: Engine Oil

    Maintenance and Specifications WINDSHIELD WASHER FLUID Add fluid to fill the reservoir if the level is low. In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16–A2. Refer to Lubricant specifications in this chapter.
  • Page 250 Maintenance and Specifications 5. Locate and carefully remove the engine oil level indicator (dipstick). 6. Wipe the indicator clean. Insert the indicator fully, then remove it again. • If the oil level is between the MIN and MAX marks, the oil level is acceptable.
  • Page 251 Maintenance and Specifications 3. Recheck the engine oil level. Make sure the oil level is not above the MAX mark on the engine oil level indicator (dipstick). 4. Install the indicator and ensure it is fully seated. 5. Fully install the engine oil filler cap by turning the filler cap clockwise tightly until clicks are heard, or until it is snug.

  • Page 252: Battery

    Maintenance and Specifications BATTERY Your vehicle is equipped with a Motorcraft maintenance-free battery which is located in the luggage compartment, next to the spare tire. Your battery is designed to purge any battery gases to the outside of the vehicle by means of a vent hose. This vent hose MUST be attached at all times.
  • Page 253 Maintenance and Specifications Keep batteries out of reach of children. Batteries contain sulfuric acid. Avoid contact with skin, eyes or clothing. Shield your eyes when working near the battery to protect against possible splashing of acid solution. In case of acid contact with skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention.
  • Page 254 Maintenance and Specifications • Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal. Call your local authorized recycling center to find out more about recycling automotive batteries. RECYCLE ENGINE COOLANT Checking engine coolant The concentration and level of engine coolant should be checked at the mileage intervals listed in the scheduled maintenance guide.
  • Page 255 Maintenance and Specifications When the engine is cold, check the level of the engine coolant in the reservoir. COLD FILL LEVEL • The engine coolant should be at the “cold fill level” or within the “cold fill range” as listed on the engine coolant reservoir (depending upon application).
  • Page 256 Maintenance and Specifications Do not add engine coolant when the engine is hot. Steam and scalding liquids released from a hot cooling system can burn you badly. Also, you can be burned if you spill coolant on hot engine parts. Do not put engine coolant in the windshield washer fluid container.
  • Page 257 Maintenance and Specifications To reduce the risk of personal injury, make sure the engine is cool before unscrewing the coolant pressure relief cap. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. 1.
  • Page 258 Maintenance and Specifications Coolant refill capacity To find out how much fluid your vehicle’s cooling system can hold, refer to Refill capacities in this chapter. Fill your engine coolant reservoir as outlined in Adding engine coolant in this chapter. Severe climates If you drive in extremely cold climates (less than –36°...
  • Page 259 Maintenance and Specifications How fail-safe cooling works If the engine begins to overheat: • The engine coolant temperature gauge will move to the H (hot) area. • The symbol will illuminate. • The symbol will illuminate. • The symbol will illuminate. If the engine reaches a preset over-temperature condition, the engine will automatically switch to alternating cylinder operation.

  • Page 260: Fuel Information

    Maintenance and Specifications Driving the vehicle without repairing the engine problem increases the chance of engine damage. Take your vehicle to a service facility as soon as possible. WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS Important safety precautions Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire.
  • Page 261 Maintenance and Specifications • Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind can lead to eye and respiratory tract irritation. In severe cases, excessive or prolonged breathing of fuel vapor can cause serious illness and permanent injury. •...
  • Page 262 Maintenance and Specifications Fuel Filler Cap Your fuel tank filler cap has an indexed design with a 1/8 turn on/off feature. When fueling your vehicle: 1. Turn the engine off. 2. Carefully turn the filler cap counterclockwise 1/8 of a turn until it stops.
  • Page 263 Maintenance and Specifications Octane recommendations Your vehicle is designed to use “Premium” unleaded gasoline with an (R+M)/2 octane rating of 91 or higher for optimum performance. (R+M)/2 METHOD The use of gasolines with lower octane ratings may degrade performance. We do not recommend the use of gasolines labeled as “Premium”...
  • Page 264 Maintenance and Specifications • Your “Check Engine” indicator may come on. For more information on the “Check Engine” indicator, refer to the Instrument Cluster chapter. Fuel Filter For fuel filter replacement, see your dealer or a qualified service technician. Refer to the scheduled maintenance guide for the appropriate intervals for changing the fuel filter.
  • Page 265 Maintenance and Specifications • Use the same filling rate setting (low — medium — high) each time the tank is filled. • Allow no more than 2 automatic click-offs when filling. • Always use fuel with the recommended octane rating. •...
  • Page 266 Maintenance and Specifications • Idling for long periods of time (greater than one minute) may waste fuel. • Anticipate stopping; slowing down may eliminate the need to stop. • Sudden or hard accelerations may reduce fuel economy. • Slow down gradually. •...
  • Page 267 Maintenance and Specifications • Using fuel blended with alcohol may lower fuel economy. • Fuel economy may decrease with lower temperatures during the first 12–16 km (8–10 miles) of driving. • Driving on flat terrain offers improved fuel economy as compared to driving on hilly terrain.
  • Page 268 Maintenance and Specifications Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. Illumination of the “Check Engine” light, charging system warning light or the temperature warning light, fluid leaks, strange odors, smoke or loss of engine power, could indicate that the emission control system is not working properly.
  • Page 269 Maintenance and Specifications POWER STEERING FLUID Refer to the scheduled maintenance guide for the service interval schedules. If adding fluid is necessary, use only MERCON ATF. 1. Start the engine and let it run until it reaches normal operating temperature (the engine coolant temperature gauge indicator will be near the center of the normal area between H and C).

  • Page 270: Air Filter(S)

    Maintenance and Specifications Refer to your scheduled maintenance guide for scheduled intervals for fluid checks and changes. Your transmission does not consume fluid. However, the fluid level should be checked if the transmission is not working properly, i.e., if the transmission slips or shifts slowly or if you notice some sign of fluid leakage.
  • Page 271 Maintenance and Specifications 2. Release the two clamps that secure the cover to the air filter housing and place the cover aside. 3. Remove the air filter element from the air filter housing. 4. Wipe the air filter housing and cover clean to remove any dirt or debris and to ensure good sealing.
  • Page 272 Maintenance and Specifications • Treadwear 200 Traction AA Temperature A These Tire Quality Grades are determined by standards that the United States Department of Transportation has set. Tire Quality Grades apply to new pneumatic tires for use on passenger cars. They do not apply to deep tread, winter-type snow tires, space-saver or temporary use spare tires, tires with nominal rim diameters of 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2).
  • Page 273 Maintenance and Specifications which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law. The temperature grade for this tire is established for a tire that is properly inflated and not overloaded.
  • Page 274 Maintenance and Specifications • Four tire rotation • Five tire rotation (with full-size spare tire)
  • Page 275 Maintenance and Specifications • Unidirectional tire rotation For vehicles equipped with original equipment unidirectional tires and full-size spare, your vehicle can be driven with the unidirectional full-size spare, rotating counter to the directional arrow on the tire sidewall. Your unidirectional full-size spare tire is rotated for wear balance.

  • Page 276: Part Numbers

    Maintenance and Specifications Tires that are larger or smaller than your vehicle’s original tires may also affect the accuracy of your speedometer. SNOW TIRES AND CHAINS Snow tires must be the same size and grade as the tires you currently have on your vehicle. The tires on your vehicle have all weather treads to provide traction in rain and snow.

  • Page 277: Refill Capacities

    Maintenance and Specifications REFILL CAPACITIES Fluid Ford Part Application Capacity Name Brake fluid Motorcraft High Fill to MAX line Performance on reservoir DOT 3 Motor Vehicle Brake Fluid Engine oil Motorcraft SAE 3.0L-4V V6 6.5L (includes filter 5W-20 Premium engine (6.9 quarts) change) Synthetic Blend...
  • Page 278 Maintenance and Specifications Fluid Ford Part Application Capacity Name Windshield Motorcraft Fill to line on washer fluid Premium reservoir Windshield Washer Concentrate Use only brake fluids certified to meet Ford specifications. Refer to Lubricant Specifications in this chapter. DOT 3 fluid is recommended. However, if DOT 3 is not available, DOT 4 fluid can be used.

  • Page 279: Lubricant Specifications

    Maintenance and Specifications LUBRICANT SPECIFICATIONS Item Ford part Ford part Ford name number specification Brake fluid Motorcraft High PM-1 ESA-M6C25-A Performance and DOT 3 DOT 3 Motor Vehicle Brake Fluid Door Silicone F5AZ-19553-AA ESR-M13P4-A weatherstrips Lubricant Door latch, hood Multi-Purpose XG-4 or XL-5 ESR-M1C159-A latch, auxiliary...
  • Page 280 Maintenance and Specifications Item Ford part Ford part Ford name number specification Rear Axle Motorcraft SAE XY-75W140–QL WSL-M2C192–A Lubricant 75W-140 High Performance Synthetic Rear Axle Lubricant Automatic Motorcraft XT-5-QM MERCON V transmission MERCON V fluid Windshield Ultra-clear C9AZ-19550-AC ESR-M17P5-A washer fluid Windshield Washer Concentrate...
  • Page 281 Maintenance and Specifications VEHICLE DIMENSIONS Vehicle dimensions mm (in) (1) Overall length 4925 mm (193.9 in) (2) Overall width 1859 mm (73.2 in) (3) Overall height 1424 mm (56.0 in) (4) Wheelbase 2909 mm (114.5 in) (5) Tread - Front 1540 mm (60.6 in) (5) Tread - Rear 1543 mm (60.7 in)

  • Page 282: Certification Label

    Maintenance and Specifications IDENTIFYING YOUR VEHICLE Certification label The National Highway Traffic Safety MFD. BY FORD MOTOR CO. IN U.S.A. Administration Regulations require DATE: XXXXX GVWR:XXXXXXXXXXXX that a Certification Label be affixed FRONT GAWR: XXXXXX/XXXXXXX REAR GAWR: XXXXXXX/XXXXXXX to a vehicle and prescribe where the THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL Certification Label may be located.
  • Page 283 Maintenance and Specifications Vehicle identification number (VIN) The vehicle identification number is attached to a metal tag and is located on the driver side XXXXXXXXXXXXXXXXX instrument panel. (Please note that in the graphic XXXX is representative of your vehicle identification number.) 1.

  • Page 284: Accessories

    FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of genuine Ford accessories are available for your vehicle through your local authorized Ford, Lincoln, Mercury or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
  • Page 285 Accessories Travel equipment Luggage/cargo basket Removable roof rack Removable roof rack adapters (bike, ski, snowboard) Protection and appearance equipment Air bag anti-theft locks All weather floor mats Alloy wheels (chrome and painted) Car cover Carpet floor mats First aid kit Front end covers (mini and full) Highway safety kit Molded splash guards...
  • Page 286 Accessories • Mobile communications systems may harm the operation of your vehicle, particularly if they are not properly designed for automotive use or are not properly installed. When operated, such systems may cause the engine to stumble or stall or cause the transmission to be damaged or operate improperly.

  • Page 287: Index

    Index Index acid, treating emergencies ..251 jumping a disabled battery ..220 maintenance-free ....251 Accessory delay ......95 replacement, specifications ...275 AdvanceTrac ......191 servicing ........251 Air bag supplemental restraint BeltMinder .........156 system ....161–162, 166, 169 and child safety seats ....163 Brakes ........188 description ....162, 166, 169 anti-lock ......188–189 disposal ........172...
  • Page 288 Index plastic parts ......240 washing ........237 Daytime running lamps waxing ........237 (see Lamps) ........81 wheels ........238 Defrost wiper blades ......240 rear window ......79 Climate control (see Air Dipstick automatic transmission conditioning or Heating) ..72, 74 fluid ..........268 Compass, electronic ....96 engine oil .........248 calibration .........97 Doors...
  • Page 289 Index GVWR (Gross Vehicle Weight Rating) ......202 calculating .......202 Fail safe cooling ......257 definition .........202 Floor mats .........123 driving with a heavy load ..202 Fluid capacities ......276 location ........202 Foglamps ........81 Fuel ..........259 Hazard flashers ......205 calculating fuel Head restraints ....139, 144 economy ......112, 263 Headlamps ........80 cap ...........261...
  • Page 290 Index positioning .......215 Lumbar support, seats .....140 storage ........215 Jump-starting your vehicle ..220 Message center ....110, 112 select button ......110 warning messages ....114 Keyless entry system ....133 autolock ........132 Mirrors ........93, 96 automatic dimming Keys ...........124 rearview mirror ......96 positions of the ignition ..185 fold away ........99 valet key ........124 heated ........98...
  • Page 291 Index Power distribution box Seat belts (see Safety restraints) ......146 (see Fuses) .......210, 213 Seats ..........139 Power door locks ......124 child safety seats ....177 Power steering ......190 cleaning ........241 fluid, checking and adding ..268 climate control ......143 fluid, refill capacity ....276 easy access/easyout fluid, specifications ..278–279 feature ........141...
  • Page 292 Index Towing ........202 Vehicle Identification Number (VIN) ..........282 recreational towing ....203 trailer towing ......202 Vehicle loading ......202 wrecker ........226 Ventilating your vehicle ...188 Traction control ......190 Transmission ......194 fluid, checking and adding Warning lights (see Lights) ..10 (automatic) ......268 Washer fluid ......248 fluid, refill capacities ....276 Water, Driving through .....201 lubricant specifications ..278–279...

Table of Contents
