Summary of Contents for Tuvva KSD6270B

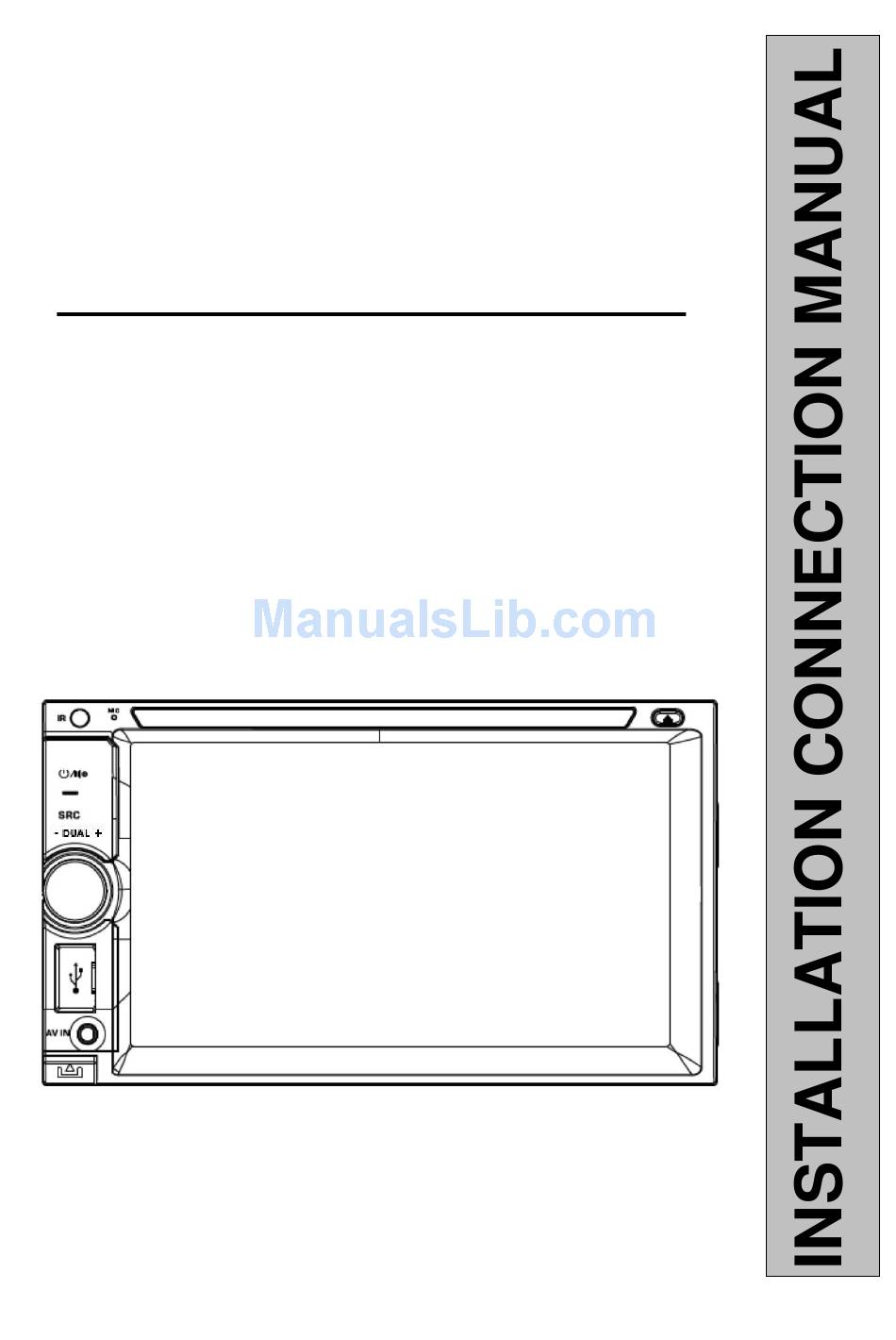

- Page 1 TUVVA CAR CD /DVD /MP3 PLAYER /RADIO&RDS RECEIVER /WITH Bluetooth MODEL: KSD6270B...
- Page 2 Product specifications are subject to change without prior notice www.tuvva.com WEEE (Waste Electrical and Electronic Equipment Directive) If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste.
-
Page 3: Warning
INSTRUCTION MANUAL WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage. -
Page 4: Table Of Contents
INSTRUCTION MANUAL CONTENTS WARNING! ..........................2 OPERATION PRECAUTIONS ....................2 CONTENTS ..........................3 ACCESSORIES .......................... 4 INSTALLATION .......................... 5 WIRING CONNECTIONS ......................6 FRONT PANEL ........................... 8 REMOTE CONTROL ........................ 10 REMOVE BATTERY ......................... 13 MAIN MENU ..........................13 ◆ RADIO PLAYER ........................14 ◆... -
Page 5: Accessories
INSTRUCTION MANUAL Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring (5) Rubber Washer, each cushion M5 Nut (2) Mounting (6) Screw Strap (3) Bolt (7) key (4) Screw (8) sleeve User Manual External Microphone Cable AV-IN Cable (optional) Remote Control... -
Page 6: Installation
INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver‟s way and will not injure the passenger in case there is a sudden stop, like an emergency stop. -
Page 7: Wiring Connections
WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal. - Page 8 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).
-
Page 9: Front Panel
Front panel POWER/MUTE Button Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button briefly to Mute .Please note that the volume will be muted on all audio output connector. (* Press any button to turn on the unit except EJECT button on front panel or remote control) 2. - Page 10 Access GENERAL setup in the SETTINGS menu and press the icon for DUAL mode and select ON. Insert a DVD or begin playing a movie from SD card or USB. Controlling the Front Zone (C-DUAL) Press the front panel Volume knob until C-DUAL appears on the screen. ...
-
Page 11: Remote Control
REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM/CLEAR 4: ENTER 5: UP/DOWN/LEFT/RIGHT 6: EJECT 7: PTY/* 8: P.SCN/RPT/# 9: BACKWARD/SEEK- FAST BACKWARD 10: AF/TA 11: OSD 12: PBC/STOP 13: DIGIT NUMBERS 14: PLAY/PAUSE 15: MUTE/BLUETOOTH 16: MENU 17: SUBTITLE 18: SETUP 19: ANGLE/ACCEPT 20: INT/REJECT 21: VOLUME PLUS... - Page 12 In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. AS (Auto Save): Long press to save the stations with good reception automatically. In BLUETOOTH mode, press it to make a # symbol.
- Page 13 23. SEL button Press it to enter the SOUND SETTING menu, and press Cursor UP/DN buttons to choose an item and press cursor left/right buttons to set the item. Press SEL button again to exit the menu. / SEEK + buttons In DVD mode, Press button to skip to the next track.
-
Page 14: Remove Battery
REMOVE BATTERY Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. ... -
Page 15: Radio Player
◆ RADIO PLAYER To start Radio, tap RADIO button on main menu screen. Mute the sound. Touch this button can choose FM1, FM2, FM3, MW1, MW2. Touch this button can scan the stations from 1-6, Long Touch it to save the stations with good reception automatically and scan each station for about 5 seconds Touch this button to search stations Touch this button to open manual select station backward... -
Page 16: Dvd Player
◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc NOTE DVD Player will automatically start playing when you insert any DVD disc. -
Page 17: Disc/Usb/Sd/Mmc Interface
◆ DISC/USB/SD/MMC INTERFACE When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to Stop playback from the current position; press Play/pause button to resume playback. Play/pause button. -
Page 18: Setting Control
◆ SETTING CONTROL Your device has default system settings. You can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again. To start SETTING, tap it on main menu. SOUND CONTROL Tap SOUND button to show SOUND1 menu. -
Page 19: General Control
GENERAL CONTROL Tap GENERAL Button to show GENERAL1 menu LANGUAGE LANGUAGE ENGLISH CHINESE(TRADTIONAL) DUAL Set DUAL ON or OFF Key control CURRENT or DVD DUAL VOL Adjust the DUAL volume CLOCK Set CLOCK display time DISPLAY ON or OFF button to show GENERAL 2 menu CLOCK Set 24Hour format or HOUR... -
Page 20: Dvd Setup Menu
Mask: DPI/ALL. During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength. EON TA: DX/Local. -
Page 21: System Information
PARENTS STRONGLY CAUTIONED-Some material may be inappropriate fo 4.PG-13 r children under 13 5.PG-R Restricted, under 17 requires accompanying parent or adult guardian. RESTRICTED-Under 17 requires accompanying parent or adult guardian 7.NC-17 NO ONE 17 AND UNDER ADMITTED 8. Adult Above 17 Admitted [6] TV TYPE: Set TFT screen mode to the correct ratio:... -
Page 22: Other Functions
Other functions Subwoofer Connect the subwoofer to the unit using sub output (see electrical diagram). Tap MENU on screen enter into main menu setting choose setting menu. Choose SOUND and set subwoofer ON to enable subwoofer. Parking When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image Back View Camera This unit is equipped with back view camera output. -
Page 23: Bluetooth Section
When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (TUVVA), select it, input password "0000" and confirm ok, device paring is finished. - Page 24 on remote for 3-4 seconds to delete all the numbers at once. Tap the button for 3-4 seconds, the device automatically makes a call to the latest call in its call log. Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button.
-
Page 25: Notes On Disc
NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. -
Page 26: Troubleshooting
TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2. -
Page 27: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED. -
Page 28: Technical Specifications
TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 15 A Maximum power output: 50W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/PICTUR Compatible formats: E CDCD-R/-RW/DVD± R/±RW PLAYBACK Dimensions (W x D x H) / 165*178*100 mm/2 kg weight: Working temperature -20℃...
