Tuvva KSD6102 Owner's Manual
  1. Manuals
  2. Brands
  3. Tuvva Manuals
  4. Car Receiver
  5. KSD6102
  6. Owner's manual

Tuvva KSD6102 Owner's Manual

In-dash 6.1” monitor touch screen dvd/cd/mp3/mp4 am/fm radio with bluetooth with rds receiver. support mhl&two way
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TUVVA
KSD6102
In-Dash 6.1" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth with RDS receiver.
Support MHL&TWO WAY

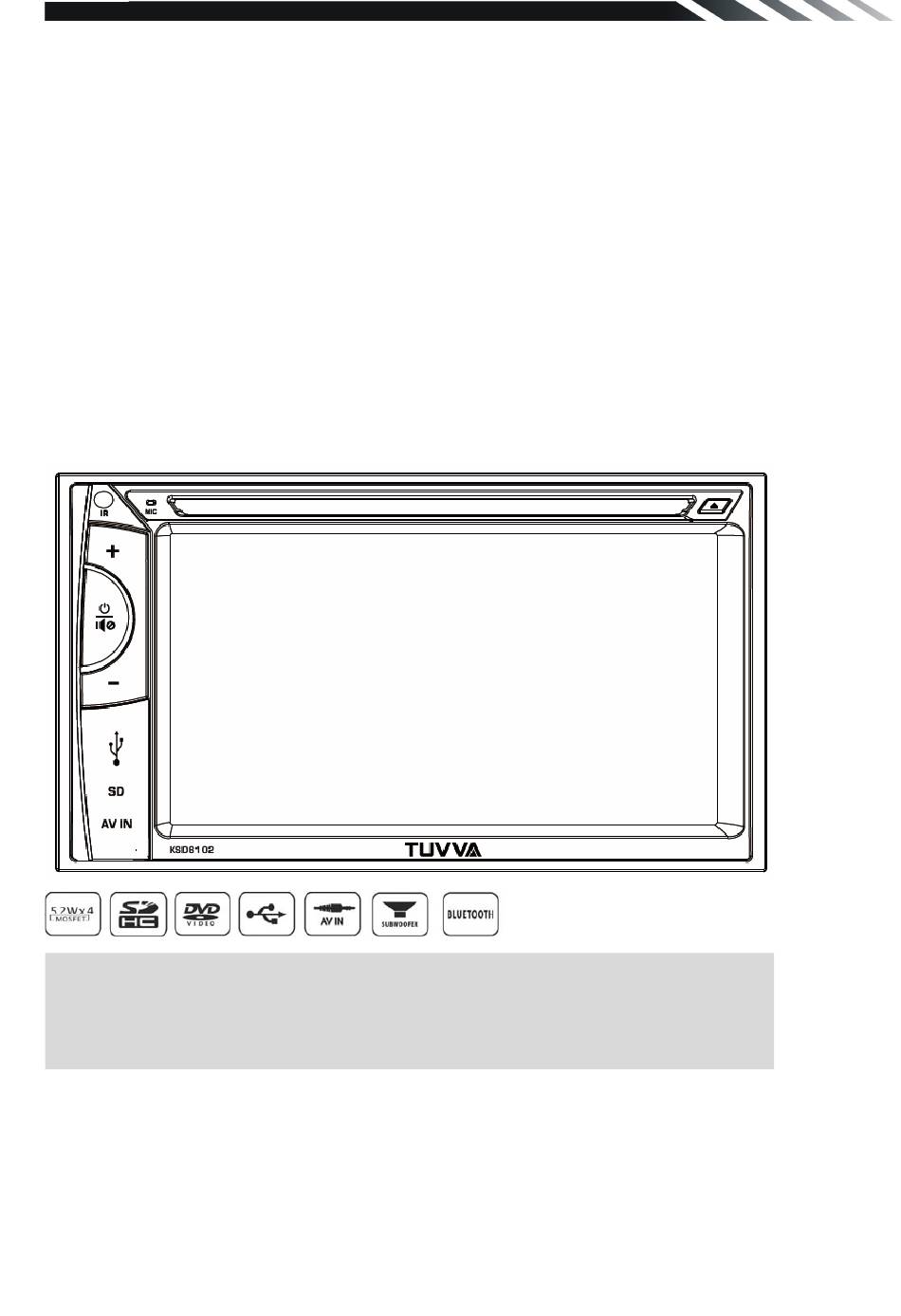

Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSD6102 and is the answer not in the manual?

Questions and answers

Related Manuals for Tuvva KSD6102

Summary of Contents for Tuvva KSD6102

  • Page 1 TUVVA KSD6102 In-Dash 6.1” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth with RDS receiver. Support MHL&TWO WAY Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best...

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS..................2 CONTENTS........................3 ACCESSORIES......................4 INSTALLATION / UN-INSTALLATION ............... 5 WIRING CONNECTIONS ................... 6 PANEL ........................8 REMOTE CONTROL....................9 REMOVE BATTERY....................11 MAIN MENU........................12 ◆ RADIO PLAYER....................12 ◆ DVD PLAYER ...................... 13 ◆ USB/SD/MMC CARD OPERATION ..............14 ◆MOBILELINK OPERATION...................

  • Page 4: Accessories

    ACCESSORIES Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw (8) Rubber Cushion AV-IN Cable (optional) User Manual Remote Control Trim ring...

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).

  • Page 8: Panel

    PANEL 1. IR Sensor IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels. 2. VOL Increase Button Press VOL increase button to increase the volume. 3. POWER/MUTE Button Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button briefly to Mute .Please note that the volume will be muted on all audio output connector.

  • Page 9: Remote Control

    REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM/CLEAR 4: ENTER 5: UP/DOWN/LEFT/RIGHT 6: EJECT 7: STEREO/MONO/* 8: P.SCN/RPT/# 9: BACKWARD/SEEK- FAST BACKWARD 10: LOUD 11: OSD 12: PBC/STOP 13: DIGITAL NUMBERS 14: PLAY/PAUSE 15: MUTE/BLUETOOTH 16: MENU 17: SUBTITLE 18: SETUP 19: ANGLE/ACCEPT 20: INT/REJECT 21: VOLUME PLUS...
  • Page 10 AS (Auto Save): Long press to save the stations with good reception automatically. In BLUETOOTH mode, press it to make a # symbol. / seek- button In DVD mode, Press button to skip to the previous track. Press and hold button for two seconds to activate fast reverse (REW) search in a track.

  • Page 11: Remove Battery

    / seek + button In DVD mode, Press button to skip to the next track. Press and hold button for two seconds to activate fast forward (FF) search in a track. In RADIO mode, press button to start manual searching, press and hold for two seconds to start searching automatic button Frequency up.

  • Page 12: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 13: Dvd Player

    ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc insert VCD disc NOTE...

  • Page 14: Usb/Sd/Mmc Card Operation

    ◆USB/SD/MMC CARD OPERATION Insert USB/SD/MMC and play track will display as follows: Mute the sound. Decrease the volume. Increase the volume. Stop button. Press it to Stop playback from the current position, press it again to final stop to the very beginning Play/pause button.

  • Page 15: Mobilelink Operation

    ◆ MOBILELINK OPERATION To start MOBILELINK function, tap on MOBILELINK button from main menu screen Connect with phone， APP must be install on the phone. And then connect BT, user can make own choice by tap the buttons and show the function both in phone and units 1.

  • Page 16: Display Control

    Tap button to show sound 2 menu. TRE LEVEL Select up/down TRE CFQ Select Frequency BALANCE Select right /left FADER Select front/rear BEEP Keypad sound setting Tap button to show sound 3 menu. LOUD Set LOUD ON/OFF LOUD LEVEL Select up/down LOUD CFQ Select Frequency SUBWOOFER Set SUBWOOFER ON or...

  • Page 17: General Control

    GENERAL CONTROL Tap GENERAL button to show GENERAL menu. CLOCK Set CLOCK display time DISPLAY ON or OFF CLOCK Set 24Hour format or HOUR 12Hour format CLOCK Set CLOCK ADJUST time SETTING AUTO Set Auto ON or OFF CONNECT DVD SET UP MENU During the DVD playback, press the SETUP button to enter into the system settings main menu;...

  • Page 18: System Information

    For DVD discs which support the USA rating system, setting up rating control can prevent children from watching content that might not be suitable for their age. You are asked to enter the password when you change the rating setting. The default password is 0000. Code Description 1.NONE...

  • Page 19: Bluetooth Section

    BLUETOOTH SECTION Warning: Driving and having a Telephone conversation at the same time is dangerous, please park your car before having a telephone conversation. The supplier waves any and all liability when this warning is not followed. To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press the mute/Bluetooth button on the Remote Control or press mode button on remote or on front panel.

  • Page 20: Other Functions

    all in its call log. Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button. NOTE: the phonebook only supports Western Characters. Any difference in character will be shown such as “+, * or #”.

  • Page 21: Notes On Disc

    situation behind the vehicle when you are backing the car. Please connect your back view camera with the back car video input. And connect the reverse wire for back a car with the rear gear light. Rear view camera picture will be enabled when you are backing the car.

  • Page 22: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 23: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER DISC CANNOT BE INSIDE THE PLAYER THEN PUT A NEW UPWARD.

  • Page 24: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
