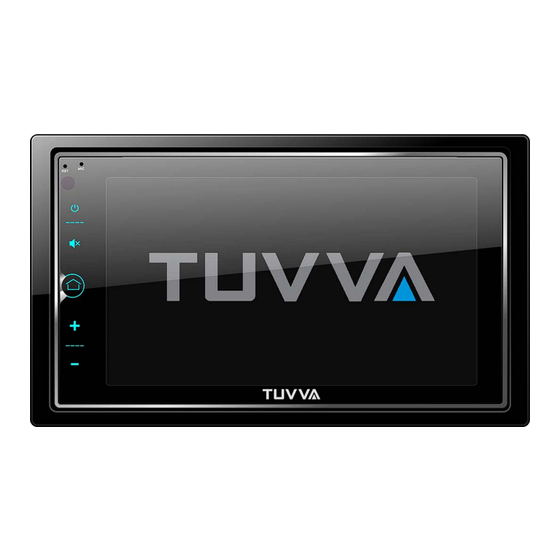

TUVVA
KSN6280
2DIN 6.2" Monitor
Capacitive Touch Screen
MP3/MP4
AM/FM Radio
With Bluetooth
Support MHL &Two Way
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new Car Radio receiver.
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Tuvva KSN6280
Summary of Contents for Tuvva KSN6280
- Page 1 TUVVA KSN6280 2DIN 6.2” Monitor Capacitive Touch Screen MP3/MP4 AM/FM Radio With Bluetooth Support MHL &Two Way Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best...
-
Page 2: Warning
WARNING! To promote safety, certain functions are disabled unless the parking brake is on, the unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage. -
Page 3: Table Of Contents
CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 CONTENTS........................3 ACCESSORIES ......................4 INSTALLATION / UN-INSTALLATION ............... 5 WIRING CONNECTIONS ................... 6 PANEL ........................8 REMOTE CONTROL………………………………………………………………………...9 REMOVE BATTERY.……………………………………………………………………….11 MAIN MENU………..……………………………………………………………. ……….12 ◆RADIO PLAYER………..……………………………………………………………….12 ◆USB OPERATION ..................………..13 ◆AV-IN MODE ..................... ………..14 ◆SETTING CONTROL…………………………………………………………………….14 SOUND CONTROL.……………………………………………………………………...14 GENERAL CONTROL.…………………………………………………………………..15... -
Page 4: Accessories
ACCESSORIES Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw (8) Rubber Cushion Power Cable Trim Ring User Manual Remote Control... -
Page 5: Installation / Un-Installation
INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop. -
Page 6: Wiring Connections
WIRING CONNECTIONS Note: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal. - Page 7 Connecting the reversing line to taillight on the car After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera. Note: Only use groundless loudspeakers. Only use loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes.
-
Page 8: Panel
PANEL 1. POWER On/Off Press to turn On/Off the unit. 2. MUTE Button press to mute the playback, press it again to release mute 3. Main Menu Press menu button to go into home page. 4.VOL Increase Button Press VOL increase button to increase the volume. 5. -
Page 9: Remote Control
26: AUDIO/GOTO Note: As the Remote control is a universal part , please kindly note below buttons only work for DVD models, not for TUVVA KSN6280. EJECT, Setup, ZOOM, A-B, PBC, GOTO, AUDIO, Sub-T, Angle, INT , etc. 1. MODE button Press it to select the mode: radio, USB (if there is a USB device in the unit), AV IN, BT phone and Mobilelink. - Page 10 In radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. AS (Auto Save), long press to save the stations with good reception automatically. In bluetooth mode, press it to make a # symbol.
-
Page 11: Remove Battery
REMOVE BATTERY Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. Do not place any objects between the remote control unit and the sensor on the unit. -
Page 12: Main Menu
MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. -
Page 13: Usb Operation
Touch it to switch radio traffic service on or off. Touch it to go into radio mode in setting. Touch it to go into home page. Touch it to go into EQ system. Touch it to adjust screen light. Note: When a radio signal is not received, the default for ST / MO function, once received radio automatically converted to ST. -
Page 14: Av-In Mode
◆AV-IN Mode To start AV-IN mode, tap AV-IN icon from hardware hole at behind. Connect the external audio/video signal source to this unit and select AV-IN mode in the main menu. Note: If there is no external video input, the TFT displays “no signal”. -
Page 15: General Control
General Control Language Setting Background select Wallpaper Desktop select desktop 1/2 Adjust LED color Time setting Tap language button to show following interface and user can select desired language. Tap background button to show following interface and user can select desired background. Tap desktop button to show following interface and user can select desired desktop. -
Page 16: Radio Control
Tap time button to show following interface and user can set time. Hour setting Minute setting Set 24hour format or 12hour format Date setting Desktop select desktop 1/2 Adjust LED color Time setting Default Value Parking: select on/off RADIO CONTROL Stereo/Mono :select on (stereo reception mode) or off (mono reception),the... -
Page 17: Bluetooth Setting&Qr Code
Bluetooth setting & QR code Auto answer: select on/off Bluetooth : select on/off QR code : scan QR code to Auto connect: select on/off download Mobile link APP BLUETOOTH SECTION Warning: Driving and having a telephone conversation at the same time is dangerous, please park your car before having a telephone conversation. - Page 18 If you want to disconnect the bluetooth connection, turn off the mobile phone buetooth function. 1.Calling Button Tap on calling button to enter call mode. In call mode, the unit can be used as your phone, making and receiving calls are possible with bluetooth, simply tap phone number and tap button to make a call, and tap button...
-
Page 19: Other Functions
OTHER FUNCTIONS Subwoofer Connect the subwoofer to the unit using sub output (see electrical diagram), tap menu on screen enter into main menu setting choose setting menu., choose sound and set subwoofer on to enable subwoofer. Parking When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image. - Page 20 Page 1 Page 2 Page 3 Page 4...
-
Page 21: Mhl Connection Guide
Connect the USB power (if available) to USB Port on the car unit (for charging only) Turn on Bluetooth function on your phone and pair the phone with “TUVVA” When the car unit have connect with phone, the Bluetooth icon will turn on and the Mobile phone name (if available) will be display on the panel. -
Page 22: Troubleshooting
TROUBLESHOOTING Symptom Cause Solution If the power supply is properly The car ignition is not connected to the car accessory No power switch the ignition key to “ACC” The fuse is blown Replace the fuse Volume is in minimum Adjust volume to a desired level No sound Wiring is not properly Check wiring connection... -
Page 23: Troubleshooting
TROUBLESHOOTING Symptom Cause Solution If the power supply is properly The car ignition is not connected to the car accessory switch the ignition key to “ACC” No power The fuse is blown Replace the fuse Volume is in minimum Adjust volume to a desired level No sound Wiring is not properly Check wiring connection... -
Page 24: Technical Specifications
TECHNICAL SPECIFICATIONS General Power supply 11~16V DC Current consumption max. 10 A Maximum power output 50W x 4 channels (max) Dimensions (W x D x H) / weight 165*178*100 mm/2 kg Working temperature range -20℃ - +60℃ TFT display Screen size 6.2 inch Resolution 800*480 pixel... - Page 25 Need help? Contact us! TUVVA representatives are ready to help you with any question about your new product. We can guide you through connections, first time setup, or any of the features. We want you to start enjoying your new product right away!
