TUVVA
KSN7812
In-Dash 7" Monitor Touch Screen
MP3/MP4 Player
AM/FM Radio
With Bluetooth &RDS Receiver
Support MHL&TWO WAY
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new device.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tuvva KSN7812
Summary of Contents for Tuvva KSN7812

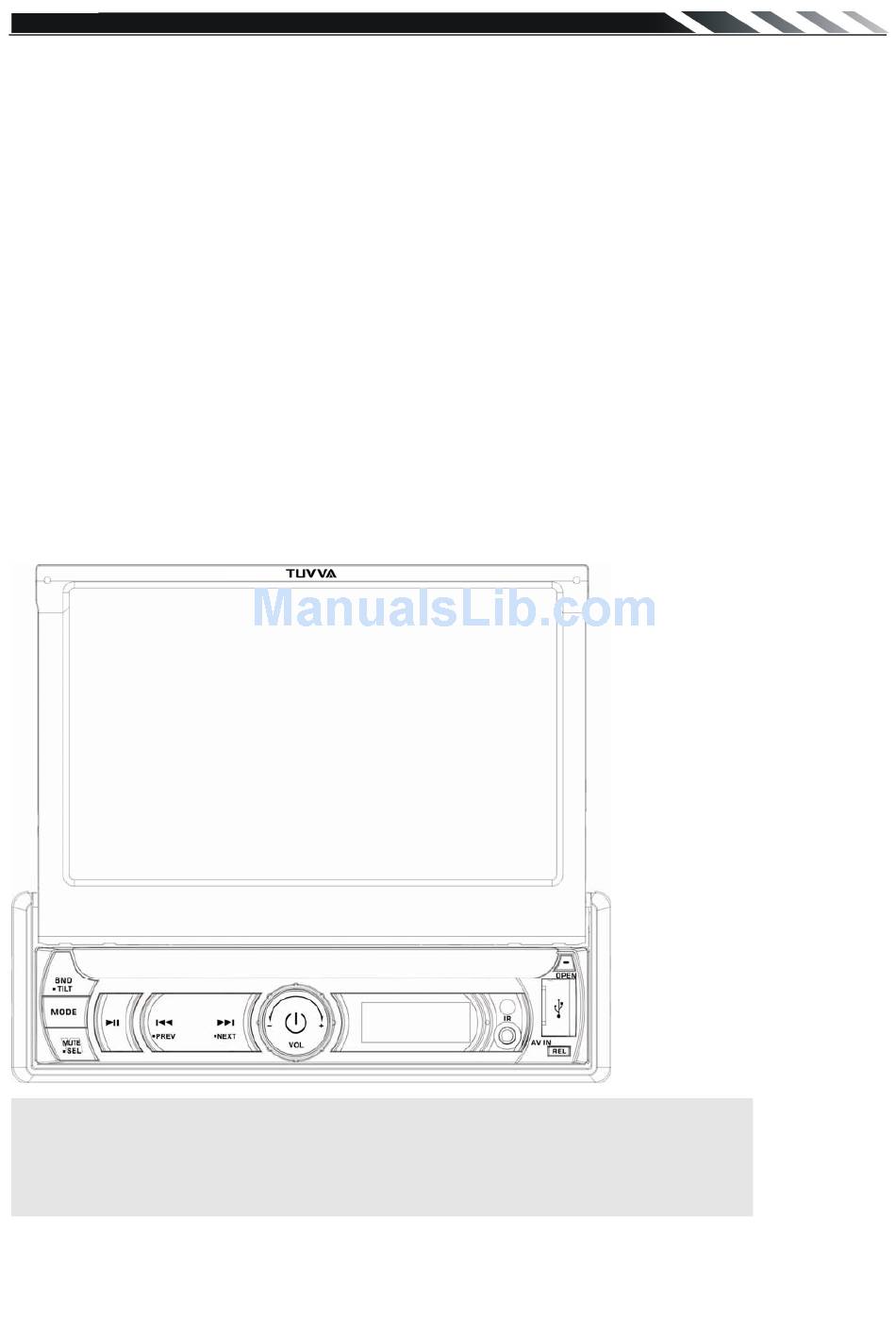

- Page 1 TUVVA KSN7812 In-Dash 7” Monitor Touch Screen MP3/MP4 Player AM/FM Radio With Bluetooth &RDS Receiver Support MHL&TWO WAY Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best...
-
Page 2: Important Safeguards
Important Safeguards Using the device at temperature below -10℃ may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize you with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. -
Page 3: Table Of Contents
Contents Important Safeguards ........................2 Contents ............................3 Accessories ..........................4 Installation/Un-installation ......................5 Wiring Connections ........................6 Front Panel ..........................9 Inner Panel ........................... 9 Remote control ........................... 11 Remove Battery ......................... 12 Main Menu ..........................12 ◆Radio Player ........................13 ◆USB/SD/MMC Interface .................... -
Page 4: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw (8) Rubber Cushion Remote Control Power cable User Manual RCA Cable (optional) -
Page 5: Installation/Un-Installation
Installation/Un-installation Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop. -
Page 6: Wiring Connections
Wiring Connections Make sure you have good chassis ground. A good ground connection will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection. - Page 7 NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal. 2 cables is connected to a Hands-Free device (not included).
- Page 8 Loudspeaker cables and/or optional external power amplifiers must always be about 30cm away from the antenna and/or antenna extension parts. Connect the speakers according the following diagram, incorrect connections will damage the unit or your loudspeakers Correct connection Left front - Right front | Left rear - Right rear Incorrect connections...
-
Page 9: Front Panel
Front Panel Inner Panel 1. BAND/TILT Button In Radio mode, press to change radio band in sequence of: FM1 → FM2 → FM3 → AM1 → AM2. Press and hold for 2 second to adjust the Monitor tilt angle: TILT ANGLE 1 => TILT ANGLE 2 => TILT ANGLE 3 =>... - Page 10 2. MODE Button Press it to select the mode: Radio, USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), and AV IN. 3. MUTE/ SEL Button Short press it to MUTE the volume output, press it again to resume volume when the power is SEL: Long press it to enter SOUND SETTING menu to adjust the sound settings;...
-
Page 11: Remote Control
12. IR Sensor IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels. 13. OPEN Button Press this to open and close the TFT monitor. WARNING: Do not obstruct the monitor while in the opening or closing cycle, this may cause damage to the monitor mechanism and is NOT covered under warranty. -
Page 12: Remove Battery
Remove Battery Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. Do not place any objects between the remote control unit and the sensor on the unit. -
Page 13: Radio Player
◆Radio Player To start Radio, tap RADIO button on main menu screen, or press the MODE button on the front panel or RC repeatedly. Touch it to adjust the volume Touch this button can scan the stations from 1-6, Long Touch it to save the stations with good reception automatically and scan each station for about 5 seconds Touch this button to search stations backward automatically. -
Page 14: Bluetooth Section
Touch it to turn to the menu page Touch it to zoom in the photo: ×1=>×2=>×3=>×4 Touch it to rotate the photo: 90°=>180°=>270° =>360° Touch it to select the photo playback mode: Fade In Fade Out=>Persian Blinds H=>Persian Blinds V=>Slide Up=>... - Page 15 When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (TUVVA), select it, input password "0000" and confirm ok, device paring is finished.
-
Page 16: Av-In Mode
◆AV-IN Mode To start AV-IN Mode, tap on AV-IN button from main menu screen. Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing repeat Mode button on the front panel. Note: If there is no external video input, the TFT displays “NO SIGNAL”. -
Page 17: Other Functions
General Clock hour: select 12-hour or 24-hour clock display mode. Clock set: Press number buttons to input the current time. Radio Area: Select radio broadcasting area. Stereo: Select stereo on or off. System information Product Info：You can view detail system information including serial number of the software Tilt Set: Select the monitor tilt angle Default Set：return to factory default setting or not... - Page 18 Mobilelink Operation The unit contact mobile phone by HDMI cable(not included), and mobile phone bluetooth pair with unit bluetooth, user can make own choice by tap the buttons and show function both in phone and unit. Note: mobile link APP must install on the mobile phone. 1.Touch the icon appear page 3 interface, user can select buttons on the right to realize mobilelink function and select buttons at the bottom to go into system interface fast.
-
Page 19: Mhl Connection Guide
- Connect the USB power (if available) to USB Port on the car unit (for charging only) 3. Turn on Bluetooth function on your phone and pair the phone with “TUVVA” When the car unit have connect with phone, the Bluetooth icon will turn on and the Mobile phone name (if available) will be display on the panel. -
Page 20: Anti-Theft System
Anti-theft System Remove the panel 1. Press the PWR button to turn the power off. 2. Press REL button to detach the panel. 3. Pull the panel out. 4. Place the panel into the case and take it with you when you leave the car. Remove the unit 1. -
Page 21: Specification
Specification General Power supply: 12 V DC Current consumption: Max. 10 A Maximum power output: 52W x 4 channels (Max.) Compatible formats: MP3/MP4/WMA/ JPEG/RMVB Dimensions (W x D x H) / 178x 165 x 50 mm / 1.8 kg weight: Working temperature -10℃... - Page 22 Need help? Contact us! TUVVA representatives are ready to help you with any question about your new product. We can guide you through connections, first time setup, or any of the features. We want you to start enjoying your new product right away!
