Tuvva KSD7843B Owner's Manual

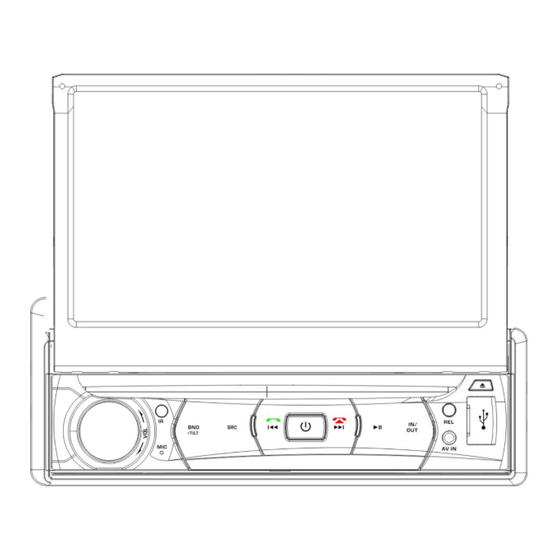

In-dash 7” monitor touch screen dvd/cd/mp3/mp4 am/fm radio with bluetooth with rds receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

TUVVA
KSD7843B
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth
With RDS Receiver
Owner‟s Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSD7843B and is the answer not in the manual?

Questions and answers

Related Manuals for Tuvva KSD7843B

Summary of Contents for Tuvva KSD7843B

  • Page 1 TUVVA KSD7843B In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth With RDS Receiver Owner‟s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 CONTENTS ........................ 3 ACCESSORIES ......................4 INSTALLATION / UN-INSTALLATION................ 5 WIRING CONNECTIONS ................... 6 PANEL ........................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................12 MAIN MENU ......................13 ◆ RADIO PLAYER ....................13 ◆...

  • Page 4: Accessories

    ACCESSORIES Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw (8) Rubber Cushion User Manual Remote Control Trim ring Power Cable...

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver‟s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. When the brown cable for steering wheel control connected to the steering wheel, we can use the steering wheel to control some unit Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).

  • Page 8: Panel

    PANEL 1. VOL Knob/SEL/MUTE VOL Knob: Adjust the volume level by turning the knob clockwise to increase or counterclockwise to decrease. SEL : Long press it to enter SOUND SETTING menu to adjust the sound settings; EQ => BASS => TREBLE = > BALANCE => FADER => EQ. Adjust the level by click touch screen to increase or decrease.
  • Page 9 Press and hold for 2 second to adjust the Monitor tilt angle: TILT ANGLE 1 => TILT ANGLE 2 => TILT ANGLE 3 => TILT ANGLE 4. 5. SRC Button Press to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), Bluetooth and AV IN.

  • Page 10: Remote Control

    REMOTE CONTROL 1. POWER Power on or off. 2. MODE button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), and AV IN. 3. PLAY/PAUSE button In DVD mode, press it to pause playback, press again to resume.
  • Page 11 Press it to confirm selection or setting. 11. Cursor buttons Use the buttons to select the menu item. the title, track or to show next frame. 12. SETUP button In DVD mode press it to enter the setup menu. 13. EJECT button Press it to eject the disc.

  • Page 12: Remove Battery

    In DVD mode press it to enter the OSD menu, press and hold for 2 seconds to set video setup. (RED /GREEN /BLUE /BRIGHT / CONTRAST /SHARP /COLOR RESET /BACK) 27. VOL- button Press to decrease volume level. 28. AUDIO/GOTO button In DVD mode press it to select the audio language.

  • Page 13: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 14: Dvd Player

    Touch this button to enable or disable the TA function. Touch this button to display PTY information Touch this button to select stereo or mono sound reception ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played.

  • Page 15: Disc/Usb Interface

    Select the viewing angle of the touch-screen. icon to be back to main menu. ◆DISC/USB INTERFACE When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to stop playback, press it again return to the first track.

  • Page 16: Av-In Mode

    ◆AV-IN MODE To start AV-IN Mode, tap on AV-IN button from main menu screen. Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing repeat Mode button on the front panel. Note: If there is no external video input, the TFT displays “NO VIDEO SIGNAL”.

  • Page 17: Display Control

    DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. BACKLIGHT Backlight setting LOW, MID, HIGH GENERAL CONTROL Tap GENERAL button to show GENERAL menu. TILT MODE Set tilt mode automatic or manual TILT Adjust monitor tilt angle ANGLE CLOCK Set clock display time on or off. CLOCK Set 24hour format or 12hour HOUR...

  • Page 18: Radio Control

    RADIO CONTROL Tap RADIO button to show RADIO menu. AREA: EUROPE, U.S.A, AREA SOUTH AMERICA,RUSSIA STEREO Set STEREO ON or OFF Adjust TA Volume the level Volume RETUNE select RETUNE LONG/SHORT select PI MUTE or SOUND REGION select REG ON/OFF MASK select MASK DPI/ALL button from RDS &...

  • Page 19: System Information

    With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed. [4].

  • Page 20: Calibration

    When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device (TUVVA), select it, input password "0000" and confirm ok, device paring is finished.
  • Page 21 will stop searching. When in standby mode (unconnected), long press Bluetooth button on remote control to active auto-connect function and the device will search the last paired phone. If you want to disconnect the Bluetooth connection, turn off the Bluetooth on the phone. 1.

  • Page 22: Other Functions

    OTHER FUNCTIONS Subwoofer Connect the subwoofer to the unit using sub output (see electrical diagram). Tap MENU on screen enter into main menu setting choose setting menu. Choose SOUND and set subwoofer ON to enable subwoofer. Parking When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image Back View Camera This unit is equipped with back view camera output.

  • Page 23: Notes On Disc

    NOTES ON DISC  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store of purchase (No sound is produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 25: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD± R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
