- Page 1 HORNBLASTERS OutLaw 232 Locomotive Air Horn System Manual...

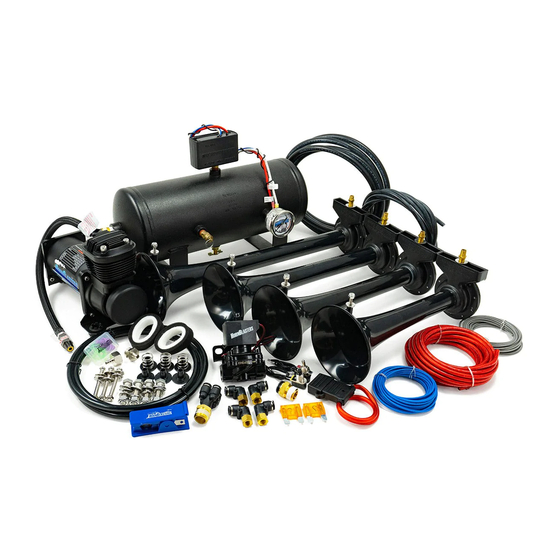

- Page 2 HornBlasters Support Line: +1 (877) 209-8179 Fax Line: +1 (813) 783-2407 support@hornblasters.com www.hornblasters.com/support Outlaw 232 Locomotive Air Horn System Installation Guide Before Getting Started Read over the entire instruction guide before you begin your installation. Kit Contents: HornBlasters OutLaw Horns ...
- Page 3 Eye Protection I. Installing Your HornBlasters Train Horn Locate an area for your horn that is dry and free from debris. The horn can be mounted in any direction and still be heard from all around. The horns should not be mounted where they will be completely submerged or will receive any kind of impact.
- Page 4 III. Installing Your Air Tank Locate a secure area close to your air compressor to mount your air tank. The leader hose of the compressor should be able to reach an available port on the air tank with some slack. 1.
- Page 5 Safety Valve in Tank: 1. Install the drain cock into any spare 1/4” NPT port on your air tank. If the safety valve already has sealant on its threads, it is unnecessary to use Teflon tape on the threads. Extra Port in Tank: 1.
-
Page 6: Troubleshooting
Can’t Figure It Out? No problem! Give us a call at 813-783-8058, or email at support@hornblasters.com and we’ll be more than happy to help you fix your system. Also feel free to visit our online train horn community, www.TrainHornForums.com, for more information. - Page 7 TrainHornForums.com is the largest train horn community online and provides a place to share photos of your ride, post videos, catch up with other train horn and HornBlasters fans, meet other train horn enthusiasts, or even find help with a complicated question.
- Page 8 HORNBLASTERS.COM OutLaw 232 Installation Diagram Toggle Switch 12V Battery Run this wire to an ignition wire (this is a wire that is only powered when the key is turned to the on position). This will insure that the air compressor...
