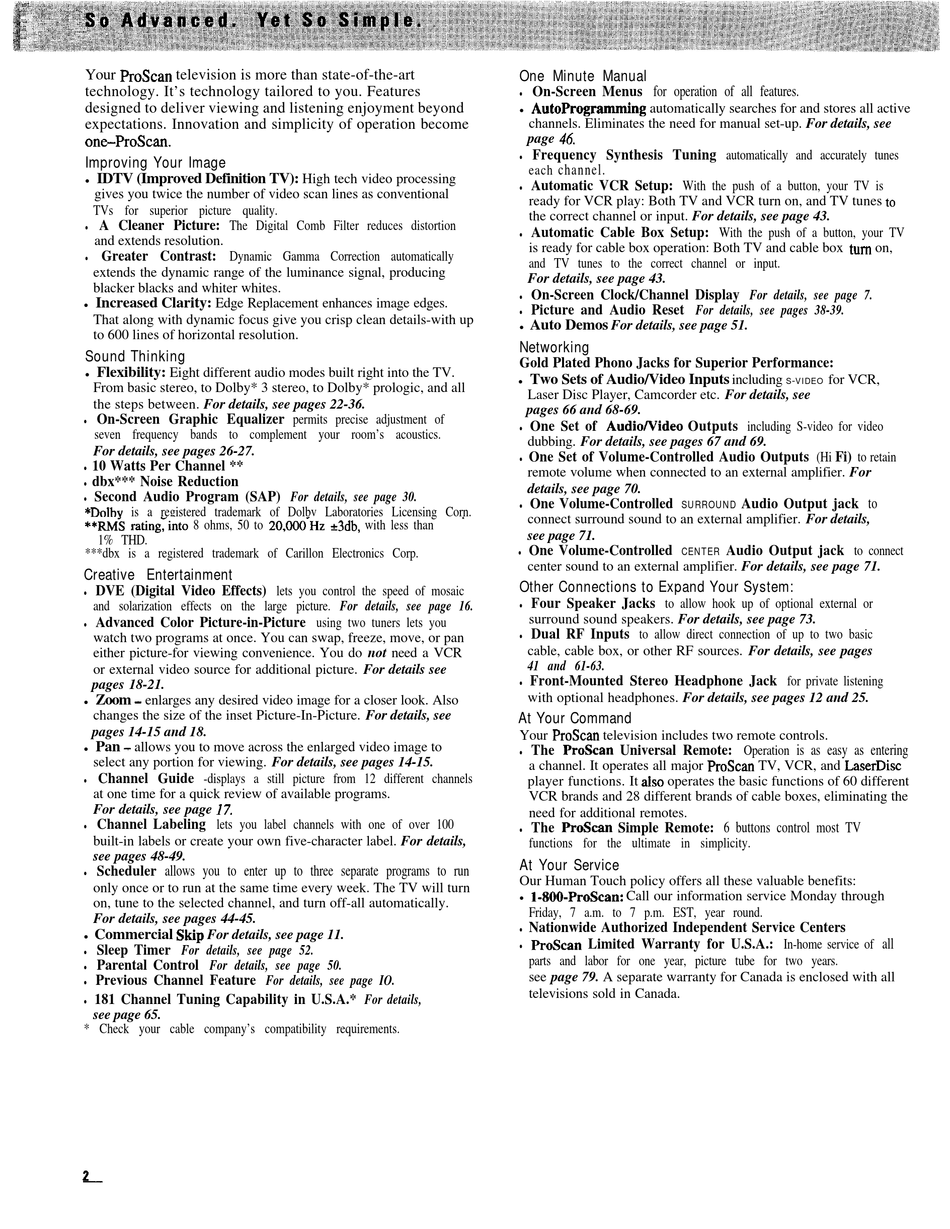

Your ProScan television is more than state-of-the-art
technology. It's technology tailored to you. Features
designed to deliver viewing and listening enjoyment beyond
expectations. Innovation and simplicity of operation become
Improving Your Image
IDTV (Improved Definition TV):
l
gives you twice the number of video scan lines as conventional
TVs for superior picture quality.
A Cleaner Picture:
The Digital Comb Filter reduces distortion
l
and extends resolution.
Greater Contrast:
Dynamic Gamma Correction automatically
l
extends the dynamic range of the luminance signal, producing
blacker blacks and whiter whites.
Increased Clarity:
Edge Replacement enhances image edges.
l
That along with dynamic focus give you crisp clean details-with up
to 600 lines of horizontal resolution.
Sound Thinking
Flexibility:
Eight different audio modes built right into the TV.
l
From basic stereo, to Dolby* 3 stereo, to Dolby* prologic, and all
the steps between. For details, see pages 22-36.
On-Screen Graphic Equalizer
l
seven frequency bands to complement your room's acoustics.
For details, see pages 26-27.
10 Watts Per Channel **
l
dbx*** Noise Reduction
l
Second Audio Program (SAP)
l
1% THD.
***dbx is a registered trademark of Carillon Electronics Corp.
Creative Entertainment
DVE (Digital Video Effects)
l
and solarization effects on the large picture. For details, see page 16.
Advanced Color Picture-in-Picture
l
watch two programs at once. You can swap, freeze, move, or pan
either picture-for viewing convenience. You do not need a VCR
or external video source for additional picture. For details see
pages 18-21.
Zoom
l
changes the size of the inset Picture-In-Picture. For details, see
pages 14-15 and 18.
Pan
l
select any portion for viewing. For details, see pages 14-15.
Channel Guide
-displays a still picture from 12 different channels
l
at one time for a quick review of available programs.
For details, see page 17.
Channel Labeling
lets you label channels with one of over 100
l
built-in labels or create your own five-character label. For details,
see pages 48-49.
Scheduler allows you to enter up to three separate programs to run
l
only once or to run at the same time every week. The TV will turn
on, tune to the selected channel, and turn off-all automatically.
For details, see pages 44-45.
Commercial Skip
For details, see page 11.
l
Sleep Timer
For details, see page 52.
l
Parental Control
For details, see page 50.
l
Previous Channel Feature
l
181 Channel Tuning Capability in U.S.A.*
l
see page 65.
* Check your cable company's compatibility requirements.
High tech video processing
permits precise adjustment of
For details, see page 30.
lets you control the speed of mosaic
using two tuners lets you
For details, see page IO.
For details,
One Minute Manual
On-Screen Menus for operation of all features.
l
automatically searches for and stores all active
l
channels. Eliminates the need for manual set-up. For details, see
page 46.
Frequency Synthesis Tuning
l
each
channel.
Automatic VCR Setup:
With the push of a button, your TV is
l
ready for VCR play: Both TV and VCR turn on, and TV tunes to
the correct channel or input. For details, see page 43.
Automatic Cable Box Setup:
l
is ready for cable box operation: Both TV and cable box turn on,
and TV tunes to the correct channel or input.
For details, see page 43.
On-Screen Clock/Channel Display
l
Picture and Audio Reset
For details, see pages 38-39.
l
Auto Demos
For details, see page 51.
l
Networking
Gold Plated Phono Jacks for Superior Performance:
Two Sets of Audio/Video Inputs
l
Laser Disc Player, Camcorder etc. For details, see
pages 66 and 68-69.
One Set of AudioNideo Outputs
l
dubbing. For details, see pages 67 and 69.
One Set of Volume-Controlled Audio Outputs
l
remote volume when connected to an external amplifier. For
details, see page 70.
SURROUND
One Volume-Controlled
l
connect surround sound to an external amplifier. For details,
see page 71.
CENTER
One Volume-Controlled
l
center sound to an external amplifier. For details, see page 71.
Other Connections to Expand Your System:
Four Speaker Jacks
to allow hook up of optional external or
l
surround sound speakers. For details, see page 73.
Dual RF Inputs
to allow direct connection of up to two basic
l
cable, cable box, or other RF sources. For details, see pages
41 and 61-63.
Front-Mounted Stereo Headphone Jack
l
with optional headphones. For details, see pages 12 and 25.
At Your Command
Your ProScan television includes two remote controls.
The ProScan Universal Remote:
l
a channel. It operates all major ProScan TV, VCR, and LaserDisc
player functions. It also operates the basic functions of 60 different
VCR brands and 28 different brands of cable boxes, eliminating the
need for additional remotes.
The ProScan Simple Remote: 6 buttons control most TV
l
functions for the ultimate in simplicity.
At Your Service
Our Human Touch policy offers all these valuable benefits:
Call our information service Monday through
l
Friday, 7 a.m. to 7 p.m. EST, year round.
Nationwide Authorized Independent Service Centers
l
l
parts and labor for one year, picture tube for two years.
see page 79. A separate warranty for Canada is enclosed with all
televisions sold in Canada.
automatically and accurately tunes
With the push of a button, your TV
For details, see page 7.
-
including
S
VIDEO
for VCR,
including S-video for video
(Hi
Fi)
to retain
Audio Output jack to
Audio Output jack
to connect
for private listening
is as easy as entering
Operation
all
In-home service of
