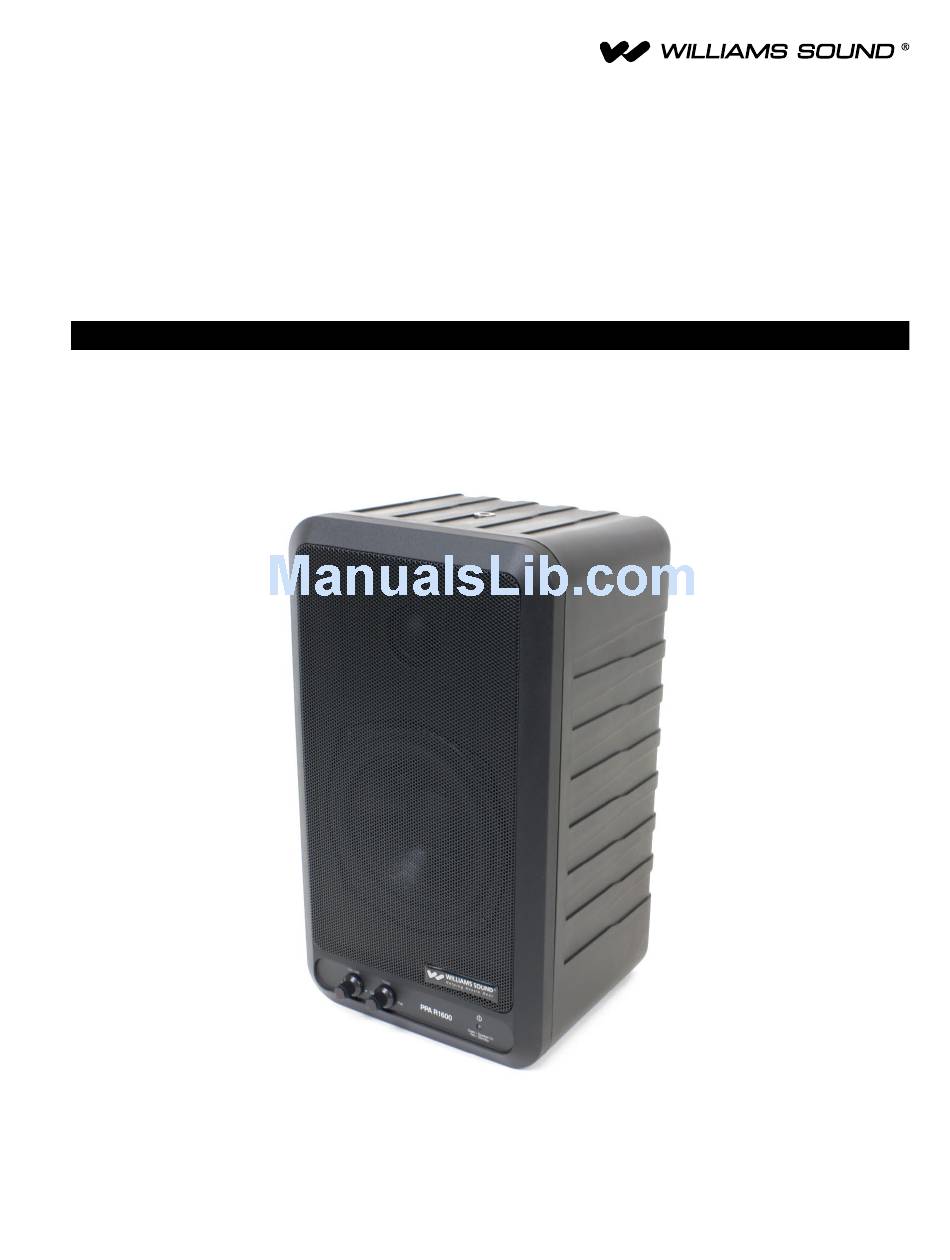

- Page 1 Model PPA R1600 FM Remote Speaker Manual and User Guide MAN 135G...
-
Page 2: Table Of Contents
System Overview Thank you for purchasing the PPA R1600 remote speaker from Williams Sound. The PPA R1600 FM remote speaker is designed for use with Williams Sound PERSONAL PA™ (PPA) Wide-band FM Transmitters, 72-76 MHz. With the R1600, small groups of people can listen to the FM broadcast in a cry room, nursery, office area, or any location where a remote speaker is needed and wiring is difficult to run. -
Page 3: Cautions And Safety Instructions
PPA R1600 FM Remote Speaker Cautions and Safety Instructions CAUTION! CAUTION AVIS RISK OF ELECTRICAL SHOCK — DO NOT OPEN RIQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR ATTENTION: POUR RÉDUIRE LE RISQUE DE DÉCHARGE ÉLECTRIQUE, NE CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO RETIREZ PAS LE COUVERCLE (OU CÔTÉS). - Page 4 PPA R1600 FM Remote Speaker 1. Accessories - To avoid personal injury: • Do not place this speaker on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury and serious damage to the speaker. • Use only with a cart, stand, tripod, bracket or table recommended for this purpose or included by the manufacturer. When using the included bracket, follow the manufacturer's instructions for mounting the speaker.
-
Page 5: Features And Controls
4. CHAN A slot - 72-76 MHz wireless FM receiver sled, model SLD 072. Use with an FM transmitter operating on 72-76 MHz. Williams Sound compatible transmitter models: T35, T27 or T36. a. ON/OFF/AUDIO LEVEL control - this knob turns the receiver power ON or OFF. Turn knob clockwise to increase audio input level;... - Page 6 PPA R1600 FM Remote Speaker Figure. 1: PPA R1600 Front and Rear View MAN 135G...
-
Page 7: Using The R1600 Remote Speaker
Option 1: SLD 072 FM Receiver Sled (Channel A) Receiver will pick up a wireless FM signal operating on 72-76 MHz. Compatible with Williams Sound transmitter models T35, T27 and T36. Turn on Power Turn the rotary AUDIO LEVEL CONTROL (see Figure 2) clockwise to turn the SLD 072 FM receiver ON (you will hear a ‘click’... - Page 8 PPA R1600 FM Remote Speaker Select a Frequency: Figure 3: Frequency Selection Chart The R1600 has 16 pre-tuned channels available in the 72–76 MHz bandwidth. Most R1600’s ship from the factory set to switch position 1, or 72.1 MHz (channel A). To change Freq.
-
Page 9: Mounting The R1600 Fm Remote Speaker
Recycling Instructions Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling Instructions: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center;... -
Page 10: Specifications
PPA R1600 FM Remote Speaker PPA R1600 Specifications Dimensions: 12.4”H x 7.1”W x 7.5”D (315mm x 180mm x 190mm) Color: Black with white legends Weight: 9.4lb (4.3kg) approx. with SLD 072 receiver Rated Power: 20 watts continuous Frequency Response: 65Hz – 7kHz... -
Page 11: Limited Warranty
Williams Sound warrants the PPA R1600 against defects in materials and workmanship for TWO (2) years. During the first two years from the purchase date, we will promptly repair or replace the PPA R1600. Microphones, earphones, headphones, batteries, cables, antennas, carry cases, and all other accessory products carry a 90-day warranty. - Page 12 PPA R1600 FM Remote Speaker 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2012 Williams Sound • All Rights Reserved MAN 135G...
