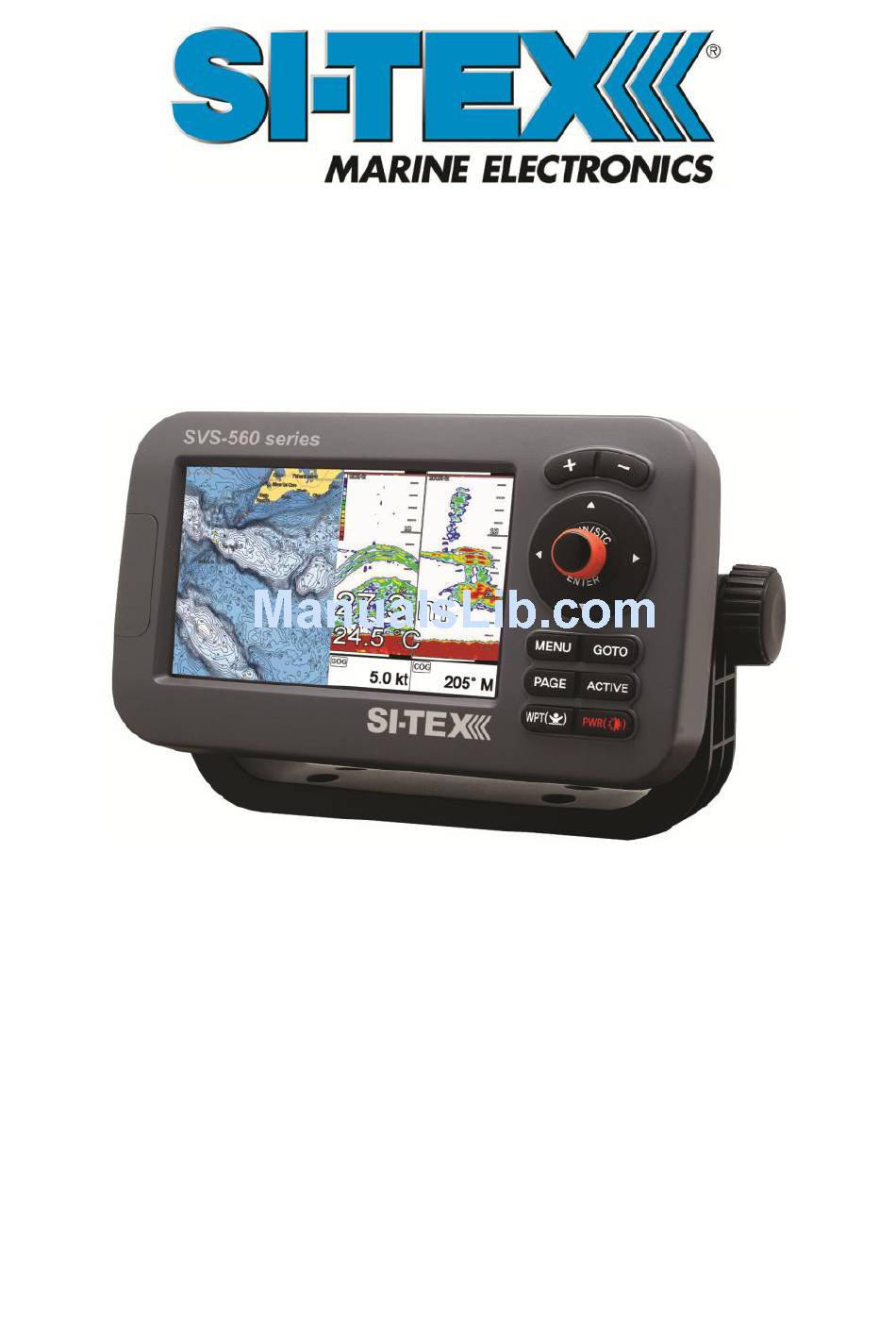

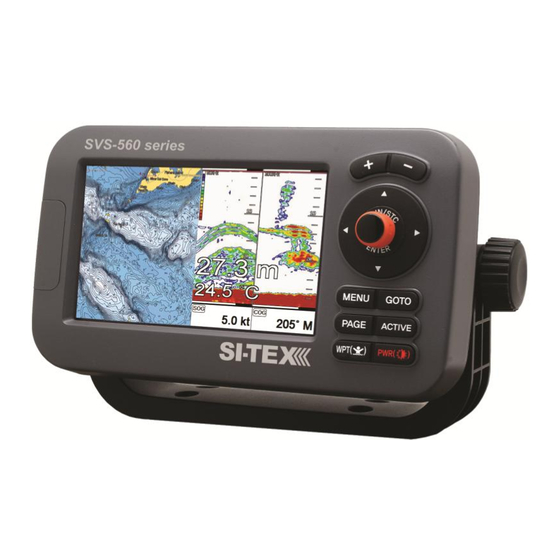

SVS-560CF
OPERATIONS MANUAL
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for Si-tex SVS-560CF

Summary of Contents for Si-tex SVS-560CF

  • Page 1 SVS-560CF OPERATIONS MANUAL - 1 -...
  • Page 2 This manual uses the following symbols for easy understanding safety instructions. Always follow these instructions carefully. Always follow this safety instruction to prevent death or WARNING injury. Follow this safety instruction to avoid possible injury or damage to your property. CAUTION Symbol “△”...
  • Page 3 WARNING <For System Operators> Always follow this instruction to prevent death or personal injury. Turn power If smoke or a small of burning occurs, a fire or an electrical short circuit may result. Turn the power switch OFF and shut down the power supply immediately. Never try to During repair the system yourself.
  • Page 4 Installation Cautions <For service Personnel> Follow installation instructions to avoid personal injury and system malfunction. Mount your SVS-560/460 on a rigid frame or base to prevent your unit Installation in rigid location. from working loose. Use the installation materials provided in the standard accessory pack Use correct Installation only.

  • Page 5: Maintenance Cautions

    Maintenance Cautions<For Maintenance Personnel> Use the following safety precaution internal inspection. Discharge High voltage may be retained in the capacitors if the high-tension circuit several minutes after you have turned the power switch off. capacitors. To prevent an electrical injury due to erroneous power switching, make Check that sure that the main power supply and the system power switch are both in the off position.
  • Page 6 Operation Notes <For operators> Observe the following operation notes, otherwise the system failure or deterioration can result. And periodical inspection and maintenance are required for keeping the system in an optimum condition. The waypoint and other registered data may become Backup important unreadable by unexpected failure.
  • Page 7 15 minutes. Contact a physician if any abnormal symptom is experienced. INDICATION NOTICE *: It is important or warning notice on front of article #: It is only functions for the SVS-560CF/SVS-460CF on front of article. [ ]: Keyboard. - 7 -...

  • Page 8: Display Unit Installation

    SVS-560/460 series Introduction Fix Text Below, so that Words Do Not Separated Strangely at End of each Line. For centuries, sailors have been searching for a reliable and precise method of travelling the world’s waterways. From celestial navigating to the modern navigation techniques as Loran, Decca navigator, Omega or Transit Satnav, each system has had its problems with weather, range and reliability.
  • Page 9 bolts through the mounting surface. Place large flat washers on the opposite side of the mounting surface from the bracket and then install lock washers and nuts. Tighten securely. Install the display unit into the mounting bracket. Check alignment and operation of the pivots and security of the mounting.
  • Page 10 SVS-560/460 series Introduction HOW GPS WORKS Currently, the GPS constellation consists of 26 orbiting satellites (including 3 spares), but this number will increase in the future. The GPS receiver computes an accurate position by calculating the distance to the GPS satellites that orbit the earth.
  • Page 11 SVS-560/460 series Introduction [The GPS position calculation] As illustrated in the previous figure, the position is calculated as the meeting point of three spheres, which are drawn around the three satellites with diameters d1, d2 and d3. Position Fixing Accuracy: HDOP The GPS fix accuracy is due to the locations of 3 satellites in the sky.

  • Page 12: Installation Of Gps Antena

    Installation of GPS ANTENA The installation of the GPS ANTENNA. The GPS ANT must be installed at the highest area of the boat and the easiest place to receive the signal from the satellites. If there are obstacles around the GPS ANT, it isn't able to receive all signals. The receiving time could be longer or the receiving power would be weaker.
  • Page 13 SVS-560/460 series Introduction #Fishfinder - How it works- The SVS-560/460CF echo sounder consists of a transceiver display unit and a dual frequency transducer. An electronic signal pulse is generated in the transmitter section of the display unit. When coupled to the transducer, this signal is converted into an ultrasonic signal and is transmitted toward the bottom.

  • Page 14: Installation Of The Transducer

    Installation of the Transducer A careful installation will assure maximum performance from your new SVS-560/460 series. Display Unit Location Select a location for your Display unit that provides easy viewing from all likely operator’s positions. The display unit is designed to be mounted on either a console or from an overhead surface. The Display unit is also designed for flush mounting using six threaded holes on the rear panel.
  • Page 15 Installation of the Transducer Drill a 1/4 in. diameter hole at each marked location. Mount the Display unit bracket using bolts through the mounting surface. Place large flat washers on the opposite side of the mounting surface from the bracket and then install lock washers and nuts. Tighten securely. Install the display unit into the mounting bracket.
  • Page 16 SVS-560/460 Transducer Options Model # Beam Angles Type Hole Size 45º @ 50kHz Plastic transom mount w/ 250/50/200ST-CX 11º @ 200kHz depth, spd, temp. 45º @ 50kHz Bronze thru hull depth & 1700/50/200T-CX 7/8" 11º @ 200kHz temp. 45º @ 50kHz Bronze thru hull depth, 500/50/200ST-CX 2"...
  • Page 17 Secure the cable in place using Nylon Wire Ties. Coil the extra cable and tie it out of the way. 4th) If transducer cable is not long enough, 15 & 30 foot extension cables are available from SI-TEX When you attach the extension cable, be sure that the connections are tight and watertight. Use Dow Corning DC-4 or an equivalent sealing compound to protect the connector assemblies.
  • Page 18 Installation of the Transducer Installing the Power Cable- ) The 6-foot power cable supplied with the display unit should reach the source of DC power. Connect the power leads directly to the main battery isolation switch or breaker, or route the power leads to the DC power distribution panel.
  • Page 19 Installation of the Transducer Installing a Thru-Hull Transducer Follow these instructions if you are installing the thru-hull transducer. ) Once you have decided where to install the transducer, drill the hole for the part. Begin by drilling a small pilot hole (1/8" or 3mm) from the inside of the hull. (This small hole can be filled easily if the mounting location is not suitable.) Before you drill the hole, be sure you will be able to reach the large nut on the top of the transducer, once it has been mounted.
  • Page 20 Installation of the Transducer Installing a Thru-Hull Transducer ) Go to the inside of the hull and slide the hex nut over the end of the cable. Fit the hex nut over the end of the transducer and tighten it. (On a vessel with a wooden hull, do not tighten the nut completely right away.
  • Page 21 Installation of the Transducer Positioning the Transom-Mount Transducer Follow these instruction if you are installing the transom-mount transducer. Begin by finding the best location for the mounting bracket. Here are the rules: If your boat has one propeller (outboard or inboard-outboard), mount the transducer about 18"(455mm) to the side of the centerline of the boat.
  • Page 22 Installation of the Transducer Mounting the Transom-Mount Transducer Follow these instructions if you are installing the transom-mount transducer. ). On a boat with a fiberglass hull, the leading edge of the transducer should extend 1/8""(3.2mm) to 1/4""(6mm) below the bottom edge of the hull. See picture 1-3. On an aluminum hull, the transducer should extend a bit more - 1/4"(6mm) to 3/8"(9mm).
  • Page 23 Installation of the Transducer ) Tilt the transducer in the brackets until it is positioned as illustrated in Picture 1-3 ) Once the bracket is in the correct position, you can tighten the screws. - 23 -...

  • Page 24: Getting Started

    Getting Started 1. The Keyboard 1.1. Model:SVS-560C/SVS-460C Description use this to select menu items, move the on-screen cursor Rotary: use this to select menu items Button: push the end of the everything to confirm a selection or entry Change the chart of scale Open the menu Select the Goto function Select the configuration &...
  • Page 25 1.2 Model: SVS-560CF/SVS-460CF Description use this to select menu items, move the on-screen cursor and Choosing the frequency Rotary: use this to select menu items and Adjustment of gain & STC level with turning. Button: push the end of the everything to confirm a selection or entry...
  • Page 26 Keep pressing to switch off. 1.3.3. Adjust brightness Pressing (Fig.1.1) and controlling the brightness with [◀] [▶]. 1.3.4. Use day/night mode Pressing (Fig.1.1) and changing the day and night with [▲][▼]. - 26 -...

  • Page 27: Specification Of The Connectors

    2. Specification of the connectors - 27 -...

  • Page 28: Screen Overview

    3. Screen Overview 3.1. Chartplotter page ① ② ③ ⑤ ⑥ ⑦ ④ ① Vessel icon The present position. ② Cursor Showing the cursor icon. ③ AIS target Showing the received AIS target. ④ Databar Showing various data on the top or bottom. ⑤...
  • Page 29 3.2. Fishfinder page ① ② ③ ④ ⑤ ⑥ ⑦ ① Palette Showing the chosen colors. ② Depth bar The current depth. ③ Low Frequency Showing 50KHz. ④ High Frequency Showing 200KHz. ⑤ LF INFO The information of Low Frequency, 50KHz. ⑥...
  • Page 30 3.3. Navigation Data page 3.3.1. Navigation Data Type1 3.3.2. Navigation Data Type2 - 30 -...
  • Page 31 3.4. Highway page ⑥ ① ② ③ ④ ⑤ ① WPT name The current WPT name. ② Direction of steer The best direction of the steering. ③ WPT icon The remaining distance of the WPT. ④ Vessel The out of the range from the best. ⑤...
  • Page 32 3.5. Steering page ④ ① ② ③ ① WPT name Name of the WPT. ② Direction of steer The best direction of the steering. ③ WPT icon Showing the WPT and the bearing ④ Navigation Data Information of the various data. - 32 -...
  • Page 33 3.6. GPS Status page ④ ① ② ③ ① Receiver status The current GPS status. ② Position of SAT. Position of the satellites. ③ SNB Graph Showing the WPT and the bearing. ④ Navigation Data Information of the various data. * Colors of the GPS status Black: Tracked, but no signal...
  • Page 34 - 34 -...
  • Page 35 4. Databar Showing various data on the top or bottom. 4.1. Mode ▶[MENU]->Advance->Setup->Customizing->Databar->Mode Databar has three meanings as below. 4.1.1. Fix Mode 1 Showing the largest LAT/LOT. 4.1.2. Fix Mode 2 Showing the LAT/LOT, SOG, COG and userdata. 4.1.3. Customizing Showing various data as what the user wants.
  • Page 36 (Fig.1.2.2) When choosing the frame, setting up in each box as (Fig.1.2.3). (Fig.1.2.3) When finishing the set up, press to exit. (*Please, refer “Customizing” for further question.) 4.2. Display ▶[MENU]->Advance->Setup->Customizing->Databar->Display - 36 -...
  • Page 37 Setting the databar, “Shown/Hidden”. 4.3. Position ▶[MENU]->Advance->Setup->Customizing->Databar->Position Setting the databar position on the top or bottom. 5. Cursor 5.1. Calling the cursor Press [◀][▶][▼][▲] on the chart, the cursor comes out. 5.2. Moving Press [◀][▶][▼][▲], the cursor is moving to the direction. Press [◀][▼] together, the cursor is moving to “↙”.
  • Page 38 Cursor information window “Shown/Hidden”. 6. Page ▶ [PAGE] Choosing the various pages that set up pages or customized. Move the red box to choose the page. Selected (red color) (Fig.1.3) 6.1. Page mode ▶[MENU]->Advance->Setup->Customizing->Page mode Two ways to choose the page. 6.1.1.
  • Page 39 (Fig.1.3.1) Choosing the frame with [◀][▶]. Two frames as (Fig 1.3.2). (Fig.1.3.2) After choosing the box, choose the page as (Fig.1.3.3). (Fig.1.3.3) When finishing, press to exit. - 39 -...
  • Page 40 7. Active ▶[ACTIVE] When pressing [ACTIVE], the red box moves to to chartplotter or fishfinder. (*All key functions change to chartplotter or fishfinder) Selected (red color) - 40 -...
  • Page 41 8.Sidebar Databar on the right or left. (*Sidebar is available only in the full chartplotter and the full fishfinder) 8.1. Display ▶[MENU]->Advance->Setup->Customizing->Sidebar->Display Choosing the sidebar, “Shown/Hidden”. 8.2. Position ▶[MENU]->Advance->Setup->Customizing->Sidebar->Position Choosing the sidebar on the right or left. 8.3. Edit ▶[MENU]->Advance->Setup->Customizing->Sidebar->Edit After finishing all of them as (Fig.1.4), press to exit.

  • Page 42: Navigation Data

    (Fig.1.4) 9. Navigation Data Navigation data is available in Navigation data page, Steering page, Highway page as (Fig.1.5). (Fig.1.5) 9.1. Type ▶[MENU]->Advance->Setup->Customizing->Navigation data->Type Two types of Navigation data page. 9.1.1.Type1 Large LAT/LOT as (Fig.1.6.1). (*Editing the LAT/LOT is unavailable) 9.1.2. Type2 Various data as (Fig.1.6.2).
  • Page 43 (Fig.1.6.1) (Fig.1.6.2) 9.2. Edit (*If there is no navigation data on the page, editing the navigation data is unavailable) ▶[MENU]->Advance->Setup->Customizing->Navigation data->Edit After finishing as (Fig.1.6.3), press to exit. (*Please, refer “Customizing” for further question) (Fig.1.6.3) - 43 -...
  • Page 44 10.MOB If a person or missing an object overboard and you need to get present position, use the MOB function. 10.1. Inputing until the window comes out as [Fig.10.1] and then “MOB” comes out with Keep pressing alarm. 10.2. Exiting the alarm When alarming, press and you may exit the alarm.

  • Page 45: Save Userdata

    11. MircoSD Inserting the micro SD as (Fig.1.7). (Fig.1.7) 12. Save Userdata ▶[MENU]->Userdata->Save Userdata Userdata is stored in the external Micro SD. So if you want to save the userdata, a micro SD must be inserted in the slot. (*Userdata is in “..\HY\UserData\”) - 45 -...
  • Page 46 12.1. WPT WPT can be stored in a micro SD. When storing, give it a name and you will be able to store many WPT’ in the micro SD. 12.2. Route Route can be stored in a micro SD. When storing, give it a name and you will be able to store many routes in the micro SD. 12.3.
  • Page 47 13. Load Userdata ▶[MENU]->Userdata->Load Userdata Userdata loads from the stored micro SD. If you need to load the userdata, the stored micro SD must be inserted in the slot. (*Userdata is in “..\HY\UserData\”) 13.1. WPT WPT loads from the stored micro SD. All of WPT in the micro SD show on the list.
  • Page 48 All of route in the micro SD show on the list. Choose one of them and it will show. 13.3.Track 13.3.1. Type1 13.3.Track 13.3.1. Type1 Track loads from the stored micro SD. All of track in the micro SD show on the list. Choose one of them and it will show. 13.3.2.
  • Page 49 Chartplotter getting started 1. GOTO 1.1. Goto type1 1.1.1. Setting ▶[MENU]->Navigation->Goto type->type1 Setting GOTO with creating a route at the same time. Move the cursor to the position where you want to go and press [ENTER]. (*While navigating, WPT can be added in the route) 1.1.1.2.
  • Page 50 2. WPT 2.1. List ▶[MENU]->Userdata->WPT->List Editing, creating, erasing and navigating are available on the WPT list. ① ⑤ Selected(blue color) ⑥ ⑧ ⑦ ② ③ ④ ⑨ ① List Showing all of the stored WPT. ② Name Name of the WPT. ③...
  • Page 51 ▶[MENU]->WPT Symbol Selected(red color) Choose the symbol and press [ENTER]. The chosen symbol will show when inputting WPT. 2.3. Setting WPT Color ▶[MENU]->WPT Color Selected(red color) Choose the color and press [ENTER]. The chosen color will show when inputting WPT. 2.4.
  • Page 52 Adding WPT with pressing (*When adding, LAT/LOT show the present position and current symbol/color show for the WPT) 2.4.1. Inputting on the chart Call the cursor and move the position where you want, and press (*The current symbol/color show for the WPT) 2.5.
  • Page 53 2.6 Erasing all of WPT ▶[MENU]->Userdata->WPT->List->[PAGE] On the WPT list, press 2.7. Moving the WPT 1. Call the cursor and move it on the WPT, and press [ENTER]. 2. Choose “Move”. 3. Move the WPT to the position where you want to move, and press [ENTER]. 2.8.
  • Page 54 Call the cursor and move it on the WPT, and press [ENTER]. Choose “GOTO” to start. - 54 -...
  • Page 55 2.9. Sorting ▶[MENU]->Userdata->WPT->List->[MENU] Sorting the order of WPT on the list. - 55 -...
  • Page 56 2.10. Editing ▶[MENU]->Userdata->WPT->List Editing the WPT on the list. WPT Selected(Blue color) Edit Selected(green color) 1. Choose the WPT as the blue and press [ENTER]. 2. Choose the item as the green and you may begin to edit. 3. After finishing, press to exit.
  • Page 57 3. Route 3.1. List ▶[MENU]->Userdata->Route->List ④ ⑤ ① ⑥ ⑦ ⑧ ③ ② ① List Showing the stored WPT ② Name Name of the route ③ Number of WPT Number of WPT in the route ④ Total distance Total distance of the route ⑤...
  • Page 58 3.2. Route detail ▶[MENU]->Userdata->Route->List->[PAGE] ⑤ ① ⑥ ⑦ ⑧ ⑨ ③ ② ④ ① List Showing the stored WPT ② Name Name of the WPT ③ Symbol Symbol of the WPT ④ Color Color of the WPT ⑤ Latitude/Longitude LAT/LOT of the WPT ⑥...
  • Page 59 3.3. Creating Two ways to create route The first uses “GOTO type1” and the second is “Creating new route” on the list. 3.3.1. Using “GOTO” Use “GOTO type1” and create a route. Press [ENTER] to start. to exit and choose “Store” if needed. Press 3.3.2.
  • Page 60 3.4. Edit ▶MENU->Userdata->Route->List Choose the route on the list to edit. 3.5. Detail edit ▶[MENU]->Userdata->Route->List->[PAGE] Choose the route on the list and press . The window of Route detail shows. 3.5.1. Adding WPT Two ways to add WPT 3.5.1.1. Adding the stored WPT ▶[MENU]->Userdata->Route->List->[PAGE]->[MENU] (Fig.2.1) - 60 -...
  • Page 61 Press on the Route detail and you may add the stored WPT as (Fig.2.1). 3.5.2.1. Adding new WPT Press on Rout detail and you may add new WPT. 3.5.3. Erasing WPT Choose the WPT and press 3.6. Navigating ▶[MENU]->Userdata->Route->List->[GOTO] Choose the route on Route list and press 3.4.
  • Page 62 4.2.4. Setting the distance interval ▶[MENU]->Userdata->Track->Track Setup->DIST Interval Setting the distance interval. 4.3. Setting the thickness ▶[MENU]->Userdata->Track->Track Setup->Thickness Setting the track thickness. 4.4. Track Color ▶[MENU]->Track Color Selected(red color) Choose the color and press [ENTER]. (* The number next the color shows the number point of the track color) 4.5.
  • Page 63 Choose the color and press [ENTER]. (*The number next the color shows the number point of the track color.) 4.5.1.2. Erasing all of track ▶[MENU]->Userdata->Track->Erase Press 4.5.2. Type2 ▶[MENU]->Userdata->Track->Track Setup->Type2 4.5.2.1. Select index ▶[MENU]->Userdata->Track->Select Index Five rooms in the index. The maximum is 10,000 points in each room. In Type2, storing, loading and erasing are available to manage in the room.
  • Page 64 ② Number of Point Total track point in the track room ③ Date&Time Date and time of the track room when stored ④ Color Color of the track room ⑤ On/Off Shown the track On/OFF. ⑥ Display Show/Hidden the track room ⑦...
  • Page 65 5. Measuring the distance and bearing Measuring two points, “A” and “B”. 1. Call the cursor and move it on the point, “A”. 2. Move the cursor on the point, “B”. 3. The cursor windows provides the distance and bearing between A and B. 4.

  • Page 66: Start Point

    Start point 7. User Name Adding a place name directly on the chart. 1. Call the cursor and move it to the point. 2. Press [ENTER] and choose “User Name”. 4. Inputting letters with [◀][▶][▼][▲]. 5. Press to exit. 8. Correction Offset When the chart position is wrong, making it correct.
  • Page 67 (* The maximum range of Correction Offset is 5nm.) - 67 -...

  • Page 68: Map Orientation

    Chartplotter operation 1. Map Orientation ▶[MENU]->Advance->Map Setup->Map Orientation 1.1. True Motion ▶[MENU]->Advance->Map Setup->Map Orientation->True motion The True Motion is in the way the vessel position is presented. In True Motion mode, the vessel icon moves over the map while the map remains stationary. (* It is not available to operate on Course up and Head up.) 1.2.

  • Page 69: Map Setup

    2. Map setup ▶[MENU]->Advance->Map Setup 2.1. Map orientation 2.1.1. True motion You can select “True motion” (☞ The default setting is OFF.) 2.1.2. Up mode You can select “Map Orientation” (☞ The default setting is North Up.) 2.2. UserData Display Setting up shown/hide the user data on the display.
  • Page 70 (*It is available NOAA menu on C-MAP.) 2.6. LAT. Modification Though GPS information is accurate, there could be an error in the chart at latitude. The error can be modified in the chart latitude modification. 2.7. LOT. Modification Though GPS information is accurate, there could be an error in the chart at longitude. The error can be modified in the chart longitude modification.
  • Page 71 (*MAX Magnification [ ON = 0.05nm, OFF = 0.2nm]) 2.9-1.8. Zoom mode Choosing how to zoom-in/out. (☞ The default setting is Turbo.) 2.9-2. C-Map (*Only for *C-MAP mode.) 2. 9-2.1. SAT.Image Setting up the overlay Satellite Image on the C-MAP. (☞...
  • Page 72 Sets ON/OFF the displaying of the chart boundaries, which represents the boundaries of the charts available on the chartplotter. Selecting Auto instead, if we are in background charts only the first chart levels contained in the C-CARD are displayed, if we are in a charts level contained in the C-CARD the next four charts level are displayed.
  • Page 73 (☞ The default setting is Cross.) 5. Alarm 5.1. Navigation 5.1. 1. Arrival Alarm: When you approach into the waypoint range, it gives you a notice with alarm. (☞ The default setting is OFF.) 5.1.2. Arrival Radius: It is to adjust the range of arrival from your waypoint. If you have a route, it changes to the next waypoint automatically.
  • Page 74 The time is available from one minute until sixty minutes. (☞ The default setting is 3 min.) 5.4 User Line 5.4.1. User Line Alarm It alarms if it breaks into the setting area. (☞ The default setting is OFF.) 5.4.2. User Line Radius It sets the range of the course alarm.
  • Page 75 - 75 -...

  • Page 76: What Is Ais

    AIS getting started 1. What is AIS? AIS is an Automatic Identification System. It has been introduced to improve the safety of navigation by assisting in the efficient operation of ship to ship, ship reporting and VTS applications. The system should enable operators to obtain information from the ship automatically, requiring a minimum of involvement of ship’s personnel, and should have a high level of availability.
  • Page 77 Dangerous Target detected by CPA or TCPA Alarm. Dangerous target is Active Target by Target definition. For better visibility Dangerous Target symbol is charged from basic color to red color. Sleeping Target located outside the Activation Range. Sleeping target is represented by a small oriented triangle.

  • Page 78: Quick Info On Ais Target

    4. Quick INFO on AIS target Choose “AIS information window” on (Fig.3.1) and AIS data shows under the AIS target. (*Up to four kinds of data is available to choose in Quick INFO) - 78 -...

  • Page 79: Ais Operation

    AIS operation ▶[MENU]->AIS 1. AIS On/Off Turns the display of AIS targets overlay on the screen On or Off. (☞ The default setting is On.) 2. List Selected(blue color) 2.1. List ① ② ③ ④ (Fig.3.2) ① Name Name of the AIS target ②...
  • Page 80 - 80 -...
  • Page 81 2.2. Detail Choose the AIS target and press [ENTER]. 2.3. Goto Choose the AIS target and press - 81 -...
  • Page 82 - 82 -...

  • Page 83: Display Radius

    2.4. Sort Press to choose how to sort on (Fig.3.2). 3. Display radius Displays range rings centered on your current position. (☞ The default setting is OFF.) 4. AIS target size Choose the size of AIS tartget. (☞ The default setting is Large.) 5.
  • Page 84 display. 6. Display vessels by Type Different types of AIS transmissions can be selected to display different types of icons on the chart display. 7. Filter AIS types This function allows you to turn on or off reception from different types of AIS transmissions, for instance if you only wanted to view Class B vessels on the chart display then select Class B On and all the others Off.
  • Page 85 If you want the alarms to ignore vessels that are travelling at less than a particular speed then switch 8.8. Speed less than The values allowed are from 0.1kt to 9.9kt. 9. Set up AIS outs etc 9.1. Mark vessels as lost after Setting the time of “Lost target”.
  • Page 86 viewing. If the “Status” shows “Test” then no further action is required as it is just a test transmission. If the “ Status” shows “Active” it will also show the MMSI, Name and position, the SART icon should now be displayed on your chart screen at that location. Monitor your VHF radio on Channel 16 and establish whether any other station has received this SART message, if not take the appropriate action.
  • Page 87 - 87 -...
  • Page 88 #Fishfinder getting started 1. Choosing the frequency In dual frequency mode, choosing the frequency with [▲][▼]. (*The chosen frequency shows in red) Selected 2. Auto/Manual Gain Press [ENTER] to choose” AUTO/Manual” of Gain. 3. Gain/STC Choose “Gain” and “STC” with [◀][▶]. 4.

  • Page 89: Controlling Stc

    3. Twisting the rotary key to control the gain. 5. Controlling STC 1. Choose the frequency. 2. Choose the STC. 3. Twisting the rotary key to control the STC. 6. Mode ▶[MENU]->Mode Three kinds in Fishfinder. 6.1. Normal Normal mode (with Auto Range active) displays the sounder image with the surface at the top of the screen and the sea bottom in the lower part of the screen.
  • Page 90 Bottom Zoom magnifies the sounder display from the sea bottom toward the surface for a short distance. The sea bottom contour is displayed and additional contour lines are added at intervals above the sea bottom to aid in determining distances of echoes near the bottom. Use the Sounder Menu to set the magnified Bottom Range from 2.5 to 20m (10 to 60ft.).
  • Page 91 Fishfinder modes are selectable for single frequency or dual and some functions, for example bottom zoom or lock. 7. VRM ▶ [WPT] The VRM (movable marker) shown by the green line can be moved up and down. It is convenient to measure the depth by aligning with the target such as school of fish. - 91 -...
  • Page 92 [Fig.2.1] #Fishfinder operation 1.Menu ▶ [MENU] 1.1. Userdata It is same as Chartplotter. PLS refer the Chartplotter operation manual. 1.2. Deep Depth Range Smart4/5 selects the best condition for measuring the depth automatically in the environment of the sea. (☞ The default setting is Auto.) 1.3.

  • Page 93: Advanced Menu

    Fish finder modes are selectable for single frequency or dual and some functions. 1.5. Bottom Zoom Range Select the range of the bottom zoom or lock. It is necessary to modify the bottom. (☞ The default setting is 10m.) 1.6. Fish symbol Fish symbol with sizes and levels show for targets.
  • Page 94 It is necessary to research a detailed fish on the bottom or a seaweed under the sea. The color of the bottom changes into white or black to see the bottom easier than red. (☞ The default setting is OFF.) 2.1.4.Depth Shown/Hidden the depth range on the screen.
  • Page 95 Select the pulse of the output from the transducer. Levels are among Low, Medium and High, which depends upon the depth. Low is proper to research precise a fish school but it is not suitable to measure a deep depth. High is opposite from Low. (☞...
  • Page 96 (☞ The default setting is OFF.) 2.5.2.4. Low range It alarms when the set low temperature is out of the range. (☞ The default setting is 0.) 2.5.3. Fish-School 2.5.3.1. Alarm It alrams when it detects school of fish. It will detect school of fish depend on set depth, range and level of the fishfinder. (☞...
  • Page 97 - 97 -...
  • Page 98 - 98 -...

  • Page 99: General Operation

    General operation 1.GPS It is available to control and confirm information in GPS receiver. 1.1. Coordinate System It sets coordinate system of GPS or Loran. (☞The default setting is GPS.) 1.2. Datum It shows GPS Datum. WGS-84, which is the worldwide standard is only available. (☞...
  • Page 100 Step 1(OFF)~119(MAX) the SOG Filter. When it is On(over step 1), you can filter the SOG of the vessel, to optimize it. (☞ The default setting is incorrect every the country.) 1.8. LAT/LON Unit It is to select the number of the unit for Lat/Lon. (☞...
  • Page 101 There is a difference degree where you are in the earth. This function is to modify the error from true and Magnetic. (☞ The default setting is Auto.) 2.2.2. Variation There could be a difference between the magnetic compass and the GPS compass. An error depends upon your area.
  • Page 102 The chartplotter allows customizing the NMEA-0183 sentence. - 102 -...
  • Page 103 DESCRIPTIONS CONTENTS OF DATA FIELD DEFAULT $GPGGA Global Positioning System Fix Data $GPVTG Course and Ground Speed $GPZDA Time and Date $GPRMB Recommended minimum navigation information $GPRMC Recommended Minimum Specific GPS/TRANSIT DATA $GPAPB Heading/track controller (Autopilot) sentence B $GPXTE Cross-track error, measured $GPBOD Bearing, origin to destination $GPBWC...
  • Page 104 2.4.5.1.3. Edit It customizes the data bar information. 2.4.5.1.4 Mode It is available to set up the data bar. - Customizing : It is selectable and modifiable the data bar by user. - Fix mode : It is fixed data bar by default. It is not available selectable and modifiable the data bar by user.

  • Page 105: Maintenance

    (☞ The default setting is shown.) 2.4.5.5.3 Position Setup Choose the position of Information window. (☞ The default setting is Auto.) 2.4.5.6. Userdata 2.4.5.6.1. WPT 16 kinds of symbol and color. Choose the symbols and the colors. 2.4.5.6.1.1. Symbol Setup In 16 kinds of the symbols, you can choose as many as you want, and those will show on the WPT symbol window.
  • Page 106 It contains the version of the chart, the datum and the number, which is necessary for maintenance and upgrade 3.4. Simulator It is necessary for an indoor demonstration. The simulations of GPS, Fish finder or AIS in the memory.. 3.5. Language Select the language.
  • Page 107 - 107 -...

  • Page 108: General Specification

    SVS-560C General specification 1. Display Screen: 5inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 480 pixels) 3. Power Supply: DC 12V~36V(+-10%) 5W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112(73) 6. Option: MicroSD, External GPS Antenna GPS Receiver specification 1.
  • Page 109 Standard Equipment Configuration List Display unit External GPS ANT(option) Manual Protector Mounting Bracket Knobs Fuse & Bolt Power cable Dimension - 109 -...
  • Page 110 SVS-560CF General specification 1. Display Screen: 5inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 480 pixels) 3. Power Supply: DC 12V~36V(+-10%) 7W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112(73) 6. Option: MicroSD, External GPS Antenna, Transducer GPS Receiving specification 1.
  • Page 111 3. Output Power: 300W/ 600W 4. Range speed: 300W : 2.5m ~ 300m / 600W : 2.5m ~ 600m 5. Image speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop 6. Rejection: Interferences rejection:3 levels, Noise rejection:4 levels 7.
  • Page 112 SVS-460C General specification 1. Display Screen: 4.3inch Color LCD with LED backlight 2. Resolution: WVAG (480 X 272 pixels) 3. Power Supply: DC 12V~36V(+-10%) 4W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112(73) 6. Option: MicroSD, External GPS Antenna GPS Receiver specification 1.
  • Page 113 Standard equipment configuration List Display unit External GPS ANT(option) Manual Protector Mounting Bracket Knobs Fuse & Bolt Power cable Dimension - 113 -...
  • Page 114 - 114 -...
  • Page 115 SVS-460CF General specification 1. Display Screen: 4.3inch Color LCD with LED backlight 2. Resolution: WVAG (480 X 272 pixels) 3. Power Supply: DC 12V~36V(+-10%) 6W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112(73) 6. Option: MicroSD, External GPS Antenna, Transducer GPS Receiver specification 1.
  • Page 116 2. Frequency: 50 and 200 KHz (single or dual) 3. Output Power: 300W/ 600W 4. Range speed: 300W : 2.5m ~ 300m / 600W : 2.5m ~ 600m 5. Image speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop 6.
  • Page 117 Customizing items LAT/LOT of the present position. (Red: out of GPS service/Black: GPS on service/Blue: SBAS or DGPS on service) (Speed Of Ground) Boat speed. (Course Of Ground) Boat direction. DATE Date of today. TIME Present time. HDOP Horizontal Dilution Of Precision. PDOP Position Dilution Of Precision.
  • Page 118 - 118 -...
  • Page 119 - 119 -...
  • Page 120 - 120 -...
  • Page 121 - 121 -...

  • Page 122: Certificate Of Limited Warranty

    Defects will be corrected during normal working hours by an authorized SI-TEX Marine Electronics Inc. dealer, service center, or at the SI-TEX office in Riverhead, NY. There will be no charge for labor for a period of one year from the date of purchase, except as provided below under Limited Warranty Exceptions.
  • Page 123 VHF radio are items excluded from the two-year warranty and are covered by warranty for a period of one year for both parts and labor. SI-TEX Marine Electronics Inc. will not, at any time, assume any costs or labor charges for checkout or external line fuse replacement or problems not found to be at fault in equipment itself.
  • Page 124 If you encounter problems during the installation or operation of this product, or cannot find the information you need, please contact SI-TEX Customer Service. The contact numbers and e-mail address for SI-TEX Customer Service are: SI-TEX Main Office…….………..+1-631-996-2690 SI-TEX Fax..………………….…..+1-631-996-2693 SI-TEX Service E-mail address: service@si-tex.com...
