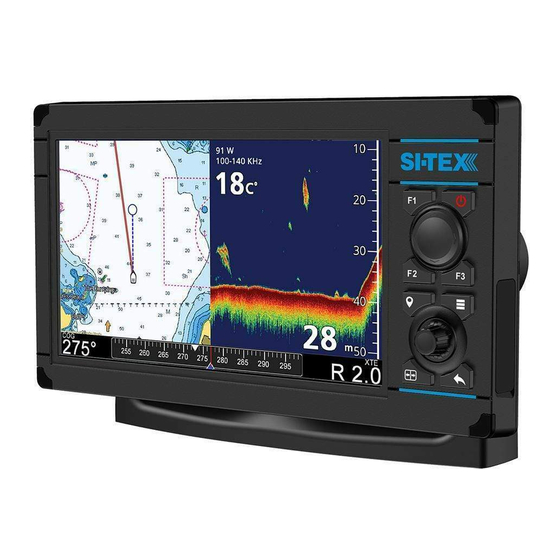

Si-tex NavPro 900 Series Quick Start Manual

Two versions available: NavPro 900C (GPS Chart MSRP $1199.00)
9" Hi-Res. Hybrid Touch Screen Display
•
Innovative new Yoke & Swivel mount
•
NMEA-0183 & NMEA2000 Interfacing
•
• WIFI Interface
• Automatic Software Updates when in WIFI Coverage
• Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints,
Marks, Events, and Track memories when in WIFI coverage.
Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based
•
smart phone and view and control the NavPro 900 from Smart Phone.
• Compatible with Navionics+, Navionics Platinum+, C-Map 4D Cartography
• Navionics+ – comes bundled with Navionics+ North America Chart Card in the box
• Optional dedicated Remote Control Available
Designed for easy flush mount without any special kit needed
•
New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version)
•
CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to
•
mark on Nav Chart.
• Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer
interconnect
Adapters available to allow the unit to be installed on older non-CHIRP transducers. Like 50/200 kHz Dual
•
Frequency transducers and 120kHz Single Freq. transducers. This allows the NavPro 900F to be used to retro
fit onto any of the older SI-TEX Transducers. For example, any of the transducers used by the very popular old
CVS-106 Sounders. 50/200 & 120kHz
• If customer doesn't have a need for CHIRP sounding he can use a traditional less expensive transducer option
• Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna
New User interface makes the unit very easy to operate and navigate with
•
Full AIS Integration when interfaced to an AIS Unit
•

SPECIFICATIONS:

LCD Display Size 9.0"
Display Brightness 1,100 NITS
Display Resolution 800x480
Touch Screen – Yes, Capacitive Multi-Touch
Keyboard Backlight – Yes
Operating Voltage 10 to 35 VDC
GPS Receiver – Built-In High Resolution 18Hz 72 Channel
GPS/GLONASS
External GPS – Yes, optional via 6 pin Connector
Network Connections – NMEA-2000 (Optional Cable Required)
Dual NMEA-0183 Input/Output Ports
WIFI Connection – Yes
Bluetooth Connection – Yes
IPX6 Waterproof Rating
Operating Temperature range -10'C to +60'C
Dimensions – 10.9" Wide x 6.8" High x 3.7" Deep
2 Year Warranty
New SI-TEX NavPro 900 Series Features
NavPro 900F (GPS/Chart/Sounder MSRP $1399.00)

INCLUDE IN THE PACKAGE:

NavPro 900 Display Unit
Navionics+ North America Chart Card
Mounting Bracket
Mounting Screws
Combination Power Data Cord
Sun Cover
Installation & Operation manual
