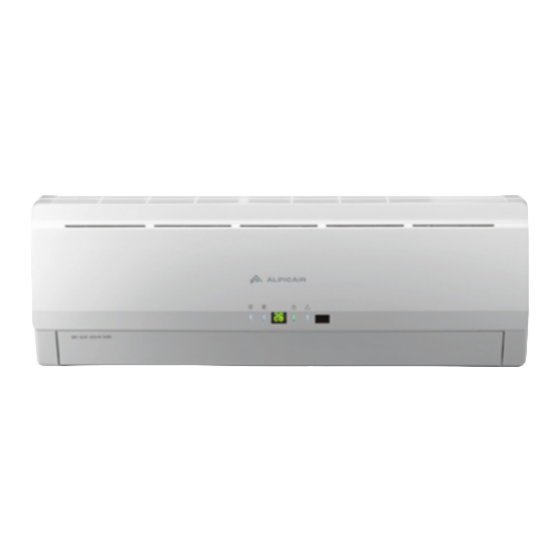

AlpicAir AWI-20HW1D Owner's Manual

Fan coil unit wall mounted type

Hide thumbs

Table Of Contents

Thank you for choosing Commercial or Household Air Conditioners.

Please read this owner's manual carefully before operation and retain it for future

reference.

Fan Coil Unit Wall Mounted Type

Owner's Manual(Original instructions)

Commercial or Household Air Conditioners

Model:

AWI-20HW1D

AWI-25HW1D

AWI-36HW1D

AWI-42HW1D

Table of Contents

Need help?

Do you have a question about the AWI-20HW1D and is the answer not in the manual?

Questions and answers

Summary of Contents for AlpicAir AWI-20HW1D

Page 1 Fan Coil Unit Wall Mounted Type Owner's Manual(Original instructions) Commercial or Household Air Conditioners Model: AWI-20HW1D AWI-25HW1D AWI-36HW1D AWI-42HW1D Thank you for choosing Commercial or Household Air Conditioners. Please read this owner’s manual carefully before operation and retain it for future...
Page 3 User Notice This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial or household use by lay persons. Installing the unit in the following places may cause malfunction. If it is unavoidable,please consult the local dealer: The place with strong heat sources,vapors, flammable or explosive gas,or volatile objects ①...
Page 4: Table Of Contents
Contents 1. Notices for operation ................1 2. Name and function of each part ............3 3. Operation Range ................3 4. Additional function ................4 5. Care and Cleaning................4 6. Troubleshooting ................5 7. Notices for installation ..............7 8. Installation dimension diagram ............9 9. Install the unit .................10 10.
Page 5: Notices For Operation
Fan Coil Unit Wall Mounted Type 1. Notices for operation ★ When the voltage is very ★ Be sure to pull out the ★ Never splice the power high, the components would be power plug as the FCU not in cord or use an extended cord.
Page 6 Fan Coil Unit Wall Mounted Type ★ Please don't cut off or damage the power ★ To adjust the airflow direction appropriately. cords and control cords. If they are damaged, When operating the unit, to adjust the vertical and please ask the qualified personnel to change lateral airflow direction by use of remote controller.
Page 7: Name And Function Of Each Part
Fan Coil Unit Wall Mounted Type 2. Name and function of each part Fig. 1 3.Operation Range (1) The operation pressure of the unit is no more than 1.6MPa. The entering water temperature for cooling shall be not lower than 5°C, otherwise condensate would be caused on the unit. The entering water temperature for heating shall be not more than 70°C (normally 50°C), otherwise the FCU would be damaged.
Page 8: Additional Function
Fan Coil Unit Wall Mounted Type 4. Additional function 4.1 Anti-cool-wind function In order to ensure comfort of the users, under circumstances such as the heat mode just starts or the unit runs heat mode under low water temperature, the fan will stop running to prevent the chilled wind blowing out.
Page 9: Troubleshooting
Fan Coil Unit Wall Mounted Type ● Clean the air filter To clean the dust adhering to the filters, you can either use a vacuum cleaner, or wash them with warm water the water with the neutral detergent (below 45℃ ) , and dry it in the shade. Note: Never use water above 45 to clean, or it can cause deformation or discoloration.
Page 10 Fan Coil Unit Wall Mounted Type ● This is the sound of friction caused by Cracking noise: expansion and/or contraction of panel or other parts due to the change of temperature. ● Is the power cut off? The unit can not be started up: ●...
Page 11: Notices For Installation
Fan Coil Unit Wall Mounted Type ● Check if the room temperature sensor is F0:Malfunction of the ambient temperature sensor connected properly ● Check if the evaporator temperature is F1:Malfunction of evaporator temperature connected properly. sensor If any one of the following situations occurs, immediately stop all operations,cut off the power supply, and contact the authorized personnel.
Page 12 Fan Coil Unit Wall Mounted Type the unit. (5) Be sure to leave enough space to allow access for routine maintenance. The installation site should be 250cm or more above the floor. (6) Select a place about 1m or more away from TV set or any other electric appliance. (7) Select a place where the filter can be easily taken out.
Page 13: Installation Dimension Diagram
Fan Coil Unit Wall Mounted Type 8. Installation dimension diagram structures. 50cm Fig.6...
Page 14: Install The Unit
Fan Coil Unit Wall Mounted Type 9. Install the unit 9.1 Install the rear panel (1) Always mount the rear panel horizontally. Due to the water tray of the unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is to take the outlet of the water tray...
Page 15: Install The Connection Pipe
Fan Coil Unit Wall Mounted Type 9.4 The piping can be lead out from left, left rear. (1) When routing the piping and wiring from Inlet water side pipe the left side of the unit, cut off the tailings from the Outlet water side chassis in necessary(Show in Fig.10) 1) Cut off the tailings 1 when routing the...
Page 16: External Water Pipe Connection Sketch
Fan Coil Unit Wall Mounted Type 11. External water pipe connection sketch 11.1 Pipe connection sketch Fan coil (Rear view) Two-Way Valve Provided by contractor / installer Water flow Water outlet (Diameter=12mm) Water inlet (Diameter=12mm) Connection pipe (Provided by contractor / installer) Connection nut Provided by factory Spring washer...
Page 17: Check After Installation And Test Operation
Fan Coil Unit Wall Mounted Type 11.3 The way of operating vent valve When necessary to operating the vent valve, the steps should operate as follow: Window 1.Screw out the self- mounted screw. 2.Remove the window cautiously. Fig.16 Fig.17 Valve pistion 4.Run the FCU After running,fit in the parts as follow.
Page 18 Fan Coil Unit Wall Mounted Type 12.1 Test Operation(wireless remoter controller) 12.1 .1 Before test operation (1) Do not switch on power before installation is finished completely. (2) Electric wiring must be connected correctly and securely. (3) All the impurities such as scraps and thrums must be cleared from the unit. 12.1 .2 Test method (1) Switch on power, pressing "ON/OFF"...

This manual is also suitable for:

Awi-25hw1d Awi-36hw1d Awi-42hw1d
