Economix Zlin Z-526 AFS Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Enlarged version

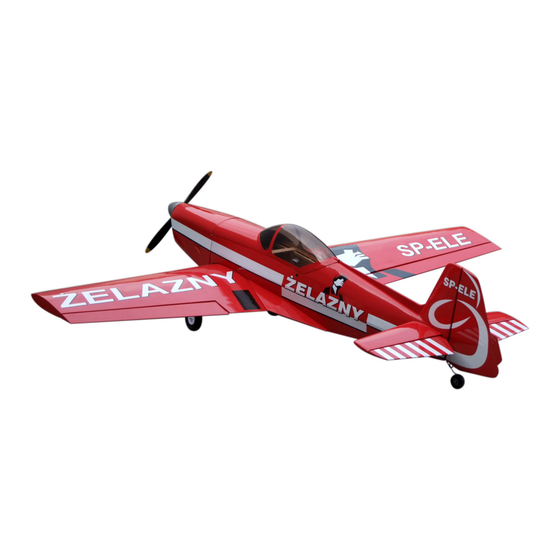

Zlin Z-526 AFS
Specification:
Length
:1875 mm(73.8")
Wing Span
:2085 mm(82")
Wing Area
:76.2sq.dm
8.19sq.ft
Wing Loading :70.9g/sq.dm
23.2oz/sq.ft
Flying Weight :5.4kg(11.9lbs)
Radio
:6ch & 8servos
Engine:
:26cc-36cc

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.

Advertisement

loading

Summary of Contents for Economix Zlin Z-526 AFS

  • Page 1: Instruction Manual

    Zlin Z-526 AFS Specification: Length :1875 mm(73.8") Wing Span :2085 mm(82") Wing Area :76.2sq.dm 8.19sq.ft Wing Loading :70.9g/sq.dm 23.2oz/sq.ft Flying Weight :5.4kg(11.9lbs) INSTRUCTION MANUAL Radio :6ch & 8servos Engine: :26cc-36cc This R/C airplane is not a toy! (The people under 18 years old is forbidden from flying this model) First-time builders should seek advice from people having building experience.If misused or abused,it can cause serious bodily injury...

  • Page 2: Tp Screw (2.3X12Mm)

    Install the wheel to the fixed landing gear. Adjustment of the rudder, be sure it can work perfectly. Collar (5mm) RUDDER (with 8 servos), Side View TP Screw (2.3x12mm) Top view 42mm 6 channel radio for aiplane is highly recommended for this model. 42mm Collar 5mm Wooden supporter...

  • Page 3: Landing Gear

    Zlin Z-526 AFS packing list Mount the receiver and the battery to appropriate position The specification of the cowling. in the fuselage. Top cover 345mm Rudder Fuselage Drill holes to appropriate position in the cowling and assemble Accessory list for the coming installation steps.

  • Page 4: Table Of Contents

    Zlin Z-526 AFS packing list Assemble the throttle linkage. Assemble the servo of the throttle in the fuselage. Linkage Stopper Set Screw (3x4mm) Package1 Package4 Washer (2mm) Landing gear Washer (4x8mm) TP Screw (2.3x12mm) Rod (2x200mm) Landing gear Screw (6x35mm)

  • Page 5: Screw (4X20Mm)

    Drill four holes at the diameters as shown for engine Accessory list for the coming installation steps. Zlin Z-526 AFS packing list mount. Screw (4x45mm) Package6 Package9 Screw (4x20mm) TP Screw (3x20mm) Wheel(100mm) Washer(4x8mm) Linkage Stopper 5.2mm Plastic tube (2x400mm)

  • Page 6: Control Horn

    Assemble the servo of the rudder in the fuselage and Apply instant type AB glue to appropriate position in the Epoxy the control horns to the slots in the rudder. Accessory list for the coming installation steps. connect the servo and the rudder via steel wires. trailing edge and assemble the ailerons to them.
  • Page 7 Keep some space about 1mm width between the rudder According to the illustration below bend the tail landing Apply instant type AB glue to the control horn and the slots in and tail edge. gear wire and cut off the surplus part. Assemble the retract.

  • Page 8: Screw (2X10Mm)

    Assemble the wing to the fuselage and insert the other side Apply instant type AB glue to appropriate position of the elevator and Fix the stabilizers to the tail fuselage via screws. Assemble the stabilizer to the fuselage through the tail joint. main wing to the fuselage via main wing joiner as illustration.
