Eagle TT-4 Parts And Service Manual page 143

L & E
IGHTS
Item Part Number
1 ET12-02-001-SA
N/A ET12-02-001-SB
2 NVSP-34-007-CA
3 NVSP-34-006-CA
4 AE-OPT-0320-E
5 NPN
6 NPN
7 NPN
8 NPN
9 NPN
10 NPN
11 NPN
12 NVSP-21-023-CA
13 NPN
N/A DT04-2P
N/A W2P
N/A 0460-215-16141
N/A DT04-3P
N/A W3P
N/A 0460-215-16141

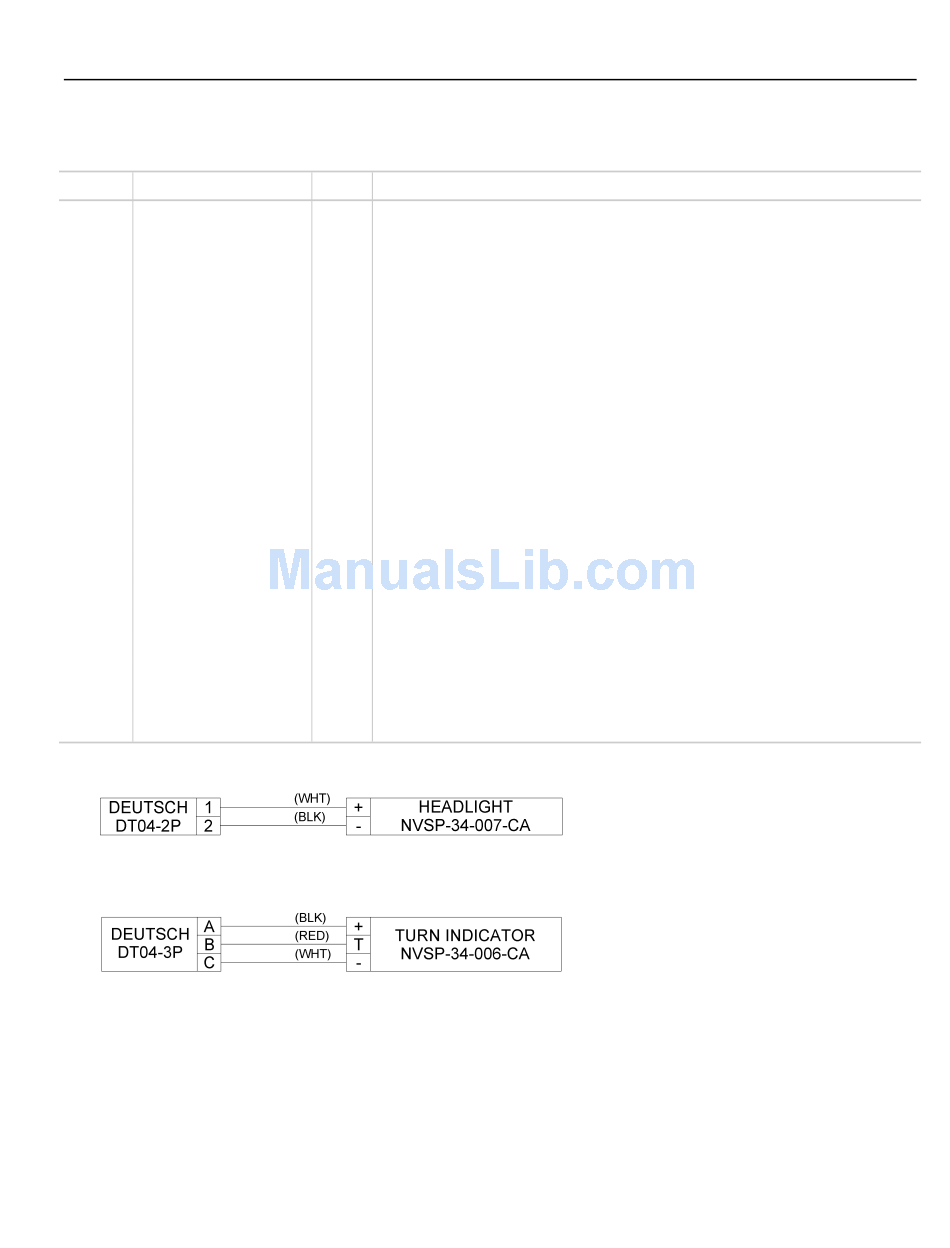

Item 2 to be wired as shown below.
Item 3 to be wired as shown below.
TT4-8 4TNV98
LECTRICAL
HEADLIGHT ASSEMBLY
Qty. Description
1 LH HEADLIGHT POCKET
1 RH HEADLIGHT POCKET
2 HEADLIGHT, LED, SQUARE 500 LUMEN
2 LED AMBER TURN INDICATOR
2 SILICONE GROMMET, 3/8
2 SHCS, #8-32 UNC X .625, SS
2 FLAT WASHER, #8
2 LOCK NUT, NYLON INSERT, #8-32 UNC, SS
2 LOCK WASHER, 5/16 (PART OF ITEM 2)
2 NUT, 5/16-18 UNC (PART OF ITEM 2)
4 BHCS, 1/4-20 UNC X 1, SS
2 HCS, 1/4-20 UNC X .75
2 CLIP-ON NUT, 1/4-20 UNC
8 RIVET NUTS, 1/4-20 UNC
2 ELECTRICAL CONNECTOR (INSTALLED TO ITEM 2)
2 CONNECTOR LOCK (INSTALLED TO ITEM 2)
4 CONNECTOR PINS (INSTALLED TO ITEM 2)
2 ELECTRICAL CONNECTOR (INSTALLED TO ITEM 3)
2 CONNECTOR LOCK (INSTALLED TO ITEM 3)
6 CONNECTOR PINS (INSTALLED TO ITEM 3)
