Section 5.

Adjustment Procedures

5-1.

Laminating Pressure Adjustment

Note:
•
To perform the following adjustments, it is necessary to remove both plastic side covers
first. See Section 4-3: Disassembly / Reassembly Plastic Side Covers.
•
Note: the top roller must be at room temperature, before this procedure is being performed.
•
Next, the heating element, including both heater brackets, has to be removed. See the
'Heating Element' Procedure described in Section 4-4.
•
After completion of the Laminating Pressure Adjustment procedure, it is mandatory to
continue with the Nip Adjustment Procedure described in Section 5-2.
Necessary tools: 10mm open-ended spanner, small flat-head screwdriver, Allen key 2mm.
Approximate time: 15 minutes.
To adjust or set the laminating pressure, the following special devices are required:

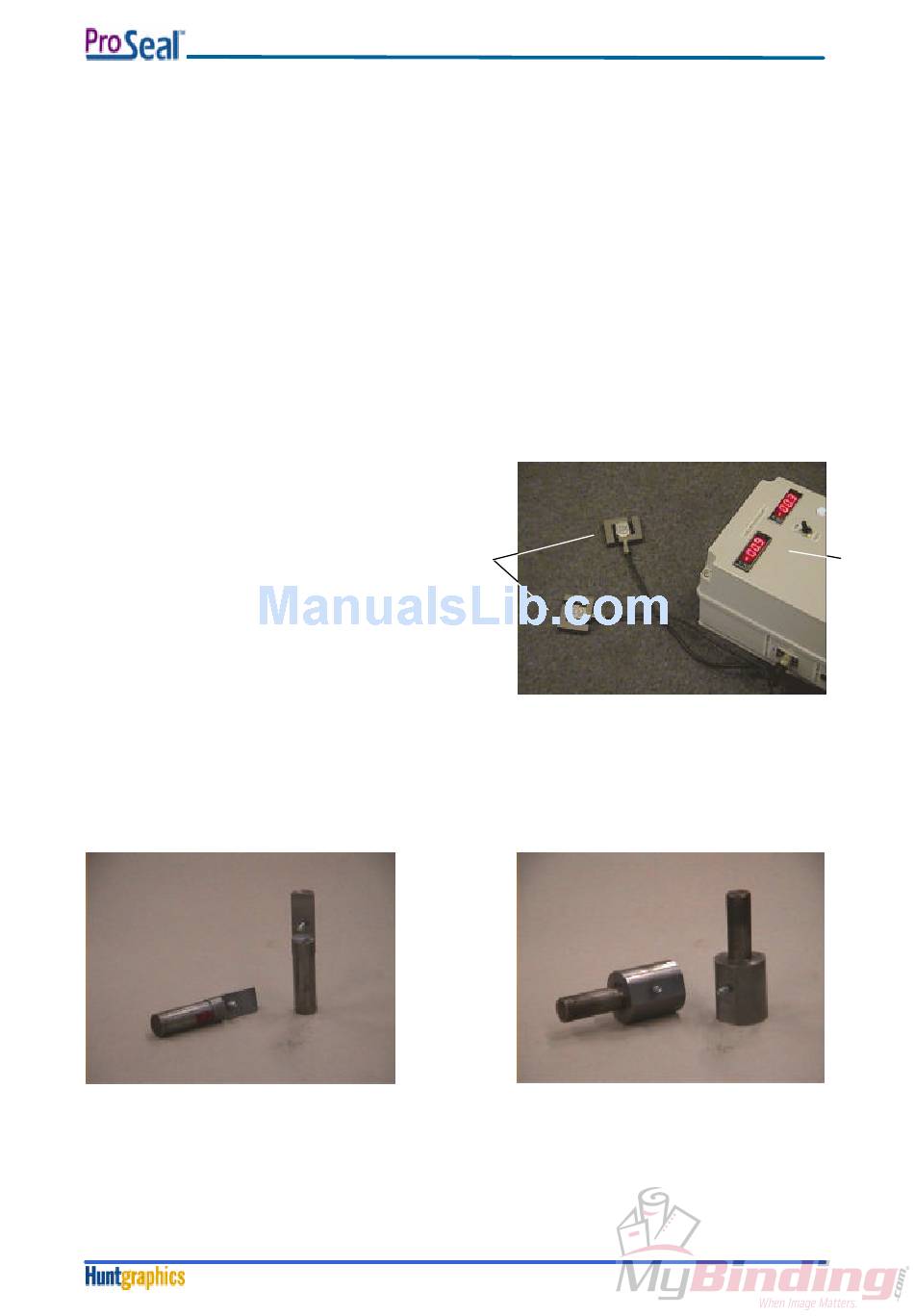

The Pressure Display Unit (PDU).
This unit has to be plugged in a wall
socket; the two pressure sensors can be
plugged in at either side of the PDU. The
pressure (actually: force) display reads in
Kilograms. See figure 25.
Together with the PDU, a set of sensor-supports has to be used. Each machine type needs a different
set of sensor-supports. For the ProSeal 25, a set, shown in figure 26 is necessary; figure 27 shows the
set for the ProSeal 44.
Note: each figure shows only half the set.
support set for ProSeal 25
fig. 26
The tools shown above have to be inserted in the roller journals, at either side of the machine.
To insert the tools into the top roller, the heating element, including both brackets, has to be removed
first. See the disassembly / reassembly procedure in Section 4-4.
Adjustment Procedures
pressure
sensors
fig. 25
fig. 27
5-1
support set for ProSeal 44
February 2000
PDU
