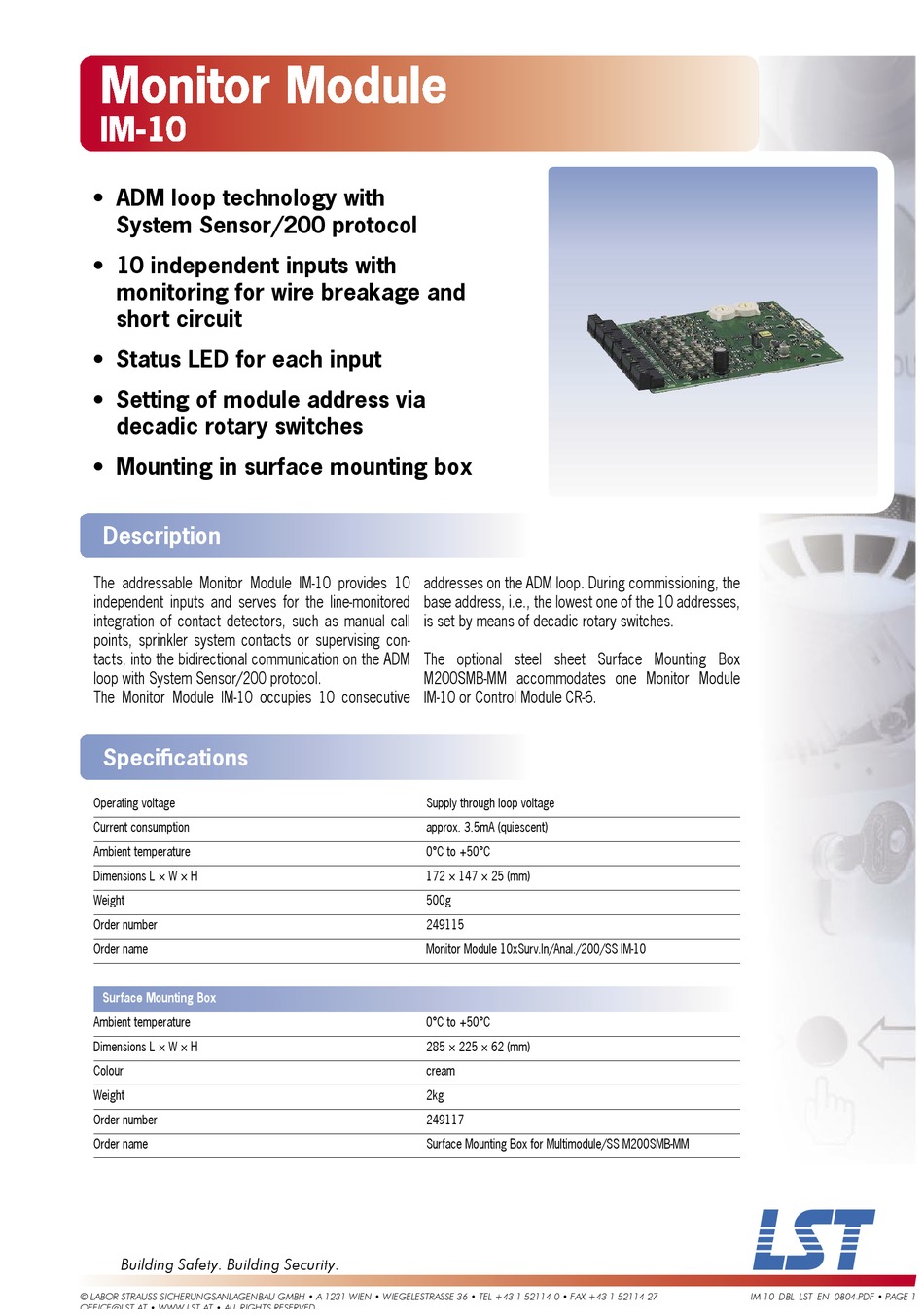

LST IM-10 Specification Sheet

Monitor Module

IM-10
• ADM loop technology with
System Sensor/200 protocol
• 10 independent inputs with
monitoring for wire breakage and

short circuit

• Status LED for each input
• Setting of module address via
decadic rotary switches
• Mounting in surface mounting box
Description
The addressable Monitor Module IM-10 provides 10
independent inputs and serves for the line-monitored
integration of contact detectors, such as manual call
points, sprinkler system contacts or supervising con-
tacts, into the bidirectional communication on the ADM
loop with System Sensor/200 protocol.
The Monitor Module IM-10 occupies 10 consecutive
Specifi cations
Operating voltage
Current consumption
Ambient temperature
Dimensions L × W × H
Weight
Order number
Order name
Surface Mounting Box
Ambient temperature
Dimensions L × W × H
Colour
Weight
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
addresses on the ADM loop. During commissioning, the
base address, i.e., the lowest one of the 10 addresses,
is set by means of decadic rotary switches.
The optional steel sheet Surface Mounting Box
M200SMB-MM accommodates one Monitor Module
IM-10 or Control Module CR-6.
Supply through loop voltage
approx. 3.5mA (quiescent)
0°C to +50°C
172 × 147 × 25 (mm)
500g
249115
Monitor Module 10xSurv.In/Anal./200/SS IM-10
0°C to +50°C
285 × 225 × 62 (mm)
cream
2kg
249117
Surface Mounting Box for Multimodule/SS M200SMB-MM
A
