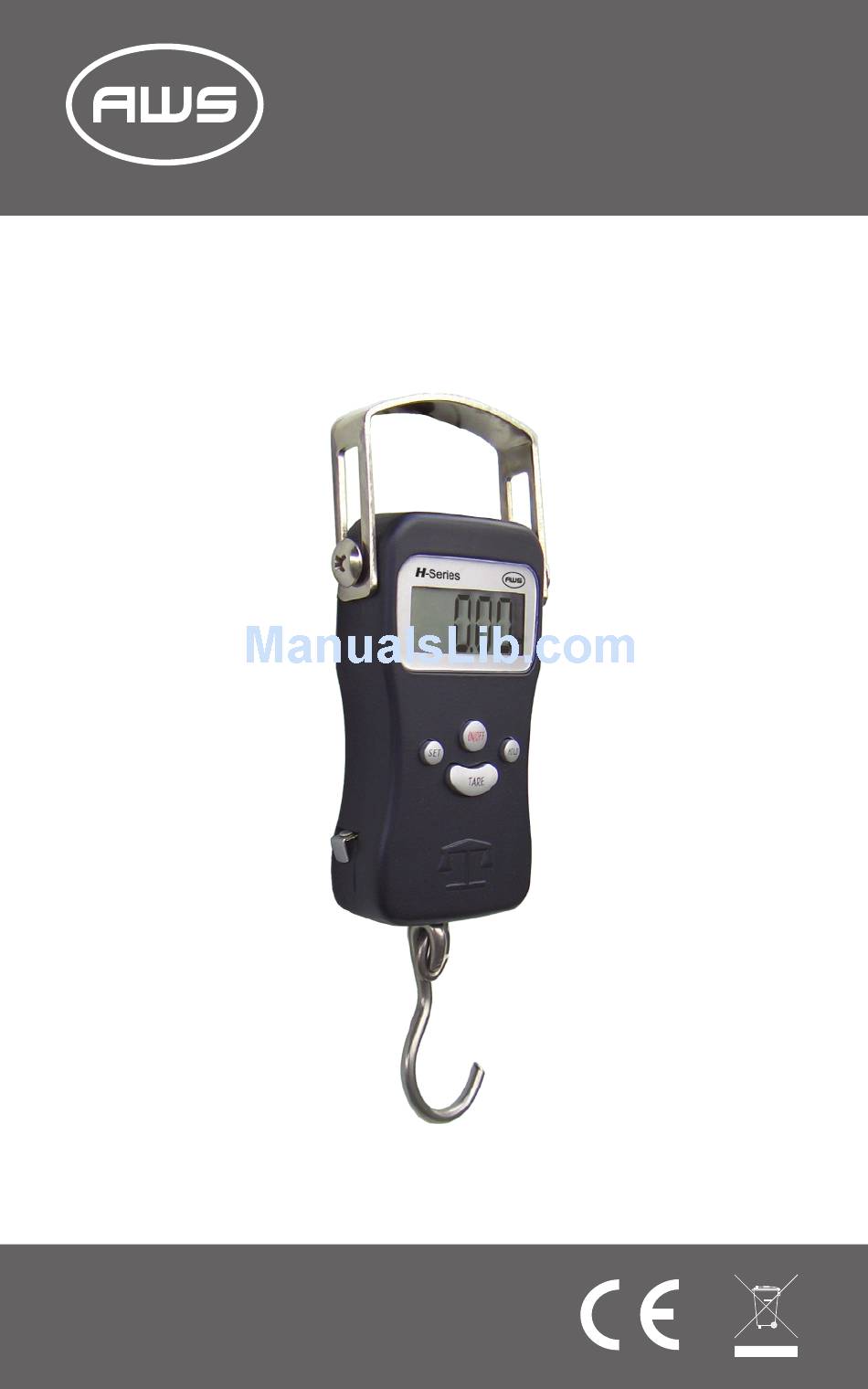

- Page 1 American Weigh Scales H-110 User Manual H-110 (110lb x 0.05lb) Copyright © 2010 American Weigh Scales, Inc. All rights reserved. Rev. 3.0...
- Page 2 H-110 Thank you for purchasing the H-110 digital hanging scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
- Page 3 I. Part List 1. Scale 2. CR2032 Batteries (x2) II. Key Description On/Off Key Hold Key Set Key Tare Key III. Battery Installation 1. Turn the battery cover counterclockwise to open. Gently tap the back against your hand to release the batteries and cover.
- Page 4 2. If the scale is turned off then back on, it will default to the last unit used. • H-110 Units: kg (kilogram) lb (pound) lb:oz (pound:ounce) VI. Using the Tare Feature You can use this scale’s tare feature to subtract the weight of an empty container or vessel for net weight determination.
- Page 5 Model Acceptable Calibration Recommended Tolerance (±) Weight Accuracy Class H-110 0.15 lb / 60g 40 kg OIML M2 IX. Adjustment 1. With the scale OFF, press and hold the SET key and ON/OFF keys simultaneously. 2. The display will show a random number (ISN). You...
- Page 6 H-110 3. Press ON/OFF again. The display will flash the required calibration weight. 4. Place the weight on the end of the hook and press ON/OFF when the weight is stable. 5. The display will show PASS and return to normal weighing. If EEEE is displayed, try calibration again.
- Page 7 XII. Specifications H-110 Max. Capacity 110 lb Readability 0.05lb Min. Capacity 100 grams / 0.25 lb Power Two (2) CR2032 Batteries Operating Temp 50°F - 86°F Dimensions 1.0 x 2.5 x 5.2 in. Warranty 10 Year Limited Warranty XIII. Capacity/Readability Charts H-110 110lb x 0.05lb...
