AWS Blade-100 User Manual

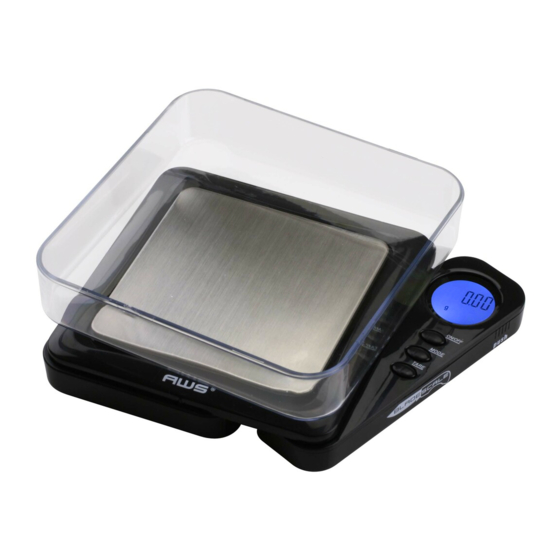

Blade series 100g x 0.01g/650g x 0.1g/1000g x0.1g scale.
Hide thumbs


Advertisement

BLADE Scale

User Manual

US Patent #D525,891
BLADE-100 (100g x 0.01g)
BLADE-650 (650g x 0.1g)
BLADE-1KG (1000g x0.1g)
Copyright © 2010 American Weigh Scales, Inc.
All rights reserved. Rev. 3.1

Advertisement

Table of Contents

   Also See for AWS Blade-100

   Related Manuals for AWS Blade-100

   Summary of Contents for AWS Blade-100

  • Page 1: User Manual

    BLADE Scale ™ User Manual US Patent #D525,891 BLADE-100 (100g x 0.01g) BLADE-650 (650g x 0.1g) BLADE-1KG (1000g x0.1g) Copyright © 2010 American Weigh Scales, Inc. All rights reserved. Rev. 3.1...
  • Page 2 BLADE Scale Thank you for purchasing the American Weigh Blade Scale™. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
  • Page 3 I. Part List 1. Scale 2. Cover/Expansion Tray 3. AAA Batteries (x2) II. Key Description 3.75" Weight Indicator ON/OFF Key ON/OFF Mode Key MODE Tare Key TARE 2.75" III. Battery Installation 1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to prevent battery drainage during shipping/storage.
  • Page 4 2. If the scale is turned off then back on, it will default to the last unit used. • BLADE-100 Units: g (gram) oz (ounce) ct (carat) gn (grain) • BLADE-650, BLADE-1KG Units: g (gram) oz (ounce) ozt (troy ounce) dwt (pennyweight) VI.
  • Page 5: Calibration

    the contents. 4. To return to normal weight display (gross weight), remove any items from the weighing platform and press the TARE key again to re-zero the scale. VII. Calibration Calibration and adjustment are performed at the factory. However, the weighing range can shift slightly during shipping.
  • Page 6: Troubleshooting

    BLADE Scale 4. Once the weight is accepted, the display will show “PASS” then return to normal operation. IX. Troubleshooting • Problem: Scale will not turn on • Solution: Check the batteries • Problem: Displayed weight fluctuates randomly • Solution: Make sure your workspace is stable and free of any air currents or vibration Problem: Displayed weight is inaccurate •...
  • Page 7 XI. Specifications BL-100 Max. Capacity 100g Readability 0.01g Min. Weight 0.03g Power 2 x AAA Dimensions 0.8 x 3.8 x 3.8” Platform Dimensions 2.7 x 2.7” BL-650 BL-1KG Max. Capacity 650g 1000g Readability 0.1g 0.1g Min. Weight 0.2g 0.2g Power 2 x AAA Dimensions 0.8 x 3.8 x 3.8”...
