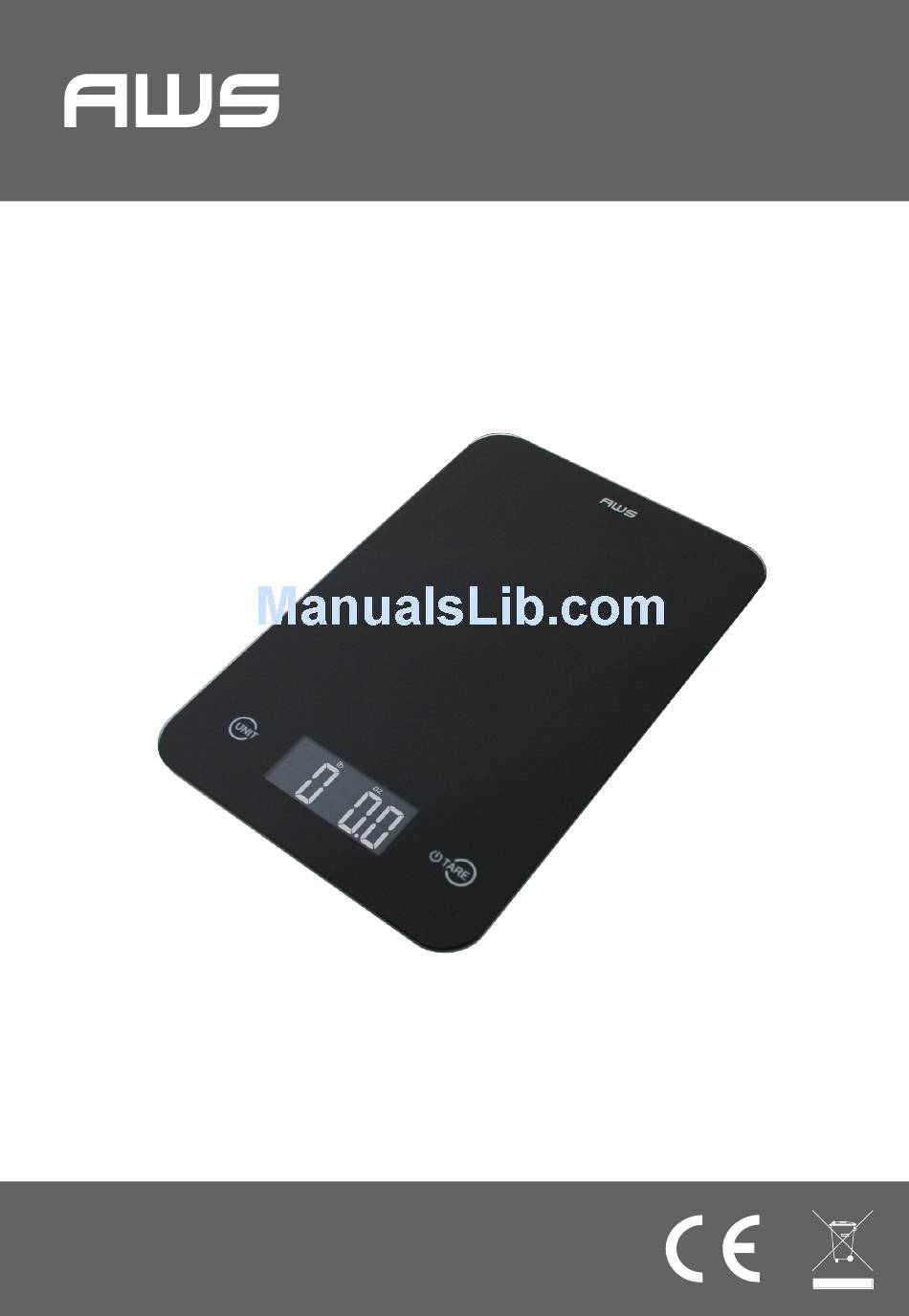

- Page 1 ONYX User Manual ONYX-5K (5000g x 1g) Copyright © 2011 American Weigh Scales, Inc. All rights reserved. Rev. 2.1...

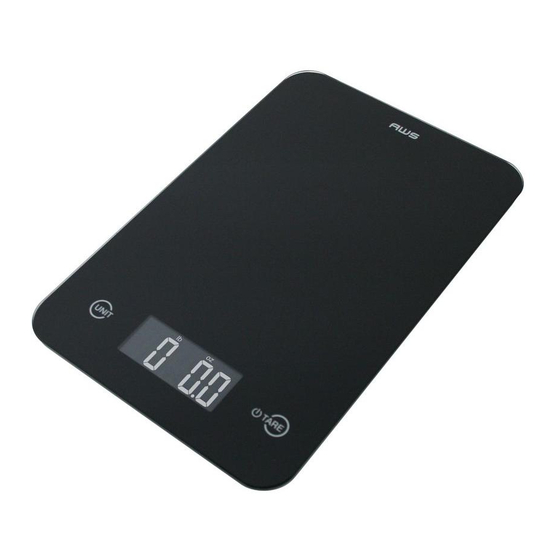

- Page 2 ONYX Thank you for purchasing the American Weigh ONYX digital kitchen scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: • Do not exceed the scale’s maximum capacity.
- Page 3 I. Part List 1. Scale 2. CR2032 Batteries (x2) II. Key Description 1. Unit Key - Changes the displayed unit of measure 2. ON/OFF/Tare Key - Tap to turn on or re-zero the scale (if already on). Hold to turn the scale off. III.
- Page 4 ONYX IV. Scale Operation 1. Place the scale on a flat, level surface. 2. Tap the key to turn the scale on. 3. Once the scale displays zero, you are ready to weigh. 4. Place items to be weighed on the center of the scale platform. 5. When you are finished weighing, you can turn the scale off by holding the key for 2 seconds.
- Page 5 2. If the scale is turned off then back on, it will default to the last unit used. • ONYX-5K Units: g (gram) lb:oz (pound:ounce) oz (ounce) ml (milliliter) fl.oz. (fluid ounce - US) VII. Calibration Adjustment (Advanced Users Only) Calibration is performed at the factory.
- Page 6 VIII. Error Codes Symbol - Batteries are low. Replace the batteries. 2. EEEE- Maximum capacity exceeded. This scale cannot be used to give measurements over 11lbs (5kg). IX. Specifications ONYX-5K Max. Capacity 5000g / 176.4oz / 5000ml / 169fl.oz / 11lb Readability 1g / 0.1oz / 1ml / 0.1fl.oz / 0.1oz Calibration Weights 2000g, 5000g (not included)
