StarTech.com USB56KEM Manual

USB56KEM

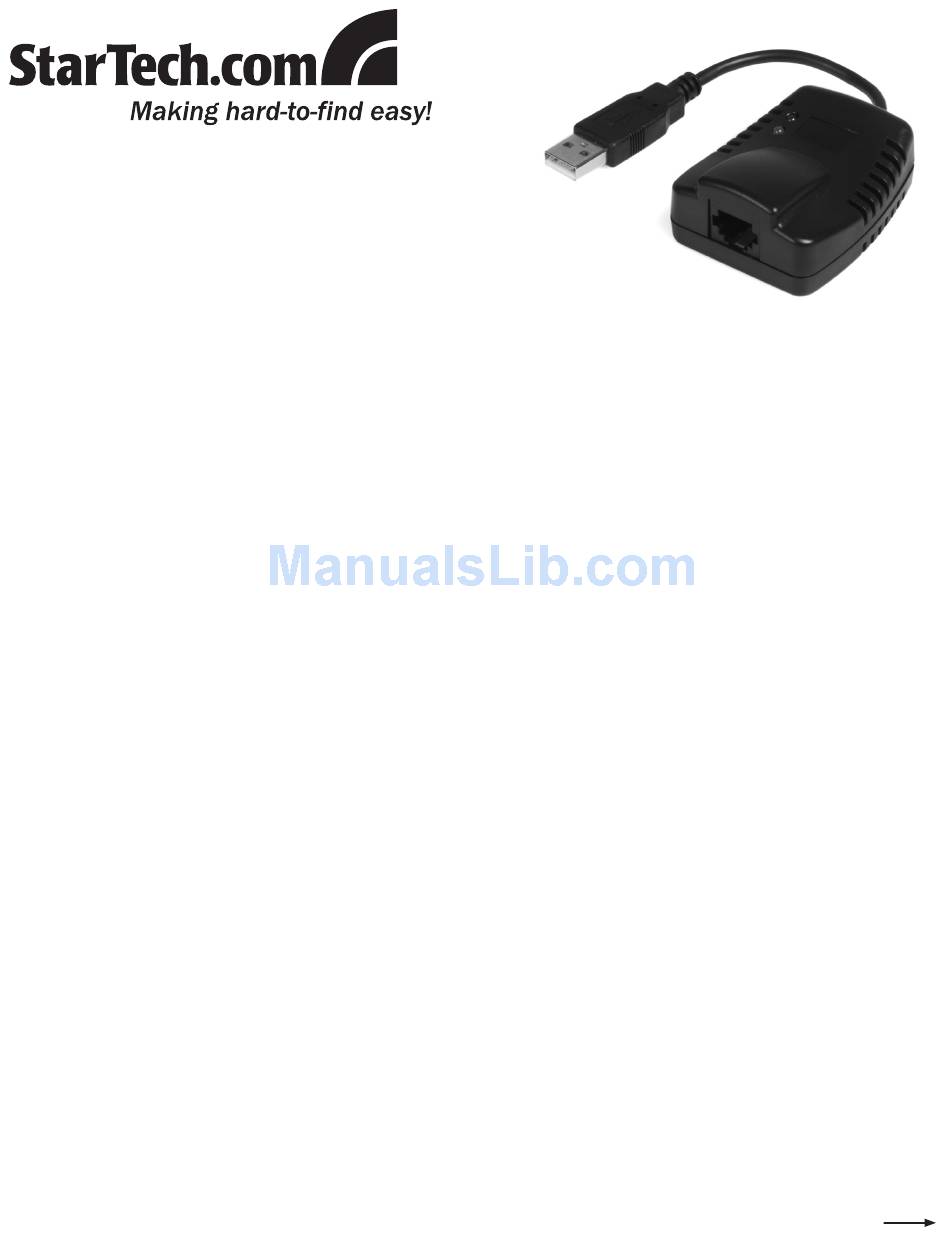

USB 56K External Modem

Introduction

Thank you for purchasing a StarTech.com USB External Modem. Ideal for users who require access to a dial up service, this compact,
lightweight device supports PCM Upstream, quick connect, and V.44 data and error correction, making it ideal for accessing the
Internet from a notebook or desktop computer.

Features

• Supports fax send/receive rates up to 14.4Kbps
• Supports dial-up Internet services with V.44 data compression
• Supports data receive rates up to 56Kbps and send rates up to 48Kbps
• Supports PCM upstream and quick connect
• Supports Windows 98SE/ME/2000/XP and Vista

System Requirements

• A computer with an available USB port, running Windows® 98SE, ME, 2000, XP or Vista™
• An available phone line connection
• A phone/modem cable, terminated with RJ11 connectors (see

Package Contents

• 1 x USB Modem
• 1 x Driver CD
• 1 x Instruction Guide

Installation

1. With the computer in a powered state, insert the USB56KEM USB connector into an available USB port on the host computer.
2. Insert one of the RJ11 connectors provided by a phone cable (not included - see RJ6FT on http://www.startech.com) to a
nearby phone receptacle. Insert the remaining end of the RJ11 cable to the RJ11 jack on USB56KEM.
3. Windows® 98SE/ME/2000/XP/Vista™ will automatically detect the connected USB Modem and launch the Found New
Hardware Wizard. Please select No, not this time, and click on the Next button.
4. Insert the Driver CD into an available CD/DVD-ROM drive on the host computer, and select
automatically, then click Next, then wait while the necessary files are installed.
5. Once the Wizard has completed installation, please click on
when asked if you want to restart your computer now (required).
RJ6FT on http://www.startech.com)
Finish. For the installation to take effect, please click on Yes
Please see reverse for further instruction and product specifications
Install the software
