SecurView SV-6820.EM Installation Instructions

Embedded flushmount style camera for tailgates

Table of Contents

Download this manual

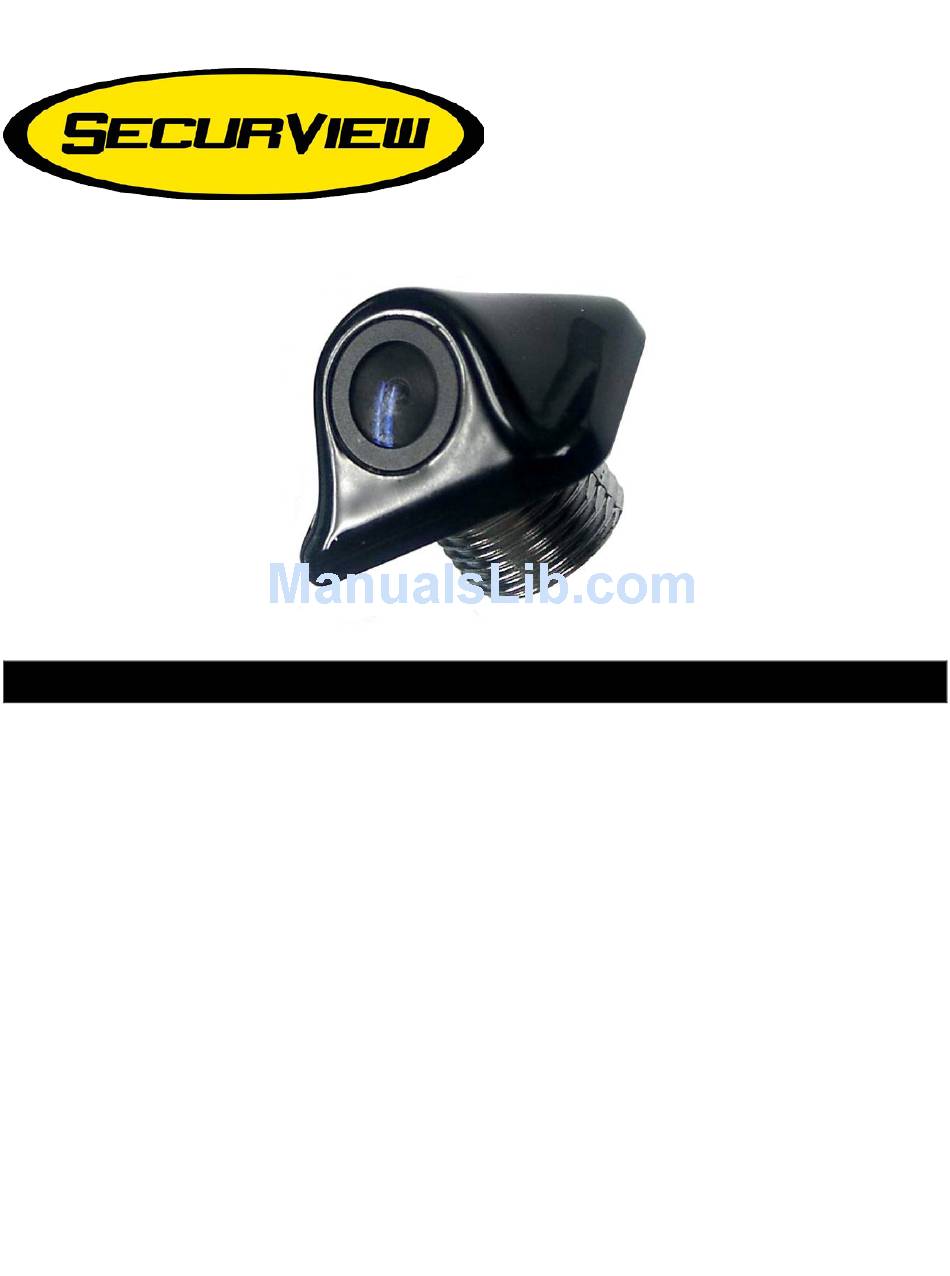

The SV-6820.EM is a unique style flush mount camera that is specifically designed to be

mounted on the tailgate handle of pick-up truck.

Since it is a flush mount style camera, a hole must be drilled into the vehicle so that it sits

correctly on the vehicle body. Once the hole is drilled, the camera secures into place leaving a

clean lip-mount appearance.

This camera can be hooked up to any SecurView™ monitor or any monitor that uses a standard

RCA video connection

• Designed specifically for mounted on the tailgate of pick-up trucks

• The 160° wide-angle CMOS color camera provides rear images in real time and

eliminates the dangerous "blind-spot" directly behind your vehicle when backing.

• Constructed of high-grade plastic

• Normal or Reverse Image (Selectable)

• Built-in distance grid to help accurately judge distance behind vehicle

• Easily connects with other SecurView monitor or aftermarket monitor that uses an RCA

input

• Camera can also be integrated with your existing OEM or aftermarket LCD/TFT displays.

• Waterproof Design (IP68)

INSTALLATION INSTRUCTIONS:

SV-6820.EM

Embedded Flush-

Mount Style Camera

For Tailgates

Table of Contents

Do you have a question about the SV-6820.EM and is the answer not in the manual?

Page 1: Installation Instructions
Once the hole is drilled, the camera secures into place leaving a clean lip-mount appearance. This camera can be hooked up to any SecurView™ monitor or any monitor that uses a standard RCA video connection FEATURES: •...
Page 2 REVERSE (MIRROR) IMAGING: The SV-6820.EM Camera has built-in circuitry to “mirror” the image so objects on the right of vehicle appear on the right and objects on the left appear on the left when looking at a standard monitor. If your existing monitor or in-dash monitor has a reverse camera input where the monitor itself performs the mirror image, then your picture will not be correct.
Page 3 Connect to +12V Reverse Light YELLOW RCA Ground MONITOR Connect to Monitor BLACK WIRE RED WIRE GREEN WIRE Distance Grid Option WHITE WIRE Mirror Image Option SV-6820.EM TECH SUPPORT: (800) 998-6880...
Page 4 Securview™ Rear Vision System. The Securview™ is designed as a safety enhancement device and is in no way intended as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when backing a vehicle.
