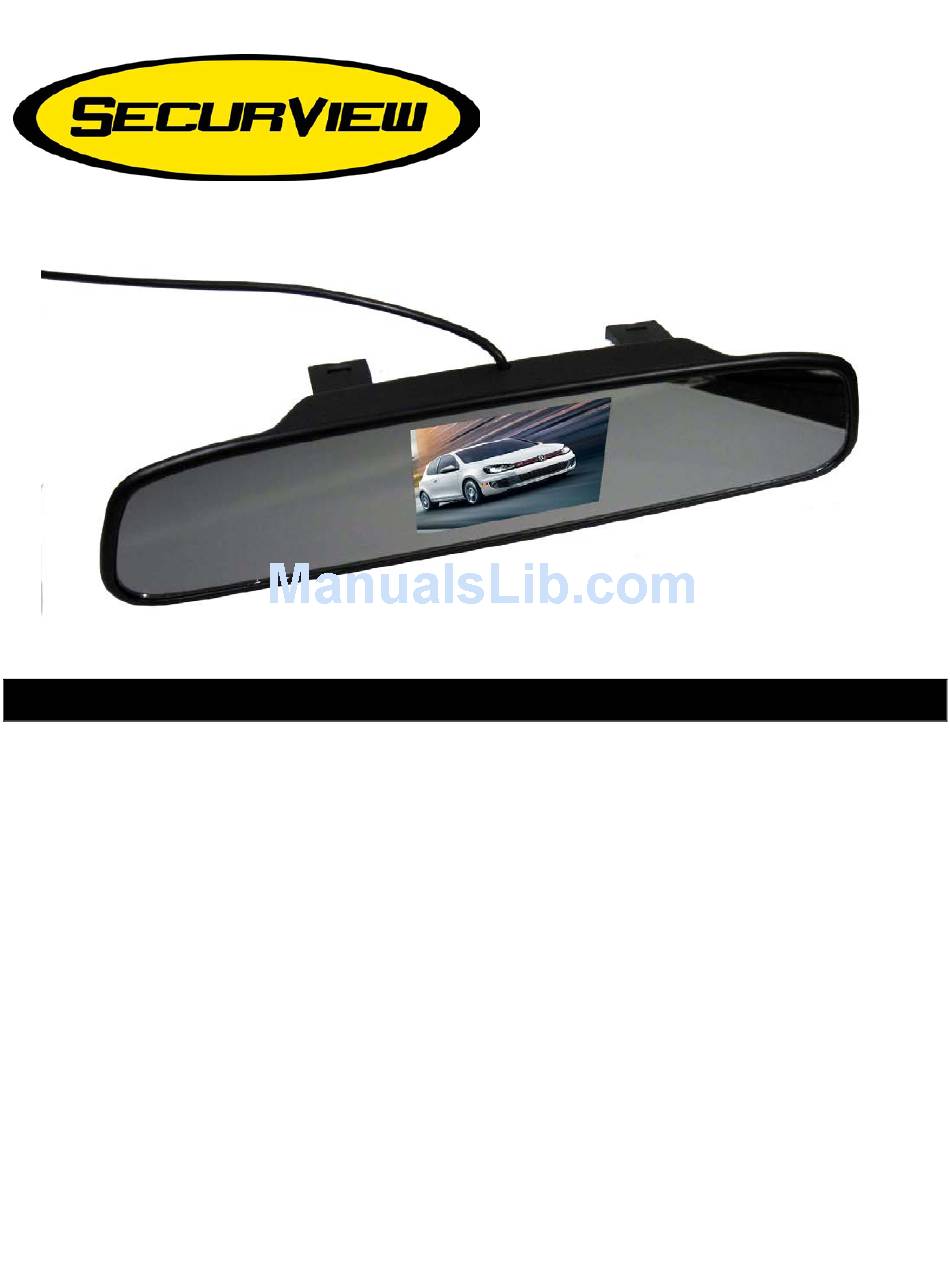

The SecurView™ SV-9151 is a retrofit "Clip-on" style rear view mirror monitor. This style of
mirror clips over the factory rear view mirror in seconds and gives you the convenience of a 4.3"
LCD monitor. The clip-on styling makes it easy to remove from the factory mirror is need be and
lets the vehicle owner retain certain other features of their factory rear view mirror such as
OnStar™
FEATURES:
• Retrofit style rear view mirror monitor
• Easy to install. Clips over the factory mirror in seconds
• Crystal clear 4.3" LCD display with anti-glare protection
• Screen automatically activates when the vehicle is shifted into reverse and shuts off
when vehicle is shifted out of reverse.
• Screen is invisible when not in use.
• (2) Built-in video inputs for reverse camera and any other video source such as a DVD
player.
• Easily connects with other SecurView products such as any of the LCD monitors. It can
also be integrated with your existing OEM or aftermarket LCD/TFT displays.
INSTALLATION INSTRUCTIONS:
SV-9151
Retrofit Style Rear
View Mirror Monitor
Advertisement
Related Manuals for SecurView SV-9151
Summary of Contents for SecurView SV-9151
-
Page 1: Installation Instructions
View Mirror Monitor INSTALLATION INSTRUCTIONS: The SecurView™ SV-9151 is a retrofit “Clip-on” style rear view mirror monitor. This style of mirror clips over the factory rear view mirror in seconds and gives you the convenience of a 4.3” LCD monitor. The clip-on styling makes it easy to remove from the factory mirror is need be and lets the vehicle owner retain certain other features of their factory rear view mirror such as OnStar™... -
Page 2: Side View
INSTALLATION MOUNTING: 1. Attach the SV-9151 mirror to the factory rear view mirror using the mounting clips. 2. Place the bottom mounting clips of the 9151 on the bottom edge of the factory rear view mirror and plug upwards to clip the upper set of mounting clips to the top edge of the factory rear view mirror. - Page 3 WIRING DIAGRAM Connect to WIRE +12 Volt Ignition BLACK WIRE SV-9151 Ground RED POWER PLUG VIDEO 2 VIDEO 1 CAMERA YELLOW RCA VIDEO CABLE OPERATION: When the vehicle is first turned on with the key the monitor will power up and the VIDEO 2 source will be active.
- Page 4 Securview™ Rear Vision System. The Securview™ is designed as a safety enhancement device and is in no way intended as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when backing a vehicle.
