JANUARY 2008

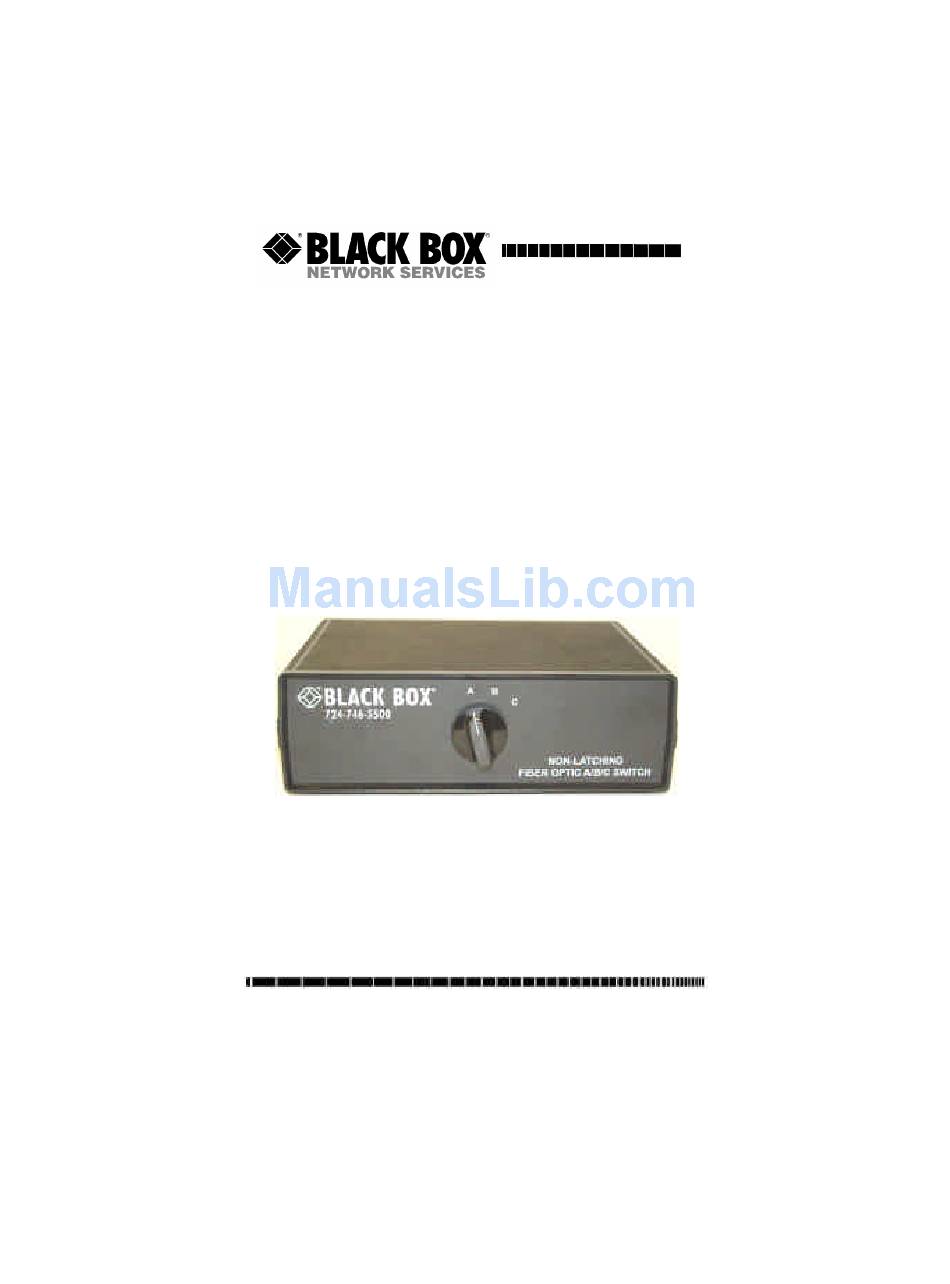

Model# SW1007A
FIBER OPTIC A/B/C SWITCH
(Non-latching)
O
CUSTOMER
rder toll-free in the U.S.: 877-877-BBOX (outside U.S. call 724-746-5500)
SUPPORT
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-
746-0746
INFORMATION
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box SW1007A
Summary of Contents for Black Box SW1007A
- Page 1 U.S.: 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724- 746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 Fiber Optic A/B/C Switch (non-latching) FCC STATEMENT FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection...
- Page 3 Fiber Optic A/B/C Switch (non-latching) CONTENTS Contents Chapter Page 1. Specifications …………………………………... 4 2. Introduction …………………………………. 3. Installation …………………………………….. 6 4. Troubleshooting ……………………………….. 6 Page 3...
-
Page 4: Specifications
Fiber Optic A/B/C Switch (non-latching) Chapter 1: Specifications Specifications Connectors (4 pairs) ST, (1) 3.5-mm power input Also available with SC connectors—please call! Data Rates Transparent to signal rates, wavelengths, & formats Switching Speed less than 1 sec typical Sensitivity 750 to 1450 nanometers Optical Loss less than 3.0 dB typical per FOTP-171 method B1... - Page 5 Fiber Optic A/B/C Switch (non-latching) Mean Time Between Failures 100,000 hours or 1,000,000 cycles Power 100-240 VAC 50/60 Hz wall-mount PSU, 5 VDC out Size 2.5”H x 8”W x 6.3”D (6.4 x 20.3 x 16 cm) Weight 3 lb. (1.8 kg) Chapter 2: Introduction Introduction The non-latching Fiber Optic A/B/C Switch is a full-...
-
Page 6: Troubleshooting
Fiber Optic A/B/C Switch (non-latching) Chapter 3: Installation Installation Place the switch in a convenient stable location and connect the power supply unit to a reliable source of AC power that meets the requirements shown in the Specifications section of this manual. This switch is ideal for use in fall-back applications where a pre-determined connection is desirable in the event of a power failure. - Page 7 Fiber Optic A/B/C Switch (non-latching) Notes: Page 7...
- Page 8 © Copyright 2007 Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
