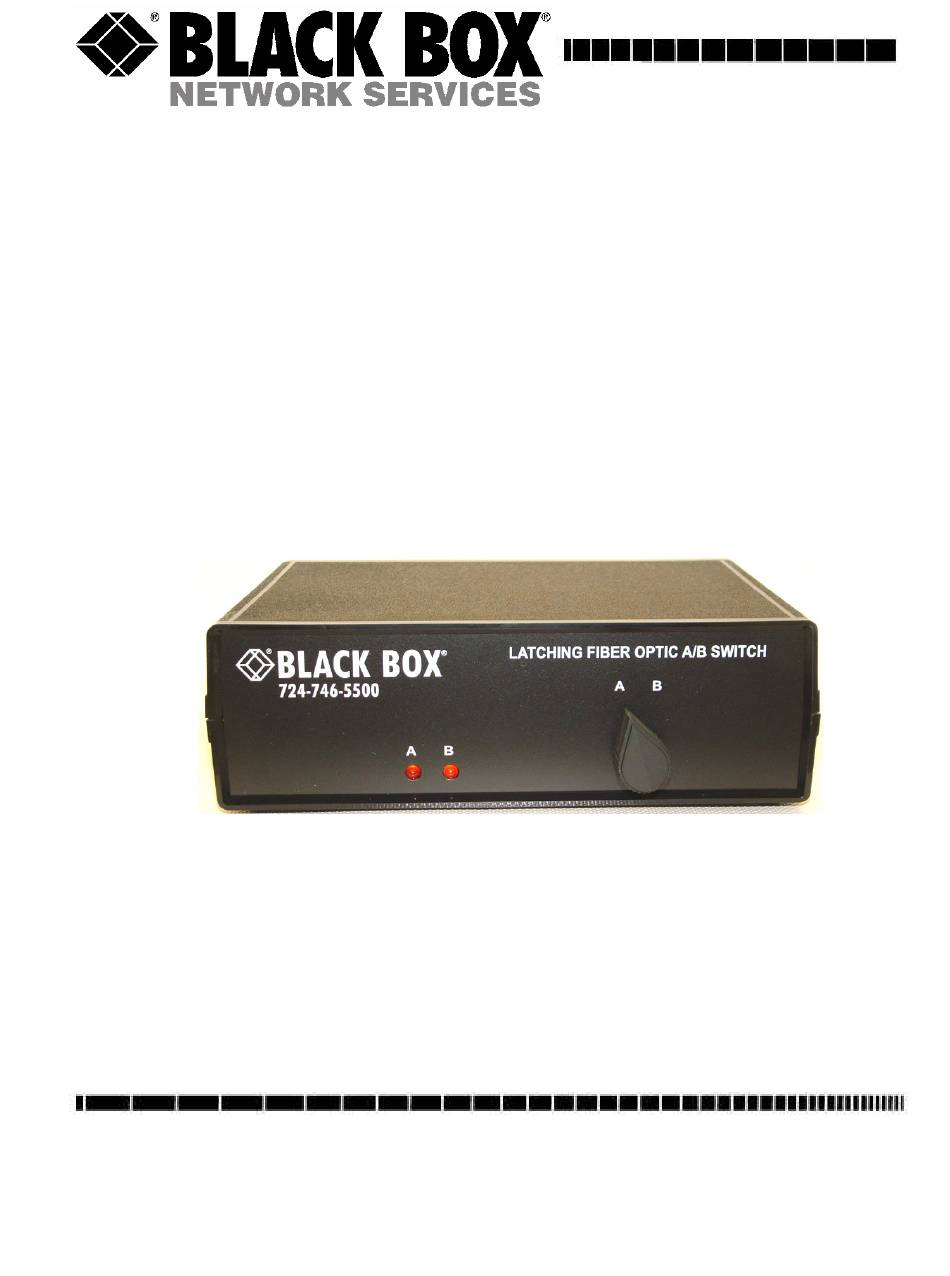

Black Box SW1002A Quick Start Manual

Fiber optic a/b switch

Model# SW1002A (Multimode with ST connectors)

Model# SW1008A (Multimode with SC connectors)

Model# SW1035A (Single-mode with ST connectors)

Model# SW1036A (Single-mode with SC connectors)

CUSTOMER

Order toll-free in the U.S.: 877-877-BBOX (outside U.S. call 724-746-5500)

SUPPORT

FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

INFORMATION

Web site: www.blackbox.com • E-mail: info@blackbox.com

FIBER OPTIC A/B SWITCH

(LATCHING)

July 2017

Model# SW1002A

Model# SW1008A

Model# SW1035A

Model# SW1036A

Table of Contents

Need help?

Do you have a question about the SW1002A and is the answer not in the manual?

Page 1 Order toll-free in the U.S.: 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...
Page 2 Specifications Connectors (3) duplex SC or ST depending on model (1) 3.5-mm power input Data Rates Transparent to signal rates, & formats Switching Speed About 0.1 second typical Optical Wavelength Multimode: 800 through 1600 nanometers Single-mode: 1310 and 1550 nanometers Insertion Loss Multimode: 2.0 dB maximum Single-mode: 1.5 dB maximum...

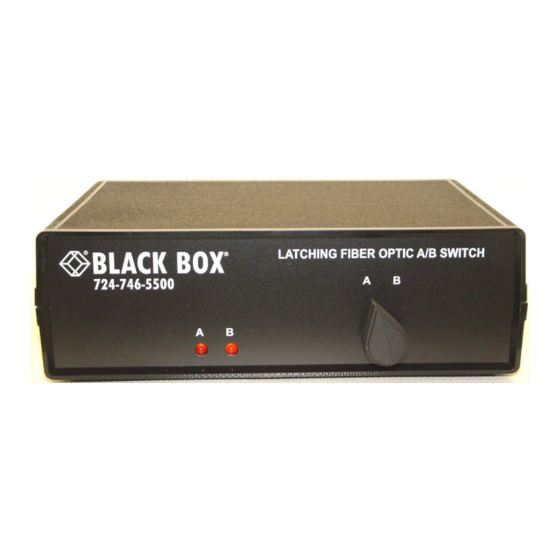

Page 3 Introduction The Latching Fiber Optic A/B Switch is a full-duplex optical switch. It can be used to connect a network or shared device to one of two networks or remote devices. A front panel rotary style knob allows the user to select which of the two ports (A or B) is connected to the COMMON Port on the switch.
