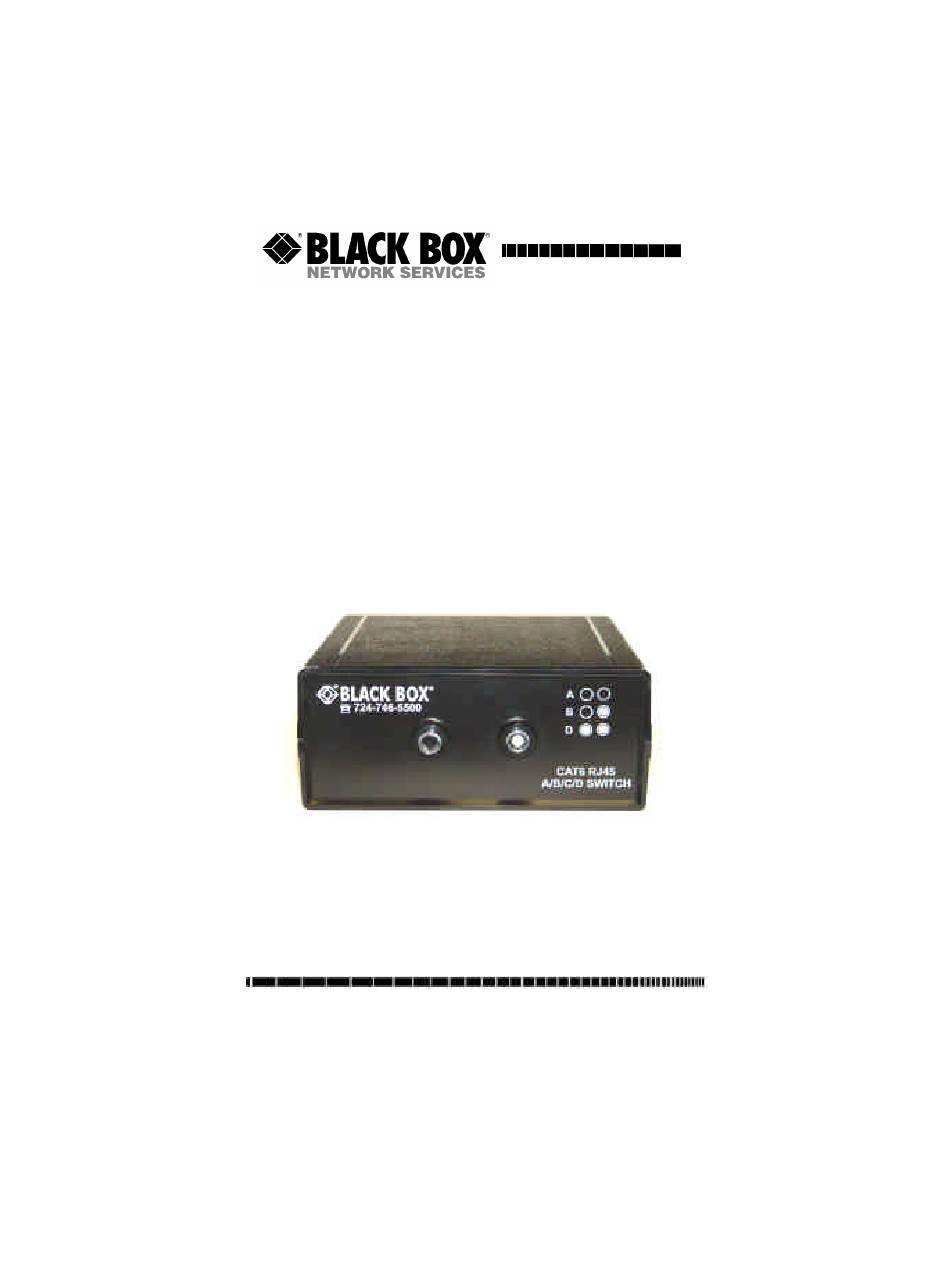

July 2008
(ABC) Model# SW1030A
(ABCD) Model# SW1031A
(ABCDE) Model # SW1032A
CAT6 RJ45

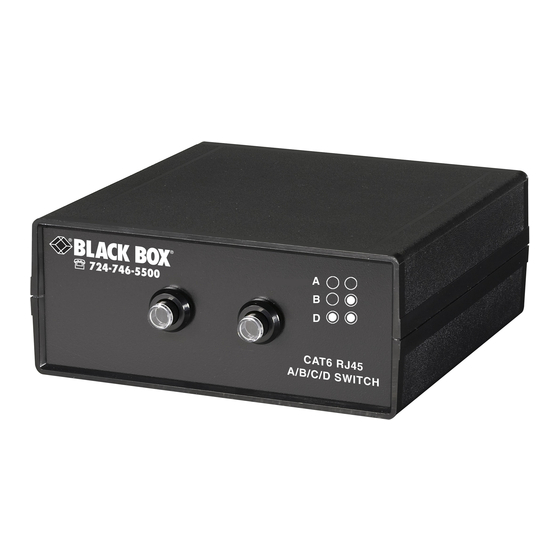

TABLETOP SWITCH
O
CUSTOMER
rder toll-free in the U.S.: 877-877-BBOX (outside U.S. Call 724-746-5500)
SUPPORT
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or
Fax 724-746-0746
INFORMATION
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box SW1030A
Summary of Contents for Black Box SW1030A
- Page 1 U.S.: 877-877-BBOX (outside U.S. Call 724-746-5500) SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or Fax 724-746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 CAT6 RJ45 TABLETOP SWITCH CONTENTS Section Page 1. Specifications …………………………………... 3 2. Introduction …………………………………. 3. Operation …………………………………….. 4. Installation …………………………………….. 6 5. Troubleshooting ……………………………….. 6 Page 2...
- Page 3 CAT6 RJ45 TABLETOP SWITCH Section 1: Specifications Connectors: (3) - A/B/C Switch (2 to 1) (4) - A/B/C/D Switch (3 to 1) (5) - A/B/C/D/E Switch (4 to 1) Compliance: meets CAT6 requirements for 10GBase-T Ethernet networks Data Rates: supports any rate from 10 Mbps up to and including 10 Gbps Mean Time Between Failures: 100,000 cycles.
- Page 4 CAT6 RJ45 TABLETOP SWITCH Section 2: Introduction These high performance CAT6 RJ45 desktop switches use pushbutton style selector switches and Category 6 connectors to ensure reliable operation and accurate communications of high speed Ethernet signals between the common port and the selected port. Section 3: Operation Operate the switch by following the diagram on the face plate of the unit to select the port that you wish to connect...
- Page 5 CAT6 RJ45 TABLETOP SWITCH Page 5...
- Page 6 CAT6 RJ45 TABLETOP SWITCH Section 4: Installation Locate the switch in a stable environment that is relatively free of vibration and contamination. No external power is required to operate the switch. Ethernet cables that conform to the speed of the data to be passed through the switch should be used for all connections.
- Page 7 CAT6 RJ45 TABLETOP SWITCH Notes: Page 7...
- Page 8 © Copyright 2008 Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
