EUROCOM ELECTRA User Manual page 241

To Enable Collage Mode:
1. Attach your external displays to the external monitor port and HDMI-Out port, and turn
them on.
2. Go to the Intel(R) HD Graphics Control Panel control panel and click Display >
Multiple Displays (sub-menu).
3. Click Collage from the Select Multiple Display Mode menu.
4. Click Enable Collage and click On.
5. Click Vertical or Horizontal to arrange and displays as required.
6. Click Apply, and OK to confirm the settings change.
Video Driver Controls
Collage Mode
Collage mode is used to
combine a number of
displays into a single
unified higher resolution
for larger screen sizes,.

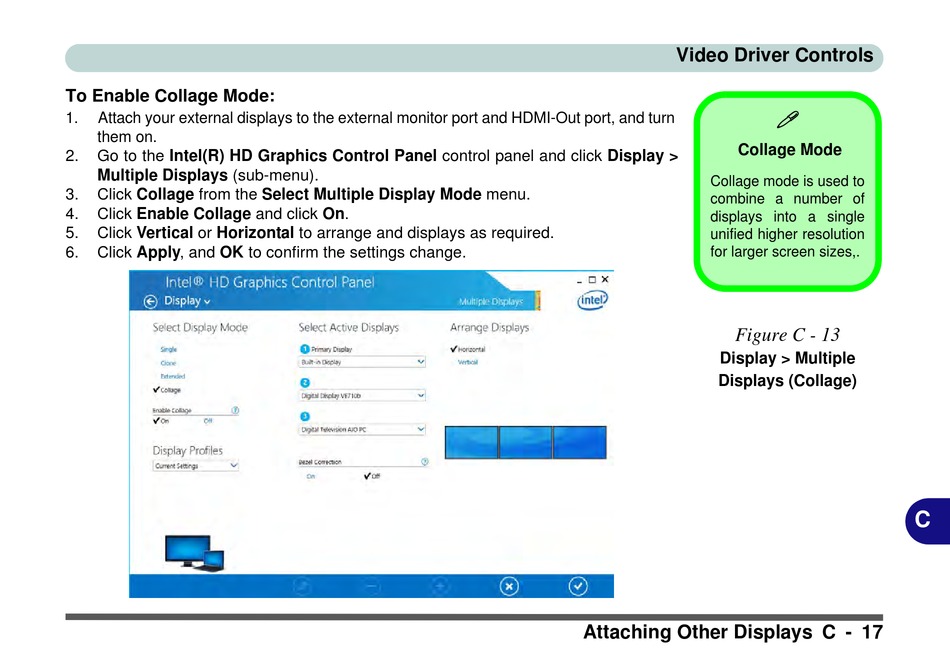

Figure C - 13
Display > Multiple
Displays (Collage)
Attaching Other Displays C - 17

C
